FREQUENCY CONVERTER EFC5610-160K-3P4-MDA-7P-NNNNN-L1NN

Manufacturer: Bosch Rexroth

Material #: R912007204

Model : EFC5610-160K-3P4-MDA-7P-NNNNN-L1NN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth EFC5610-160K-3P4-MDA-7P-NNNNN-L1NN (R912007204) is a high-performance variable frequency drive (VFD) designed to provide efficient and reliable speed control for a wide range of applications. It offers versatile control technologies, including Vf control, sensorless vector control (SVC), and field-oriented control (FOC), ensuring optimal performance for both asynchronous and synchronous motors. This drive can operate in both heavy-duty (HD) and normal duty (ND) modes, catering to different operational demands. With its built-in Safe Torque Off (STO) safety function, the EFC5610 ensures safe operation by preventing unexpected motor torque generation without cutting off the main power supply. The inclusion of a built-in brake chopper up to a certain kW rating and a network filter enhances its functionality in dynamic braking situations and improves power quality. The unit is straightforward to install and commission, featuring an integrated operating panel with an LED segment display and potentiometer that simplifies setup processes. Its robust design is encapsulated within an IP20 protection type enclosure, safeguarding the electronic components against environmental factors. For system integration, the EFC5610 includes a ModBus fieldbus interface allowing for communication with other industrial devices within automation systems. The three-phase VFD operates on a supply voltage range of 380-480V AC, making it suitable for various international power standards. This model has dimensions that include width, height, depth specifications provided by the manufacturer but not specified here due to formatting requirements. Additionally, it weighs approximately 2.7 kilograms. The EFC5610's capabilities make it an ideal choice for users seeking an economical yet powerful solution for controlling motor speeds with precision while prioritizing energy efficiency and safety in their operations.

$23,744.76 USD

Availability: 1 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as January 21, 2025 when ordered in

This product is eligible for factory repair.

Repairs from $10,801.00

FREQUENCY CONVERTER EFC5610-160K-3P4-MDA-7P-NNNNN-L1NN

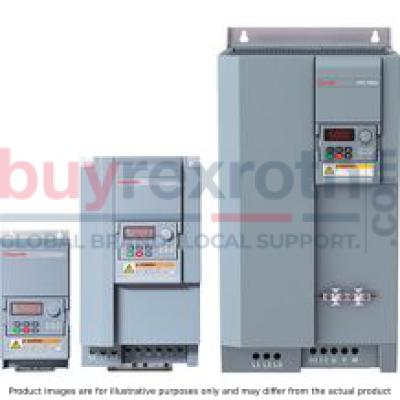

Variable Frequency Drive EFC

EFC5610 is a universal, economical frequency converter for reliable speed control and demand-oriented energy supply. V/f control, SVC and FOC control, easy installation and commissioning as well as an increased power range enable a wide range of applications.

Unpacked Weight: 100 kg

Operation of asynchronous and synchronous motors Use in HD (heavy duty) and ND (normal duty) mode Integrated operating panel for simple, fast commissioning Protection type IP20

EFC5610 is a universal, economical frequency converter for reliable speed control and demand-oriented energy supply. V/f control, SVC and FOC control, easy installation and commissioning as well as an increased power range enable a wide range of applications.

Power range 0.4 … 160 kW
Built-in brake chopper (up to 22 kW) and net filter
Control technology: V/f, SVC, FOC
Safety technology: Safe Torque Off (STO): Safety technology: Safe Torque OFF (STO)
Possible extension by I/O and field bus modules

3D CAD

Download 3D CAD

Width	480
Productgroup ID	4,6
Height	360
International protection code	IP20
Display (LED)	7-segment display with potentiometer
Type code extension	EFC5610-160K-3P4-MDA-7P-NNNNN-L1NN
Continuous power	160
Safety function	Safe Torque Off (STO) VFD
Phases	Three-phase
Fieldbus interface	ModBus
Depth	1030
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.EFC5610-160K-3P4-MDA-7P-NNNNN-L1NN**&downloads=true
Supply voltage	400 V (AC 380…480 V - 15%/ +10%)
Weight	100

01		02		03		04	05	06		07		08
EFC5610	-		-		-	M	D	A	-		-	NN

01	Frequency Converter EFC5610	EFC5610
Continuous power
02	0.4 kW	0K40
	0.75 kW	0K75
	1.5 kW	1K50
	2.2 kW	2K20
	3.0 kW	3K00
	4.0 kW	4K00
	5.5 kW	5K50
	7.5 kW	7K50
	11 kW	11K0
	15 kW	15K0
	18.5 kW	18K5
	22 kW	22K0
	30 kW	30K0
	37 kW	37K0
	45 kW	45K0
	55 kW	55K0
	75 kW	75K0
	90 kW	90K0
	110 kW	110K
	132 kW	132K
	160 kW	160K
Mains connection voltage
03	1 x AC 200 ... 240 V	1P21)
	3 x AC 200 ... 240 V	3P2
	3 x AC 380 ... 480 V	3P4
Fieldbus interface
04	Modbus RTU	M
EMC filter (protection class)
05	Industrial area, class 3	D
Protection type
06	IP20	A
Display
07	Without (dust protection cover)	NN
07	7-segment diagnostics display with potentiometer	7P
Variant
08	Without other versions	NN
08	Start lockout	L1

1)	Up to 2.2 kW continuous power

Performance data

Type	Nominal power	Continuous nominal current	Nominal power	Continuous nominal current
	Heavy-Duty-mode		Normal-Duty-mode
	PNenn	INenn	PNenn	INenn
	kW	A	kW	A
EFC5610-0K40-1P2	0.4	2.4	-	-
EFC5610-0K75-1P2	0.75	4.1
EFC5610-1K50-1P2	1.5	7.3
EFC5610-2K20-1P2	2.2	10.1
EFC5610-0K40-3P2	0.4	2.4		-
EFC5610-0K75-3P2	0.75	4.1
EFC5610-1K50-3P2	1.5	7.3
EFC5610-2K20-3P2	2.2	10.1
EFC5610-3K00-3P2	3	13.4
EFC5610-4K00-3P2	4	17.5
EFC5610-5K50-3P2	5.5	23.4
EFC5610-7K50-3P2	7.5	31.1
EFC5610-11K0-3P2	11	44.9
EFC5610-0K40-3P4	0.4	1.3		-
EFC5610-0K75-3P4	0.75	2.3
EFC5610-1K50-3P4	1.5	4
EFC5610-2K20-3P4	2.2	5.6
EFC5610-3K00-3P4	3	7.4
EFC5610-4K00-3P4	4	9.7
EFC5610-5K50-3P4	5.5	12.7	7.5	16.8
EFC5610-7K50-3P4	7.5	16.8	11	24.3
EFC5610-11K0-3P4	11	24.3	15	32.4
EFC5610-15K0-3P4	15	32.4	18.5	39.2
EFC5610-18K5-3P4	18.5	39.2	22	45
EFC5610-22K0-3P4	22	45	30	60.8
EFC5610-30K0-3P4	30	60.8	37	73.7
EFC5610-37K0-3P4	37	73.7	45	89.1
EFC5610-45K0-3P4	45	89	55	108
EFC5610-55K0-3P4	55	108	75	147
EFC5610-75K0-3P4	75	147	90	176
EFC5610-90K0-3P4	90	176	110	212
EFC5610-110K-3P4	110	212	132	253
EFC5610-132K-3P4	132	253	160	303
EFC5610-160K-3P4	160	303	200	380

Performance data

Type				EFC5610-0K40-1P2, EFC5610-0K75-1P2, EFC5610-1K50-1P2, EFC5610-2K20-1P2	EFC5610-0K40-3P2, EFC5610-0K75-3P2, EFC5610-1K50-3P2, EFC5610-2K20-3P2, EFC5610-3K00-3P2, EFC5610-4K00-3P2, EFC5610-5K50-3P2, EFC5610-7K50-3P2, EFC5610-11K0-3P2	EFC5610-0K40-3P4, EFC5610-0K75-3P4, EFC5610-1K50-3P4, EFC5610-2K20-3P4, EFC5610-3K00-3P4, EFC5610-4K00-3P4	EFC5610-5K50-3P4, EFC5610-7K50-3P4, EFC5610-11K0-3P4, EFC5610-15K0-3P4, EFC5610-18K5-3P4, EFC5610-22K0-3P4, EFC5610-30K0-3P4, EFC5610-37K0-3P4, EFC5610-45K0-3P4, EFC5610-55K0-3P4, EFC5610-75K0-3P4, EFC5610-90K0-3P4, EFC5610-110K-3P4, EFC5610-132K-3P4, EFC5610-160K-3P4
Mains connection voltage	1-phase	Unetz	V AC	200 ... 240	-
Mains connection voltage	3-phase	Unetz	V AC	-	200 ... 240	380 ... 480
Tolerance of the mains connection voltage			%	-10 ... +10		-15 ... +10
Mains frequency		fnetz	Hz	50 ... 60
Tolerance of the mains frequency			%	± 5
Output voltage			V AC	0 ... mains connection voltage
Output frequency			Hz	0 ... 400
Overload capacity	of the continuous nominal current INenn for 1 s	Heavy-Duty-mode	%	200
	of the continuous nominal current INenn for 1 min	Heavy-Duty-mode	%	150
	of the continuous nominal current INenn for 1 min	Normal-Duty-mode	%	-			120

Brake chopper/resistor

Type			EFC5610-0K40-1P2, EFC5610-0K75-1P2, EFC5610-1K50-1P2, EFC5610-2K20-1P2	EFC5610-0K40-3P2, EFC5610-0K75-3P2, EFC5610-1K50-3P2, EFC5610-2K20-3P2	EFC5610-3K00-3P2, EFC5610-4K00-3P2, EFC5610-5K50-3P2, EFC5610-7K50-3P2, EFC5610-11K0-3P2	EFC5610-0K40-3P4, EFC5610-0K75-3P4, EFC5610-1K50-3P4, EFC5610-2K20-3P4, EFC5610-3K00-3P4, EFC5610-4K00-3P4	EFC5610-5K50-3P4, EFC5610-7K50-3P4, EFC5610-11K0-3P4, EFC5610-15K0-3P4, EFC5610-18K5-3P4, EFC5610-22K0-3P4	EFC5610-30K0-3P4, EFC5610-37K0-3P4, EFC5610-45K0-3P4, EFC5610-55K0-3P4, EFC5610-75K0-3P4, EFC5610-90K0-3P4	EFC5610-110K-3P4, EFC5610-132K-3P4, EFC5610-160K-3P4
Brake chopper	Internal		Yes					No
Brake resistor	External		Yes
Motor cable length (EN 61800-3 C3)	Internal	m	15		30	15	30	50	75
Motor cable length (EN 61800-3 C3)	External	m	30	50		30	50	100	150

Ambient conditions

Type				EFC5610
Permitted ambient temperature	without Derating	T	°C	-10 ... +45
Reduction in output power	at operating elevation from 1000 m above sea level			1 % per 100 m
Relative humidity	no condensation		%	< 90
Protection type				IP20

Functions

Type				EFC5610-0K40-1P2, EFC5610-0K75-1P2, EFC5610-1K50-1P2, EFC5610-2K20-1P2, EFC5610-0K40-3P2, EFC5610-0K75-3P2, EFC5610-1K50-3P2, EFC5610-2K20-3P2, EFC5610-3K00-3P2, EFC5610-4K00-3P2, EFC5610-5K50-3P2, EFC5610-7K50-3P2, EFC5610-11K0-3P2, EFC5610-0K40-3P4, EFC5610-0K75-3P4, EFC5610-1K50-3P4, EFC5610-2K20-3P4, EFC5610-3K00-3P4, EFC5610-4K00-3P4, EFC5610-5K50-3P4, EFC5610-7K50-3P4, EFC5610-11K0-3P4, EFC5610-15K0-3P4, EFC5610-18K5-3P4, EFC5610-22K0-3P4, EFC5610-30K0-3P4, EFC5610-37K0-3P4, EFC5610-45K0-3P4, EFC5610-55K0-3P4, EFC5610-75K0-3P4, EFC5610-90K0-3P4	EFC5610-110K-3P4, EFC5610-132K-3P4, EFC5610-160K-3P4
Control technology				V/f SVC (sensorless vector control) FOC (field oriented control)
Switching frequency	configurable in 1 kHz steps	PWM	kHz	1 ... 15	1 ... 12
Start-up torque	at 1.5 Hz (V/f) max.		%	100
	at 3 Hz (V/f) max.		%	150
	at 0.5 Hz (SVC) max.		%	200
	at 0 Hz (FOC) max.		%	200
Frequency resolution	Analog		Hz	0.4
	Analog			1/1000 of the output frequency
	Digital		Hz	0.01
Frequency setting tolerance	Analog		Hz	0.4
Frequency setting tolerance	Digital		Hz	0.04
V/f curve				Freely definable Linear Quadratic
Ramps	for acceleration and braking			Linear S-curve
DC disc brake	Start frequency		Hz	0 ... 50
DC disc brake	Braking time		s	0 ... 10
Automatic PWM frequency adjustment				Load-dependent PWM frequency adjustment
Integrated control				Integrated sequential circuit
Controller				PID
Bus systems	Internal			Modbus
Bus systems	External			PROFIBUS CANopen Sercos EtherCAT (Profil CANopen, CoE) Modbus TCP PROFINET EtherNet/IP
Number of digital inputs	24 V DC (of which 1x pulse train 50 kHz)			5
Number of digital outputs	24 V DC/50 mA (pulse train 32 kHz)			1
Number of relay outputs	230 V AC/30 V DC/3 A			1
Number of analog inputs	0 ... 10 V or 0 ... 20 mA			2
Number of analog outputs	0 ... 10 V or 0 ... 20 mA			1
Status messages via digital outputs				Operation Target value reached For other parameters, see technical documentation
Display				LED 5 digit Dust cover with 5 diagnostic LEDs (option) LCD (option)
Status LED				Rotation direction Operating status
Safety Technology	Option			Safe Torque Off (STO, SIL 3 PL e)

Connections	Brief description
	External brake resistor
	Main switch
	Digital multifunctional inputs
	External supply PNP
	Internal supply PNP
	EMC filter
	(-) Terminal for 5K50 and higher
	Internal brake chopper for 0K40 ... 22K0
	Analog output
	Open collector or impulse output
	Relay output
	Communication interface
	Auxiliary voltage supply for circuit board
	Analog voltage/current input
	Internal DC choke for EFC5610 30K0 and higher
	STO function

	Power supply
	Signal supply
	Shield cable required

Dimensions

Type	A1	A2	B1	B2	C1	C2	ØD	Weight
	A1	A2	B1	B2	C1	C2	ØD	m
	mm	mm	mm	mm	mm	mm	mm	kg
EFC5610-0K40-1P2	95	66	166	156	167	159	4.5	1.5
EFC5610-0K75-1P2	95	66	166	156	167	159	4.5	1.5
EFC5610-1K50-1P2	95	66	206	196	170	162	4.5	1.9
EFC5610-2K20-1P2	120	80	231	221	175	167	4.5	2.6
EFC5610-0K40-3P2	95	66	166	156	167	159	4.5	1.5
EFC5610-0K75-3P2	95	66	206	196	170	162	4.5	1.9
EFC5610-1K50-3P2	120	80	231	221	175	167	4.5	2.6
EFC5610-2K20-3P2	120	80	231	221	175	167	4.5	2.6
EFC5610-3K00-3P2	130	106	243	228	233	225	6.5	3.9
EFC5610-4K00-3P2	130	106	243	228	233	225	6.5	4.3
EFC5610-5K50-3P2	150	125	283	265	233	225	6.5	5.7
EFC5610-7K50-3P2	150	125	283	265	233	225	6.5	6.4
EFC5610-11K0-3P2	165	140	315	300	241	233	6.5	8.5
EFC5610-0K40-3P4	95	66	166	156	167	159	4.5	1.5
EFC5610-0K75-3P4	95	66	166	156	167	159	4.5	1.5
EFC5610-1K50-3P4	95	66	206	196	170	162	4.5	1.9
EFC5610-2K20-3P4	95	66	206	196	170	162	4.5	1.9
EFC5610-3K00-3P4	120	80	231	221	175	167	4.5	2.6
EFC5610-4K00-3P4	120	80	231	221	175	167	4.5	2.6
EFC5610-5K50-3P4	130	106	243	228	233	225	6.5	3.9
EFC5610-7K50-3P4	130	106	243	228	233	225	6.5	4.3
EFC5610-11K0-3P4	150	125	283	265	233	225	6.5	5.7
EFC5610-15K0-3P4	150	125	283	265	233	225	6.5	6.4
EFC5610-18K5-3P4	165	140	315	300	241	233	6.5	8
EFC5610-22K0-3P4	165	140	315	300	241	233	6.5	8.5
EFC5610-30K0-3P4	250	200	510	492	272	264	7	27.5
EFC5610-37K0-3P4	250	200	510	492	272	264	7	29.5
EFC5610-45K0-3P4	265	200	585	555	325	317	11	39
EFC5610-55K0-3P4	265	200	585	555	325	317	11	42
EFC5610-75K0-3P4	325	200	760	727	342	334	11	54
EFC5610-90K0-3P4	325	200	760	727	342	334	11	61
EFC5610-110K-3P4	385	250	923	893	350	342	11	71.7
EFC5610-132K-3P4	385	250	923	893	350	342	11	76.6
EFC5610-160K-3P4	480	400	1030	995	360	352	13	108
