CONTROL UNIT CSB02.1B-ET-EC-NN-NN-NN-NN-AW

Manufacturer: Bosch Rexroth

Material #: R911381175

Model : CSB02.1B-ET-EC-NN-NN-NN-NN-AW

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CSB02.1B-ET-EC-NN-NN-NN-NN-AW (R911381175) is a state-of-the-art single axis control unit designed to cater to a broad spectrum of applications, boasting compatibility with multiple control communication and encoder interfaces. This advanced module is adept at handling a diverse range of encoder types due to its multiencoder interface, ensuring seamless integration into various system architectures. Equipped with a MultiEthernet interface, the unit supports an array of protocols including Sercos, EtherCAT, PROFINET IO, EtherNet/IP, and Powerlink, thereby offering flexibility in network connectivity and facilitating efficient data exchange. For those seeking additional safety measures in their operations, the CSB02.1B-ET-EC-NN-NN-NN-NN-AW offers optional integrated safety technology such as Safe Torque Off or Safe Motion. To further customize the system according to specific application requirements, there are additional equipment options available—PROFIBUS and CANopen for fieldbus connectivity, encoder emulation for simplified system design, a second multiencoder interface for extended functionality, and IO extension for increased input/output capabilities. The firmware functions included with this control unit are extensive and comply with IEC standards for Motion Logic. This ensures that users can implement complex motion control tasks with reliability and precision. The versatility provided by these features makes the CSB02.1B-ET-EC-NN-NN-NN-NN-AW an ideal solution for those looking to optimize their automation systems with high-performance motion control technology.

$2,410.04 USD

Availability: 23 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 18, 2024 when ordered in

This product is eligible for factory repair.

Repairs from $826.00

CONTROL UNIT CSB02.1B-ET-EC-NN-NN-NN-NN-AW

Unpacked Weight: 0.480 kg

The BASIC single axis control units are suitable for a variety of applications. They support a wide range of control communication and encoder interfaces.

Operating panel	with advanced control panel, firmware must be ordered separately
Interface 4	not fitted
Interface 1	Multi-encoder interface
Productgroup ID	4,6
Interface 2	not fitted
Interface 3 (safety technology)	not fitted
Communication	MultiEthernet
Weight	0.480

01	02		03	04		05		06		07		08		09		10		11
CSB	02	.			-		-		-		-		-		-		-

01	IndraDrive - CSB02	CSB
02	Line	02
Variant
03	1	1
Interface equipment
04	Basic functionality	A
04	Extended functionality	B
Communication
05	Multi-Ethernet	ET
Interface 1
06	Multi-encoder interface	EC
Interface 2
07	Not equipped	NN
	PROFIBUS	PB
	CANopen	CN
	Multi-encoder interface	EC
	Encoder emulation	EM
	Engineering port	EP
Interface 3 (safety technology)1)
08	Not equipped	NN
	STO (Safe Torque Off)	L3
	Safe Motion2)	S4
	Safe Motion2)	S5
	Safe Motion Bus2)	SB
Interface 4
09	Not equipped	NN
	Multi-encoder interface3)	EC
	Encoder emulation4)	EM
	Digital/analog I/O extension2)	DA
Other version
10	None	NN
Firmware
11	With ADVANCED operating panel, firmware must be ordered separately	AW
	With STANDARD operating panel, firmware must be ordered separately	FW
	Without operating panel and firmware	NW

1)	The L3, S4, S5 and SB interfaces ensure both the function and its certification.
2)	Only if interface equipment = B
3)	Only if interface equipment = B and interface 2 = PB, CN or EP
4)	Only if interface equipment = B and interface 2 = PB, CN, EP or EC

IndraDrive control units

Type		CSB02.1A-ET	CSB02.xB-ET
Communication
Multi-Ethernet	Sercos III, EtherCAT®, PROFINET IO, EtherNet/IP, Powerlink	●	●
Analog interface 1)		○	○
PROFIBUS		○	○
CANopen		○	○
Extensions
Encoder emulation		○	●
MultiEncoder interface		○	○
Encoder emulation with level converter function		○	○
Digital/analog I/O extension		-	○
Extra engineering port		○	-
Operating panel
Standard operating panel		●	●
ADVANCED operating panel with memory card slot		○	○
Cycle times (performance ECONOMY or BASIC/ADVANCED)
Current control 2)		125/62,5 µs
Speed control 2)		250/125 µs
Position control 2)		500/250 µs
PWM frequency
2 kHz 3)		●	●
4 kHz		●	●
8 kHz		●	●
12 kHz 3)		●	●
16 kHz		●	●
Inputs/outputs
Digital inputs/of which utilizable as touch probes		7/2	11/2
Digital inputs/outputs (any configurable)		1	5
Analog inputs	±10 V	1	1
Analog inputs	±10 V or 0 ... 20 mA	-	2
Analog outputs	±10 V	-	2
Relay outputs		1	1

1)	Via onboard analog input and optional encoder emulation
2)	ADVANCED performance on BASIC control units can only be used with limitations
3)	Not with ADVANCED performance

Onboard encoder interface

MultiEncoder interface	Motors (MAD, MAF, MCL, MKE, MS2N, MSK, MSM), Hiperface®, EnDat 2.1, EnDat 2.2, 1 Vss, 5 V TTL, SSI, Resolver		●	●

Safety options according to EN 13849-1 and EN 62061

Safe Torque Off	Category 4 PL e/SIL 3	○	○
Safe Motion	Category 3 PL d/SIL 2 or category 4 PL e/SIL 3	-	○
Safe Motion Bus	Category 3 PL d/SIL 2 or category 4 PL e/SIL 3	-	○

Legend
●	Standard
○	Option
▼	In preparation

CSB02

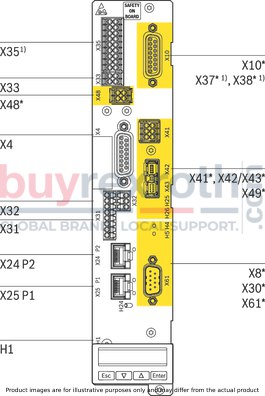

Front view	Connection point	Description
	X4	Encoder evaluation EC
	X8*	Encoder evaluation EC Encoder emulation EM
	X10*	Encoder evaluation EC Encoder emulation EM
	X24 P2, X25 P1	Multi-Ethernet communication ET
	X30*	PROFIBUS communication PB
	X31	Digital inputs/outputs Probe input
	X32	Analog inputs
	X33	Voltage input (24 V, 0 V) Standby relay
	X351)	Digital inputs/outputs; Analog inputs (current/voltage) Analog outputs (voltage)
	X37* 1)	Digital inputs/outputs
	X38* 1)	Analog inputs/outputs
	X41*	S4, S5, SB safety technology (Not required for SB: X41, X42 and X43; LEDs included)
	X42/X43*
	X48*	Safety Technology (Only available with S4, S5 and SB safety technology)
	X49*	L3 safety technology
	X61*	Communication CANopen CN
	H1	Operating panel interface

1) CSB02.xB only
* Optional connection points; optional connection points are highlighted in yellow in the figure.
