CONTROL UNIT CSB02.1A-ET-EC-NN-L3-NN-NN-AW
Manufacturer: Bosch Rexroth
Material #: R911381173
Model : CSB02.1A-ET-EC-NN-L3-NN-NN-AW
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CSB02.1A-ET-EC-NN-L3-NN-NN-AW (R911381173) is a sophisticated single-axis control unit designed to cater to a diverse array of applications. This unit stands out for its versatility, supporting an extensive range of control communication protocols and encoder interfaces, which makes it highly adaptable to various operational requirements. The control unit is engineered to seamlessly integrate with systems that require precise motion control, ensuring optimal performance and reliability.
Its capability to work with multiple encoder types allows for flexibility in system design and retrofitting into existing setups without the need for extensive modifications. The Bosch Rexroth CSB02.1A model is particularly suitable for applications that demand high levels of accuracy and efficiency, such as automated manufacturing processes, robotics, and CNC machinery.
The user-friendly interface of this control unit ensures ease of setup and maintenance, reducing downtime and enhancing productivity. Its robust construction adheres to the high-quality standards set by Bosch Rexroth, ensuring long-term durability even in demanding industrial environments. The CSB02.1A-ET-EC-NN-L3-NN-NN-AW model embodies a commitment to advanced technology and precision engineering, providing users with a reliable solution for their single-axis control needs.
$1,941.39 USD
Availability: 3 In Stock
Available for immediate shipmentQty: Delivered as early as December 24, 2024 when ordered in
This product is eligible for factory repair.
CSB02
|

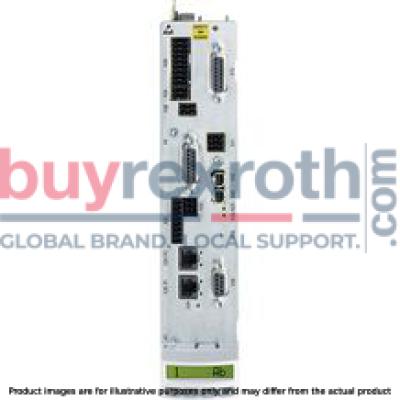

Front view |
Connection point |
Description |
|
X4 |
Encoder evaluation EC |
|
X8* |
Encoder evaluation EC Encoder emulation EM |
|
|
X10* |
Encoder evaluation EC Encoder emulation EM |
|
|
X24 P2, X25 P1 |
Multi-Ethernet communication ET |
|
|
X30* |
PROFIBUS communication PB |
|
|
X31 |
Digital inputs/outputs Probe input |
|
|
X32 |
Analog inputs |
|
|
X33 |
Voltage input (24 V, 0 V) Standby relay |
|
|
X351) |
Digital inputs/outputs; Analog inputs (current/voltage) Analog outputs (voltage) |
|
|
X37* 1) |
Digital inputs/outputs |
|
|
X38* 1) |
Analog inputs/outputs |
|
|
X41* |
S4, S5, SB safety technology (Not required for SB: X41, X42 and X43; LEDs included) |
|
|
X42/X43* |
||
|
X48* |
Safety Technology (Only available with S4, S5 and SB safety technology) |
|
|
X49* |
L3 safety technology |
|
|
X61* |
Communication CANopen CN |
|
|
H1 |
Operating panel interface |
|
1) CSB02.xB only |
|
* Optional connection points; optional connection points are highlighted in yellow in the figure. |
Motion Control system, based on drive system IndraDrive
MLD
Motion Control system, based on drive system IndraDrive
MLD
Certified safety technology Drive-integrated Motion Control acc. to IEC 61131-3 Electronic synchronization of up to 10 servo-axes Intuitive engineering thanks to the IndraWorks software framework Optional technology and communication interfacesApplication description
Documentation MLD, 13VRS
IndraDrive C
HCS02
IndraDrive C
HCS02
1.5 kW ... 11 kW power range 12 A ... 70 A maximum current 200 V ... 500 V direct power supply 2.5x overload capacity Compact design for single-axis applicationsOperating instructions
