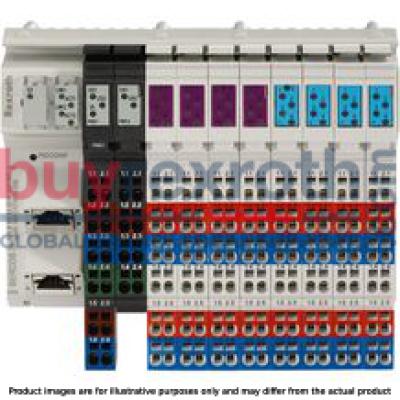

R-ILB S3 24 DI16 DIO16/F

Manufacturer: Bosch Rexroth

Material #: R911171675

Model : R-ILB S3 24 DI16 DIO16/F

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R911171675 (RILB S DI DIOF) is a highly efficient digital I/O module that plays a crucial role in the acquisition and output of digital signals within a SERCOS network. This module is specifically engineered to handle fast digital input signals and to output digital signals with precision. It operates with input voltages of VDC and can output both VDC and mA, ensuring compatibility with a wide range of industrial applications. This model comes fully equipped with essential accessories, including a connection plug for easy installation and a labeling field that aids in the organization and identification of connections, enhancing the user experience during setup and maintenance. The R911171675 features Timestamp Oversampling technology which allows for more accurate timing of signal processing, thereby improving the synchronicity of operations within the control system. Its robust design includes provisions for wire connections, simplifying the integration process into existing systems. The device's compact form factor combined with its advanced functionalities makes it an ideal choice for applications requiring rapid signal processing without compromising on reliability or performance. The Bosch Rexroth R911171675 is designed to deliver high-speed communication capabilities, making it an indispensable component in modern automated environments where efficiency and accuracy are paramount.

$6,211.70 USD

More are expected on June 10, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as June 10, 2024 when ordered in

Complete with accessories (connection plug and labeling field)

The R-ILB S3 24 DI16 DIO16/F module is designed for use within a SERCOS network. It is used to quickly acquire digital input signals and to quickly output digital signals.

General data

Type		R-ILB S3 24 DI16 DIO16/F
Weight 1)	g	505
Operating mode		Sercos process data operation
Sensor connection type		2-, 3-wire technology
Actuator connection type		2-, 3-wire technology
Ambient temperature (operation)		-25 °C ... +60 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa … 108 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa … 108 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1
Clearances and creepage distances		Acc. to DIN VDE 0110/IEC 60664, IEC 60664A, DIN VDE 0160/EN 50178/IEC 62103
Housing material		Plastic, PVC-free, PBT, self-extinguishing (V0)
Degree of contamination 2)		2; dewing in operation is not permitted!
Overvoltage class		II

1)	Including plug
2)	Acc. to EN 60664-1/IEC 60664-1, EN 61131-2/IEC 61131-2

Connection data

Type		R-ILB S3 24 DI16 DIO16/F
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16

Interface fieldbus

Type		R-ILB S3 24 DI16 DIO16/F
Number of interfaces		2
Connection type		RJ45 plug; shielding via parallel connection of R, C, and VDR
Connectivity technology		Sercos
Transmission speed		100 MBit/s

24 V module supply (logic, sensor and actuator supply)

Type			R-ILB S3 24 DI16 DIO16/F
Rated value		V DC	24
Tolerance			-15 %/+20 % acc. to EN 61131-2
Ripple 1)		%	± 5
Permissible range			19.2 ... 30 V DC
Current consumption from UL		mA	90
Current consumption from US		A	2
Current consumption from UA		A	4
Protection measures	Overvoltage		Yes
Protection measures	Reverse polarity		Yes
Connection			Via power supply plug

1)	Acc. to EN 61131-2

Digital inputs

Type			R-ILB S3 24 DI16 DIO16/F
Number of digital inputs			32
Number of digital inputs			16 fixed, 16 freely definable
Connection type			2-, 3-wire technology
Dimensioning of inputs			Acc. to EN 61131-2 type 1
Definition of switching thresholds	Maximum voltage of the low level ULmax	V	< 5
Definition of switching thresholds	Minimum voltage of the high level UHmin	V	> 15
Common potentials			Sensor supply US, weight
Nominal input voltage UIN		V DC	24
Permissible range			-30 V < UIN < +30 V DC
Nominal input current at UIN		mA	2.5
Current profile			Linear in the range 1 V < UIN < 30 V
Delay time	Typical tON	µs ms ms	10 1 3
Delay time	Typical tOFF	µs ms ms	10 1 3
Permissible cable length to sensor		m	100
Use of AC sensors			AC sensors in the voltage range < UIN are only partially applicable

Digital outputs

Type				R-ILB S3 24 DI16 DIO16/F
Number of digital outputs				16
Number of digital outputs				Freely definable
Connection type				2-, 3-wire technology
Nominal output voltage UOut			V DC	24
Differential voltage at INenn			V	≤ 1
Nominal current INenn each channel			A	0.5
Total current			A	8
Delay time	Typical tON		µs	10
Delay time	Typical tOFF		µs	10
Nominal load	Ohmic	48 Ω	W	12
	Lamps		W	5
	Inductance	1.2 H; 50 Ω	VA	12
Switching frequency with a nominal inductive load	1.2 H; 50 Ω		Hz	≤ 0.5
Limited inductive cut-off voltage			V	- 1.2
Unique maximum energy when free-wheeling			J	≤ 1
Output current in deactivated state			μA	≤ 10
Behavior	For overload			Automatic restart
	For inductive overload			Output can be destroyed
	When the voltage is deactivated (power down)			The output follows the power supply without delay
Reverse voltage protection from short pulses				Reverse voltage protection
Resistance to permanently generated reverse voltage			A	≤ 2
Type of protection circuit				Integrated free-wheeling circuit in the output chip
Overcurrent cutoff			A	≥ 1
Short-circuit protection, overload protection of the outputs				Yes

Power dissipation
Formula for calculating the power dissipation in the electronics

where:
PEL	Total power dissipation in the assembly
IS36	Current of sensor supply at slots 3 to 6
IS710	Current of sensor supply at slots 7 to 10
n	Number of set outputs (n = 1 to 16)
ILn	Load current of output n
m	Number of set inputs (m = 1 to 32)

Electrical isolation/insulation of the voltage ranges

Type		R-ILB S3 24 DI16 DIO16/F
Test distance		Test voltage
Sercos/logic		500 V AC, 50 Hz, 1 min.
Sercos/peripherals		500 V AC, 50 Hz, 1 min.
Sercos/function earth		500 V AC, 50 Hz, 1 min.
Peripherals/logic		500 V AC, 50 Hz, 1 min.
Peripherals/function earth		500 V AC, 50 Hz, 1 min.
Logic/function earth		500 V AC, 50 Hz, 1 min.
Signals Ethernet interface/logic		1500 V rms, 50 Hz to 60 Hz, 1 min.

Restriction of simultaneity, derating

Type		R-ILB S3 24 DI16 DIO16/F
Derating		No restriction of simultaneity, derating

Derating

Type			R-ILB S3 24 DI16 DIO16/F
Ambient temperature (TU)			Total current (Iges)
Outputs, plugs 3 to 6	-25 °C to +35 °C	A	8
Outputs, plugs 3 to 6	+35 °C to +60 °C		8 A ‒ ((TU ‒ 35 °C) x 0.2 A/°C)
Sensor supply, plugs 3 to 6	-25 °C to +35 °C	A	2
Sensor supply, plugs 3 to 6	+35 °C to +60 °C		2 A ‒ ((TU ‒ 35 °C) x 0.05 A/°C)
Sensor supply, plugs 7 to 10	-25 °C to +35 °C	A	2
Sensor supply, plugs 7 to 10	+35 °C to +60 °C		2 A ‒ ((TU ‒ 35 °C) x 0.05 A/°C)

Error messages to the higher-level control or computer system

Type		R-ILB S3 24 DI16 DIO16/F
Error message		Short-circuit/overload of outputs Missing sensor supply Short-circuit/overload of sensor supply

Mechanical tests

Type		R-ILB S3 24 DI16 DIO16/F
Vibration resistance 1)		Load 5 g, 2.5 h per spatial direction
Shock 2)		Load 25 g for 11 ms, half sinusoidal wave, three shocks per spatial direction and orientation
Broadband noise 3)		Load 0.78 g, 2.5 h per spatial direction

1)	Acc. to EN 60068-2-6/IEC 60068-2-6
2)	Acc. to EN 60068-2-27/IEC 60068-2-27
3)	Acc. to EN 60068-2-64/IEC 60068-2-64

Conformity

Type		R-ILB S3 24 DI16 DIO16/F
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 4 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; remote bus: 2 kV; voltage supply: 2 kV; I/O lines: 2 kV; criterion A; all interfaces: 1 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric); signal lines: ±1 kV/±1 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-4	Testing of line-fed disturbance transmission	Class A acc. to EN 55011

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-ILB S3 24 DI16 DIO16/F
A	mm	156
B	mm	141
C	mm	57
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
