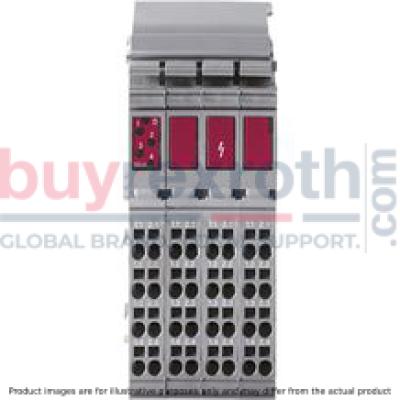

INTERFACE MODULE R-IB IL 24/230 DOR4/W-PAC

Manufacturer: Bosch Rexroth

Material #: R911170758

Model : R-IB IL 24/230 DOR4/W-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL 24/230 DOR4/W-PAC (R911170758) is a high-quality digital output module that is an integral component for automation systems requiring reliable relay control. This module is specifically engineered to fit seamlessly within an Inline station, providing efficient interfacing and signal processing capabilities. It comes equipped with four Single-Pole Double-Throw (SPDT) relay contacts that are brought out floating, ensuring versatile connection options for various industrial applications. The relay contacts featured in this module are designed with gold contacts, which offer superior conductivity and resistance to corrosion, leading to enhanced reliability and longevity of the equipment. These contacts are capable of handling ...VAC at A current rating, making them suitable for a wide range of load requirements. The module also includes all necessary accessories such as a connection plug and a labeling field, allowing for easy installation and clear identification within complex systems. With its robust construction and precision engineering, the Bosch Rexroth R-IB IL 24/230 DOR4/W-PAC digital output module is well-suited for tasks that require precise control over power distribution, such as in automated manufacturing processes or in building management systems where dependable relay operations are critical. Its compatibility with the Inline station architecture ensures that it can be integrated into existing setups with minimal disruption, offering a streamlined solution for upgrading or expanding system capabilities.

$447.48 USD

More are expected on December 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 19, 2024 when ordered in

INTERFACE MODULE R-IB IL 24/230 DOR4/W-PAC

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.219 kg

This module is designed for use within an Inline station. It has four SPDT relay contacts that are brought out floating.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Width	48.8
Productgroup ID	4,6
Maximum switching power, AC/DC	750
Height	120
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
Maximum switching voltage, AC	253
Number of channels	4
Maximum switching voltage, DC	250
Connection type	Zugfederanschluss
Connection techniques	Potenzialfreier Relais-Wechslerkontakt
Depth	71.5
Weight	0.219
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL 24/230 DOR 4/W-PAC
Weight 1)	g	153
Operating mode		Process data operation with 4 bits
Actuator connection type		Floating SPDT relay contact
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529

1)	Including plug

Connection data

Type		R-IB IL 24/230 DOR 4/W-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL 24/230 DOR 4/W-PAC
Connection type		Data ranking
Transmission speed	kBit/s	500

Inline potentials/performance balance

Type			R-IB IL 24/230 DOR 4/W-PAC
Logic voltage		V DC	7.5
Current consumption from UL	OFF		22 mA
Current consumption from UL	ON		187 mA
Power consumption from UL	OFF		0.17 W
Power consumption from UL	ON		1.4 W

Supply of module electronics and peripherals via bus coupler/power feed module

Type		R-IB IL 24/230 DOR 4/W-PAC
Connectivity technology		Potential jumpers

Relay output

Type			R-IB IL 24/230 DOR 4/W-PAC
Number of outputs			4
Contact material			AgSnO2, hard gold-plated
Transfer resistance of the contact	At 100 mA/6 V		50 mΩ
Limiting continous current	At maximum ambient temperature		3 A
Maximum switching voltage			253 V AC 250 V DC
Maximum switching power 1)	AC/DC		750 VA
Minimum load			5 V 10 mA
Switching current	At 30 V DC		3 A
Switching current	At 250 V DC		0.15 A
Maximum inrush current peak 2)	For lamp loads and capacitive loads		6 A
Nominal current consumption of the coil (at 20 °C)	From 7.5 V power supply		330 mW
Resistance of the coil (at 20 °C)	±12 Ω		119 Ω
Maximum switching frequency	No load	Switching cycles/minute	1200 GHz
Maximum switching frequency	At nominal load	Switching cycles/minute	6 GHz
Typical response delay			5 ms
Typical bouncing time			5 ms
Typical release time			6 ms
Service life	Mechanical	Switching cycles	2 x 107
Service life	Electrical 3)	Switching cycles	105
Common potentials			All contacts floating

1)	See derating
2)	For T = 200 μs
3)	With 20 switching cycles/minute

Power dissipation
Formula for calculating the power dissipation in the module
PEL = PBUS + (PREL) + PL

where:
PEL	Total power dissipation in the module
PBUS	Power dissipation due to the bus operation
PREL	Power dissipation in relay coil
PL	Power dissipation due to load current over the contacts
n	Number of set inputs (n = 1 to 4)
i	Running index
IL	Load current of output
Power dissipation of housing dependent on the ambient temperature
PGEH = 2.7 W	-25 °C < TU ≤ +25 °C
PGEH = 2.7 W ‒ ((TU ‒ 25 °C) x 0.02 W/°C)	+25 °C < TU ≤ +55 °C
where:
PGEH	Admissible power dissipation of housing
TU	Ambient temperature

Error messages to the higher-level control or computer system

Type		R-IB IL 24/230 DOR 4/W-PAC
Error message		None

Air and creepage distances (acc. to EN 50178, VDE 0109, VDE 0110)

Partition section		Relay contact/bus logic	Contact/contact	Contact/PE
Clearance	mm	≥ 5.5	≥ 3.1	≥ 3.1
Creepage distance	mm	≥ 5.5	≥ 3.1	≥ 3.1
Test voltage		4 kV, 50 Hz, 1 min.	1 kV, 50 Hz, 1 min.

Mechanical tests

Type		R-IB IL 24/230 DOR 4/W-PAC
Vibration resistance 1)		Load 2 g, 2 h per spatial direction
Shock 2)		Load 2 g for 11 ms, half sinusoidal wave, 3 shocks per spatial direction and orientation

1)	Acc. to IEC 60068-2-6; EN 60068-2-6
2)	Acc. to IEC 60068-2-27; EN 60068-2-27

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL 24/230 DOR 4/W-PAC
A	mm	48.8
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
