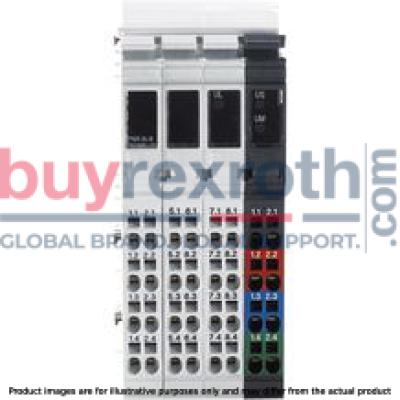

INTERFACE MODULE R-IB IL 24 PWR IN/R-PAC

Manufacturer: Bosch Rexroth

Material #: R911170446

Model : R-IB IL 24 PWR IN/R-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL 24 PWR IN/R-PAC (R911170446) is a state-of-the-art power feed terminal designed to integrate seamlessly within an Inline station. This module is particularly useful when the maximum ampacity of the potential shunter UL has been reached, allowing for the reapplication of logic voltage. By applying a 24 V DC voltage at the terminal, it generates the necessary logic voltage UL and also provides supply voltage for analog terminals UANA. Furthermore, this versatile terminal facilitates the feeding of both the principal 24 V DC voltage UM and the segment voltage US, ensuring that your system maintains consistent power distribution across all components. It comes as a complete package with accessories including a connection plug and labeling field, which simplifies installation and maintenance while enhancing organization within your electrical setup. The R-IB IL 24 PWR IN/R-PAC terminal is designed without an internal fuse, signifying that it should be used in conjunction with proper external circuit protection to safeguard against potential electrical faults. Its robust design and reliable performance make it an essential component for managing power within complex automation systems. Whether you're looking to expand your system's capabilities or ensure stable operation, this Bosch Rexroth power feed terminal is engineered to meet high standards of efficiency and reliability.

$381.55 USD

More are expected on December 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 19, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

INTERFACE MODULE R-IB IL 24 PWR IN/R-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.225 kg

This terminal is designed for use within an Inline station. If the maximum ampacity of the potential shunter UL has been reached, then this terminal can be used to feed the logic voltage again. To do so, a 24 V DC voltage (U24V) is applied at the terminal; this voltage generates the logic voltage (UL) and the supply voltage for the analog terminals (UANA). This terminal also enables the 24 V DC principal voltage (UM) and the 24 V DC segment voltage (US) to be fed.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Rated value; 24V periphery (main circuit UM)	24 V DC
Width	48.8
Productgroup ID	4,6
Height	120
Maximum current	8
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
Connection type	Zugfederanschluss
Depth	71.5
Weight	0.225
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL 24 PWR IN/R-PAC
Weight 1)	g	192
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 %, EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 %, EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, VDE 0106, IEC 60536

1)	Including plug

Connection data

Type		R-IB IL 24 PWR IN/R-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL 24 PWR IN/R-PAC
Connection type		Data ranking

Common data for 24 V feeds

Type		R-IB IL 24 PWR IN/R-PAC
Rated value	V DC	24
Tolerance		-15 %/+20 % acc. to EN 61131-2
Ripple	%	± 5
Supply voltage range		19.2 V ... 30 V

24 V main power feed/24 V segment power feed

Type			R-IB IL 24 PWR IN/R-PAC
Connection			Via power supply plug
Connectivity technology			Tension spring modules
Permissible cable length 1)		m	≤ 30
Continuation			Via potential jumpers
Current-carrying capacity		A	≤ 8
Protective devices	Overvoltage		Yes; input protection diodes are destroyed by permanent overload. Pulse loads up to 1500 W are short-circuited by the input protection diode.
Protective devices	Reverse polarity		Yes; parallel polarity protection diodes; in the event of a fault, the high current through the diodes melts the upstream safety fuse.

1)	Cable route is not permissible via open spaces

24 V power feed U24V for generating UL and UANA

Type			R-IB IL 24 PWR IN/R-PAC
Connection			Via power supply plug
Connectivity technology			Tension spring modules
Permissible cable length 1)		m	≤ 30
Typical current consumption		A	0.012
Maximum current consumption 2)		A	1.25
Protective devices	Overvoltage		Yes; input protection diodes are destroyed by permanent overload. Pulse loads up to 1500 W are short-circuited by the input protection diode.
Protective devices	Reverse polarity		Yes; serial diode in the feed path of the mains power supply; in the event of a fault, only low current flows and does not trip a fuse in the external power supply.

1)	Cable route is not permissible via open spaces
2)	Comprising:0.75 A for logic supply0.5 A for analog voltage supply

Module power supply

Type			R-IB IL 24 PWR IN/R-PAC
Logic power supply UL (Potential jumper)	Rated value	V DC	7.5
	Tolerance	%	± 5
	Ripple	%	± 1.5
	Maximum output current	A	≤ 2
	Electrical short-circuit protection		Electronic
Analog power supply UANA (Potential jumper)	Rated value	V DC	24
	Maximum output current	A	0.5
	Electrical short-circuit protection		Electronic

Power dissipation

Type		R-IB IL 24 PWR IN/R-PAC
Power dissipation (device)		≤ 2.55 W

Electrical isolation/insulation of the voltage ranges
When supplying the 24 V feed to generate UL and UANA separate from the 24 V main supply/24 V segment supply	Common potentials	Main and segment supply are galvanically on the same potential. Their shared ground is led to the participants as ground potential GND, starting from the line skip module and via the potential jumper. 24 V feed to generate UL and UANA, 24 V analog supply and 7.5 V logic supply are galvanically on the same potential. Their shared ground is led to the participants as ground potential "Logic GND" (UL-), starting from the line skip module and via the potential jumper.
	Separated potentials	The 24 V feed to generate UL and UANA is separated spatially from the main and segment supply and thus electrically isolated.
When supplying the 24 V feed to generate UL and UANA by bridging the 24 V main supply/24 V segment supply	Common potentials	Main supply, segment supply, 24 V analog supply and 7.5 V logic supply are galvanically on the same potential. Their shared ground is led separately to the participants as ground potential "Logic GND" (UL-) for the logic and analog supply and as ground potential GND for the feed and segment levels, starting from the line skip module and via the potential jumper.
	Separated potentials	None

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL 24 PWR IN/R-PAC
Test distance		Test voltage
7.5 V-logic, 24 V analog supply/function earth		500 V AC, 50 Hz, 1 min.
7.5 V logic, 24 V analog supply/24 V main, 24 V segment supply		500 V AC, 50 Hz, 1 min.
24 V main, 24 V segment supply/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL 24 PWR IN/R-PAC
Error message		None

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL 24 PWR IN/R-PAC
A	mm	48.8
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).

Special requirements to be met by the voltage supply
When feeding the supply voltage U24V separate from the supply voltages UM/US these are galvanically isolated from each other. This is only possible using two separate power packs.

Response in the event of voltage dips and interruptions
The voltages (principal and segment voltage) passed on by the feed module to the potential jumpers follow the fed supply voltages undelayed.

Special requirements to be met by the voltage supply
When feeding the supply voltages UM/US separate from the supply voltage U24V these are galvanically isolated from each other. This is only possible using two separate power packs.
