INTERFACE MODULE R-IB IL PWM/2-PAC

Manufacturer: Bosch Rexroth

Material #: R911170444

Model : R-IB IL PWM/2-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL PWM/2-PAC (R911170444) is a versatile function module tailored for seamless integration into an Inline station, offering a range of operating modes to suit various application needs. This module excels in generating PWM (Pulse Width Modulation) signals, functioning as a frequency generator, and operating as a single shot single-pulse generator or pulse-direction signal provider. It is specifically designed to modulate pulse width and frequency or to control stepper motor power units that come with pulse-direction interface outputs. The module operates efficiently with either 24V or 5V outputs and comes equipped with all necessary accessories, including a connection plug and a labeling field for ease of use and organization. Its adaptability makes it an essential component for precision control in applications requiring intricate modulation of signals for actuating various electronic components. The R-IB IL PWM/2-PAC's robust design ensures reliable performance in controlling the intensity, duration, and frequency of electrical signals, making it an invaluable asset for sophisticated automation tasks.

$788.98 USD

Availability: 5 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 27, 2024 when ordered in

INTERFACE MODULE R-IB IL PWM/2-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.169 kg

This module is designed for use within an Inline station. It can be used in the following four different operating modes: PWM (pulse-width modulation), frequency generator, single shot (single-pulse generator), pulse-direction signal.

Data Sheet	Download Data Sheet
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Width	24.4
Productgroup ID	4,6
Height	136.8
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
Number of channels	2
Connection type	Zugfederanschluss
Connection techniques	2-, 3-Leitertechnik
Depth	71.5
Weight	0.169
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 17

General data

Type		R-IB IL PWM/2-PAC
Weight 1)	g	130
Operating mode		Process data mode with 2 words
Sensor connection type		2-, 3-wire technology
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, VDE 0106, IEC 60536

1)	Including plug

Interface local bus

Type		R-IB IL PWM/2-PAC
Connection type		Data ranking
Transmission speed	kBit/s	500

Inline potentials/performance balance

Type		R-IB IL PWM/2-PAC
Logic voltage	V DC	7.5
Maximum current consumption from UL	mA	130
Maximum power consumption from UL	W	0.98
Segment supply voltage US 1)	V DC	24
Nominal current consumption from US	A	1

1)	Rated value

Supply of module electronics and peripherals via bus coupler/power feed module

Type		R-IB IL PWM/2-PAC
Connectivity technology		Potential jumpers

Digital outputs

				24 V DC	5 V DC
Number of digital outputs				2	2
Nominal output voltage UOut			V DC	24	5
Differential voltage at INenn			V	≤ 1	0.5
Nominal current INenn each channel				0.5 A	10 mA
Nominal current tolerance			%	+ 10	+ 10
Internal resistance				200 mΩ	50 Ω
Short-circuit protection/overload protection of digital outputs				Electronic	Electronic
Nominal load			Ω	-	500
Nominal load	Ohmic		W	12	-
	Lamps		W	12	-
	Inductance	1.2 H; 24 Ω	VA	12	-
Typical signal delay upon activating a	Ohmic nominal load 1)		µs	≈ 80	2
	Lamp nominal load		ms	30	-
	Inductive nominal load	1.2 H; 24 Ω	ms	≈ 50	-
Signal delay upon deactivating a	Ohmic nominal load		µs	≈ 80	2
	Lamp nominal load		µs	≈ 100	-
	Inductive nominal load	1.2 H; 24 Ω	ms	≈ 150	-
Maximum switching frequency for a	Ohmic nominal load			500 Hz	50 kHz
	Lamp nominal load		Hz	500	-
	Inductive nominal load	1.2 H; 12 Ω	Hz	0.3	-
Behavior for overload				Automatic restart	-
Response time upon short-circuit			ms	≈ 400	-
Reverse voltage protection from short pulses				Reverse voltage protection	-
Resistance to permanently generated reverse voltage 2)			A	≤ 2	-
Resistance to the polarity of the supply voltage				Protection elements of the bus coupler or the feed module	-
Resistance to permanently generated overload				No	-
Validity of the output data after switching on the 24 V supply voltage (power up)				Typically 1 ms	-
Behavior when the voltage is deactivated (power down)				The output follows the power supply without delay	-
Limited inductive cut-off voltage			V	≈ - 25	-
Unique maximum energy when free-wheeling			mJ	200	-
Type of protection circuit				Integrated free-wheel diode per channel	-
Overcurrent cutoff			A	≥ 0.7	-
Overvoltage/reverse polarity protection supply voltage				Protective elements of the bus coupler or the feed module; the supply voltage must be fused. The power supply unit should be able to provide four times the nominal current of the fuse.	-

1)	Typical
2)	Reverse voltage protection in relation to the permissible supply voltage

Power dissipation
Formula for calculating the power dissipation in the electronics
PEL = PBUS + POut5V + POut24V
PEL = 1 W + n x ILi2 x 0.4 Ω
where:
PEL	Total power dissipation in the module
PBUS	Power dissipation in the module without set output
POut5V	Power dissipation in the module through set 5 V outputs; this value is negligibly low, which is why it is omitted in the calculation.
POut24V	Power dissipation in the module through set 24 V outputs
n	Number of set 24 V outputs (n = 1 to 2)
ILi	Load current of output i
i	Running index

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL PWM/2-PAC
Common potentials
24 V main voltage UM, 24 V segment voltage US and GND are on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic)/5 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.
5 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL PWM/2-PAC
Error message		Short-circuit/overload of a 24 V output Short-circuit/overload of a 5 V output Under or over the operating voltage

Approvals
The current approvals can be found at www.boschrexroth.com.

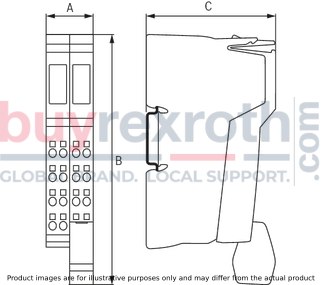

Dimensions

Type		R-IB IL PWM/2-PAC
A	mm	24.4
B	mm	136.8
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
