INTERFACE MODULE R-IB IL RS485/422-PRO-PAC

Manufacturer: Bosch Rexroth

Material #: R911170442

Model : R-IB IL RS485/422-PRO-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL RS485/422-PRO-PAC (R911170442) is a highly efficient and reliable module designed for seamless integration within an Inline station to facilitate the operation of standard peripheral devices with serial interfaces. This module specifically enables serial data transmission, providing both input and output channels that support RS485 and RS422 communication standards. Ideal for applications requiring robust serial connectivity, this function module comes complete with essential accessories, including a connection plug and a labeling field, which simplifies installation and maintenance processes. The R-IB IL RS485/422-PRO-PAC is engineered to enhance communication within automated systems, particularly where there is a need for long-distance data transmission or high noise immunity. Its design ensures compatibility with a broad range of industrial devices that require reliable serial communication protocols. The module's compact form factor allows it to fit seamlessly into existing Inline stations without requiring significant modifications, making it an excellent choice for system upgrades or expansions. With its strong focus on durability and performance, the Bosch Rexroth R-IB IL RS485/422-PRO-PAC stands out as an essential component in complex automation environments where dependable serial communication is critical. Whether it's used in manufacturing, processing, or any other field that demands high-performance data exchange between devices, this module delivers consistent results that professionals can trust.

$864.35 USD

Availability: 5 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as May 8, 2024 when ordered in

INTERFACE MODULE R-IB IL RS485/422-PRO-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.165 kg

This module is designed for use within an Inline station. It enables the operation of standard peripheral devices with a serial interface on a bus system.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Width	24.4
Productgroup ID	4,6
Height	136.8
International protection code	IP20
Permissible air humidity (storage)	10-95
Designation, serial interfaces	RS 485 semi-duplex or RS 422 full-duplex
Permissible air humidity (transport)	10-95
Connection type	Zugfederanschluss
Connection techniques	2-, 3-Leitertechnik
Depth	71.5
Weight	0.165
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL RS485/422-PRO-PAC
Weight 1)	g	135
Operating mode		Process data operation with 12 bytes
Sensor connection type		2-, 3-wire technology
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, VDE 0106, IEC 60536

1)	Including plug

Connection data

Type		R-IB IL RS485/422-PRO-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL RS485/422-PRO-PAC
Connection type		Data ranking
Transmission speed	kBit/s	500

Serial interfaces

Type			R-IB IL RS485/422-PRO-PAC
Designation 1)			RS 485 half duplex or RS 422 full duplex
Typical line terminating resistor		Ω	120
Maximum permitted input difference voltage		V	± 5.7
Typical hysteresis		mV	50
Input sensitivity			-0.2 V ... +0.2 V
Minimum output difference voltage	With 100 kΩ load	V	± 2
Minimum output difference voltage	With 54 kΩ load	V	± 1.5
Typical short-circuit output current		mA	± 80

1)	Can only be operated as an alternative, electrical data acc. to IIO (RS) 485, IIO (RS) 422, CCITT V.11

Inline potentials/performance balance

Type		R-IB IL RS485/422-PRO-PAC
Logic voltage UL	V DC	7.5
Typical current consumption from UL	mA	170
Maximum current consumption from UL 1)	mA	260
Typical power consumption total	W	≈ 1.275
Maximum power consumption total 1)	W	1.95

1)	All connections in the serial interface short-circuited

Supply of module electronics via the bus coupler

Type		R-IB IL RS485/422-PRO-PAC
Connectivity technology		Potential jumpers

Power dissipation

Type		R-IB IL RS485/422-PRO-PAC
Power dissipation in the assembly PEL	W	1.4
Power dissipation in the housing PHOU 1)	W	≤ 1.4

1)	Within the admissible operating temperature

Restriction of simultaneity, derating

Type		R-IB IL RS485/422-PRO-PAC
TA ≤ 50 °C		No derating
TA > 50 °C		IQ = 4 A IQ: total current of the cross jumpering IM/IS/GND

Protective devices

Type		R-IB IL RS485/422-PRO-PAC
Protective devices		None

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL RS485/422-PRO-PAC
Common potentials
The control and data lines for the serial interface are galvanically on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
RS 485/422 interface/7.5 V power supply (bus logic)		500 V AC, 50 Hz, 1 min.
RS 485/422 interface/24 V power supply (peripherals)		500 V AC, 50 Hz, 1 min.
RS 485/422 interface/function earth		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic)/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL RS485/422-PRO-PAC
Error message		None

Approvals
The current approvals can be found at www.boschrexroth.com.

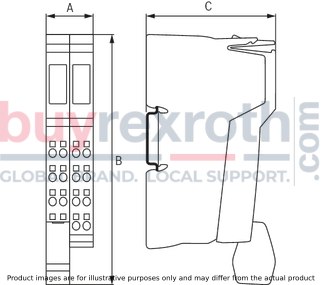

Dimensions

Type		R-IB IL RS485/422-PRO-PAC
A	mm	24.4
B	mm	136.8
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
