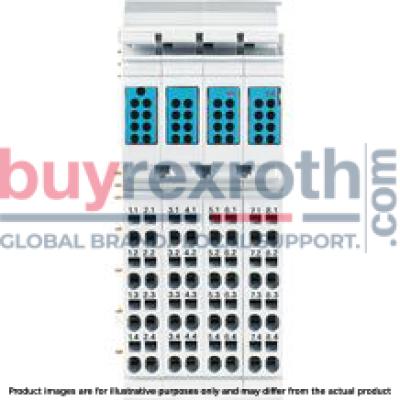

INTERFACE MODULE R-IB IL 24 DI 32/HD-NPN-PAC

Manufacturer: Bosch Rexroth

Material #: R911170405

Model : R-IB IL 24 DI 32/HD-NPN-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL 24 DI 32/HD-NPN-PAC (R911170405) is a highly efficient digital input module tailored for integration within an Inline station. It is engineered to acquire digital input signals, enhancing the versatility and performance of automated systems. This module's input specification operates with a voltage of 24 VDC, ensuring compatibility with standard industrial power supplies. Equipped with 32 channels, the module provides ample points for data acquisition, making it suitable for complex automation tasks that require multiple signal inputs. The wire connection technique utilized by this module ensures secure and reliable connectivity, which is crucial in maintaining the integrity of signal transmission in an industrial environment. The R-IB IL 24 DI 32/HD-NPN-PAC comes complete with necessary accessories including a connection plug and a labeling field, which allows for organized wiring and easy identification of each channel during installation and maintenance procedures. Its design focuses on simplifying setup and operational processes for users while maintaining high standards of data accuracy and consistency. This Bosch Rexroth input module's robust construction and adherence to industry standards make it a valuable component in various applications where precise control and monitoring of digital inputs are essential. Its ability to operate within an Inline station framework showcases its flexibility in adapting to different system architectures while providing reliable service as part of a comprehensive automation solution.

$746.61 USD

More are expected on December 23, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 23, 2024 when ordered in

INTERFACE MODULE R-IB IL 24 DI 32/HD-NPN-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.213 kg

This module is designed for use within an Inline station. It is used to acquire digital input signals.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Width	48.8
Productgroup ID	4,6
Height	120
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
Number of channels	32
Connection type	Zugfederanschluss
Connection techniques	1-Leitertechnik
Depth	71.5
Weight	0.213
Ambient temperature (during operation)	-25-85
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16

General data

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Weight 1)	g	185
Operating mode		Process data operation with 4 bytes
Sensor connection type		1-wire technology
Ambient temperature (operation)		-25 °C ... +85 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 %, EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 %, EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, VDE 0106, IEC 60536

1)	Including plug

Connection data

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16

Interface local bus

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Connection type		Data ranking
Transmission speed	kBit/s	500

Inline potentials/performance balance

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Logic voltage	V DC	7.5
Maximum current consumption from UL	mA	90
Maximum power consumption from UL	W	0.675
Segment supply voltage US 1)	V DC	24
Current consumption from US	mA	≤ 100

1)	Rated value

Supply of module electronics and peripherals via bus coupler/power feed module

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Connectivity technology		Potential jumpers

Digital inputs

Type			R-IB IL 24 DI 32/HD-NPN-PAC
Number of digital inputs			32
Description of the input			Acc. to EN 61131-2 type 1
Definition of switching thresholds	Maximum voltage of the low level ULmax	V	< 5
Definition of switching thresholds	Minimum voltage of the high level UHmin	V	> 15
Common potentials			Segment supply, ground, digital inputs
Nominal input voltage UIN		V DC	24
Permissible range			-30 V < UIN < +30 V DC
Nominal input current at UIN		mA	2.6
Delay time			ton = 2 ms, toff = 4 ms
Use of AC sensors			AC sensors in the voltage range < UIN can only be applied to a limited extent (according to the layout of the inputs)
Overload protection in the segment circuit			No
Overvoltage protection			Protective elements of the feed module
Reverse polarity protection			Protective elements of the feed module

Power dissipation
Formula for calculating the power dissipation in the electronics

where:
PEL	Total power dissipation in the module
n	Number of set inputs (n = 1 to 32)
i	Running index
UINi	Input voltage of input i
IINi	Input current of input i matching the input characteristic

Restriction of simultaneity, derating

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Derating		No restriction of simultaneity, no derating

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Common potentials
24 V peripheral voltage, 24 V segment voltage and GND are on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL 24 DI 32/HD-NPN-PAC
Error message		None

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL 24 DI 32/HD-NPN-PAC
A	mm	48.8
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
