A A4VSO 355 DRG /30R-VPB25U99 ESO171
Manufacturer: Bosch Rexroth
Material #: R902553845
Model : A A4VSO 355 DRG /30R-VPB25U99 ESO171
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

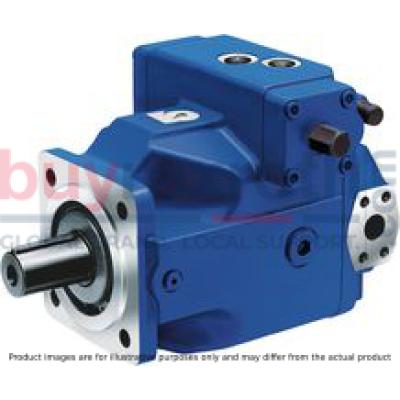

The Bosch Rexroth A4VSO 355 DRG /30R-VPB25U99 ESO171 (R902553845) is a high-performance axial piston pump designed for industrial applications requiring robust and reliable hydraulic power. This pump is engineered with a swashplate design, which ensures efficient operation and excellent suction characteristics. With its nominal size and metric version, it fits seamlessly into a wide range of machinery and systems.
The A4VSO 355 DRG /30R-VPB25U99 ESO171 operates at a nominal pressure of up to bar and can handle maximum pressure peaks without compromising its integrity or performance. Its advanced design contributes to an exceptionally long service life, making it a cost-effective choice for continuous use in demanding environments. Additionally, the pump is recognized for its low operating noise, which enhances the working conditions and complies with noise regulations in industrial settings.
One of the standout features of this Bosch Rexroth pump is its short control response times, allowing for precise operations and quick adjustments to system demands. This makes it ideal for applications where timing and responsiveness are critical. Moreover, the A4VSO series offers through-drive capability, meaning that additional pumps up to the same nominal size can be mounted directly onto it, providing versatility and space-saving solutions for complex hydraulic systems.
The A4VSO 355 DRG /30R-VPB25U99 ESO171 exemplifies Bosch Rexroth's commitment to delivering high-quality hydraulic components that meet the rigorous requirements of industrial applications while offering efficiency and reliability.
$42,852.00 USD
More are expected on October 21, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 21, 2024 when ordered in
This product is eligible for factory repair.
Pressure and flow controller
DR, DP, FR, DFR
Pressure and flow controller
DR, DP, FR, DFR
Available for A4VSO and A4VSG Pressure and flow control Remote controlled optional Pressure controller for parallel operation optional Mechanical Vg min and Vg max limitationData sheet
Spare parts & repair
Power controller
LR2, LR3, LR2N, LR3N
Power controller
LR2, LR3, LR2N, LR3N
Available for A4VSO and A4VBO Precise control in accordance with the hyperbolic characteristic curve, provides an optimum utilization of available power The beginning of control is mechanically adjustable Additional functions in the modular system for pressure control, fixed setting and remotely controllable, flow control, hydraulic or mechanical stroke limiterData sheet
Spare parts & repair
Pilot-pressure related proportional control
HD
Pilot-pressure related proportional control
HD
Available for A4VSO, A4VSG and A4CSG Control is pilot-pressure related Different pilot-pressure ranges available Power control, pressure control and electrical pilot pressure supply optional Standard spring-centering of the stroking cylinderData sheet
Spare parts & repair
Electrohydraulic control systems
HSx, HMx, EOx
Electrohydraulic control systems
HSx, HMx, EOx
Available for A4VSO, A4VBO, A4VSG and A4CSG Electrohydraulic control with servo, proportional and control valve Digital electrohydraulic control systems with amplifier Control of swivel angle, pressure and power (HS5P) Usable as a special version in mooring operation (overcenter)Data sheet
Spare parts & repair
Electronic pressure and flow control
DFE1
Electronic pressure and flow control
DFE1
Available for A4VSO and A4VBO For the electrohydraulic control of pressure, flow and power Internal pilot pressure or with external control pump, optional Rapid decompression via pump by flow direction change as standard Rotary group optimized for long standby operating timesData sheet
Spare parts & repair
Secondary control for open circuit
DS2
Secondary control for open circuit
DS2
Available for A4VSO Highly dynamic rotary drive for open circuit Motor and generator operation for both directions of rotation With energy recovery and energy storage With closed loop rotational speed, position, or torque control for high control performance and dynamicsData sheet
Spare parts & repair
Pressure and flow control system
HS5E
Pressure and flow control system
HS5E
Available for A4VSO, A4VBO, A4VSG and A4CSG Electrohydraulic control systems with on-board electronics For the electrohydraulic control of pressure, flow and power Optional conversion of HS3 and HS4 to HS5EData sheet
Instruction manual
Functional description HDx20
Functional description HDx20 – Supplementary information
Parameter description
Description of diagnosis
Firmware release notes HDx20
Fact sheet
Spare parts & repair
Pressure and flow control system
SYHDFEE-1X
Pressure and flow control system
SYHDFEE-1X
Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control,Torque limitation, Master-Slave Communication: Analog, configurableData sheet
Operating instructions
Environmental compatibility statement
Spare parts & repair
Pressure and flow control system
SYHDFEC-1X
Pressure and flow control system
SYHDFEC-1X
Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control,Torque limitation, Master-Slave Communication: Analog, CANopen, parameterizableData sheet
Commissioning instruction
Commissioning instructions CANopen interface
Environmental compatibility statement
Spare parts & repair
Pressure and flow control system
SYHDFED-1X
Pressure and flow control system
SYHDFED-1X
Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control,Torque limitation, Master-Slave Communication: Sercos, PROFINET, EtherCAT, EtherNET/IP, POWERLINK, VARAN, analogData sheet
Operating instructions
Environmental compatibility statement
Functional description HDx20
Parameter description
Description of diagnosis
Supplementary information
Spare parts & repair
Pressure and flow control system
SYHDFEn-1X
Pressure and flow control system
SYHDFEn-1X
Version with axial piston variable displacement pump A4VSO Size 40 … 355 Maximum operating pressure 350 bar Function: Swivel angle control, Pressure control, Torque limitation, Master-Slave, Variable-speed Communication: Analog, CANopen, parameterizableData sheet
Operating instructions
Environmental compatibility statement
Supplementary information
Spare parts & repair
