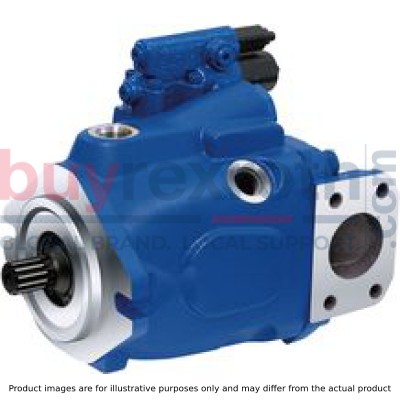

AXIAL-PISTON PUMP A A10V O 45 DFR /52L-VSC64N00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth A A10V O 45 DFR /52L-VSC64N00 (R902502739) is a high-performance variable displacement pump designed for hydrostatic drives in open circuit applications. This axial piston unit operates based on a swash plate design, which allows for stepless adjustment of flow in accordance with the drive speed and displacement. The pump's flow can be seamlessly varied by altering the swash plate angle, ensuring precise control over hydraulic operations. Equipped with a DR F controller and an XT open control device, the A A10V O 45 DFR /52L-VSC64N00 boasts short control response times for efficient operation. Its design is optimized for medium pressure requirements, with a nominal pressure of bar and a maximum pressure capability of bar. The pump is particularly suitable for machines that demand reliable hydraulic power within these pressure ranges. This Bosch Rexroth pump has been approved for high rotational speeds, contributing to its high power density and low operating noise—key factors in creating a more comfortable and productive work environment. Additionally, it features standard FKM sealing material to ensure robust performance under various conditions. The unit's specifications include a fixed minimum displacement setting and maximum displacement setting, ensuring consistent performance without the need for adjustments. It does not come with an internal drain line or through drive, meaning it cannot accommodate additional pumps; however, it does have the capacity to mount further pumps up to the same nominal size if required. The A A10V O 45 DFR /52L-VSC64N00 comes without test certificates or paint coatings but offers essential connections such as B thr. r SAE and S thr. r SAE working ports, along with an ISO SAE mounting flange featuring a four-hole pattern. The direction of rotation is counterclockwise when viewed from the shaft end, making it compatible with specific system requirements. With its standard version configuration and robust design features, this Bosch Rexroth variable displacement pump stands as a reliable component for various medium-pressure hydraulic applications.
