4WE6D6X/EW110N9DAL/B10=AN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

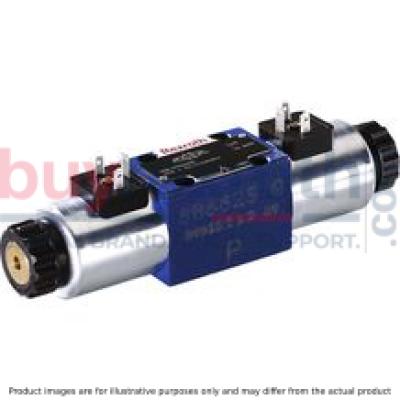

The Bosch Rexroth 4WE6D6X/EW110N9DAL/B10=AN (R901510543) is a solenoid-operated directional spool valve designed for controlling the start, stop, and direction of flow in hydraulic systems. It comprises a housing, electromagnets, a control spool, and return springs. The valve operates by moving the control spool between positions when the electromagnet is energized, thereby allowing for the selected flow direction. In its deenergized state, the control spool is held in its initial position by return springs unless it's a version O without spring return. This specific model features two switching positions and two high-power electromagnets without detent, meaning it does not maintain its position once de-energized. It offers manual auxiliary actuation for scenarios where magnetic supply is unavailable. For proper functioning, the hydraulic system must be vented correctly. The valve comes with an optional throttle insert for situations where operating conditions may exceed the valve's performance limit during switching processes. It can be configured as a 3 or 4-way version with porting patterns that align with ISO standards and can include an optional locating hole. The solenoid can be rotated by 90° if needed, providing flexibility in installation. Electrical connections are adaptable for either single or central connections. The model also supports spool position monitoring as an option to enhance control precision. For safety and compliance, it adheres to CE conformity according to the Low Voltage Directive of the EU for electrical voltages greater than 50 VAC or 75 VDC. The solenoid coil comes with an approved component UR marking according to UL standard edition and has an optional approval according to CSA C22.2 No. 0-M91. This makes the Bosch Rexroth R901510543 valve suitable for various applications requiring reliable directional control in hydraulic systems while ensuring energy-efficient operation and compliance with international safety standards.
