R901466597

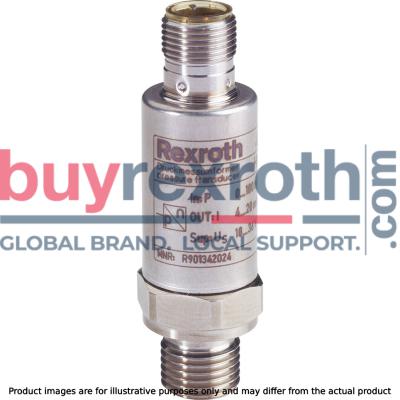

PRESSURE TRANSDUCER HM 20-2X/250-C-K35-N

Manufacturer: Bosch Rexroth

Material #: R901466597

Model : HM 20-2X/250-C-K35-N


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HM 20-2X/250-C-K35-N (R901466597) is a high-performance pressure transducer designed for dynamic pressure control applications requiring fast response times and high accuracy. This transducer features an analog output of 4...20 mA, making it suitable for interfacing with a wide range of control systems and monitoring equipment. It operates within a pressure range of up to 250 bar, and its electrical connection is facilitated by a connector pole M12, A-coded as per EN standards. This model boasts a short signal rise time of less than 10 ms, which is essential for systems where rapid changes in pressure must be accurately captured and controlled. The robust construction includes all components in contact with the media being made of durable stainless steel, ensuring longevity and resistance to corrosion. The HM 20-2X/250-C-K35-N transducer also features a throttle element within the pressure channel to stabilize the flow and enhance measurement precision. Notable for its high degree of measurement accuracy of less than ±0.5% FS (Full Scale) and excellent overload protection, this sensor ensures operational reliability even in demanding conditions. It has an impressive non-repeatability specification of less than 0.1%, contributing to its consistent performance. With seals made from NBR (Nitrile Butadiene Rubber), the HM 20-2X/250-C-K35-N can handle various hydraulic fluids such as HL, HLP, HFC, as well as nitrogen up to 250 bar. Its marine approval from DNV GL certifies that it meets stringent industry standards for maritime applications. The unit's supply voltage requirement is 24 VDC, and it weighs approximately 0.6 kg without display capabilities. In terms of safety and compliance, this device adheres to CE electromagnetic compatibility regulations, RoHS Directive EU, UL standards for North America, UKCA marking for the United Kingdom, and DNV certification for marine applications. Designed without compromise on quality or safety features such as reversed polarity protection, overvoltage protection, and short-circuit protection; the Bosch Rexroth HM 20-2X/250-C-K35-N ensures reliable performance across a wide operating temperature range from -40 to +125 °C.

$413.00 USD

Availability:  41  In Stock
  Add to Cart
Available for immediate shipment

Qty: Delivered as early as November 26, 2024 when ordered in
