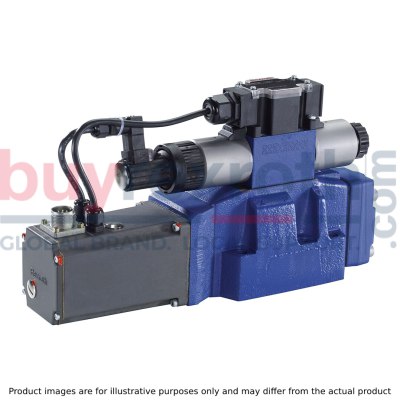

PROPORTIONAL DIRECTIONAL VALVE 4WRTEM16E220L-4X/6EG24K31/A1M

Manufacturer: Bosch Rexroth

Material #: R901459901

Model : 4WRTEM16E220L-4X/6EG24K31/A1M

Destination

$10,441.00 USD

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as December 8, 2026

PROPORTIONAL DIRECTIONAL VALVE 4WRTEM16E220L-4X/6EG24K31/A1M

Size 16, symbol E, electrical with integrated electronics, 24 V DC

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback

Unpacked Weight: 11.400 kg

Characteristic curve, linear
Spool valve
Pilot-operated
External pilot oil supply, external pilot oil return
Size 10 … 35
Maximum flow 300 l/min
Component series 4X
Maximum operating pressure 350 bar
Rated flow 25 … 1000 ml/min

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Connection diagram	ISO 4401-07-07-0-05
Max. pressure	350
Max. flow	460
Spool symbol	Symbol E
Type of connection	Subplate mounting
Nominal flow	220
Size	16
Type of actuation	Integrated electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
Electrical connector	Connector 7-pole (6 + PE)
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity	Analog, command value ±10 V
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals	NBR
Productgroup ID	9,10,11,12,13,14
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D07
Size_CETOP	D07
Weight	11.400
