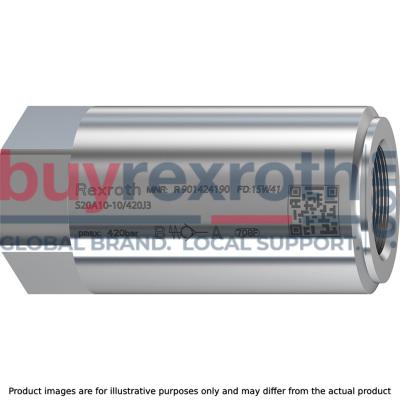

HY-CHECK VALVE S15A30-1X/450J3
Manufacturer: Bosch Rexroth
Material #: R901454067
Model : S15A30-1X/450J3
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth S15A30-1X/450J3 (R901454067) is a high-performance industrial hydraulic valve designed for reliable operation and precise control of oil flow in hydraulic systems. This direct-actuated seat valve is part of component series X and features a spool symbol A B, indicating its specific function within hydraulic circuits. The model is characterized by its capability to block the oil flow at selected ports securely, ensuring leakage-free blocking in one direction which is crucial for many industrial applications.
With a size designation of A B, this valve can handle a maximum operating pressure of up to 450 bars and accommodate a maximum flow rate as specified by the manufacturer. Its threaded connection type allows for secure screw-in mounting, making installation straightforward and robust. The valve has multiple ports and switching positions, further enhancing its versatility in various hydraulic systems.
Designed to work with a wide range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR, and HFC types ensures that the S15A30-1X/450J3 can be used with standard industry fluids without compatibility issues. Additionally, the option for various cracking pressures adds to the customizability of this model to suit specific application requirements.
The weight of the valve has been optimized to contribute positively to system design without compromising on strength or durability. This Bosch Rexroth valve is recognized for its mechanical actuation and high-quality construction that promises longevity and consistent performance in demanding industrial settings where dependable fluid control is paramount.
$121.00 USD
More are expected on October 14, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 14, 2024 when ordered in
This product is eligible for factory repair.
(measured with HLP46, ϑOil = 40 ±5 °C)
∆p-qV characteristic curves with cracking pressure
Size 6
Size 8
Size 10
Size 15
Size 20
Size 25
Size 30
Without spring
With spring
With piston bore/orifice
Dimensions in mm
|
NG |
6 | 8 | 10 | 15 | 20 | 25 | 30 | |||
|
ØD1 |
mm |
22.5 | 28 | 34 | 34 | 42 | 52 | 68 | 74.5 | |
|
D2 |
G |
G1/4 | G3/8 | - | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | |
|
M |
M14 x 1,5 | M18 x 1,5 | - | M22 x 1.5 | M27 x 2 | M33 x 2 | M42 x 2 | M48 x 2 | ||
|
UNF/UN |
- | - | 3/4-16 UNF | 3/4-16 UNF | 1 1/6-12 UN | 1 5/16-12 UN | 1 5/8-12 UN | 1 7/8-12 UN | ||
|
L1 |
G |
mm |
58 | 58 | - | 72 | 88 | 98 | 120 | 132 |
|
M |
mm |
58 | 58 | - | 72 | 88 | 98 | 120 | 132 | |
|
UNF/UN |
mm |
- | - | 66 | 72 | 92 | 105 | 120 | 132 | |
|
L1 |
mm |
- | 160 1) | 168 1) | ||||||
|
L2 |
mm |
10.5 | 11.5 | 13 | 13 | 15.5 | 19 | 25 | 28 | |
|
T1 |
G |
mm |
13 | 13 | - | 15 | 18 | 19 | 22 | 22.5 |
|
M |
mm |
12 | 12 | - | 14 | 16 | 18 | 20 | 22 | |
|
UNF/UN |
mm |
- | - | 15 | 15 | 20 | 20 | 20 | 20 | |
|
SW |
G |
mm |
19 | 24 | 30 | 30 | 36 | 46 | 60 | 65 |
| 1) | Version "...A80..." |
