PRESSURE RELIEF VALVE -Z ZDB10DA2-2X/50V
Manufacturer: Bosch Rexroth
Material #: R901438986
Model : ZDB10DA2-2X/50V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDB10DA2-2X/50V (R901438986) is a direct operated pressure relief valve designed for efficient and reliable pressure control in hydraulic systems. This sandwich plate valve is part of the ZDB series, known for their quick response and virtually leakage-free operation. The valve features a robust housing with a seat and control spool, which are instrumental in setting system pressure through an adjustment type mechanism.
In its default state, the ZDB10DA2-2X/50V is set to the minimum possible pressure, ensuring safety during initial use. The system pressure on channel P influences the control spool; when it exceeds the pre-set value, the spool activates allowing fluid to flow from channel P to channel T (referred to as TA and TB in this model), thereby capping the system pressure at a predetermined level.
The valve's stability and low-pressure rise with increasing flow are attributed to its integrated damping feature within the control spool. Additionally, it boasts resistance against oil contamination due to its seat design. For specific applications that require monitoring of system pressure, this model can be equipped with a measuring port for connecting a pressure load cell.
The Bosch Rexroth ZDB10DA2-2X/50V offers various adjustment types such as spindle with hexagon, rotary knob, or lockable rotary knob with scale for precise control adjustments. It adheres to ISO porting patterns for easy integration into existing hydraulic systems and provides several circuit options along with a corrosion-protected design for extended service life. The valve supports maximum operating pressures and flow rates as defined by its size and component series specifications.
$357.00 USD
More are expected on February 18, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 18, 2025 when ordered in
This product is eligible for factory repair.

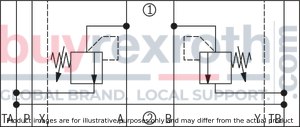

Size 10, symbol A - T, with manual actuation
Industrial hydraulic valve in a high performance range. Reliable pressure limitation to setting value
Unpacked Weight: 2.700 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 4 pressure ratings, optional 3 adjustment types, optionally:
• Spindle with hexagon
• Rotary knob
• Lockable rotary knob with scale 5 circuit options Corrosion-protected design
Pressure valves of type ZDB10D and Z2DB10D are direct operated pressure relief valves in sandwich plate design.

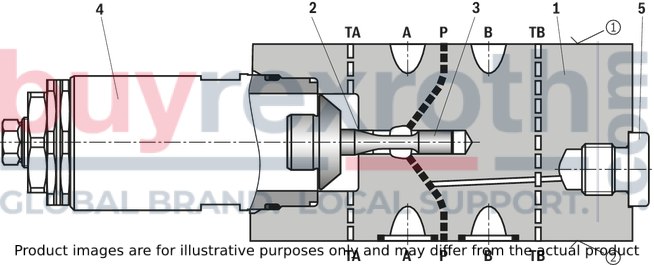

The valves basically consist of housing (1) with seat (2) and control spool (3). The system pressure is set via the adjustment type (4).
The valves are closed in their rest position and protect a hydraulic system and its components against excessive pressures.
These valves respond quickly, noiselessly and in a virtually leakage-free manner. Thanks to the seat design, they are resistant against oil contamination. The integrated damping of the control spool (3) ensures extremely stable behavior and a low pressure increase with increasing flow.
In the state as delivered, the valves are set to the minimum possible pressure. The system pressure applied to channel P acts on the control spool (3). If the system pressure increases above the set value, the control spool (3) opens and the hydraulic fluid flows from channel P in channel T. This limits the system pressure to the set value.
For version “MP”, the set system pressure can be recorded and monitored using a pressure load cell at the measuring port (5) (see dimensions)
Type ZDB 10 DP2..MP…
Notice:
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.
(measured with HLP46, ϑOil = 40 ±5 °C)

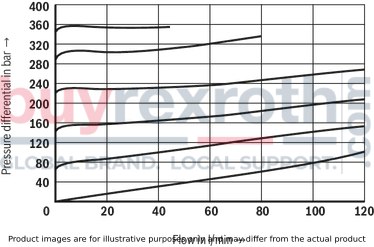

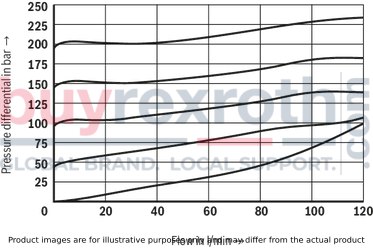

∆p-qV characteristic curves

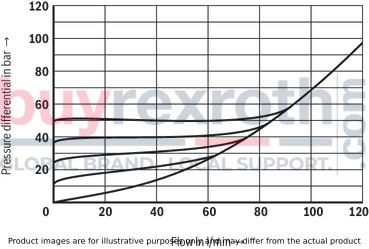

Pressure rating 50 bar

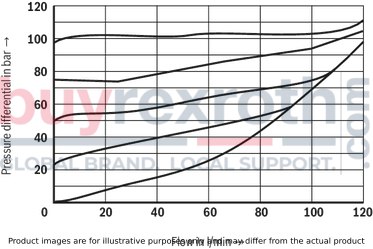

Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 350 bar

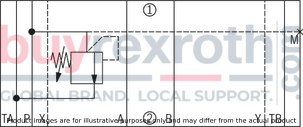

Version “P” (example with “MP”)

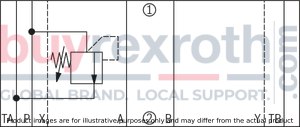

Version "A"

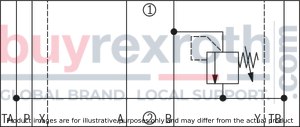

Version "B"
Version "C"

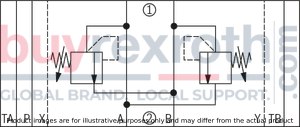

Version “D”
|
➀ |
component side |
|
➁ |
plate side |
Notice:
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. Version "SO30” is shown. The standard version does not have ports X and Y.Version “P” and “A”

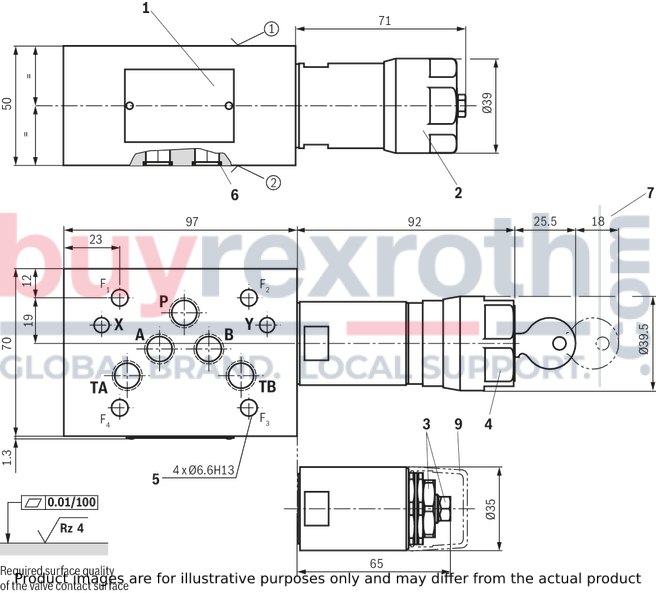

Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
8 |
Measuring port G1/4 (SW6 internal hexagon, tightening torque MA = 30 Nm ±10 %) |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Version "B"
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Version "C" and "D"
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Related Products
