PRESSURE RELIEF VALVE -Z ZDB10DP2-2X/350MPV
Manufacturer: Bosch Rexroth
Material #: R901438983
Model : ZDB10DP2-2X/350MPV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

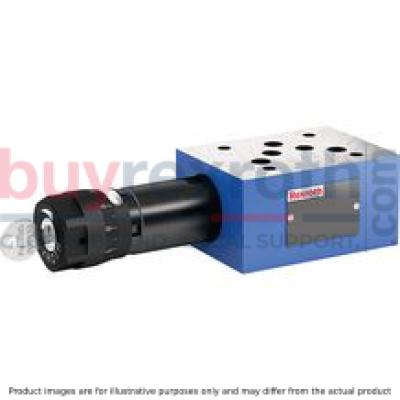

The Bosch Rexroth ZDB10DP2-2X/350MPV (R901438983) is a direct operated pressure relief valve that is designed to ensure the safety and efficiency of hydraulic systems. This sandwich plate valve, part of the ZDB series, maintains system integrity by providing rapid, quiet, and virtually leak-free pressure relief. The ZDB10DP2-2X/350MPV features a robust housing with a seat and control spool that allows for precise pressure adjustments through various adjustment types.
With its closed rest position, the valve prevents excessive pressures from damaging system components. The control spool integrates damping to promote stable behavior and manage pressure increases even with rising flow rates. Initially set to the minimum pressure, the valve opens when system pressure exceeds the predetermined value, channeling hydraulic fluid from port P to port T (referred to as TA or TB in this model), effectively capping the system pressure.
The MP version of this model includes a measuring port for monitoring system pressure with a load cell. This feature adds an extra layer of control and ensures that operators can maintain optimal performance parameters. The ZDB10DP2-2X/350MPV conforms to ISO standards for porting patterns and offers various options for adjustment types including spindle with hexagon, rotary knob, or lockable rotary knob with scale. Additionally, users have circuit options and can benefit from a corrosion-protected design.
This Bosch Rexroth valve is sized appropriately for its component series X and can withstand maximum operating pressures of up to 350 bar while accommodating maximum flow rates as specified. Its compatibility with standard ISO porting patterns ensures ease of integration into existing hydraulic systems, making it suitable for various applications requiring reliable pressure regulation.
$368.00 USD
More are expected on March 27, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 27, 2025 when ordered in
This product is eligible for factory repair.
Size 10, symbol P - T, with manual actuation
Industrial hydraulic valve in a high performance range. Reliable pressure limitation to setting value
Unpacked Weight: 2.700 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 4 pressure ratings, optional 3 adjustment types, optionally:
• Spindle with hexagon
• Rotary knob
• Lockable rotary knob with scale 5 circuit options Corrosion-protected design
Pressure valves of type ZDB10D and Z2DB10D are direct operated pressure relief valves in sandwich plate design.
The valves basically consist of housing (1) with seat (2) and control spool (3). The system pressure is set via the adjustment type (4).
The valves are closed in their rest position and protect a hydraulic system and its components against excessive pressures.
These valves respond quickly, noiselessly and in a virtually leakage-free manner. Thanks to the seat design, they are resistant against oil contamination. The integrated damping of the control spool (3) ensures extremely stable behavior and a low pressure increase with increasing flow.
In the state as delivered, the valves are set to the minimum possible pressure. The system pressure applied to channel P acts on the control spool (3). If the system pressure increases above the set value, the control spool (3) opens and the hydraulic fluid flows from channel P in channel T. This limits the system pressure to the set value.
For version “MP”, the set system pressure can be recorded and monitored using a pressure load cell at the measuring port (5) (see dimensions)
Type ZDB 10 DP2..MP…
Notice:
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.
(measured with HLP46, ϑOil = 40 ±5 °C)
∆p-qV characteristic curves
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 350 bar
Version “P” (example with “MP”)
Version "A"
Version "B"
Version "C"
Version “D”
|
➀ |
component side |
|
➁ |
plate side |
Notice:
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. Version "SO30” is shown. The standard version does not have ports X and Y.Version “P” and “A”
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
8 |
Measuring port G1/4 (SW6 internal hexagon, tightening torque MA = 30 Nm ±10 %) |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Version "B"
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Version "C" and "D"
Dimensions in mm
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (“SO30” version) |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 (standard version) or ISO 4401-05-05-0-05 (version “SO30”) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type “2” (spindle with external hexagon SW10 and lock nut SW24) |
|
4 |
Adjustment type "3" |
|
5 |
Valve mounting bores |
|
6 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
7 |
Space required to remove the key |
|
9 |
Protective cap (separate order, see accessories) |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notes:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30” is shown. The standard version does not have ports X and Y.Related Products
