4WP10E5X//V/12
Manufacturer: Bosch Rexroth
Material #: R901426382
Model : 4WP10E5X//V/12
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WP10E5X//V/12 (R901426382) is a high-performance directional spool valve designed to control the start, stop, and direction of fluid flow in hydraulic systems. This valve is part of the WP series, recognized for its reliable operation in controlling fluid dynamics within a wide range of applications. It is constructed from durable materials that house a pneumatic actuation cylinder, a control spool, and one or two return springs to ensure consistent performance.
The 4WP10E5X//V/12 model incorporates a throttle insert to manage excessive flows during switching processes that could otherwise surpass the valve's performance threshold. This feature is essential when operating conditions demand precise flow regulation to maintain system integrity and efficiency. The valve operates with a porting pattern according to ISO standards, ensuring compatibility with various hydraulic setups and simplifying installation.
With its pneumatic operating method, this valve offers responsive control for automation tasks requiring quick and accurate flow adjustments. The unit is identified by its size component series X, which denotes its physical dimensions and capacity for integration into different system configurations. It can withstand a maximum operating pressure of up to 315 bar and can accommodate maximum flow rates as dictated by specific operational requirements.
The Bosch Rexroth 4WP10E5X//V/12 valve excels in applications where precise fluid control is paramount, offering reliability and adaptability in one compact package. Its robust design ensures long-term durability and minimal maintenance, making it an ideal choice for sophisticated hydraulic systems demanding high levels of performance and reliability.
$1,218.00 USD
More are expected on May 1, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as May 1, 2025 when ordered in
This product is eligible for factory repair.
Valves of type WP are fluidically actuated directional spool valves.
They control the start, stop and direction of a flow.
The directional valves basically consist of housing (1), one type of actuation (2.2) (pneumatic actuation cylinder), control spool (3) and one or two return springs (4).
When de-energized, the control spool (3) is held in the central position or in the initial position by the return springs (4) (except for version "O").
The control spool (3) is moved to the desired spool position by means of the types of actuation.
Throttle insert
The use of a throttle insert is required when, due to prevailing operating conditions, flows occur during the switching processes which exceed the performance limit of the valve.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
Symbol |
Direction of flow |
|||
|
P ‒ A |
P ‒ B |
A ‒ T |
B ‒ T |
|
|
A; B |
6 |
6 |
‒ |
‒ |
|
C |
1 |
2 |
5 |
7 |
|
D |
2 |
2 |
5 |
7 |
|
E |
17 |
16 |
19 |
21 |
|
F |
2 |
3 |
22 |
23 |
|
G |
4 |
4 |
24 |
24 |
|
H |
14 |
14 |
20 |
21 |
|
J |
3 |
3 |
9 |
11 |
|
J73 |
22 |
21 |
23 |
24 |
|
L |
3 |
3 |
9 |
9 |
|
M |
14 |
14 |
6 |
8 |
|
P |
17 |
14 |
20 |
23 |
|
Q |
16 |
17 |
4 |
8 |
|
R |
18 |
21 |
18 |
24 |
|
T |
18 |
4 |
10 |
24 |
|
U |
3 |
3 |
6 |
11 |
|
V |
17 |
17 |
18 |
20 |
|
W |
upon request |
|||
|
Central position: |
|||||
|
Symbol |
Direction of flow |
||||
|
P ‒ A |
P ‒ B |
B ‒ T |
A ‒ T |
P ‒ T |
|
|
H |
12 |
12 |
13 |
13 |
15 |

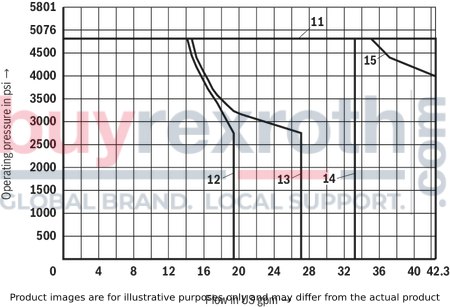

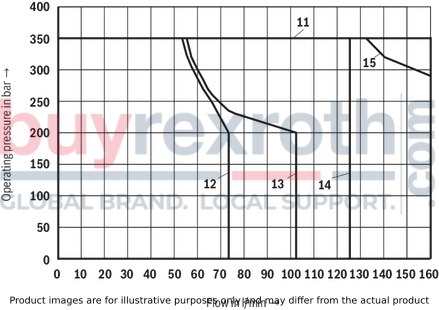

Performance limits
(measured with HLP46, ϑOil = 40 ±5 °C)
Notice!
The specified performance limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible performance limit may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us!
|
Characteristic curve |
Symbol |
|
11 |
C, C/OF, D, D/OF, E, J, L, M, U |
|
12 |
B |
|
13 |
A |
|
14 |
G |
|
15 |
H |
| 1) | Example:Symbol E with spool position “a” → ordering code ..EA..Symbol E with spool position “b" → ordering code ..EB.. |

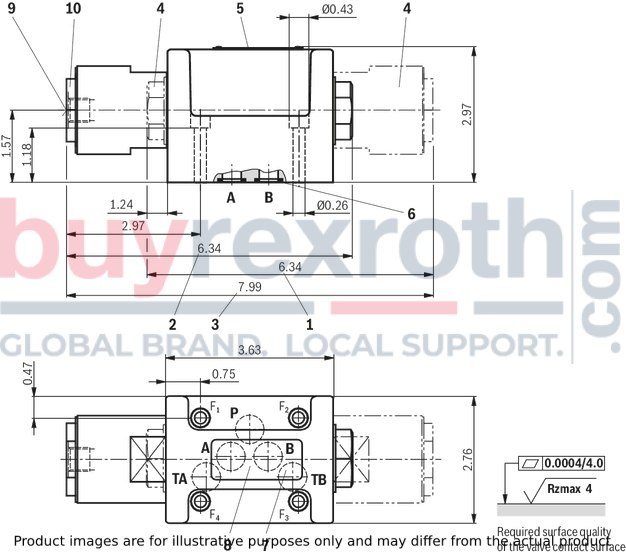

Dimensions in mm

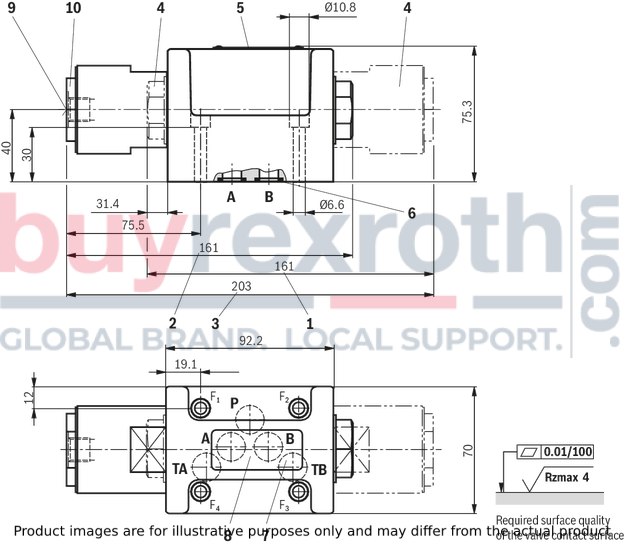

Dimensions in mm
Notices!
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. When screwing in/releasing the connection tube on the pilot oil port (9), the bushing (10) must be secured against twisting by using an open-end wrench.Subplates according to data sheet 45054 (separate order)
G 66/01 (G3/8) 1)
G 67/01 (G1/2) 1)
G 534/01 (G3/4) 1)
G 66/12 (SAE-6; 9/16-18) 2)
G 67/12 (SAE-8; 3/4-16) 2)
G 534/12 (SAE-12; 1-1/16-12) 2)
Valve mounting screws (separate order)
4 hexagon socket head cap screws, metric
ISO 4762 - M6 x 40 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 12.5 Nm ± 10 %,
material no. R913000058
or
4 hexagon socket head cap screws
ISO 4762 - M6 x 40 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 15.5 Nm ± 10 %
4 hexagon socket head cap screws UNC
1/4-20 UNC x 1-1/2” ASTM-A574
(friction coefficient μtotal = 0.19 to 0.24);
tightening torque MA = 25 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 19 Nm ± 10 %,
material no. R978800710
With different friction coefficients, the tightening torques are to be adjusted accordingly!
