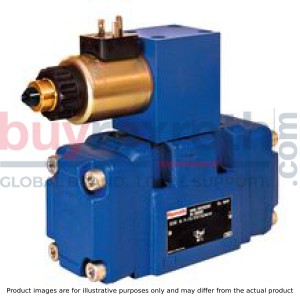

PRESSURE REDUCING VALVE 3DRE10P-7X/200YG24-8K4V
Manufacturer: Bosch Rexroth
Material #: R901424024
Model : 3DRE10P-7X/200YG24-8K4V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 3DRE10P-7X/200YG24-8K4V (R901424024) is an industrial hydraulic valve designed for precise pressure control within hydraulic systems. This valve is equipped with a proportional solenoid for actuation and features external electronics for operation. The 3DRE10P-7X/200YG24-8K4V provides reliable reduction of system pressure to a set command value, ensuring stable performance in various applications.
This model has a maximum operating pressure of 315 bar and can accommodate a maximum flow of 10 liters per minute. It's designed for subplate mounting with porting patterns in accordance with DIN 24340 form A and ISO 6264, ensuring compatibility with standard mounting configurations. The valve also offers an optional maximum pressure limitation feature, which adds an extra layer of protection against overpressure conditions.
The valve's design includes a pilot control valve with an optional spring-loaded pressure relief valve for maximum pressure limitation. The main spool operates to regulate the flow from port P to A, maintaining the actuator pressure at the desired level. The electrical connection is facilitated via a Connector pole PE according to DIN EN standards, ensuring secure and reliable electrical integration.
In terms of hydraulic fluid compatibility, this model can work with various types including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR fluids. It utilizes FKM seals to maintain integrity under diverse operating conditions. The unit's size conforms to CETOP D05 standards.
The Bosch Rexroth 3DRE10P-7X/200YG24-8K4V is engineered for applications requiring precise adjustment of reduced pressures in port A via the pilot control valve while preventing startup jumps at the actuator due to depressurized port P. Its linear pressure-command value characteristic curve ensures smooth operation across its range of use.
$9,174.00 USD
More are expected on April 14, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 14, 2025 when ordered in
This product is eligible for factory repair.
Size 10, P → A, electrical with external electronics, 24 VDC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 5.000 kg
Pilot-operated valves for pressure reduction (P to A) and limitation (A to T) of a system pressure Proportional solenoid operation Actuation by proportional solenoid with central thread and detachable coil For subplate mounting: Porting pattern according to DIN 24340 form A and ISO 4401 Optional maximum pressure limitation Valve and control electronics from a single source External control electronics Linear pressure/command value characteristic curve
The valves of type 3DRE(M) are electrically pilot-operated 3-way pressure reducing valves with pressure
limitation of the actuator. They are used for reducing a system pressure.
Technical set-up
The valve consists of two main assemblies:
Pilot control valve (1) with proportional solenoid (2) optionally with maximum pressure limitation (15) Main valve (3) with main spool (4)
Function
General function:
Command value-dependent setting of the pressure to be reduced in port A via the pilot control valve (1). With depressurized port P, the springs (5) and (6) hold the main spool (4) in its central position. In this way, a start-up jump at the actuator is prevented. Pilot oil flows from bore (7) via the flow controller (8), via the control chamber (11) to the throttle gap (9), via line (10) to port Y. This connection is to be lead into the tank at zero pressure.
Pressure reduction:
Build-up of the pilot pressure in the control chamber (11) as a function of the command value. Pressure build-up in the spring chamber (13) via nozzle (12) and movement of the main spool (4) to the right. Hydraulic fluid flows from P to A. The actuator pressure in port A is available in the spring chamber (14). Increase in the pressure in port A to the set pressure of the pilot control valve (1) leads to the movement of the main spool (4) to the left. Pressure in port A is almost identical with the set pressure at the pilot control valve (1).
Pressure limitation:
If the pressure in port A exceeds the set pressure of the pilot control valve (1), the main spool (4) is moved further to the left. This opens the connection from A to T and limits the pressure pending in port A to the set command value.
Type 3DREM
For hydraulic protection against an inadmissibly high electric control current at the proportional solenoid, which imperatively results in increased pressures in port A, you can optionally install a spring-loaded pressure relief valve as maximum pressure limitation (15).
The maximum pressure limitation is pre-set based on the relevant pressure rating.
Pilot oil supply
|
3DRE...-.../...XY... |
External pilot oil supply Pilot oil return, external |
In this version, the pilot oil is supplied from a separate control circuit (external).The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external). |
|
3DRE...-.../...Y... |
Internal pilot oil supply Pilot oil return, external |
With this version, the pilot oil is supplied from channel P of the main valve (internally).The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external).In the subplate, port X is to be closed. |
|
NG10 |
NG10; sectional diagram see Dimensions
|
Position 1: Plug screw M6 DIN 906-8.8 SW 3 |
|
NG16 |
NG16; sectional diagram see Dimensions
|
measured with HLP46, ϑOil = 40 ±5 °C, valve body and hydraulic fluid temperature-compensated.
Large temperature differences may lead to differing characteristic curves / values.
Pressure in port P dependent on the command value
| 1) | 1) With valve type DBEM and 3DREM, the manufacturing tolerance at the external amplifier can be changed using the command value attenuator potentiometer "Gw”. The digital amplifier is set using the "Limit” parameter. Here, the control current according to the technical data must not be exceeded. In order to be able to adjust several valves to the same characteristic curve, do not set the pressure higher than the maximum set pressure of the pressure rating with command value 100%. |
Pressure dependent on the command value / comparison G24 and G24-8 / pressure rating 200 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)
Current drop with increasing ambient temperature, 24 V and 100% duty cycle
Pressure rating 50 bar
Size 10
Pressure rating 100 bar
Size 10
Pressure rating 200 bar
Size 10
Pressure rating 315 bar
Size 10
Pressure differential dependent on the flow
Size 10
Pressure in port A dependent on the flow
Size 10
Minimum set pressure dependent on the flow at command value 0
Size 10
Pressure rating 50 bar
Size 16
Pressure rating 100 bar
Size 16
Pressure rating 200 bar
Size 16
Pressure rating 250 bar
Size 16
Pressure differential dependent on the flow
Size 16
Pressure in port A dependent on the flow
Size 16
Minimum set pressure dependent on the flow at command value 0
Size 16
Type 3DRE...Y...
Type 3DREM...Y...
Type 3DRE...XY...
Type 3DREM...XY...
Connection at mating connector
Connection at the connector
|
1 |
Main valve |
|
2 |
Pilot control valve |
|
3 |
Proportional solenoid |
|
4 |
Space required to remove the mating connector |
|
5 |
Maximum pressure limitation (type 3DREM…) |
|
6 |
Name plate |
|
7 |
Identical seal rings for port A, B, P, TA, TB |
|
8 |
Identical seal rings for ports X and Y |
|
9 |
Machined valve contact surface; Porting pattern according to DIN 24340-A10 and ISO 4401-05-05-0-05 |
|
10 |
With “internal” pilot oil supply (version Y), port X in the subplate must be closed. |
|
11 |
Port B must be closed in the subplate |
|
12 |
mating connector according to DIN EN 175301-803 |
|
13 |
Integrated electronics (type 3DREE, 3DREME) with connector |
|
14 |
Mating connector according to DIN EN 175201-804 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M6 x 45 - 10.9-flZn-240h-L
(Friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 12.5 Nm ± 10%
material no. R913000258
or
4 hexagon socket head cap screws ISO 4762 - M6 x 45 - 10.9
(Friction coefficient μtotal = 0.12 to 0.17)
Tightening torque MA = 15.5 Nm ± 10%
material no. R900003263
|
1
|
Main valve |
|
2
|
Pilot control valve |
|
3
|
Proportional solenoid |
|
4
|
Space required to remove the mating connector |
|
5 |
Maximum pressure limitation (type 3DREM…) |
|
6
|
Name plate |
|
7
|
Identical seal rings for ports A, B, P, and T |
|
8
|
Identical seal rings for ports X and Y |
|
9 |
Machined valve contact surface; Porting pattern according to DIN 24340-A16 and ISO 4401-05-07-0-05 |
|
10 |
With “internal” pilot oil supply (version Y), port X in the subplate must be closed. |
|
11 |
Ports B and L must be closed in the subplate |
|
12 |
mating connector according to DIN EN 175301-803 |
|
13 |
Integrated electronics (type 3DREE, 3DREME) with connector |
|
14 |
Mating connector according to DIN EN 175201-804 |
Recommended valve mounting screws (separate order):
2 hexagon socket head cap screws ISO 4762 - M6 x 60 - 10.9-flZn-240h-L
(Friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 12.2 Nm ± 10%
Material no. R913000115
4 hexagon socket head cap screws ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
(Friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 59 Nm ± 10%
Material no. R913000116
or
2 hexagon socket head cap screws ISO 4762 - M6 x 60 - 10.9
(Friction coefficient μtotal = 0.12 to 0.17)
Tightening torque MA = 15.5 Nm ± 10%
Material no. R900003266
4 hexagon socket head cap screws ISO 4762 - M10 x 60 - 10.9
(Friction coefficient μtotal = 0.12 to 0.17)
Tightening torque MA = 75 Nm ± 10%
Material no. R900008630
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
