PRESSURE RELIEF VALVE DBDS 20 K1X/350V SO52

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

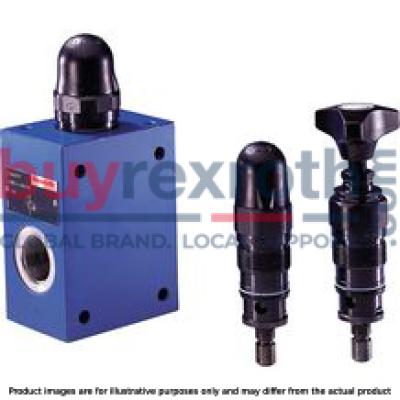

The Bosch Rexroth DBDS 20 K1X/350V SO52 (R901414425) is a high-performance screw-in cartridge valve designed for direct operation as a pressure relief valve. This model is part of the DBD.K product family, characterized by its direct and pilot acting relief functionality, ensuring precise control over hydraulic system pressure limits. The valve features a poppet type design with a maximum operating pressure of up to 350 bar (5076 psi) and can handle a nominal flow rate, ensuring compatibility with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HFDU, and HFDR. Constructed with an FKM sealing material and compatible with G1/2 ports, this valve ensures robust performance in demanding applications. The DBDS 20 K1X/350V SO52 includes an adjustment mechanism that is safeguarded against loss by its gimbal mounting which allows the element to remain movable even when completely unloaded. The pressure adjustment can be carried out steplessly via different options such as a sleeve with hexagon and protective cap, rotary knob, hand wheel or a lockable rotary knob. The structure of the valve consists of a sleeve (1), spring (2), and either a poppet with damping piston or ball for different pressure ratings. It operates by allowing hydraulic fluid to flow from channel P to T when system pressure exceeds the spring-set value. To accommodate various requirements, the valve's pressure range is divided into several ratings corresponding to specific springs that dictate the maximum adjustable operating pressures. This Bosch Rexroth relief valve is versatile in application due to its suitability for threaded connection or subplate mounting. It is engineered for reliability in limiting system pressures across diverse hydraulic applications without compromise on performance or safety.
