4WN10E5X//V
Manufacturer: Bosch Rexroth
Material #: R901412066
Model : 4WN10E5X//V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WN10E5X//V (R901412066) is a high-performance directional spool valve designed to effectively manage the start, stop, and direction of fluid flow in hydraulic systems. This valve falls under the WN series, which is characterized by its fluidic actuation and robust construction. The 4WN10E5X//V model features a housing, a hydraulic actuation cylinder, a control spool, and one or two return springs that maintain the control spool in the central or initial position when deenergized, except for version O where this does not apply.
The control spool is shifted to the desired position through hydraulic actuation to achieve precise control over fluid dynamics within the system. The valve also includes a throttle insert option for situations where operating conditions produce flows during switching processes that could exceed the valve's performance limit.
Designed with versatility in mind, this particular model supports various types of actuation and comes in different way versions with porting patterns according to ISO standards. It ensures reliable operation with its hydraulic operating method. The size of this component series X allows it to handle maximum operating pressures up to bar and maximum flow rates measured in liters per minute (l/min), ensuring suitability for a wide range of applications that require efficient and accurate hydraulic control.
$1,218.00 USD
More are expected on February 27, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 27, 2025 when ordered in
This product is eligible for factory repair.
Valves of type WN are fluidically actuated directional spool valves.
They control the start, stop and direction of a flow.

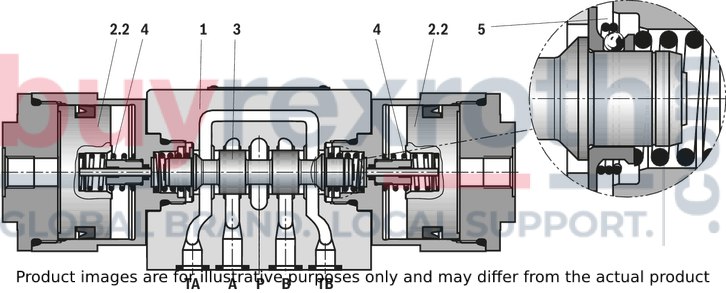

The directional valves basically consist of housing (1), one type of actuation (2.2) (hydraulic actuation cylinder), control spool (3) and one or two return springs (4).
When de-energized, the control spool (3) is held in the central position or in the initial position by the return springs (4) (except for version "O").
The control spool (3) is moved to the desired spool position by means of the types of actuation.
Type 4WN 10 D5X/OF…
Type 4WN 10 E5X/…
Throttle insert
The use of a throttle insert is required when, due to prevailing operating conditions, flows occur during the switching processes which exceed the performance limit of the valve.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
Symbol |
Direction of flow |
|||
|
P ‒ A |
P ‒ B |
A ‒ T |
B ‒ T |
|
|
A; B |
6 |
6 |
‒ |
‒ |
|
C |
1 |
2 |
5 |
7 |
|
D |
2 |
2 |
5 |
7 |
|
E |
17 |
16 |
19 |
21 |
|
F |
2 |
3 |
22 |
23 |
|
G |
4 |
4 |
24 |
24 |
|
H |
14 |
14 |
20 |
21 |
|
J |
3 |
3 |
9 |
11 |
|
J73 |
22 |
21 |
23 |
24 |
|
L |
3 |
3 |
9 |
9 |
|
M |
14 |
14 |
6 |
8 |
|
P |
17 |
14 |
20 |
23 |
|
Q |
16 |
17 |
4 |
8 |
|
R |
18 |
21 |
18 |
24 |
|
T |
18 |
4 |
10 |
24 |
|
U |
3 |
3 |
6 |
11 |
|
V |
17 |
17 |
18 |
20 |
|
W |
upon request |
|||
|
Central position: |
|||||
|
Symbol |
Direction of flow |
||||
|
P ‒ A |
P ‒ B |
B ‒ T |
A ‒ T |
P ‒ T |
|
|
H |
12 |
12 |
13 |
13 |
15 |

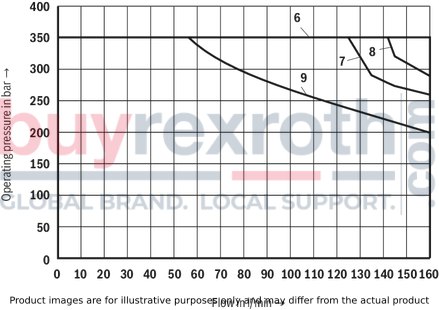

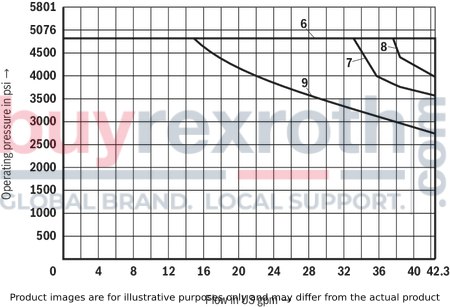

Performance limits
(measured with HLP46, ϑOil = 40 ±5 °C)
Notice!
The specified performance limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible performance limit may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us!
|
Characteristic curve |
Symbol |
|
6 |
C, C/OF, D, D/OF, E, J, L, M, U |
|
7 |
H |
|
8 |
G |
|
9 |
A,B |
| 1) | Example:Symbol E with spool position “a” → ordering code ..EA..Symbol E with spool position “b" → ordering code ..EB.. |

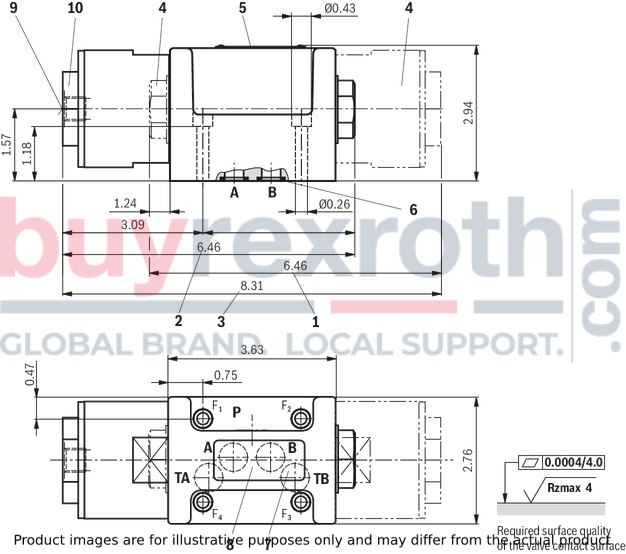

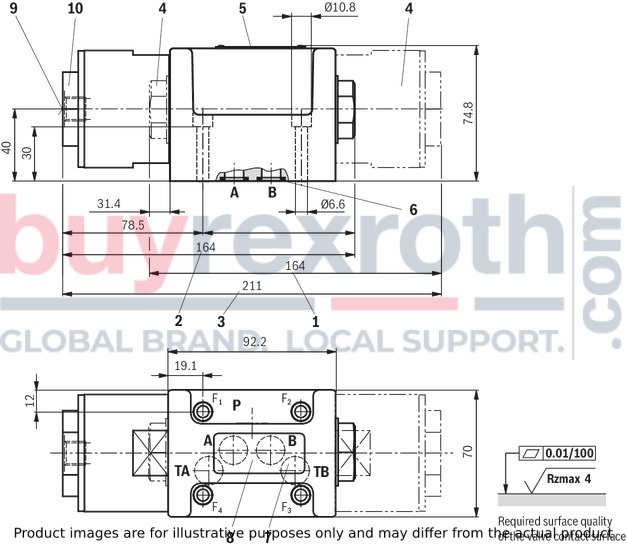

Dimensions in mm
3/2 directional seat valve
Dimensions in mm
Notices!
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. When screwing in/releasing the connection tube on the pilot oil port (9), the bushing (10) must be secured against twisting by using an open-end wrench.Subplates according to data sheet 45054 (separate order)
G 66/01 (G3/8) 1)
G 67/01 (G1/2) 1)
G 534/01 (G3/4) 1)
G 66/12 (SAE-6; 9/16-18) 2)
G 67/12 (SAE-8; 3/4-16) 2)
G 534/12 (SAE-12; 1-1/16-12) 2)
Valve mounting screws (separate order)
4 hexagon socket head cap screws, metric
ISO 4762 - M6 x 40 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 12.5 Nm ± 10 %,
material no. R913000058
or
4 hexagon socket head cap screws
ISO 4762 - M6 x 40 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 15.5 Nm ± 10 %
4 hexagon socket head cap screws UNC
1/4-20 UNC x 1-1/2” ASTM-A574
(friction coefficient μtotal = 0.19 to 0.24);
tightening torque MA = 25 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 19 Nm ± 10 %,
material no. R978800710
With different friction coefficients, the tightening torques are to be adjusted accordingly!
