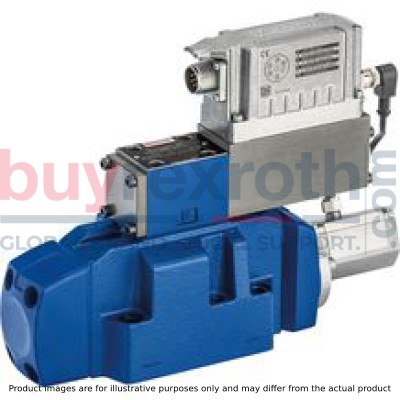

PROPORTIONAL DIRECTIONAL VALVE 4WRLE25E400LJ-4X/MXY/24A1

Manufacturer: Bosch Rexroth

Material #: R901396318

Model : 4WRLE25E400LJ-4X/MXY/24A1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRLE25E400LJ-4X/MXY/24A1 (R901396318) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, based on its spool valve configuration with pilot operation and a linear characteristic curve. This valve is characterized by its size E, with an electrical actuation type that includes integrated electronics for precise operation. The unit features a maximum operating pressure of 350 bar and can handle a nominal flow rate of up to 400 liters per minute. The 4WRLE25E400LJ-4X/MXY/24A1 is equipped with external pilot oil supply and return capabilities, ensuring flexibility in hydraulic circuit design. Its spool symbol, symbol E, indicates its specific flow path configuration. The valve's electrical connection utilizes a Connector pole PE according to EN standards, ensuring secure and reliable electrical integration. With integrated electronics, the valve offers analog connectivity with command values of 0-10V for intuitive control over hydraulic systems. It operates on a supply voltage of 24 VDC and features multiple switching positions for versatile application in various hydraulic scenarios. The product conforms to CE standards for electromagnetic compatibility as well as EU directives RoHS and REACH, highlighting its adherence to safety and environmental regulations. Seals made from NBR (nitrile butadiene rubber) are used within the valve to maintain integrity under various operating conditions. The hydraulic fluids compatible with this valve include HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Designed for subplate mounting with an NFPA T3.5.1 R2 D03 size CETOP D05 interface pattern, the Bosch Rexroth 4WRLE25E400LJ-4X/MXY/24A1 ensures ease of installation and maintenance within industrial hydraulic systems. This robustly constructed valve is suitable for applications requiring precise control such as position, velocity, or pressure regulation within advanced hydraulic circuits.

$10,749.00 USD

Availability: 1 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as May 9, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

PROPORTIONAL DIRECTIONAL VALVE 4WRLE25E400LJ-4X/MXY/24A1

Size 25, symbol E, electrical with integrated electronics, 24 V DC

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback

Unpacked Weight: 18.580 kg

Reliable - proven and robust design Safe
- The control spool of the pilot control valve is in the “fail-safe” position when the unit is switched off
- The control spool of the main valve is in the spring-centered central position and/or in the offset position High quality – control spool and sleeve of the pilot control valve in servo quality Flexible - suitable for position, velocity and pressure control Precise - high response sensitivity and little hysteresis IO-Link interface, optional

Symbol E. and W.

The valve type 4WRLE is a pilot-operated directional control valve with electrical position feedback and on-board electronics (OBE).

Layout

The valve basically consists of 3 main assemblies:

Pilot control valve (1) with control spool and sleeve, return spring, control solenoid and inductive position transducer (optional with electronics protection membrane (5) and damping plate (4)) Main valve (2) with centering spring and position feedback On-board electronics (OBE) (3) with analog or IO-Link interface (6)

Function

When the on-board electronics (OBE) are switched off or inactive, the control spool of the pilot control valve is spring-operated in the "fail-safe" position. The control spool of the main valve is its spring-centered central position.

The on-board electronics (OBE) compare the specified command value to the position actual value of the main valve control spool. In case of control deviations, the control solenoid will be activated. Due to the changed magnetic force, the pilot control spool is adjusted against the spring.

The pilot oil supply in the pilot control valve is either internal via port P or external via port X. The feedback can be internal via port T or external via port Y to the tank.

Control solenoid shut-off

In case of the following errors, the control solenoids are de-energized by the on-board electronics (OBE), the pilot control spool is set to “fail-safe” position and unloads the pilot oil chambers of the main valve. Operated by the spring, the main valve control spool will move to the central position.

Falling below the minimum supply voltage Only with interface "F1": Falling below the minimum current command value of 2 mA (includes cable break of the command value line (current loop)). Only with interface "L1": Enable inactive, communication interruption (watchdog) In case of internal IO-Link error Only with interface "C6": Additionally enable inactive

Damping plate "D"

The damping plate (4) reduces the acceleration amplitudes on the on-board electronics (frequencies >300 Hz).

Notice:

Use of the damping plate is not recommended for applications with mainly low-frequency excitation <300 Hz.

Electronics protection membrane "-967"

To prevent condensate formation in the housing of the on-board electronics (OBE), an electronics protection membrane (5) can be used.

Recommended for use outside industry-standard conditions with high ambient air humidity and significant cyclic temperature changes (e.g. outdoors).

Notice:

Pilot-operated 4/3-directional control valves with positive overlap are functional in controlled or regulated axes. The overlap in the de-energized state is approx. 20% of the control spool stroke. While the electrical supply voltage is switching off, the drive may be accelerated for a short time in functional direction P to B.

Symbol V and V1-

The valve type 4WRLE is a pilot-operated directional control valve with electrical position feedback and on-board electronics (OBE).

Layout

The valve basically consists of 3 main assemblies:

Function

The flow which is activated via the control cross-sections leads to an adjustment of the main control spool. The stroke/control cross-section of the main control spool is regulated proportionally to the command value. In case of a command value presetting of 0 V, the electronics adjust the control spool of the main valve to central position.

The pilot oil supply in the pilot control valve is either internal via port P or external via port X. The feedback can be internal via port T or external via port Y to the tank.

Control solenoid shut-off

Damping plate “D” and electronics protection membrane “-967”

See “symbol E. and W.”:

Notice:

Pilot-operated 4/3 directional control valves are only functional in the active control loop and do not have a locking basic position when deactivated. Consequently "external isolator valves" are required in many applications and must be taken into account regarding the switch-on/switch-off order. While the electrical supply voltage is switching off, the drive may be accelerated for a short time in functional direction P to B.

Pilot oil supply (schematic illustration)

Size 10

Size 16

Size 25

Size 27

Size 35

1	Plug screw M6 according to DIN 906, wrench size 3 - Pilot oil return
2	Plug screw M6 according to DIN 906, wrench size 3 - Pilot oil supply
3	Plug screw M12x1.5 according to DIN 906, SW6 - Pilot oil supply
4	Plug screw 1/16-27 NPTF, wrench size 4 - Pilot oil return
5	Plug screw 1/16-27 NPTF, wrench size 4 - Pilot oil supply
6	Housing cover main stage (position transducer side)

Pilot oil supply
External Internal	2, 3, 5 closed 2, 3, 5 open
Pilot oil return
External Internal	1, 4 closed 1, 4 open

Version “XY"

External pilot oil supply, external pilot oil return

In this version, the pilot oil is supplied from a separate control circuit (external). The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external).

Version “PY”

Internal pilot oil supply, external pilot oil return

With this version, the pilot oil is supplied from channel P of the main valve (internally). The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external). In the subplate, port X is to be closed.

Version “PT”

Internal pilot oil supply; internal pilot oil return

With this version, the pilot oil is supplied from channel P of the main valve (internally). The pilot oil is directly returned to channel T of the main valve (internally). In the subplate, ports X and Y are to be closed.

Version “XT”

External pilot oil supply, internal pilot oil return

In this version, the pilot oil is supplied from a separate control circuit (external). The pilot oil is directly returned to channel T of the main valve (internally). In the subplate, port Y is to be closed.

Notice:

The modification of the pilot oil supply may only be performed by authorized specialists or at the factory. The maximum admissible operating parameters must be observed, see "Technical data".

External pilot oil supply, external pilot oil return
Spool valve
Pilot-operated
Linear
Digital interface, IO-Link for I4.0
Maximum flow 4700 l/min
Size 10 … 35
Component series 4X
Maximum operating pressure 350 bar
Rated flow 60 … 1500 l/min

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	Symbol E
Max. pressure	350
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Productgroup ID	9,10,11,12,13,14
Number of ports	4
Type of actuation	Electrical with integrated electronics
Conformity description	CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU REACH Regulation (EC) no. 1907/2006
Size	25
Electrical connector	Connector 7-pole (6 + PE)
Max. flow	1250
Type of connection	Subplate mounting
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D08
Size_CETOP	D08
Nominal flow	400
Connection diagram	ISO 4401-08-08-0-05
Supply voltage	24 VDC
Number of switching positions	3
Weight	18.580
Seals	NBR
Connectivity	Analog, command value ±10 V
Hydraulic fluid	HL,HLP,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)
Conformity	CE,RoHS
Conformity	CE

01	02	03	04	05	06	07	08		09		10	11		12	13	14	15	16
4	WRL	E					J	‒	4X	/			/		24			*

01	4 main ports	4
02	High-response directional valve, pilot operated	WRL
03	With integrated electronics (OBE)	E
04	Size 10	10
	Size 16	16
	Size 25	25
	Size 27	27
	Size 35	35
05	Symbols; for the possible version, see "Symbols/Circuit diagrams"	E, E1-, W6-, W8-, V, V1-, Q3-
Rated flow (Δp = 5 bar)
06	Size 10
	60 l/min (only symbol E, E1-, W6-, W8-, V, V1-)	60
	100 l/min	100
	Size 16
	200 l/min (only symbol W6- and W8-)	200
	250 l/min (only symbol E, E1-, V, V1- and Q3-)	250
	Size 25
	350 l/min (only symbol W6- and W8-)	350
	400 l/min (only symbol E, E1-, V, V1- and Q3-)	400
	Size 27
	430 l/min (only symbol W6- and W8-)	430
	600 l/min (only symbol E, E1-, V, V1- and Q3-)	600
	Size 35
	1000 l/min (only symbol E, E1-, V, V1-)	1000
	1200 l/min (only symbol W6- and W8-)	1200
	1500 l/min (only symbol E, E1-, V, V1- and Q3-)	1500
Flow characteristic
07	Linear	L
	Linear with fine control range (only NG10; other sizes on request)	P
	Progressive with linear fine control (only symbol Q3-)	M
08	Overlap jump (opening point 5% with covered valve; only symbols E, E1-, W6-, W8-)	J
09	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
10	NBR seals	M
10	FKM seals	V
Pilot oil flow
11	Pilot oil supply internal, pilot oil return internal	PT
	Internal pilot oil supply, external pilot oil return	PY
	External pilot oil supply, internal pilot oil return	XT
	External pilot oil supply, external pilot oil return	XY
12	Without damping plate	no code
12	With damping plate	D
13	Supply voltage 24 V	24
Interfaces of the control electronics
14	Command value input ±10 V	A1
	Command value input 4 … 20 mA	F1
	IO-Link interface	L1
	Command value ±10 mA, actual value 4 ... 20 mA, release (connector 6+PE)	C6
15	Without electronics protection membrane	no code
15	With electronics protection membrane	-967
16	Further details in the plain text	*

For applications outside these parameters, please consult us!

general

Type			4WRLE
Size			10	16	25	27	35
Installation position			Any
Weight		kg	9	12	19	21	80
Ambient temperature range		°C	-20 … +60
Maximum storage time 1)		yrs	1
Sine test according to DIN EN 60068-2-6	Without damping plate		10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes
	With damping plate 2)		10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes
Noise test according to DIN EN 60068-2-64	Without damping plate		20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes
	With damping plate 2)		20 ... 2000 Hz / 10 gRMS / 30 gpeak/24 h/3 axes
Transport shock according to DIN EN 60068-2-27	Without damping plate		15 g / 11 ms / 3 shocks / 3 axes
	With damping plate 2)		15 g / 11 ms / 3 shocks / 3 axes
Shock test according to DIN EN 60068-2-27	With damping plate 2)		35 g / 6 ms / 1000 shocks / 3 axes
Maximum relative humidity 3)		%	95
Maximum solenoid surface temperature 4)		°C	120
MTTFD values according to EN ISO 13849 5)		Years	75
Conformity			CE according to EMC directive 2014/30/EU tested according EN 61000-6-2 and EN 61000-6-3 RoHS directive 2015/65/EU REACH ordinance (EC) no. 1907/2006

1)	If the storage conditions are observed; refer to the operating instructions 07600-B
2)	Not recommended for applications with mainly low-frequency excitation < 300 Hz
3)	No condensation
4)	Individual operation
5)	For further details, see data sheet 08012

hydraulic

Type				4WRLE
Size				10	16	25	27	35
Maximum operating pressure	Port P	External pilot oil supply	bar	350			270	350
	Anschluss A		bar	350			270	350
	Port B		bar	350			270	350
	Port P	Internal pilot oil supply	bar	280			270	280
	Anschluss A		bar	280			270	280
	Port B		bar	280			270	280
	Port X		bar	280			270	280
	Port Y		bar	250			210	250
	Port T		bar	250			210	250
Minimum pilot pressure	Pilot control valve		bar	10
Maximum flow			l/min	300	800	1250	1850	4700
Nominal flow 1)			l/min	60 100	200 250	350 400	430 600	1000 1200 1500
Pilot flow 2)	Symbol E, W		l/min	2.4	3.5	7.5		23
	Symbol V, Q3-		l/min	4.5	11.5	22		29
Maximum leakage flow 3)	Symbol E, E1-	Main valve	l/min	0.06	0.13	0.17		0.61
		Main valve + pilot control valve	l/min	0.14	0.28	0.42		1.01
	Symbol W6-, W8-	Main valve	l/min	0.12	0.26	0.35		1.23
		Main valve + pilot control valve	l/min	0.2	0.41	0.61		1.63
	Symbol V, V1-	Main valve	l/min	1.7	2.3	2.8	3.3	7.2
		Main valve + pilot control valve	l/min	1.85	2.6	3.2	3.7	7.65
	Symbol Q3-	Main valve	l/min	0.4	1.6	1.8	2.2	1.6
		Main valve + pilot control valve	l/min	0.55	1.9	2.2	2.6	2.05
Flow unloading central position	Symbol W6; A – T		l/min	2.8	4	6		25
	Symbol W6; B – T		l/min	2.8	4	6		25
	Symbol W8; A – T		l/min	2.8	4	6		25
	Symbol W8; B – T		l/min	1.4	2	3		12.5
Pilot volume 0 … 100%			cm³	1.3	2.9	6.8		33.2
Hydraulic fluid				see table "Hydraulic fluid"
Hydraulic fluid temperature range 4)			°C	-20 … +70
Viscosity range	Maximum admissible		mm²/s	10 … 800
	Recommended		mm²/s	20 … 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 5)				Class 18/16/13

1)	With Δp = 5 bar/control edge; flow with deviating Δp see formula.
2)	At port X and Y with stepped input signal from 0 to 100 % (pilot pressure 100 bar)
3)	Inlet pressure 100 bar
4)	flown-through
5)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base)	FKM
		HFDR	FKM
	Containing water	HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system. Flame-resistant - containing water: Due to increased cavitation tendency with HFC hydraulic fluids, the life cycle of the component may be reduced by up to 30% as compared to the use with mineral oil HLP. In order to reduce the cavitation effect, it is recommended - if possible specific to the installation - to back up the return flow pressure in ports T to approx. 20% of the pressure differential at the component. Dependent on the hydraulic fluid used, the maximum ambient and hydraulic fluid temperature must not exceed 50 °C. In order to reduce the heat input into the component, the command value profile is to be adjusted for proportional and high-response valves.

static / dynamic

Type				4WRLE
Size				10	16	25	27	35
Hysteresis			%	< 0.1
Response sensitivity			%	< 0.05
Range of inversion			%	< 0.08
Manufacturing tolerance			%	≤ 10
Switch-off behavior 1)	Symbol E, E1-, W6-, W8-			Pilot control valve in “fail-safe” position, main valve moves to spring-centered, overlapped central position
	Symbol V, V1-			Pilot control valve in “fail-safe” position, main valve moves to spring-centered “offset position” (approx. 6%, P-B/A-T)
	Symbol Q3-			Pilot control valve in “fail-safe” position, main valve moves to spring-centered "offset position" (P blocked, A/B to port T open)
Temperature drift 2)				Zero shift < 0.25 %/10 °C
Actuating time 3)	0 ... 100 %	Symbol E, E1-, W6-, W8-	ms	25	37	36		55
Zero point calibration 4)			%	± 1

1)	after electric shut-off
2)	Temperature range 20 °C ... 80 °C
3)	At X = 210 bar
4)	ex works

electrical, integrated electronics (OBE) – Interface "A1" and "F1"

Power supply		VDC	24
	Terminal A	VDC	min. 19 / max. 36
	Terminal B	VDC	0
Relative duty cycle 1)		%	100
Protection class according to DIN EN 60529			IP65 with mounted and locked plug-in connectors
Maximum admissible residual ripple		Vpp	2.5
Maximum power consumption		VA	40
Fuse protection, external			2.5 AT (time-lag)
Input, version "A1"			Differential amplifier, Ri = 100 kΩ
	Terminal D (UE)	VDC	0 … ±10
	Terminal E	VDC	0
Input, version "F1"			Load, Rsh = 200 Ω
	Terminal D (ID-E)	mA	4 … 20
	Terminal E (ID-E)		Current loop ID-E return
Maximum voltage for the differential inputs compared to 0 V			D → B; E → B (max. 18 V)
Test signal, version "A1"			LVDT
	Terminal F (UTest)	V	0 … ±10
	Terminal C		Reference 0 V
Test signal, version "F1"			LVDT signal 4 … 20 mA on external load 200 … 500 Ω maximum
	Terminal F (IF-C)	mA	4 … 20
	Terminal C (IF-C)		Current loop IF-C return
Functional earth and screening			see pin assignment under "Electrical connection" (EMV-compliant installation)
Adjustment			calibrated in the plant, see "characteristic curves"

1)	Continuous operation

electrical, integrated electronics (OBE) – Interface "L1"

Power supply	Valve amplifiers	VDC	24
	Pin 2	VDC	min. 18 / max. 30
	Pin 5	VDC	0
	IO-Link interface	VDC	24
	Pin 1	VDC	min. 18 / max. 30
	Pin 3	VDC	0
Relative duty cycle 1)		%	100
Protection class according to DIN EN 60529			IP65 with mounted and locked plug-in connectors
Maximum current consumption	Valve amplifiers	A	2
Maximum current consumption	IO-Link interface	mA	50
Maximum admissible residual ripple		Vpp	1.3
Minimal process cycle time		ms	0.6
Bit rate COM3		kBit/s	230.4
Required master port class			Class B
Resolution	A/D transformer	Bit	12 (110% valve opening)
Resolution	D/A transformer	Bit	12 (110% valve opening)
Functional ground			provide via valve block
Adjustment			calibrated in the plant, see "characteristic curves"
Directive			IO-Link Interface and System Specification Version 1.1.2

1)	Continuous operation

electrical, integrated electronics (OBE) – Interface "C6"

Power supply		VDC	24
	Terminal A	VDC	min. 19 / max. 36
	Terminal B	VDC	0
Relative duty cycle 1)		%	100
Protection class according to DIN EN 60529			IP65 with mounted and locked plug-in connectors
Maximum admissible residual ripple		Vpp	2.5
Maximum power consumption		VA	40
Fuse protection, external			2.5 AT (time-lag)
Inlet			Load, Rsh = 200 Ω
	Terminal D (ID-E)	VDC	0 … ±10
	Terminal E (ID-E)		Current loop ID-E return
Test signal			LVDT signal 4 … 20 mA on external load 200 … 500 Ω maximum
	Terminal F (IF-C)	mA	4 … 20
	Terminal B (IF-C)		Current loop IF-C return
Functional earth and screening			see pin assignment under "Electrical connection" (EMV-compliant installation)
Adjustment			calibrated in the plant, see "characteristic curves"

1)	Continuous operation

Flow/load function with maximum valve opening (tolerance ±10 %)

Flow characteristic "L"

Flow characteristic "P"

Flow characteristic "M"

(valid for HLP46, ϑOil = 40 ±5 °C; ∆p = 5 bar/control edge)

Flow/signal function

Symbol Q3, version "100"

Flow/signal function

Symbol Q3, version "250"

Flow/signal function

Symbol Q3, version "400"

Flow/signal function

Symbol Q3, version "600"

Flow/signal function

Symbol Q3, version "1500"

With symbol E1–, V1– and W8–:
P → A: qv max	B → T: qv/2
P → B: qv/2	A → T: qv max

Version	simple	Detailed
"XY"
"PY"
"PT"
"XT"

Notices:

Representation according to DIN ISO 1219-1. Hydraulic interim positions are shown by dashes. For information on the "switch-off behavior", refer to technical data.

Block diagram / controller function block

1)	Position transducer pilot control valve
2)	Position transducer main valve

Notices:

Electrical signals provided via control electronics (e. g. actual value) must not be used for switching off safety-relevant machine functions. The factory setting of the potentiometer must not be changed.

Connector pin assignment "A1", "F1" and "C6"

Contact	Interface assignment
	"A1" (6+PE)	"F1" (6+PE)	"C6" (6+PE)
A	24 VDC supply voltage
B	GND		GND, reference potential actual value/enable
C	Reference potential actual value		Reference potential actual value/command value; Enable input 24 VDC (high ≥11 V; low ≤5 V
D	Command value ±10 V (Re > 100 kΩ)	Command value 4 ... 20 mA (Re = 200 Ω)	Command value ±10 mA (Re = 200 Ω)
E	Reference potential command value
F	Actual value ±10 V (Ri ≈ 1 kΩ)	Actual value 4 ... 20 mA, load resistance ≈ 330 Ωor digital output (at PLC) 2)
PE	Functional ground (directly connected to valve housing)

Command value:

Positive command value (0 ... 10 V or 12 ... 20 mA) at D and reference potential at E cause flow from P → A and B → T. Negative command value (0 ... -10 V or 12 ... 4 mA) at D and reference potential at E cause flow from P → B and A → T.

Connection cable:

Up to 20 m cable length type LiYCY 7 x 0.75 mm2 Up to 40 m cable length type LiYCY 7 x 1.0 mm2 EMC-compliant installation: Apply screening to both line ends Use metal mating connector (see "Accessories") Alternatively up to 30 m cable length admissible Apply screening on supply side Plastic mating connector (see "Accessories") can be used

Notice:

Mating connectors, separate order, see "Accessories" and data sheet 08006.

Gerätestecker-Belegung „L1“

(M12-5, A-codiert, Class B)

Pin	Signal	Assignment interface "L1"
1	L+	Voltage supply IO-Link
2	P24	Voltage supply valve electronics and power part (current consumption 2 A)
3	L-	Reference potential pin 1 1)
4	C/Q	Data line IO-Link (SDCI)
5	N24	Reference potential pin 2 1)

1)	Pin 3 and 5 are linked with each other in the valve electronics. The reference potentials L- and N24 of the two supply voltages must also be linked with each other on the power supply unit side.

Notices:

M12 sensor/actuator connection line, 5-pole; M12 connector/bush, A-coded, without shield, maximum cable length 20 m. Observe the voltage drop over the cable. Wire cross-section at least 0.34 mm2. Mating connectors, separate order, see "Accessories" and datasheet 08006. Communication and parameter description see data sheet 29400-PA

Size 10

Dimensions in mm


Required surface quality of the valve contact surface

1	Pilot control valve
2	Main valve
3	Integrated electronics (OBE)
4	Inductive position transducer (main valve)
5	Name plate
6	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y
7	Space required to remove the mating connector
8.1	Mating connectors for version "A1", "F1" and "C6", separate order, see "Accessories" and datasheet 08006.
8.2	Mating connectors for version "L1", separate order, see "Accessories" and datasheet 08006.
9	Locking pin
10	Machined valve contact surface; porting pattern according to ISO 4401-05-05-0-05
11	Damping plate "D"
12	Dimension in () for version with damping plate "D"
13	Electronics protection membrane "-967"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size	Quantity	Hexagon socket head cap screws	Material number
10	4	ISO 4762 - M6 x 45 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B Tightening torque MA = 13.5 Nm ±10 %	R913043777
	or
	4	ISO 4762 - M6 x 45 - 10.9 Tightening torque MA = 15.5 Nm ±10 %	Not included in the Rexroth delivery range
	or
	4	ASME B18.3 1/4-20 UNC x 1 3/4“ - ASTM-A574 Tightening torque MA = 15 Nm ±10 %	Not included in the Rexroth delivery range

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. When replacing component series 3X with 4X, only the valve mounting screws listed here may be used. Prior to assembly, check the existing mounting bore on the block for sufficient screw-in depth.

Size 16

Dimensions in mm


Required surface quality of the valve contact surface

1	Pilot control valve
2	Main valve
3	Integrated electronics (OBE)
4	Inductive position transducer (main valve)
5	Name plate
6	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y
7	Space required to remove the mating connector
8.1	Mating connectors for version "A1", "F1" and "C6", separate order, see "Accessories" and datasheet 08006.
8.2	Mating connectors for version "L1", separate order, see "Accessories" and datasheet 08006.
9	Locking pin
10	Machined valve contact surface; Porting pattern according to ISO 4401-07-07-0-05 Deviating from the standard: Ports P, A, B, T Ø20 mm
11	Damping plate "D"
12	Dimension in () for version with damping plate "D"
14	Electronics protection membrane "-967"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size	Quantity	Hexagon socket head cap screws	Material number
16	2	ISO 4762 - M6 x 60 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B Tightening torque MA = 12.5 Nm ±10 %	R913043410
	4	ISO 4762 - M10 x 60 - 10.9-flZn/nc/480h/C Tightening torque MA = 58 Nm ±20 %	R913014770
	or
	2	ISO 4762 - M6 x 60 - 10.9 Tightening torque MA = 15.5 Nm ±10 %	Not included in the Rexroth delivery range
	4	ISO 4762 - M10 x 60 - 10.9 Tightening torque MA = 75 Nm ±20 %	Not included in the Rexroth delivery range
	or
	2	ASME B18.3 - 1/4-20 UNC x 2 1/4“ - ASTM-A574 Tightening torque MA = 15 Nm ±10 %	Not included in the Rexroth delivery range
	4	ASME B18.3 - 3/8-16 UNC x 2 1/4“ - ASTM-A574 Tightening torque MA = 60 Nm	Not included in the Rexroth delivery range

Notices:

Size 25

Dimensions in mm


Required surface quality of the valve contact surface

1	Pilot control valve
2	Main valve
3	Integrated electronics (OBE)
4	Inductive position transducer (main valve)
5	Name plate
6	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y
7	Space required to remove the mating connector
8.1	Mating connectors for version "A1", "F1" and "C6", separate order, see "Accessories" and datasheet 08006.
8.2	Mating connectors for version "L1", separate order, see "Accessories" and datasheet 08006.
9	Locking pin
10	machined valve contact surface; porting pattern according to ISO 4401-08-08-0-05
11	Damping plate "D"
12	Dimension in () for version with damping plate "D"
13	Electronics protection membrane "-967"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size	Quantity	Hexagon socket head cap screws	Material number
25, 27	6	ISO 4762 - M12 x 60 - 10.9-flZn/nc/480h/C Tightening torque MA = 100 Nm ±20 %	R913015613
	or
	6	ISO 4762 - M12 x 60 - 10.9 Tightening torque MA = 130 Nm ±20 %	Not included in the Rexroth delivery range
	or
	6	ASME B18.3 - 1/2-13 UNC x 2 1/4“ - ASTM-A574 Tightening torque MA = 110 Nm ±20 %	Not included in the Rexroth delivery range

Notices:

Size 27

Dimensions in mm


Required surface quality of the valve contact surface

1	Pilot control valve
2	Main valve
3	Integrated electronics (OBE)
4	Inductive position transducer (main valve)
5	Name plate
6	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y
7	Space required to remove the mating connector
8.1	Mating connectors for version "A1", "F1" and "C6", separate order, see "Accessories" and datasheet 08006.
8.2	Mating connectors for version "L1", separate order, see "Accessories" and datasheet 08006.
9	Locking pin
10	Machined valve contact surface; Porting pattern according to ISO 4401-08-08-0-05 Deviating from the standard: Ports A, B, T and P Ø 32 mm
11	Damping plate "D"
12	Dimension in () for version with damping plate "D"
13	Electronics protection membrane "-967"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size	Quantity	Hexagon socket head cap screws	Material number
25, 27	6	ISO 4762 - M12 x 60 - 10.9-flZn/nc/480h/C Tightening torque MA = 100 Nm ±20 %	R913015613
	or
	6	ISO 4762 - M12 x 60 - 10.9 Tightening torque MA = 130 Nm ±20 %	Not included in the Rexroth delivery range
	or
	6	ASME B18.3 - 1/2-13 UNC x 2 1/4“ - ASTM-A574 Tightening torque MA = 110 Nm ±20 %	Not included in the Rexroth delivery range

Notices:

Size 35

Dimensions in mm


Required surface quality of the valve contact surface

1	Pilot control valve
2	Main valve
3	Integrated electronics (OBE)
4	Inductive position transducer (main valve)
5	Name plate
6	Identical seal rings for ports A, B, P, and T Identical seal rings for ports X and Y
7	Space required to remove the mating connector
8.1	Mating connectors for version "A1", "F1" and "C6", separate order, see "Accessories" and datasheet 08006.
8.2	Mating connectors for version "L1", separate order, see "Accessories" and datasheet 08006.
9	Locking pin
10	Machined valve contact surface; Porting pattern according to ISO 4401-10-09-0-05 Deviating from the standard: - Ports P, A, B and T Ø50 mm; - Position G1 according to DIN 24340 form A
11	Damping plate "D"
12	Dimension in () for version with damping plate "D"
13	Electronics protection membrane "-967"

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size	Quantity	Hexagon socket head cap screws	Material number
35	6	ISO 4762 - M20 x 90 - 10.9-flZn/nc/480h/C Tightening torque MA = 465 Nm ±20 %	R913009160
	or
	6	ISO 4762 - M20 x 90 - 10.9 Tightening torque MA = 610 Nm ±20 %	Not included in the Rexroth delivery range
	or
	6	ASME B18.3 - 3/4-10 UNC x 3 1/2“ - ASTM-A574 Tightening torque MA = 395 Nm ±10 %	Not included in the Rexroth delivery range

Notices:

Service case with test unit for proportional servo valves with integrated electronics (OBE)

VT-VETSY-1-1X

Service case with test unit for proportional servo valves with integrated electronics (OBE)

VT-VETSY-1-1X

Component series 1X

Data sheet

Configurator / CAD

Spare parts & repair

Accessories for R901396318

PROPORTIONAL DIRECTIONAL VALVE 4WRLE25E400LJ-4X/MXY/24A1

Manufacturer: Bosch Rexroth

Material #: R901396318

Model : 4WRLE25E400LJ-4X/MXY/24A1

Availability: 1 In Stock

This product is eligible for factory repair.

Symbol E. and W.

Symbol V and V1-

Pilot oil supply (schematic illustration)

general

hydraulic

static / dynamic

electrical, integrated electronics (OBE) – Interface "A1" and "F1"

electrical, integrated electronics (OBE) – Interface "L1"

electrical, integrated electronics (OBE) – Interface "C6"

Pressure-signal characteristic curve

Size 10

Transition function with stepped electric input signals

Frequency response

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 16

Transition function with stepped electric input signals

Frequency response

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 25

Transition function with stepped electric input signals

Frequency response

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 27

Transition function with stepped electric input signals

Frequency response

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 35

Transition function with stepped electric input signals

Frequency response

Flow/load function with maximum valve opening (tolerance ±10 %)

Flow characteristic "L"

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow characteristic "P"

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow characteristic "M"

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Flow/signal function

Block diagram / controller function block

Connector pin assignment "A1", "F1" and "C6"

Gerätestecker-Belegung „L1“

Size 10

Size 16

Size 25

Size 27

Size 35

Related Products

Information

Account
