DB10-1-5X/200XCV

Manufacturer: Bosch Rexroth

Material #: R901394307

Model : DB10-1-5X/200XCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

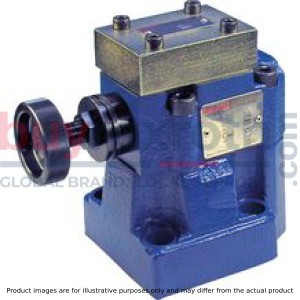

The Bosch Rexroth DB10-1-5X/200XCV (R901394307) is a sophisticated pilot-operated pressure limitation valve designed to effectively limit operating pressure within hydraulic systems. Comprising a main valve with a spool insert, a pilot control valve, and a closing plate, this device ensures precise pressure regulation. The pressure in channel P influences the main spool while also being directed through control lines to both the spring-loaded side of the main spool and the ball in the pilot control valve. When the pressure exceeds a preset value, it causes the ball to open against its spring, allowing hydraulic fluid to flow and maintain the set operating pressure. This model features subplate mounting with porting patterns that adhere to ISO standards NG6, NG10, and NG16 for versatile integration into various hydraulic setups. The adjustment type is via a rotary knob which allows for easy setting of pressure ratings. It is engineered for maximum operating pressures up to 350 bar and can be utilized in environments requiring adherence to Explosion Protection Directive EU standards: IM, IIG, IID. The types of protection for this valve are certified as 'c' according to EN standards. Additionally, an extra directional spool valve type WE can be attached for solenoid-actuated unloading capabilities. This feature enhances the functionality of the DB10-1-5X/200XCV valve by allowing it to be relieved or switched to alternate pressures when necessary. The Bosch Rexroth DB10 series valves are well-suited for applications demanding reliable and accurate pressure limitation in hydraulic systems where safety and performance are paramount. This particular model's robust design ensures it meets stringent operational requirements while providing flexibility in application due to its compatibility with various protection types and explosion-proof standards.

$2,663.00 USD

More are expected on September 27, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 27, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

For subplate mounting Porting pattern according to:
ISO 6264-06-09 (NG10),
ISO 6264-08-13 (NG25),
ISO 6264-10-17 (NG32) For threaded connection Adjustment type: Rotary knob 5 pressure ratings

Valves of type DB are pilot-operated pressure limitation valves. They serve to limit the operating pressure and mainly consist of the main valve (1) with main spool insert (3), the pilot control valve (2) and the closing plate (16).

The pressure in channel P acts on the main spool (3).

Simultaneously, the pressure is applied via the control lines (6) and (7), which are equipped with nozzles (4) and (5), to the spring-loaded side of the main spool (3) and to the ball (8) in the pilot control valve (2). If the pressure in channel P is increased due to the value which is set at the spring (9), the ball (8) opens against the spring (9). The signal for this is sent internally via the control lines (10) and (6) from channel P. The hydraulic fluid on the spring-loaded side of the main spool (3) now flows via the control line (7), nozzle bore (11) and ball (8) in the spring chamber (12). From here, it is passed on to the container internally with type DB...–... via control line (13) or externally with type DB...Y... via control line (14). Due to nozzles (4) and (5), there is a pressure drop at the main spool (3). The connection from channel P to channel T is free. Now, the hydraulic fluid flows from channel P to channel T while the set operating pressure is maintained.

Via port "X" (15), the pressure relief valve can be relieved or switched to a different pressure (second pressure rating).

Type DB 10…XC…

See also "General information" in chapter "Technical data".

Notice:

With the attachment of an additional directional spool valve type 3WE 6…, the valve can be extended for solenoid-actuated unloading (see chapter "Project planning information", "Solenoid-actuated unloading").

01	02	03	04	05	06		07	08	09	10	11
DB			1		5X	/				XC	V

01	Pressure relief valve, pilot controlled	DB
02	Size 10	10
	Size 25	20
	Size 32	30
Type of connection
03	Valve for subplate mounting	‒
03	Valve for threaded connection	G
Adjustment type
04	Rotary knob	1
05	with main spool Ø24 mm (NG10, NG25)	‒
05	with main spool Ø28 mm (only with NG32)	N
06	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
07	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
	Set pressure up to 350 bar	350
Pilot flow
08	Pilot oil supply and pilot oil return, internal	‒
	External pilot oil supply, internal pilot oil return	X
	Internal pilot oil supply, external pilot oil return	Y
	Pilot oil supply and pilot oil return external	XY
09	Standard version	no code
09	Valve for minimum cracking pressure (only possible up to pressure rating 315 bar)	U
Explosion protection
10	Valve in explosion-proof design, for details see information on explosion protection under technical data	XC
Seal material
11	FKM seals	V
11	Observe compatibility of seals with hydraulic fluid used.

general

Size				10	25	32
Installation position				any
Ambient temperature range			°C	-20 … +80
Storage temperature range			°C	-20 … +80
Weight	Subplate mounting	DB…	kg	2.6	3.5	4.4
	Threaded connection	DB…G	kg	5.3	5.1	4.8
Surface protection				Standard: Coating, layer thickness max. 100 μm

hydraulic

Size			10	25	32
Maximum operating pressure	Port P	bar	350
	Port X	bar	350
	Port T 1)	bar	315
Maximum counter pressure	Port Y (DB) 1)	bar	315
	Port Y (with directional spool valve)		See data sheets from table "The directional spool valve determines the category according to the explosion protection directive 2014/34/EU" in chapter "Project planning information"
	Port T (with directional spool valve)		See data sheets from table "The directional spool valve determines the category according to the explosion protection directive 2014/34/EU" in chapter "Project planning information"
Maximum set pressure 2)		bar	50 100 200 315 350
Minimum set pressure 2)			flow-dependent, see characteristic curves
Maximum flow	Subplate mounting	l/min	250	500	650
	Threaded connection	l/min	250	500	650
Hydraulic fluid			see table "Hydraulic fluid"
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 3)			Class 20/18/15 according to ISO 4406 (c)

1)	Tank preloading is added to set pressure
2)	To avoid exceeding the maximum admissible response pressure, the response pressure must be checked using a suitable measuring device during adjustments.
3)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP	FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Bio-degradable: Small amounts of dissolved zinc may get into the hydraulic system during use of these hydraulic fluids.

General Information

Hydraulic counter pressures in port T with internal pilot oil return and/or port Y with external pilot oil return add 1:1 to the response pressure of the valve set at the pilot control.

Example:

Pressure adjustment of the valve due to spring pretensioning (see chapter "Product description" item 12) in the pilot control valve/adjustment unit: pspring = 200 bar

Hydraulic counter pressure in port T with internal pilot oil return: phydraulic = 50 bar

⇒ Response pressure = pspring + phydraulic = 250 bar

Information on explosion protection

Area of application according to directive 2014/34/EU		IM2, II2G	II2D
Type of protection valve		c (EN 13463-5)
Maximum surface temperature	°C	-	100 1)
Temperature class		T4	-
Protection class		-	IP65

1)	Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and ISO 4413 (contact protection) must be observed.

(measured with HLP46, ϑOil = 40 ±5 °C)

Standard version

Minimum set pressure and circulation pressure dependent on the flow 1)

1)	The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

Version “U”

Minimum set pressure and circulation pressure dependent on the flow 1)

1)	The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

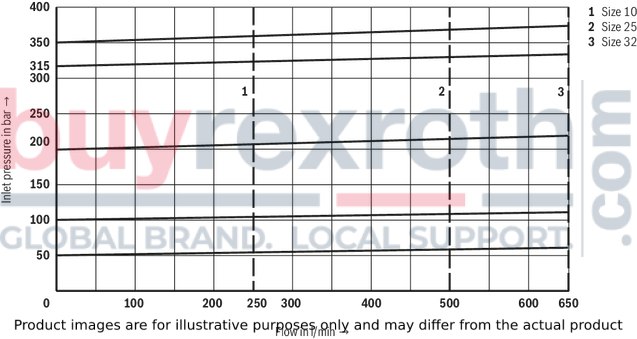

Inlet pressure dependent on the flow

Notice:

The characteristic curves were measured with external, depressurized pilot oil return.

Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port T.

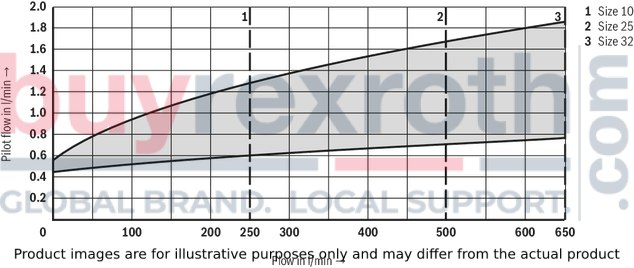

Pilot flow

Type DB…–…

Type DB…X…

Type DB…Y…

Type DB…XY…

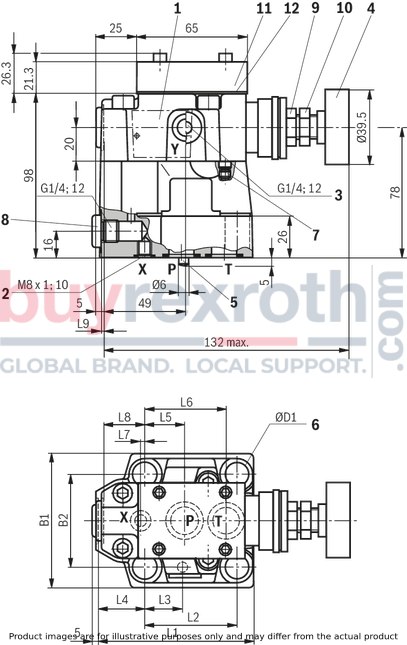

Subplate mounting "–"

Dimensions in mm


Required surface quality of the valve contact surface

1	Name plate
2	X port for pilot oil supply, external
3	Y port for pilot oil return, external
4	Adjustment type "1"
5	Locking pin
6	Valve mounting bores
7	Omitted with internal pilot oil return
8	Measuring port
9	Lock nut SW17, tightening torque MA = 10+5 Nm
10	Lock nut SW17, tightening torque MA = 10+5 Nm
11	Cover plate
12	Sealing plate

NG	L1	L2	L3	L4	L5	L6	L7	L8	L9	B1	B2	ØD1
NG	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	91	53.8	22.1	27.5	22.1	47.5	0	25.5	2	78	53.8	14
25	116	66.7	33.4	33.3	11.1	55.6	23.8	22.8	10.5	100	70	18
32	147.5	88.9	44.5	41	12.7	76.2	31.8	20	21	115	82.6	20

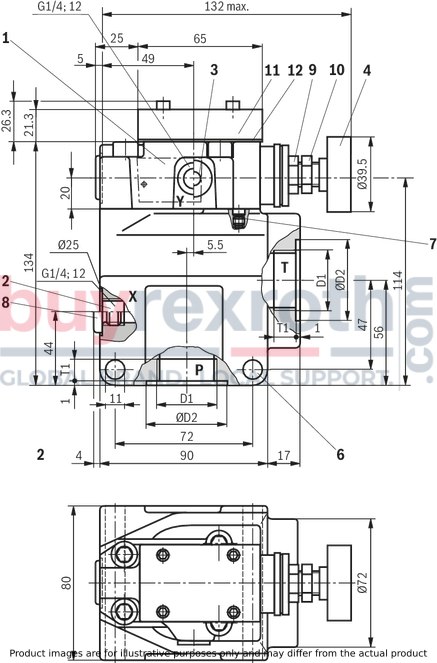

Threaded connection "G"

Dimensions in mm

1	Name plate
2	X port for pilot oil supply, external
3	Y port for pilot oil return, external
4	Adjustment type "1"
6	Valve mounting bores
7	Omitted with internal pilot oil return
8	Measuring port
9	Lock nut SW17, tightening torque MA = 10+5 Nm
10	Lock nut SW17, tightening torque MA = 10+5 Nm
11	Cover plate
12	Sealing plate

NG	D1	ØD2	T1
NG		mm	mm
10	G1/2	34	14
25	G1	47	18
32	G1 1/2	65	22

Valve mounting screws (subplate mounting) (separate order)

For reasons of stability, exclusively the following valve mounting screws may be used:

NG10
4 screws ISO 4762 - M12 x 50 - 10.9-flZn/nc/480h/C
friction coefficient μTotal = 0.09 … 0.14
tightening torque MA = 75 Nm ±10 %
material no. R913015611 NG25
4 screws ISO 4762 - M16 x 50 - 10.9-flZn/nc/480h/C
friction coefficient μTotal = 0.09 … 0.14
tightening torque MA = 185 Nm ±10 %
material no. R913015664 NG32
4 screws DIN912 - M18 x 50 - 10.9
tightening torque MA = 248 Nm ±10 %
material no. R900002245

Valve mounting screws (threaded connection)

on request:

2 screwsM10 x … (see dimensions of Threaded connection "G", item 6)

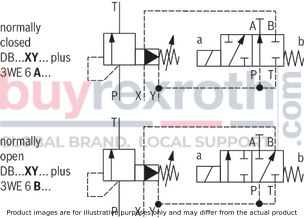

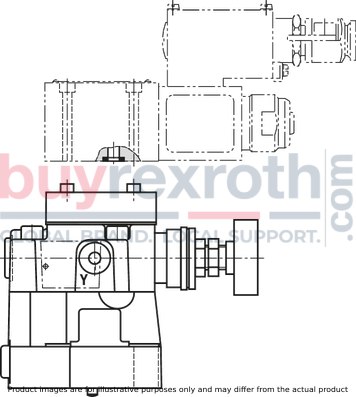

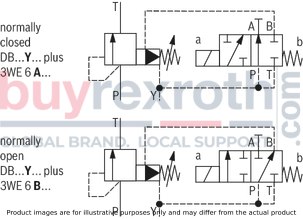

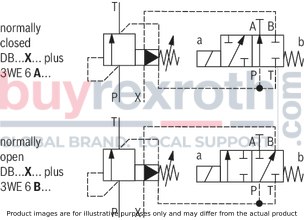

Solenoid-actuated unloading

By mounting a directional spool valve type 3WE 6…, the valve can be modified so that it can be switched to depressurized circulation (main control spool unloaded) by means of electrical control.

Before mounting a directional spool valve 3WE 6… at a pilot-operated pressure relief valve DB…XC, it has to be checked whether the category and protection class resulting from the combination satisfy the requirements of the relevant potentially explosive area.

The directional spool valves suitable for mounting and the resulting categories and protection classes can be seen from the following table.

Important notices:

The unloading function with directional valve must not be used for safety functions. In the assembly, the corresponding operating instructions included in the scope of delivery of the directional spool valves are to be observed. Any mounting and/or modification without operating instructions is not admissible. Before the assembly, all parts are to be identified using the relevant name plates.

The directional spool valve determines the category according to the explosion protection directive 2014/34/EU:

Directional spool valve	Category according to 2014/34/EU	Data sheet
3WE 6…5X/…XH	II2G	23177-XH
3WE 6…5X/…XM	IM2	23177-XH
3WE 6…6X/…XD	IM2; II2G	23178-XD
3WE 6…6X/…XE	II2G	23178-XE
3WE 6…6X/…XN	II3G; II3D	23178-XN
Example: DB…XC plus 3WE 6…6X/…XN1) results in the possible use in category II3G; II3D

1)	Please also observe the possible circuit variations when selecting a valve.
