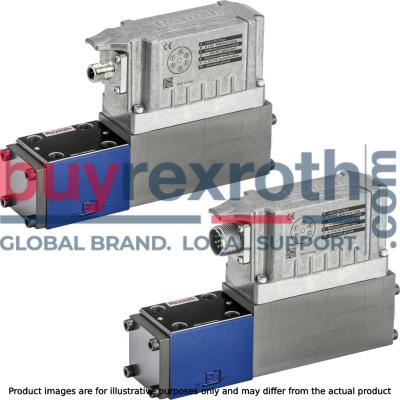

PROPORTIONAL DIRECTIONAL VALVE 4WRPEH6CB40L-3X/M/24F1
Manufacturer: Bosch Rexroth
Material #: R901382354
Model : 4WRPEH6CB40L-3X/M/24F1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRPEH6CB40L-3X/M/24F1 (R901382354) is a high-performance industrial hydraulic valve characterized by its direct actuation and electrical connection with integrated electronics VDC. This valve falls under the WRPEH type, which is known for its direct operation with electrical position feedback and onboard electronics (OBE). The valve is designed to reliably control the direction of oil flow in accordance with its spool symbol, Symbol C, and it features high accuracy due to internal piston position feedback. It includes safety measures such as a failsafe position in case of shutdown.
The 4WRPEH6CB40L-3X/M/24F1 is equipped with a spool valve that allows for precise control over the flow of hydraulic fluid. It has a nominal flow rate and can handle a maximum operating pressure, making it suitable for various applications requiring precise fluid control. The valve’s construction includes a durable housing with a control spool and sleeve of servo quality, ensuring long-lasting performance.
This model uses an analog command value signal ranging from 4 to 20 mA for connectivity, providing flexibility for different control requirements. The OBE compares the specified command value to the actual spool position and adjusts accordingly to correct any deviations. It also features an integrated damping plate designed to reduce acceleration amplitudes affecting the electronics at frequencies above certain Hz, although it is not recommended for predominantly low-frequency applications.
For environmental protection, an optional electronics protection membrane can be used to prevent condensation within the housing, particularly useful in outdoor settings or where there are significant temperature fluctuations.
The 4WRPEH6CB40L-3X/M/24F1 offers reliable performance with its robust design and energy-efficient operation since it does not require pilot oil demand. Its flexibility makes it suitable for various control tasks including position, velocity, and pressure regulation while maintaining high response sensitivity and minimal hysteresis. The IOLink interface option further enhances its adaptability to modern control systems.
$6,427.00 USD
More are expected on April 3, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 3, 2025 when ordered in
This product is eligible for factory repair.
Size 6, symbol C, electrical with integrated electronics 24 V DC
Industrial hydraulic valve in a high performance range. Reliable control of the oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Unpacked Weight: 3 kg
Reliable - proven and robust design Safe - fail-safe position of the control spool in switched-off condition Energy-efficient - no pilot oil demand High quality - control spool and sleeve in servo quality Flexible - suitable for position, velocity and pressure control Precise - high response sensitivity and little hysteresis IO-Link interface, optional
Valves type 4WRPEH are direct operated directional control valve with electrical position feedback and integrated electronics (OBE).
Set-up
The 4WRPEH high-response valve mainly consists of:
Valve housing with control spool and sleeve in servo quality (1) Control solenoid with position transducer (2) (optional with electronics protection membrane (5)) On-board electronics (OBE) (3) with analog or IO-Link interface (4) (optionally with damping plate (6))
Function
The integrated electronics (OBE) compares the specified command value to the position actual value. In case of control deviations, the stroke solenoid will be activated. Due to the changed solenoid force, the control spool is adjusted against the spring. Stroke/control spool crosssection is controlled proportionally to the command value. In case of a command value presetting of 0, the electronics adjusts the control spool against the spring to central position. In deactivated condition, the spring is untensioned to a maximum and the valve is in fail-safe position.
Control solenoid shut-off
In case of the following faults, the control solenoids are de-energized by the integrated electronics (OBE) and the control spool is set to fail-safe position:
Falling below the minimum supply voltage Only at interface "F1": Falling below the minimum current command value of 2 mA (includes cable break of the command value line (current loop)) Only at interface "L1": Enable inactive, communication interruption (watchdog) In case of internal IO-Link error
Damping plate "D"
The damping plate reduces the acceleration amplitudes on the on-board electronics (frequencies >300 Hz).
Notice:
Use of the damping plate is not recommended for applications with mainly low-frequency excitation <300 Hz.
Electronics protection membrane "-967"
To prevent condensate formation in the housing of the integrated electronics (OBE), an electronics protection membrane (5) can be used.
Recommended for use outside industry-standard conditions with high ambient air humidity and significant cyclic temperature changes (e.g. outdoors).
For applications outside these parameters, please consult us!
general
|
Type |
4WRPEH | ||
|
Size |
6 | ||
|
Component series |
3X | ||
|
Design |
Directional spool valve, direct operated, with steel sleeve | ||
|
Type of actuation |
Proportional solenoid with position control, OBE | ||
|
Type of connection |
Plate connection, porting pattern according to ISO 4401 | ||
|
Installation position |
Any | ||
|
Mass |
kg |
2.9 | |
|
Ambient temperature range |
°C |
-20 … +60 | |
|
Transport temperature range |
°C |
-30 … +80 | |
|
Maximum storage time 1) |
yrs |
1 | |
|
Sine test according to DIN EN 60068-2-6 |
Without damping plate |
10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes | |
|
With damping plate 2) |
10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes | ||
|
Noise test according to DIN EN 60068-2-64 |
Without damping plate |
20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes | |
|
With damping plate 2) |
20 ... 2000 Hz / 10 gRMS / 30 gpeak/24 h/3 axes | ||
|
Transport shock according to DIN EN 60068-2-27 |
Without damping plate |
15 g / 11 ms / 3 shocks / 3 axes | |
|
With damping plate 2) |
15 g / 11 ms / 3 shocks / 3 axes | ||
|
Shock test according to DIN EN 60068-2-27 2) |
With damping plate |
35 g / 6 ms / 1000 shocks / 3 axes | |
|
Maximum relative humidity 3) |
% |
95 | |
|
Maximum solenoid surface temperature |
°C |
150 | |
|
MTTFD values according to EN ISO 13849 4) |
Years |
150 | |
|
Conformity |
CE according to EMC directive 2014/30/EU tested according EN 61000-6-2 and EN 61000-6-3 RoHS directive 2015/65/EU REACH ordinance (EC) no. 1907/2006 |
||
| 1) | If the storage conditions are observed; refer to the operating instructions 07600-B |
| 2) | Not recommended for applications with mainly low-frequency excitation < 300 Hz |
| 3) | No condensation |
| 4) | For further details, see data sheet 08012 |
hydraulic
|
Type |
4WRPEH | ||
|
Size |
6 | ||
|
Maximum operating pressure |
Port P |
bar |
350 |
|
Port A |
bar |
350 | |
|
Port B |
bar |
350 | |
|
Port T |
bar |
250 | |
|
Hydraulic fluid |
see table "Hydraulic fluid" | ||
|
Hydraulic fluid temperature range 1) |
°C |
-20 … +70 | |
|
Viscosity range |
Maximum admissible |
mm²/s |
10 … 800 |
|
Recommended |
mm²/s |
20 … 100 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis |
% |
< 0.1 | |
|
Response sensitivity |
% |
< 0.05 | |
|
Range of inversion |
% |
< 0.05 | |
|
Manufacturing tolerance |
% |
< 10 | |
|
Temperature drift 3) |
Zero shift < 0.25 % at Δϑ = 10 K | ||
|
Pressure drift |
Zero shift < 0.15 % at 100 bar | ||
| 1) | flown-through |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 3) | Temperature range 20 °C ... 80 °C |
hydraulic
|
Nominal flow 1) |
l/min |
4 | 12 | 15 | 24, 25 | 40 | |
|
Limitation of use |
Symbols C, C3, C5 |
bar |
350 | 160 | |||
|
Symbols C1, C4 |
bar |
350 | 280 | 250 | 100 | ||
|
Leakage flow (at 100 bar) |
Linear characteristic curve “L” |
l/min |
< 0.18 | < 0.3 | - | < 0.5 | < 0.9 |
|
Inflected characteristic curve "P" |
l/min |
< 0.15 | - | < 0.18 | < 0.3 | < 0.45 | |
| 1) | With Δp = 35 bar/control edge; flow for deviating Δp see formula. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oils |
HL, HLP, HLPD, HVLP, HVLPD |
NBR, FKM |
DIN 51524 |
90220 |
|
|
Bio-degradable |
Insoluble in water |
HETG |
NBR, FKM |
ISO 15380 |
90221 |
|
HEES |
FKM |
||||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
|
Containing water |
Water-free |
HFDU, HFDR |
FKM |
ISO 12922 |
90222 |
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 ) |
NBR |
ISO 12922 |
90223 |
|
|
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The ignition temperature of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum operating pressure 210 bar Maximum pressure differential per control edge 175 bar Pressure pre-loading at the tank port >20 % of the pressure differential, otherwise increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 50 … 100 % Maximum hydraulic fluid temperature 50 °C |
|||||
electrical, integrated electronics (OBE) – Interface "A1" and "F1"
|
Type |
4WRPEH | ||
|
Size |
6 | ||
|
Power supply |
Nominal voltage |
VDC |
24 |
|
Terminal A |
VDC |
min. 19 / max. 36 | |
|
Terminal B |
VDC |
0 | |
|
Relative duty cycle 1) |
% |
100 | |
|
Fuse protection, external |
2.5 AT (time-lag) | ||
|
Input, version "A1" |
Differential amplifier, Ri = 100 kΩ | ||
|
Terminal D (UE) |
VDC |
0 … ±10 | |
|
Terminal E |
VDC |
0 | |
|
Input, version "F1" |
Load, Rsh = 200 Ω | ||
|
Terminal D (ID-E) |
mA |
4 … 20 | |
|
Terminal E (ID-E) |
Current loop ID-E return | ||
|
Maximum voltage for the differential inputs compared to 0 V |
D → B; E → B (max. 18 V) | ||
|
Test signal, version "A1" |
LVDT | ||
|
Terminal F (UTest) |
VDC |
0 … ±10 | |
|
Terminal C |
Reference 0 V | ||
|
Test signal, version "F1" |
LVDT signal 4 … 20 mA on external load 200 … 500 Ω maximum | ||
|
Terminal F (IF-C) |
mA |
4 … 20 | |
|
Terminal C (IF-C) |
Current loop IF-C return | ||
|
Maximum admissible residual ripple |
Vpp |
2.5 | |
|
Maximum power consumption |
VA |
40 | |
|
Functional earth and screening |
see pin assignment under "Electrical connection" (CE-compliant installation) | ||
|
Adjustment |
Calibrated in the plant | ||
|
Protection class according to DIN EN 60529 |
IP65 with mounted and locked plug-in connectors | ||
| 1) | Continuous operation |
electrical, integrated electronics (OBE) – Interface "L1"
|
Power supply |
Valve amplifiers |
VDC |
24 |
|
Pin 2 |
VDC |
min. 18 / max. 30 | |
|
Pin 5 |
VDC |
0 | |
|
IO-Link interface |
VDC VDC |
24 | |
|
Pin 1 |
VDC |
min. 18 / max. 30 | |
|
Pin 3 |
VDC |
0 | |
|
Relative duty cycle 1) |
% |
100 | |
|
Protection class according to DIN EN 60529 |
IP65 with mounted and locked plug-in connectors | ||
|
Maximum current consumption |
Valve amplifiers |
A |
2 |
|
IO-Link interface |
mA |
50 | |
|
Maximum admissible residual ripple |
Vpp |
1.3 | |
|
Minimal process cycle time |
ms |
0.6 | |
|
Bit rate COM3 |
kBit/s |
230.4 | |
|
Required master port class |
Class B | ||
|
Resolution |
A/D transformer |
12 (110% valve opening) | |
|
D/A transformer |
12 (110% valve opening) | ||
|
Adjustment |
Calibrated in the plant | ||
|
Directive |
IO-Link Interface and System, Specification Version 1.1.2 | ||
| 1) | Continuous operation |
Pressure-signal characteristic curve
Pressure-signal characteristic curve
Transition function with stepped electric input signals
Frequency response
Flow/load function with maximum valve opening
Flow characteristic "L"
(measured with HLP46, ϑoil = 40 ±5 °C; Δp = 35 bar/control edge)
Flow/signal function
Symbol C, C3 and C4 – Version "04"
Flow/signal function
Symbol C, C3 and C4 – Version "12"
Flow/signal function
Symbol C, C3 and C4 – Version "24"
Flow/signal function
Symbol C, C3 and C4 – Version "40"
Flow/signal function
Symbol C1 and C5 – Version "04"
Flow/signal function
Symbol C1 and C5 – Version "12"
Flow/signal function
Symbol C1 and C5 – Version "24"
Flow/signal function
Symbol C1 and C5 – Version "40"
Flow characteristic "P"
(measured with HLP46, ϑoil = 40 ±5 °C; Δp = 35 bar/control edge)
Flow/signal function
Symbol C, C3 and C4 – Version "04"
Flow/signal function
Symbol C, C3 and C4 – Version "15"
Flow/signal function
Symbol C, C3 and C4 – Version "25"
Flow/signal function
Symbol C, C3 and C4 – Version "40"
Flow/signal function
Symbol C1 and C5 – Version "40"
Symbols
Notice:
Representation according to DIN ISO 1219-1.
Hydraulic interim positions are shown by dashes.
|
With control symbol C1 and C5, the following applies: |
|
|
P → A: qv nom |
B → T: qvnom/2 |
|
P → B: qvnom/2 |
A → T: qv nom |
|
qV nom 2:1 in connection with flow characteristics "P" for rated flow 40 l/min only (version "40") |
|
Flow characteristic
|
Symbol |
Linear characteristic curve (version "L") |
Inflected characteristic curve (version "P") |
||
|
Inflection 60 % (qV nom = 15.25 l/min) |
Inflection 40 % |
Inflection 20 % |
||
|
C3, C5 C4, C1 |
|
|
|
|
|
C |
|
|
|
|
Fail-safe position:
Flow/leakage flow
Block diagram / controller function block
Connector pin assignment "A1" and "F1"
|
Pin |
Signal |
Assignment interface "A1" |
Assignment interface "F1" |
|
A |
Power supply |
24 VDC |
|
|
B |
0 V |
||
|
C |
Reference (actual value) |
Reference potential actual value (pin F) |
|
|
D |
Differential amplifier input (command value) |
Command value ±10 mA |
Command value 4 … 20 mA |
|
E |
Reference potential command value (pin D) |
||
|
F |
Measuring output (actual value) |
Actual value ±10 V |
Actual value 4 … 20 mA |
|
PE |
Functional ground (directly connected to the valve housing) |
||
Command value:
Positive command value (0 ... 10 V or 12 ... 20 mA) at D and reference potential at E cause flow from P → A and B → T. Negative command value (0 ... -10 V or 12 ... 4 mA) at D and reference potential at E cause flow from P → B and A → T.
Connection cable (Recommendation):
Up to 20 m cable length type LiYCY 7 x 0.75 mm2 Up to 40 m cable length type LiYCY 7 x 1.0 mm2 EMC-compliant installation: Apply screening to both line ends Use metal mating connector (see "Accessories") Alternatively up to 30 m cable length admissible (not with version with damping plate) Apply screening on supply side Plastic mating connector (see "Accessories") can be used
Notice:
Mating connectors, separate order, see "Accessories" and data sheet 08006.
Connector pin assignment „L1“
(M12-5, A-coded, class B)
|
Pin |
Signal |
Assignment interface "L1" |
|
1 |
L+ |
Voltage supply IO-Link |
|
2 |
P24 |
Voltage supply valve electronics and power part (current consumption 2 A) |
|
3 |
L- |
Reference potential pin 1 1) |
|
4 |
C/Q |
Data line IO-Link (SDCI) |
|
5 |
N24 |
Reference potential pin 2 1) |
| 1) |
Pin 3 and 5 are linked with each other in the valve electronics. The reference potentials L- and N24 of the two supply voltages must also be linked with each other on the power supply unit side. |
Notes:
M12 sensor/actuator connection line, 5-pole; M12 connector/bush, A-coded, without shield, maximum cable length 20 m. Observe the voltage drop over the cable. Wire cross-section at least 0.34 mm2. Mating connectors, separate order, see "Accessories" and data sheet 08006. Communication and parameter description see data sheet 29400-PADimensions in mm
|
|
Required surface quality of the valve contact surface |
|
1 |
Valve housing |
|
2 |
Integrated electronics (OBE) |
|
3 |
Identical seal rings for ports A, B, P, and T |
|
4.1 |
Mating connectors with version "A1" and "F1", separate order, see "Accessories" and data sheet 08006 |
|
4.2 |
Mating connectors with version "L1", separate order, see "Accessories" and data sheet 08006 |
|
5 |
Space required to remove the mating connector |
|
6 |
Control solenoid with position transducer |
|
7 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
8 |
Damping plate "D" |
|
9 |
Dimension in () for version with damping plate "D" |
|
10 |
Electronics protection membrane "-967" |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
|
Quantity |
Hexagon socket head cap screws |
Material number |
|
4 |
ISO 4762 - M5 x 30 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B Tightening torque MA = 7 Nm ±10 % |
R913048086 |
|
or |
||
|
4 |
ISO 4762 - M5 x 30 - 10.9 Tightening torque MA = 8,9 Nm ±10 % |
Not included in the Rexroth delivery range |
Notice:
The tightening torque of the hexagon socket head cap screws refers to maximum operating pressure.
Service case with test unit for proportional servo valves with integrated electronics (OBE)
VT-VETSY-1-1X
Service case with test unit for proportional servo valves with integrated electronics (OBE)
VT-VETSY-1-1X
Component series 1XData sheet
Configurator / CAD
Spare parts & repair
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
Spare parts & repair
Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line
7P Z31 +
Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line
7P Z31 +
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
Spare parts & repair
Related Products
R978913027
$4,284.00 USD
R900957458
$10,953.00 USD
R900949577
$12,356.00 USD
R900969686
$3,971.00 USD
R900957450
$6,753.00 USD
