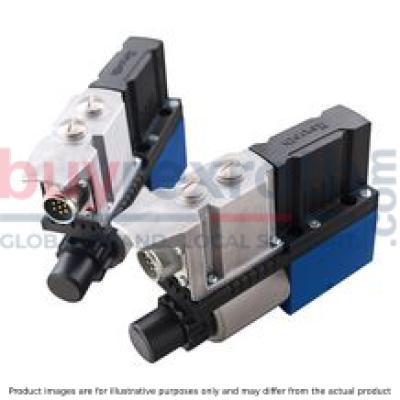

PROPORTIONAL PRESSURE RELIEF VALVE DBETA-6X/P350G24K31A1M
Manufacturer: Bosch Rexroth
Material #: R901355570
Model : DBETA-6X/P350G24K31A1M
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DBETA-6X/P350G24K31A1M (R901355570) is a high-performance industrial hydraulic valve designed for reliable pressure limitation in hydraulic systems. It features direct actuation and an integrated electronics system that allows for precise control over system pressure. The valve operates on a supply voltage of 24 VDC and is equipped with a proportional solenoid that translates electrical signals into mechanical force, ensuring stepless adjustment of the system's pressure limit.
The DBETA-6X/P350G24K31A1M offers subplate mounting with porting patterns conforming to ISO standards, and it includes an integrated pressure sensor that provides real-time feedback on the actual pressure via an analog output. Users can easily adjust the pressure controller to suit various applications through a simple DIL switch, facilitating straightforward customization.
This model has a maximum operating pressure of 350 bar and can handle a maximum flow of up to l/min. The valve's linear command value-to-pressure characteristic curve allows for virtually flow-independent pressure control. Additionally, it features CE conformity according to the EMC directive EC, ensuring its compatibility with electromagnetic standards within the EU.
Equipped with NBR seals, this proportional pressure relief valve is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Its design includes multiple ports for connectivity and uses analog command values between 0-10 V for precise operation. The robust construction and advanced capabilities make the Bosch Rexroth DBETA-6X/P350G24K31A1M an essential component for sophisticated hydraulic applications demanding precise pressure regulation and monitoring.
$4,266.00 USD
Availability: 1 In Stock
Available for immediate shipmentQty: Delivered as early as November 6, 2024 when ordered in
This product is eligible for factory repair.
Size 6, P → T, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Unpacked Weight: 1.880 kg
Pressure-controlled, direct actuated proportional valve for pressure limitation (pilot valve) For subplate mounting: Porting pattern according to ISO 4401 Integrated pressure sensor Actual pressure value can be read via analog output Pressure controller adjustable for various applications (simple adjustment via DIL switch) Linear command value pressure characteristic curve Virtually flow-independent pressure control CE conformity according to EMC directive 2004/108/EC
General information
Proportional pressure relief valves of type DBETA are used for system pressure limitation. Operation is effected by means of proportional solenoid. The pressure is regulated by the pressure sensor and the valve electronics. Dependent on the electric command value, these valves can be used to steplessly set and adjust the system pressure to be limited. The valves mainly consist of the housing (1), the valve seat (3), the valve poppet (4), the proportional solenoid (2), the integrated electronics (7) and the pressure sensor (8).
Basic principle
The supply voltage and the command value are applied to the connector (6). Dependent on the command value, the electronics convert the input signal into current. The proportional solenoid converts the electric current into mechanical force that acts on the valve poppet (4) via the armature plunger (5). The valve poppet (4) counteracts the hydraulic force in channel P. When the hydraulic force at the valve poppet (4) equals the solenoid force, the set pressure is reached. By increasing/reducing cross-section P to T, the pressure is maintained at the set level. The pressure sensor (8) captures the pressure in channel P and/or B and the integrated electronics (7) regulate the pressure independently of the flow. Connector (6) provides the pressure in channel P and/or B as an analog actual value (0 to 10 V and/or 4 to 20 mA). If the command value is zero, the control electronics only applies the minimum control current to the proportional solenoid (2) and the minimum set pressure is applied. With the DIL switch (9) the integrated pressure controller can be adjusted to various applications.
(measured with HLP46, ϑOil = 40 ±5 °C)
Pressure in port P dependent on the command value (flow = 0.8 l/min)
Minimum set pressure in port P dependent on the flow (command value 0 V and/or 4 mA; return flow pressure = 0 bar)
Pressure in port P dependent on the flow (applies to all pressure ratings)
Version P
|
Pin assignment |
Contact |
Assignment interface "A1" |
Assignment interface "F1" |
|
Power supply |
A |
24 VDC (u(t) = 18... 36 V); Imax ≤ 2,0 A |
|
|
B |
0 V |
||
|
Reference potential actual value |
C |
Reference potential for contact F; |
Reference contact F |
|
Differential amplifier input (command value) |
D |
0 ... + 10 V; Re > 100 kΩ |
4 ... 20 mA; Re = 100 kΩ |
|
E |
Reference potential command value |
||
|
Actual pressure value |
F |
0 ... + 10 V actual value; Imax = 5 mA |
4 ... 20 mA; load resistance maximum 600 Ω |
|
PE |
connected to solenoid and valve housing |
||
Connection cable
| 1) | Connection cable:- Recommendation 6-wire, 0.75 or 1mm2 plus protective earthing conductor and screening- Connect screening to PE on supply side only- Maximum admissible length 100 m The minimum supply voltage at the power supply unit depends on the length of the supply line (see diagram) |
| 2) | To comply with the requirements of the EMC directive 2004/108/EC, the metal version mating connector (R900223890) and a screened cable are required. |
Function
The electronics are supplied with voltage via ports A and B. The command value is applied to the differential amplifier ports D and E. The actual pressure value is captured by the integrated pressure sensor. The pressure command value is processed in the controller and compared to the actual pressure value. The power output stage processes the control output of the controller and controls the solenoid current. The actual pressure value is reported at port F (reference port C). With the DIL switch, the controller characteristics can be adjusted to certain applications (see "DIL switch position” table). For the system analysis, the pressure controller can be deactivated using the DIL switches. This corresponds to the function of a force-controlled pressure relief valve (DBETE).
Block diagram / pin assignment
Notice:
If the pressure sensor fails, the valve switches to controlled operation. Port PIN F reports 0 V and/or 4 mA.
Notice:
If the flow changes, the pressure controller is automatically adjusted to these operating conditions. In the first cycles, this may lead to changes in the transition behavior.
DIL switch position
|
Switch (position) |
Function |
Examples of application |
|
|
2 |
1 |
||
|
off |
off |
controlled operation, no pressure control |
Commissioning / system analysis |
|
off |
on |
smallest dead volume (from 20 cm3) |
Systems with little damping |
|
on |
off |
pilot-operated, large dead volume |
Pilot valve for logic e.g. LC40 |
|
on |
on |
pilot-operated, small dead volume |
Pilot valve for logic e. g. LC16, LC25 |
|
Adjust the switch position of the application before the commissioning. Default setting: both switches to on (pilot-operated, small dead volume) |
|||
Dimensions in mm
|
1 |
Proportional solenoid |
|
2 |
Valve housing |
|
3 |
Name plate |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
Integrated electronics (OBE) |
|
6 |
Mating connector |
|
7 |
Space required to remove the mating connector |
|
8 |
Cable fastening |
|
9 |
DIL switch for adjustment to various line volumes |
|
10 |
Valve connection surface, porting pattern according to ISO 4401-03-02-0-05 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 45 - 10.9-flZn-240h-L
Tightening torque MA = 7 Nm ± 10%; material no. R913000140
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
