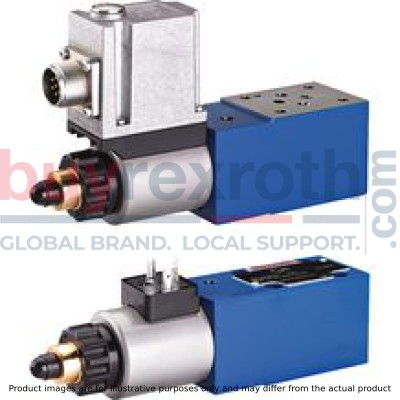

PROP PRESSURE CONTROL VALVE -Z ZDBEE6VP2-2X/50G24K31A1M
Manufacturer: Bosch Rexroth
Material #: R901340988
Model : ZDBEE6VP2-2X/50G24K31A1M
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDBEE6VP2-2X/50G24K31A1M (R901340988) is a high-performance industrial hydraulic valve designed for reliable pressure limitation in accordance with a command value signal. This pilot-operated proportional pressure relief valve is crafted to seamlessly integrate into hydraulic systems, ensuring precise control over system pressure. With its electrical actuation featuring integrated electronics, this valve offers a convenient and efficient solution for managing hydraulic pressure.
The ZDBEE6VP2-2X/50G24K31A1M boasts a maximum pressure rating of 350 bar and can handle a maximum flow of 50 liters per minute, making it suitable for demanding applications. It features a spool symbol P T and is equipped with a Connector pole PE according to EN 175301-803-A for the electrical connection, ensuring compatibility with standard industry connectors.
Designed for sandwich plate mounting, the valve conforms to ISO 4401 and DIN 24340 porting patterns, allowing for ease of integration into various systems. The model also complies with CE electromagnetic compatibility regulations, ensuring safe operation within EU standards. Its analog connectivity accepts command values ranging from 0 to 10 volts.
The unit's construction includes NBR seals that are compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Weighing in at approximately 3.5 kg, this robust valve is designed to withstand the rigors of industrial environments while providing precise control over hydraulic system pressures.
The ZDBEE6VP2-2X/50G24K31A1M's internal design features include a proportional solenoid that translates electric currents into mechanical force proportionally. The pilot control stage comprises the solenoid itself along with the poppet and valve seat components. Meanwhile, the main stage houses both the housing and main spool insert assembly.
To ensure optimal performance and prevent system issues, it is recommended that tank lines are not allowed to run empty and that a preload valve with approximately 5 bar preload pressure be installed under certain installation conditions.
$3,617.00 USD
More are expected on November 25, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as November 25, 2024 when ordered in
This product is eligible for factory repair.
Size 6, P → T, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Unpacked Weight: 2.340 kg
Pilot-operated proportional valve for system pressure limitation Proportional solenoid operation Proportional solenoid with rotatable and detachable coil For subplate mounting or sandwich plate design: Porting pattern according to ISO 4401-03-02-05 and DIN24340 Valve and control electronics from a single source External control electronics for types DBE and ZDBE Linear pressure/command value characteristic curve Types DBEE and ZDBEE with integrated electronics (OBE)
The pilot-operated proportional pressure relief valves of type (Z)DBE are actuated by a proportional solenoid. The valves are used for system pressure limitation. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited. These valves basically consist of a pilot control stage and a main stage. The pilot control component consists of a proportional solenoid (1), the poppet (2), and the valve seat (3). The main stage consists of the housing (4) and the main spool insert assembly (5). The proportional solenoid converts the electric current proportionally into mechanical force. An increase of the current results in a correspondingly higher solenoid force. The system pressure is set in a command value-dependent form via the proportional solenoid (1). The pressure in channel P applied by the system acts on the right side of the main spool insert assembly (5). Simultaneously, the system pressure acts via the control line (7) which is equipped with the nozzle (6) on the spring-loaded side of the spool. Via the valve seat in the pilot line (3), the pressure at the poppet (2) in the spring chamber acts against the force of the proportional solenoid (1). When the pressure has reached the pre-set value, the poppet (3) is lifted off the seat. The pilot oil can now (depending on the version) drain externally via port A (Y) or internally into the tank, which results in a limitation of the pressure on the spring-loaded side of the main spool (5). If the system pressure continues to rise slightly, the higher pressure on the right hand side of the spool will push the spool to the left into the control position P to T. At a minimum control current (corresponds to a command value of zero), the minimum set pressure will be set.
Notice!
The tank lines should be prevented from running empty. With corresponding installation conditions, a preload valve (preload pressure approx. 1 bar) must be installed.
Type DBE
The pilot-operated proportional pressure relief valves of type (Z)DBEE are actuated by a proportional solenoid. The valves are used for system pressure limitation. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited. These valves basically consist of a pilot control stage and a main stage. The pilot control component consists of a proportional solenoid (1), the poppet (2), and the valve seat (3). On the proportional solenoid, there is moreover a housing (10) with the control electronics. Supply and command value voltage are applied at the connector (11). At the factory, the command value pressure characteristic curve is adjusted with little manufacturing tolerance. The main stage consists of the housing (4) and the main spool insert assembly (5). The proportional solenoid converts the electric current proportionally into mechanical force. An increase of the current results in a correspondingly higher solenoid force. The system pressure is set in a command value-dependent form via the proportional solenoid (1). The pressure in channel P applied by the system acts on the right side of the main spool insert assembly (5). Simultaneously, the system pressure acts via the control line (7) which is equipped with the nozzle (6) on the spring-loaded side of the spool. Via the valve seat in the pilot line (3), the pressure at the poppet (2) in the spring chamber acts against the force of the proportional solenoid (1). When the pressure has reached the pre-set value, the poppet (3) is lifted off the seat. The pilot oil can now (depending on the version) drain externally via port A (Y) or internally into the tank, which results in a limitation of the pressure on the spring-loaded side of the main spool (5). If the system pressure continues to rise slightly, the higher pressure on the right hand side of the spool will push the spool to the left into the control position P to T. At a minimum control current (corresponds to a command value of zero), the minimum set pressure will be set.
Notice!
The tank lines should be prevented from running empty. With corresponding installation conditions, a preload valve (preload pressure approx. 1 bar) must be installed.
Type DBEE
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
||
|
DBE |
6 |
2 |
- |
2X |
/ |
G24 |
* |
|
01 |
Subplate mounting |
no code |
|
Sandwich plate |
Z |
|
|
02 |
Proportional pressure relief valve |
DBE |
|
03 |
For external analog electronics |
no code |
|
With integrated electronics (OBE) |
E |
|
|
04 |
Size 6 |
6 |
|
05 |
Subplate mounting |
no code |
|
Pressure limitation in channel P |
VP |
|
|
06 |
Preferred position of mating connector
The mating connector can be brought to the desired position when the nut was loosened |
2 |
|
07 |
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6 |
2X |
|
Maximum set pressure |
||
|
08 |
Pressure rating 25 bar |
25 |
|
Pressure rating 50 bar |
50 |
|
|
Pressure rating 100 bar |
100 |
|
|
Pressure rating 200 bar |
200 |
|
|
Pressure rating 315 bar |
315 |
|
|
Pressure rating 350 bar |
350 |
|
|
09 |
Pilot oil return, internal |
no code 1) |
|
Pilot oil return, external |
Y 2) |
|
|
Power supply |
||
|
10 |
Direct voltage 24 V |
G24 |
|
Electrical connection types DBE and ZDBE |
||
|
11 |
Without mating connector, with connector according to DIN EN 175301-803, separate order |
K4 |
|
Electrical connection types DBEE and ZDBEE |
||
|
11 |
Without mating connector, with connector according to DIN EN 175301-804, separate order |
K31 |
|
Electronics interface types DBEE and ZDBEE |
||
|
12 |
Command value 0 … 10 V |
A1 |
|
Command value 4 to 20 mA |
F1 |
|
|
Seal material |
||
|
13 |
NBR seals |
M |
|
FKM seals |
V |
|
|
14 |
Further details in the plain text |
* |
|
1) |
Recommendation: Subplate mounting up to qvmax = 15 l/min |
|
|
2) |
Only possible with subplate mounting |
|
(measured with HLP46, ϑOil = 40 ±5 °C)
Pressure in port P dependent on the command value (QV = 5 l/min)
(Z)DBE
Pressure in port P dependent on the command value (QV = 5 l/min)
(Z)DBEE
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 25 bar ("Y" external and internal)
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 50 bar ("Y" external and internal)
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 100 bar ("Y" external and internal)
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 200 bar ("Y" external and internal)
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 315 bar ("Y" external and internal)
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 350 bar ("Y" external and internal)
Pressure in port P or P2 dependent on the command value (Qv = 5 l/min); pressure rating 200 bar (with VT-SSPA1) plug-in amplifier
Pressure in port P or P2 dependent on the flow Qv; pressure rating 25 bar
Pressure in port P or P2 dependent on the flow Qv; pressure rating 50 bar
Pressure in port P or P2 dependent on the flow Qv; pressure rating 100 bar
Pressure in port P or P2 dependent on the flow Qv; pressure rating 200 bar
Pressure in port P or P2 dependent on the flow Qv; pressure rating 315 bar
Pressure in port P or P2 dependent on the flow Qv; pressure rating 350 bar
Minimum set pressure in port P or P2 at command value 0; pressure rating 25 bar
Minimum set pressure in port P or P2 at command value 0; pressure rating 50 bar
Minimum set pressure in port P or P2 at command value 0; pressure rating 100 bar
Minimum set pressure in port P or P2 at command value 0; pressure rating 200 bar
Minimum set pressure in port P or P2 at command value 0; pressure rating 315 bar
Minimum set pressure in port P or P2 at command value 0; pressure rating 350 bar
DBE 6
DBE 6...Y...
DBEE 6
DBEE 6...Y...
ZDBE 6 VP
ZDBE 6 VP
ZDBEE 6 VP
Type (Z)DBE
Connection at the connector
Connection at mating connector
Type (Z)DBEE
|
Pin assignment |
Contact |
Assignment interface "A1" |
Assignment interface "F1" |
|
Power supply |
A |
24 VDC (u(t) = 21 ... 35 V); Imax ≤ 1,5 A |
|
|
B |
0 V |
||
|
Reference potential actual value |
C |
Reference contact F; 0 V |
Reference contact F; 0 V |
|
Differential amplifier input (command value) |
D |
0 to 1.6 V actual value (1 mV ≙ 1 mA); |
4 ... 20 mA; Re = 100 kΩ |
|
E |
Reference potential command value |
||
|
Measuring output (actual value) |
F |
0 to 1.6 V actual value (1 mV ≙ 1 mA); |
|
|
PE |
connected to solenoid and valve housing |
||
Connection cable
| 1) | Connection cable:- Recommendation 6-wire, 0.75 or 1mm2 plus protective earthing conductor and screening- Connect screening to PE on supply side only- Maximum admissible length 100 m The minimum supply voltage at the power supply unit depends on the length of the supply line (see diagram) |
Integrated electronics (OBE)
Function
The electronics are supplied with voltage via ports A and B. The command value is applied to the differential amplifier ports D and E.Via the characteristic curve generator, the command value solenoid current characteristic curve is adjusted to the valve so that non-linearities in the hydraulic system are compensated and thus, a linear command value pressure characteristic curve is created.The current controller controls the solenoid current independently of the solenoid coil resistance.The power stage of the electronics for controlling the proportional solenoid is a chopper amplifier with a clock frequency of approx. 180 Hz to 400 Hz. The output signal is pulse-width modulated (PWM). For checking the solenoid current, a voltage can be measured at the connector between pin F(+) and pin C(–) which is proportional to the solenoid current. 1 mV corresponds to 1 mA solenoid current.
Block diagram / pin assignment
Type DBE(E)
|
1 |
Valve housing |
|
2 |
Proportional solenoid |
|
3 |
Name plate |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
With version Y, external pilot oil return via port A (Y) |
|
6 |
mating connector according to DIN EN 175301-803 |
|
7 |
Mating connector according to DIN EN 175201-804 |
|
8 |
Space required to remove the mating connector |
|
9 |
Integrated electronics (OBE) |
|
10 |
Space required to remove the mating connector |
|
11 |
Cable fastening |
|
12 |
Machined valve contact surface; porting pattern according to DIN 24340 (without locating hole) and ISO 4401-03-02-0-05 (with locating hole) |
|
13 |
O-ring and plastic nut wrench size 32 for coil fixation.The nut can be loosened by rotating it counterclockwise (1 turn). The solenoid coil can then be rotated to the required position before fixing it again by tightening the nut.Tightening torque 4 +1 Nm |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-LTightening torque MA = 7 Nm ± 10%
Type ZDBE(E)
|
1 |
Valve housing |
|
2 |
Proportional solenoid |
|
3 |
Name plate |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
6 |
mating connector according to DIN EN 175301-803 |
|
7 |
Mating connector according to DIN EN 175201-804 |
|
8 |
Space required to remove the mating connector |
|
9 |
Integrated electronics (OBE) |
|
10 |
Space required to remove the mating connector |
|
11 |
Cable fastening |
|
12 |
Machined valve contact surface; porting pattern according to DIN 24340 (without locating hole) and ISO 4401-03-02-0-05 (with locating hole) |
|
13 |
O-ring and plastic nut wrench size 32 for coil fixation.The nut can be loosened by rotating it counterclockwise (1 turn). The solenoid coil can then be rotated to the required position before fixing it again by tightening the nut.Tightening torque 4 +1 Nm |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 - 10.9-flZn-240h-LTightening torqueMA = 7 Nm ± 10%
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
Spare parts & repair
