M-Z4SEH16E2X/3CG24PTK4/N
Manufacturer: Bosch Rexroth
Material #: R901335457
Model : M-Z4SEH16E2X/3CG24PTK4/N
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

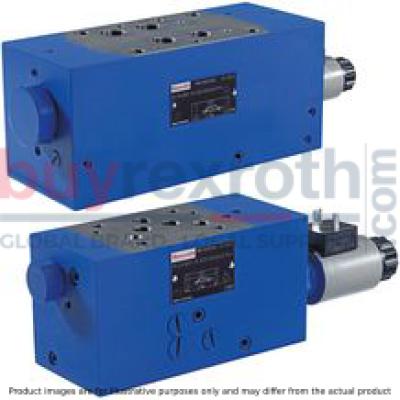

The Bosch Rexroth M-Z4SEH16E2X/3CG24PTK4/N (R901335457) is a high-performance directional seat valve designed for precise control in hydraulic systems. This sandwich plate valve, which belongs to component series X, is characterized by its electrohydraulic actuation and compatibility with porting patterns according to ISO NG. It is engineered to handle a maximum operating pressure of up to 350 bar and can facilitate a maximum flow rate as required by the application.
This model boasts a robust design that incorporates a pilot operated check valve installation set and pilot control valve, ensuring reliable performance with leak-free operation when switching between open or blocked states. The valve's functionality is pressure-dependent, utilizing forces from compression springs and pressure in the control chamber against those generated in channels A and B. This balance of forces determines the spool's position, allowing for precise regulation of fluid flow.
The M-Z4SEH16E2X/3CG24PTK4/N offers versatility with different versions available for pilot oil supply and return configurations – including external (XY), internal from the P channel with external return (PY), internal from the P channel with internal return (PT), and external supply with internal return (XT). This flexibility enables integration into various circuit designs.
Additionally, this model can be equipped with optional features such as manual override capabilities for emergency operations and an individual electrical connection for ease of integration into existing systems. The wet-pin DC solenoid ensures reliable electric actuation under wet conditions. With its combination of locking and pass-through functions, this Bosch Rexroth directional seat valve is suitable for applications that demand precise control over fluid direction and flow within hydraulic systems.
$4,237.00 USD
More are expected on April 24, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 24, 2025 when ordered in
This product is eligible for factory repair.
Type M-Z4SEH 10 …
General
The SEH type directional valves are directional seat valves with electro-hydraulic actuation. Here, depending on the order version, it can be switched or switched off via one or two channels.

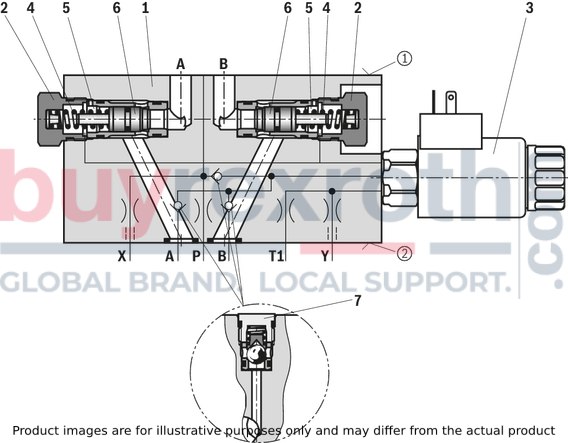

The directional valve basically consists of a housing (1), a pilot operated check valve installation set (2), pilot control valve (3) as well as blanking plugs for the pilot oil supply. The valve is free-flowing, independent from the direction, and is opened or blocked in a leakage-free manner depending on the switching position of the pilot control valve and the pressure ratio in the main valve.
Function
The function of the valve is pressure-dependent. The force of the compression spring (4) as well as the force generated by pressure in the control chamber (5) take effect in the closing direction, while the forces generated by pressure in the channels A and B take effect in the opening direction of the valve spool (6) with spool sealing. The direction of action of the resulting force from the opening and closing forces determines the switching position of the check valve installation sets (2). The pilot pressure application and/or unloading is implemented via the pilot control valve (3) depending on the selected pilot oil supply. The pilot oil supply is implemented via the respective highest pressure from the channels A, B, P or X and is secured via a check valve (7).
Notice!
For nozzles and plug fitting, please refer to the project planning information.
|
➀ |
component side |
|
➁ |
plate side |

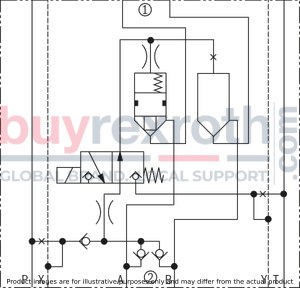

Version “XY”
The pilot oil supply is implemented externally - via the X channel - from a separate circuit.
The pilot oil return is implemented externally via the Y channel into the tank.

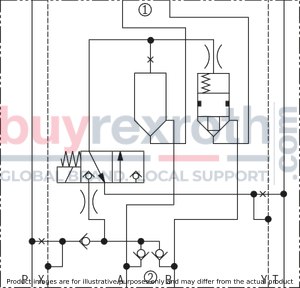

Version “PY”
The pilot oil supply is implementedinternally from the P channel of the main valve.
The pilot oil return is implemented externally via the Y channel into the tank. In the subplate, port X is closed.

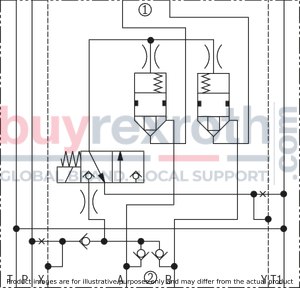

Version “PT”
The pilot oil supply is implemented internally from the P channel of the main valve.
The pilot oil return is implemented internally via the T channel into the tank. In the subplate, ports X and Y are closed.

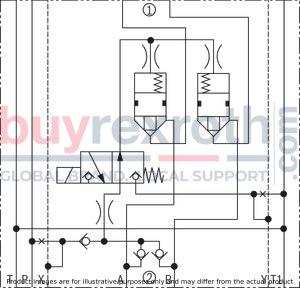

Version “XT”
The pilot oil supply is implemented externally - via channel X - from a separate circuit.
The pilot oil supply is implemented internally - via channel T - into the tank. In the subplate, port Y is closed.
|
Connection |
Internal |
External |
Port in subplate closed |
||
|
Version “XY" |
Pilot oil supply |
X |
– |
✔ |
– |
|
Pilot oil return |
Y |
– |
✔ |
||
|
Version “PY” |
Pilot oil supply |
P |
✔ |
– |
X |
|
Pilot oil return |
Y |
– |
✔ |
||
|
Version “PT” |
Pilot oil supply |
P |
✔ |
– |
X and Y |
|
Pilot oil return |
T |
✔ |
– |
||
|
Version “XT” |
Pilot oil supply |
X |
– |
✔ |
Y |
|
Pilot oil return |
T |
✔ |
– |
||
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
||||
|
M |
– |
Z |
4 |
SEH |
– |
2X |
/ |
3 |
C |
K4 |
/ |
* |
|
01 |
Mineral oil |
M |
|
02 |
Sandwich plate |
Z |
|
03 |
4 main ports |
4 |
|
Type of actuation |
||
|
04 |
electro-hydraulic |
SEH |
|
05 |
Size 10 |
10 |
|
Size 16 |
16 |
|
|
06 |

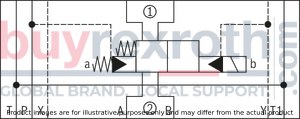

Symbols |
|
|
E |
|
|
E1 |
|
|
A |
|
|
B |
|
|
07 |
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) |
2X |
|
Pilot control valve |
||
|
08 |
3/2 directional seat valve, type KSDE |
3 |
|
09 |
Wet-pin DC solenoid with detachable coil |
C |
|
10 |
Direct voltage 24 V |
G24 |
|
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) |
G205 |
|
|
Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) |
G96 |
|
|
11 |
Without manual override |
no code |
|
With concealed manual override |
N9 |
|
|
With screwable manual override (actuation by means of knurled screw) |
N11 |
|
|
12 |
External pilot oil supply, external pilot oil return |
XY |
|
Internal pilot oil supply, external pilot oil return |
PY |
|
|
Pilot oil supply internal, pilot oil return internal |
PT |
|
|
External pilot oil supply, internal pilot oil return |
XT |
|
|
For further details, please refer to Pilot oil supply |
||
|
Electrical connection |
||
|
13 |
Without mating connector, individual connection with connector according to DIN EN 175301-803 |
K4 1; 2) |
|
Seal material |
||
|
14 |
NBR seals |
N |
|
FKM seals (other seals upon request) |
F |
|
|
Observe compatibility of seals with hydraulic fluid used. |
||
|
15 |
Further details in the plain text |
* |
| 1) For the connection to the AC voltage mains, a DC solenoid must be used, which is controlled via a rectifier (see AC voltage mains table). | |
| For individual connection, a mating connector with integrated rectifier can be used (separate order). | |
| 2) Mating connectors, separate order. |
|
➀ |
component side |
|
➁ |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves, size 10
Δp-qV characteristic curves, size 16
|
➀ |
component side |
|
➁ |
plate side |
Pilot oil supply
|
➀ |
component side |
➁ |
plate side |
Version “XY"
Version “PY”
Version “XT”
Version “PT”
Size 10
Size 16
|

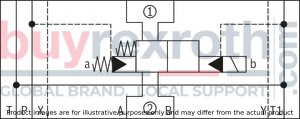

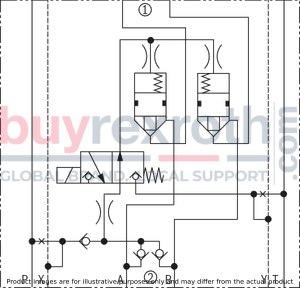

Pilot control valve, normally open, symbol “E” |
Pilot control valve, normally closed, symbol “E1” |
|
|

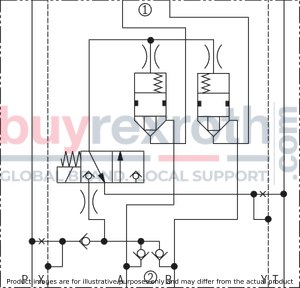

Detailed |
|
|
|
Version “XY" |
|
|
|

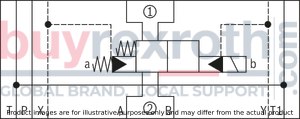

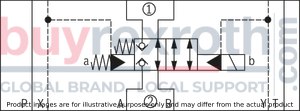

Pilot control valve, normally open, symbol “A” |

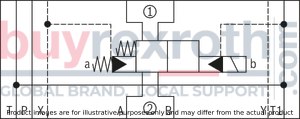

Pilot control valve, normally closed, symbol “B” |
|
|

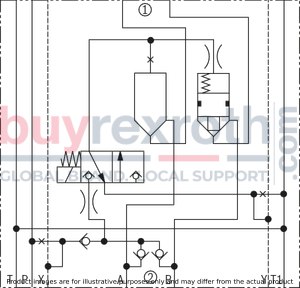

Detailed |
|
|
|
Version “XY" |
|
|
Size 10
Size 16
|

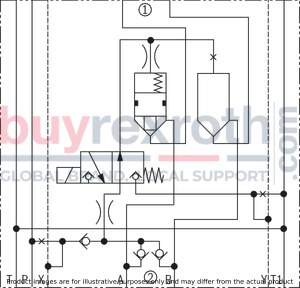

Pilot control valve, normally open, symbol “E” |
Pilot control valve, normally closed, symbol “E1” |
|
|
Detailed |
|
|
|
Version “XY" |
|
|
|

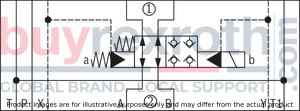

Pilot control valve, normally open, symbol “A” |
Pilot control valve, normally closed, symbol “B” |
|
|
Detailed |
|
|
|
Version “XY" |
|
|

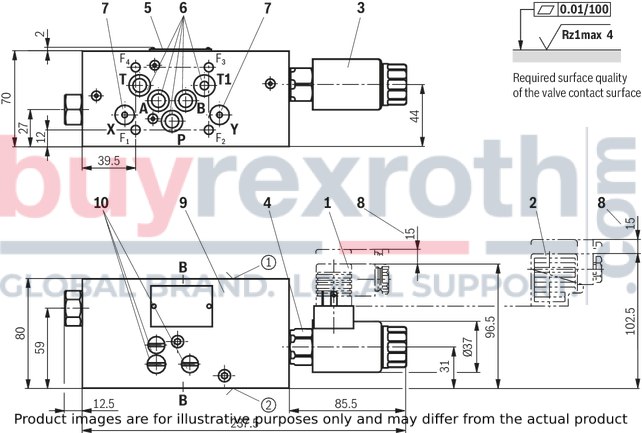

Size 10
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-05-05-0-05 |
|
➁ |
Plate side – porting pattern according to ISO 4401-05-05-0-05 |
|
1 |
Mating connector without circuitry (separate order) |
|
2 |
Mating connector with circuitry (separate order) |
|
3 |
DC solenoid “a” (mating connector color: gray) |
|
4 |
3/2 directional seat valve, type KSDE |
|
5 |
Name plate |
|
6 |
Identical seal rings for ports A, B, P, T and T1 |
|
7 |
Identical seal rings for ports X and Y |
|
8 |
Space required to remove the mating connector |
|
9 |
Main valve |
|
10 |
Plug screw or check valve, tightening torque M A= 8 Nm |
Subplates according to data sheet 45054 (separate order)
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notice!
Length and tightening torque of the valve mounting screws must be calculated in connection with the components mounted underneath and above the sandwich plate valve.

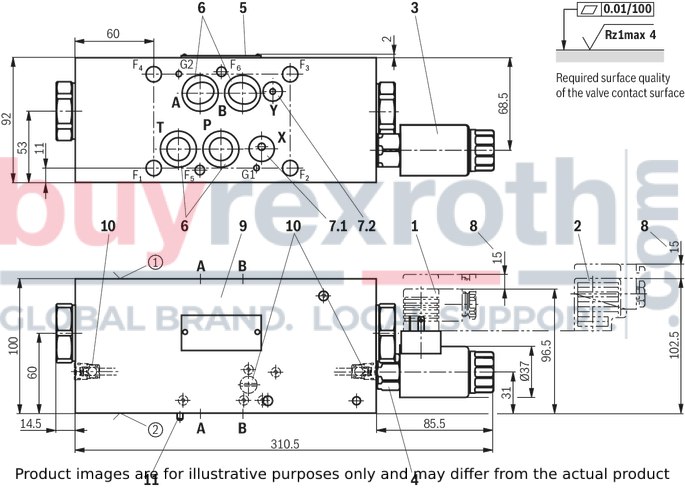

Size 16
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-07-07-0-05 |
|
➁ |
Plate side – porting pattern according to ISO 4401-07-07-0-05 |
|
1 |
Mating connector without circuitry (separate order) |
|
2 |
Mating connector with circuitry (separate order) |
|
3 |
DC solenoid “a” (mating connector color: gray) |
|
4 |
3/2 directional seat valve, type KSDE |
|
5 |
Name plate |
|
6 |
Identical seal rings for ports A, B, P, and T |
|
7.1 |
Seal ring for port X |
|
7.2 |
Seal ring for port Y |
|
8 |
Space required to remove the mating connector |
|
9 |
Main valve |
|
10 |
Plug screw or check valve, tightening torque M A= 8 Nm |
|
11 |
Grooved pin |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M10 - 10.9
|
Tightening torques MA |
Plugs or check valve (channel A, B, P and X) |
Nm |
8 | 45 |
|
3/2 directional seat valve, type KSDE |
Nm |
45 | ||
|
Mounting screw, coil |
Nm |
4 | ||
|
Plug screw, 2-way cartridge valve |
Nm |
25 | 100 | |

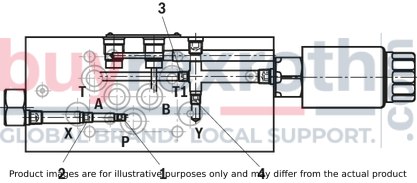

Plug for NG10

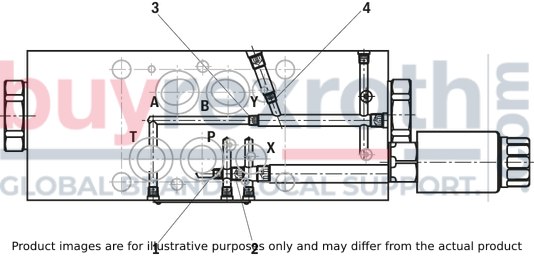

Plug for NG16
|
Item |
Version |
Plug screw |
|
|
NG10 |
NG16 |
||
|
1 |
„XY“ |
M4 x 5 |
M6 |
|
3 |
M6 |
M6 |
|
|
2 |
„PY“ |
M6 |
M8 x 1 |
|
3 |
M6 |
M6 |
|
|
1 |
„PT“ |
M4 x 5 |
M6 |
|
4 |
M6 |
M6 |
|
|
2 |
„XT“ |
M6 |
M8 x 1 |
|
4 |
M6 |
M6 |
|
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
