LC2A032A40D-1X/YQ7G24F
Manufacturer: Bosch Rexroth
Material #: R901332349
Model : LC2A032A40D-1X/YQ7G24F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

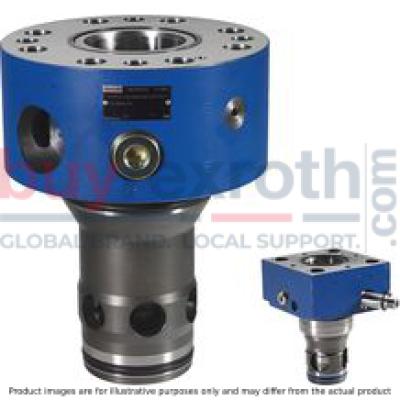

The Bosch Rexroth LC2A032A40D-1X/YQ7G24F (R901332349) is a high-performance, two-level active logic cartridge valve designed for precise hydraulic control. This valve features a modular design that allows for a wide range of applications by integrating with various pilot control valves and other hydraulic elements through the use of an LFA control cover, which is ordered separately. The LC2A032A40D-1X/YQ7G24F boasts an innovative construction comprising a cartridge control spool and socket, an intermediate cover, and the aforementioned control cover from the standard logics program.
Equipped with differential spool technology, this active logic valve includes at least one additional control area beyond the spring chamber, enabling it to open and maintain its open state via pilot pressure without needing pressure in the main ports A or B. The areas A1, A2, and A3 contribute to opening force while area A4 and spring force assist in closing. This configuration provides benefits in terms of excess force management during closing operations and velocity control.
The LC2A032A40D-1X/YQ7G24F is designed for leak-free internal performance due to its spool sealing and hydraulically tight seat area. It can be installed directly into a standard ISO installation bore, making it suitable for retrofitting existing passive logics systems that require internal leakage prevention or position monitoring.
This particular model also allows for position monitoring of the valve's closed state as standard; however, it offers the flexibility to retrofit a position switch at any time without modifications. The LC2A032A40D-1X/YQ7G24F ensures energy efficiency with its flow-optimized geometry and is certified by BG for safety and reliability in operation. With its robust design and flexible configuration options, this Bosch Rexroth cartridge valve serves as an integral component in advanced hydraulic systems requiring precise flow direction control under varying operating conditions.
$4,240.00 USD
More are expected on April 17, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 17, 2025 when ordered in
This product is eligible for factory repair.
General
The 2-way cartridge valves type LC2A (hereinafter referredto as "active logics" (2) are designed in compact modular design and basically consist of cartridge (control spool (3) and socket (4), intermediate cover (5) as fixed functional unit and a control cover type LFA (1) that is part of the Rexroth standard logics program. This control cover (separate order, see data sheet 21010 or 21050) establishes the connection with the pilot control valves and/or other hydraulic elements and thus integrates the most different functions - irrespective of the basic assembly. Virtually all standard and special control covers type LFA can be mounted. Optionally, the active logics (2) is available with position switch (6). By default, the "closed" position of the control spool (3) is recorded. The receiving hole for the position switch is provided as a standard. This means that the position switch "Q7" can be retrofitted at any time without requiring adjustments. In contrast to the logic assemblies with only one control area in the spring chamber ("passive logics"), the name "active logics" significantly stands for a version with differential spool, with at least one additional control area A4 ("two-level active logics"). This area allows for the opening and keeping open of the active logics (2) by means of pilot pressure (without the necessity of pressure in the main ports A or B). The spring chamber area A5 of the control spool (3) consists of the individual areas A1 + A2 + A4. Compared to passive logics without control area A4, this results in excess area which, with suitable hydraulic circuitry, offers advantages during closing and keeping closed (excessive force, closing velocity).
In general
Area total A5 = A1 + A2 +A4 = A3 + A4 The areas A1, A2 and A4 are effective in the opening direction, area A5 (and the spring force) in closing direction. So the resulting effective force determines the position and movement of the control spool (3). Usually, there are no interim positions in the directional function variants. The direction of flow is free and can thus be perfectly adjusted to the application. Active logics type LC2A are generally equipped with spool sealing and are therefore leakage-free inside. The seat area is hydraulically "tight".
Active logics for directional function
Depending on the task, different control spool versions are possible. The active area can be connected with the available pilot oil guides in almost any way and in this way, most different functions can be realized with only 1 basic assembly.
Installation bore
The active logics type LC2A can be directly installed in a standard installation bore according to ISO 7368 (see dimensions). Thus, it is also suitable as retrofitting for existing "passive logics" that must be leakage-free inside or require position monitoring or faster closing times.
Type LC2A 025 ...-1X/.Q7G24…
(with control cover type LFA . D... and monitoring of the closed position of the valve poppet)
(simulated with HLP46, ϑÖl = 40±5 °C)
without damping nose "E", direction of flow A → B
without damping nose "E", direction of flow A → B
without damping nose "E", direction of flow A → B
Notice:
The specified characteristic curves were simulated with 100% spool stroke and an aligned socket (see sketch under recommended socket alignment). The simulation results were validated by measurement results. The basis was an installation geometry with ØD3* (see installation under dimensions) and a simulation model according to ISO 4411/2008-10-01.
Recommended socket alignment:
without damping nose "E", direction of flow B → A
without damping nose "E", direction of flow B → A
without damping nose "E", direction of flow B → A
Notice:
The specified characteristic curves were simulated with 100% spool stroke and an aligned socket (see sketch under recommended socket alignment). The simulation results were validated by measurement results. The basis was an installation geometry with ØD3* (see installation under dimensions) and a simulation model according to ISO 4411/2008-10-01.
with damping nose “D”, direction of flow A → B
with damping nose “D”, direction of flow A → B
with damping nose “D”, direction of flow A → B
Notice:
The specified characteristic curves were simulated with 100% spool stroke and an aligned socket (see sketch under recommended socket alignment). The simulation results were validated by measurement results. The basis was an installation geometry with ØD3* (see installation under dimensions) and a simulation model according to ISO 4411/2008-10-01.
with damping nose "D", direction of flow B → A
with damping nose "D", direction of flow B → A
with damping nose "D", direction of flow B → A
Notice:
The specified characteristic curves were simulated with 100% spool stroke and an aligned socket (see sketch under recommended socket alignment). The simulation results were validated by measurement results. The basis was an installation geometry with ØD3* (see installation under dimensions) and a simulation model according to ISO 4411/2008-10-01.
with overlap “F”, direction of flow A → B
with overlap “F”, direction of flow A → B
with overlap “F”, direction of flow A → B
Notice:
The specified characteristic curves were simulated with 100% spool stroke and an aligned socket (see sketch under recommended socket alignment). The simulation results were validated by measurement results. The basis was an installation geometry with ØD3* (see installation under dimensions) and a simulation model according to ISO 4411/2008-10-01.
with overlap "F", direction of flow B → A
with overlap "F", direction of flow B → A
with overlap "F", direction of flow B → A
Notice:
The specified characteristic curves were simulated with 100% spool stroke and an aligned socket (see sketch under recommended socket alignment). The simulation results were validated by measurement results. The basis was an installation geometry with ØD3* (see installation under dimensions) and a simulation model according to ISO 4411/2008-10-01.
Inductive sensor with analog output type Q9
Notice:
The maximum sensor voltage US with 100% stroke is size- and/or tolerance-dependent and may range between 7 and 9 V DC. The inductive sensor is adjusted so that with 0% stroke, an output voltage of 1 V DC is available.
for orifice selection
Orifices
|
Orifice Ø in mm |
Order numbers |
Material numbers |
||||||
|
M6 conical |
M8 x 1 conical |
G 1/8 conical |
G 1/4 conical |
G 3/8 conical |
G 1/2 conical |
G 1 conical |
||
|
– |
00 |
– |
– |
– |
– |
– |
– |
– |
|
0,5 |
05 |
R913040356 |
R913017600 |
R913030187 |
R913040456 |
– |
– |
– |
|
0,6 |
06 |
R913040358 |
R913017605 |
R913017606 |
R913020197 |
– |
– |
– |
|
0,7 |
07 |
R913040360 |
R913017609 |
R913046092 |
– |
– |
– |
– |
|
0,8 |
08 |
R913029447 |
R913017614 |
R913017616 |
R913017615 |
R913040481 |
R913040499 |
– |
|
1,0 |
10 |
R913019186 |
R913017621 |
R913024679 |
R913017622 |
R913040484 |
R913040500 |
– |
|
1,2 |
12 |
R913040362 |
R913017627 |
R913017629 |
R913017628 |
R913040486 |
R913040501 |
– |
|
1,5 |
15 |
R913028337 |
R913017637 |
R913017639 |
R913017638 |
R913040488 |
R913028317 |
– |
|
1,8 |
18 |
R913030186 |
R913017644 |
R913017646 |
R913017645 |
R913040489 |
R913045913 |
– |
|
2,0 |
20 |
R913029870 |
R913017651 |
R913040450 |
R913017652 |
R913028417 |
R913028336 |
– |
|
2,5 |
25 |
R913032543 |
R913035796 |
R913017656 |
R913019582 |
R913040493 |
R913040502 |
– |
|
3,0 |
30 |
R913040368 |
R913017661 |
R913017663 |
R913017662 |
R913018266 |
R913040503 |
R913040467 |
|
3,5 |
35 |
– |
R913017667 |
R913040452 |
R913040463 |
R913028318 |
R913019856 |
R913040469 |
|
4,0 |
40 |
– |
R913017670 |
R913027078 |
R913040464 |
R913018265 |
R913029168 |
R913040470 |
|
4,5 |
45 |
– |
R913046571 |
R913017671 |
R913040465 |
– |
R913040506 |
– |
|
5,0 |
50 |
– |
– |
R913017673 |
R913040468 |
R913023871 |
R913019857 |
R913040471 |
|
5,5 |
55 |
– |
– |
R913027077 |
– |
R913040495 |
R913053659 |
– |
|
6,0 |
60 |
– |
– |
– |
– |
R913023870 |
R913028418 |
R913020247 |
|
7,0 |
70 |
– |
– |
– |
R913040461 |
R913017675 |
R913040509 |
– |
|
7,5 |
75 |
– |
– |
– |
– |
R913023430 |
– |
R913018328 |
|
8,0 |
80 |
– |
– |
– |
– |
R913046570 |
R913040510 |
R913020246 |
|
closed |
99 |
R913019128 |
R913019129 |
R913019137 |
R913019136 |
R913019138 |
– |
R913019140 |
|
Plug screws |
||
|
Thread |
Tightening torque MA in Nm ±10 % |
|
|
420 bar |
450 bar |
|
|
G 1/8 |
12 |
18 |
|
G 1/4 |
30 |
45 |
|
G 3/8 |
55 |
83 |
|
G 1/2 |
80 |
120 |
|
G 3/4 |
135 |
175 |
|
G 1 |
225 |
270 |
Examples of control spool forms and circuitries of the active area
➀ = component side
➁ = plate side
Type LC2A . B40E-1X/Z1...
Type LC2A . A40D-1X/Z1Q7G24…
Type LC2A . B40D-1X/Z2…
Type LC2A . A40D-1X/YQ7G24…
Type LC2A . D40D-1X/X…
Type LC2A . D40E-1X/Z1..A…
Assignment of the "active area" A4
Type LC2A …-1X/Z1…
(F1 not fitted)
Type LC2A …-1X/Z2 …
(F2 not fitted)
Type LC2A …-1X/U …
(F1 and F2 not fitted)
Type LC2A …-1X/Y …
(F2 not fitted)
Type LC2A …-1X/X …
(F1 not fitted)
For details regarding the "open" or "closed" circuitry of channels F1 and F2 (control of the active area) refer to "Dimensions" and "Ordering code".
Depending on the "Active area" ordering code, the number of possible orifice fittings is different in the continuous pilot oil guides, see "Orifice assignments" below.
Orifice assignment
Orifice fitting of the pilot oil guides in the cover
The fitting and assignment of the "active area" is not shown here (see "Assignment of the active area")
For details on the dimensions of the orifice installation bores "X" to "L", see "Dimensions".
On the component side, the orifice installation bores are always completely available; on the plate side, only the combinations of versions "H" and "L" or "D" and "S" are possible, see "Ordering code".
Notice:
With control channels that are not required, you must either use a blanking plug ".99" or the corresponding cover.
Circuit examples (schematic diagram, function must be checked with the application)
Notice:
It has to be ensured that pilot oil ports that are not required (blanking plugs) and all pressurized transitions between LFA and LC2A (R-rings) are sealed. This is particularly true for variants marked with *.
Check valve, releasable
Function "closing pressure-supported by excess area" (e.g. with control cover type "D")
"Passive logics with piston seal and spool position monitoring" function (Closing with spring force without excess area; here with control cover type "D")
ideal for retrofitting of existing circuits
"Self-closing" or "open basic position" (e.g. with control cover type "WEMA")
| 1) | Pilot pressure |
Control spool remains open as long as FZ2 ≥ FA + 30 bar
In case of failure or drop of the pilot pressure, the logic element closes hydraulically. Irrespective thereof, the logic element can be opened by unloading the spring chamber (minimum pilot pressure required).
"Pulling" and "Safe keeping closed" function
| 1) | Consumer |
The control spool of the active logics can be opened or closed depending on the two pilot oil pressures X and Z2. Thus, free flow is possible in both directions, irrespective of the pressure level in port B.
"Passive logics with piston seal" function, spool position monitoring and stroke limitation
Advantages:
Retrofitting for existing installation using the existing control cover type LFA and pilot control valves Leakage-free locking Position monitoring Shortened closing time"Closed basic position" function; safe locking, increased closing force
Advantages:
"Safe locking" in both directions Control spool cannot be controlled open from side B (version "...D.E...") Position switch retrofittable Shortened switching timeAdvantages:
Leakage-free separation of the two pilot pressures “X” and “Z1” Function of a hydraulic detent (“Keeping open”, also in case of pilot pressure failure) Permits complete pressure compensation of both main ports"Check valve" and "Safe locking" function; increased closing force
Advantages:
Leakage-free locking Increased closing force (shortened closing time)“Check valve” (releasable) and “Safe locking” function; “Keeping open” additional function
Advantages:
"Safe locking" in both directions Check valve function that can be switched off Leakage-free locking Monitoring of the open and closed position"Check valve circuit" function, self-locking, fast-closing
Advantages:
Maximum load pressure in channel A 500 bar (condition: maximum pressure in channel B 250 bar) Very fast closing by internal spring chamber filling (e.g. NG63 < 20 ms) High locking force Analog position sensing (optional)“Separation between both pilot pressures and hydraulic keeping open in case of pilot pressure failure” function
Inductive position switch type Q7
The electrical connection is realized via a 4-pole mating connector with connection thread M12 x 1 (separate order). The inductive position switch can be connected as normally closed or normally open contact.
Features:
Adjustment-free assembly due to fixed stop Certification according to CE and cULus|
Connection voltage |
V |
12 ... 30 | |
|
Admissible residual ripple |
% |
< 15 | |
|
Load capacity |
mA |
200 | |
|
Tightening torque MA |
Nm |
10 | |
| + 5 Nm | |||
|
Switching outputs
|
PNP transistor outputs, load between switching outputs and GND | ||
|
Pinout
|
1 |
+UB | |
|
2 |
Normally closed contact | ||
|
3 |
L0 | ||
|
4 |
Normally open contact | ||
Notes:
The "closed" spool position is adjusted to and optimized for a condition at operating temperature. Considerably deviating operating temperatures thus influence the absolute switching position as well as its hysteresis. The position switch type Q7 has no connection for protective earthing conductors! Assembly tool for position switch type Q7 or blind plug upon request. BG certificate (only size 16 … 100 and valve poppet version "D" and "F"): The respectively valid "MHHW 10014" certificate for using the active logics type LC2A with position switch type Q7 in hydraulic security locks in injection molding machines according to the manufacturer's installation instructions is available upon request.Inductive position switch type Q8
The electrical connection is realized via a 4-pole mating connector with connection thread M12 x 1 (separate order).
Features:
Certification according to CE Explosion protection according to Ex II 2G Ex ia IIC T6 Use not with version "450"|
Connection voltage (DC voltage) |
V |
8.2 | |
| +9 %/-6 % | |||
|
Maximum current consumption, dampened: |
mA |
1 | |
|
Maximum current consumption, not dampened: |
mA |
4 | |
|
Tightening torque MA |
Nm |
10 | |
|
Nm |
+ 5 | ||
|
Switching outputs
|
NAMUR evaluation electronics necessary | ||
|
Pinout
|
1 |
Current source | |
|
2 |
- | ||
|
3 |
0 V, GND | ||
|
4 |
- | ||
Inductive sensor with analog output type Q9
The electrical connection is realized via a 4-pole mating connector with connection thread M12 x 1 (separate order).
Features:
Certification according to CE|
Connection voltage |
V |
15 ... 30 | |
|
Admissible residual ripple |
% |
< 15 | |
|
Tightening torque MA |
Nm |
10 | |
| + 5 Nm | |||
|
Analog output:
|
Load resistance ≥ 2 kΩUS = 1 ... 9 V DC (in the installed, adjusted condition)Notice:The maximum sensor voltage US with 100% stroke is size- and/or tolerance-dependent and may range between 7 and 9 V DC. The inductive sensor is adjusted so that with 0% stroke, an output voltage of 1 V DC is available. | ||
|
Pinout
|
1 |
+UB | |
|
2 |
- | ||
|
3 |
L0 | ||
|
4 |
0 … 10 V DC | ||
Switching point behavior and overlap: Valve poppet with damping nose "D" or overlap nose "F" and position overlap "closed"
|
h |
Overlap stroke (mechanical) |
|
s |
Switching point window (electrical) |
|
qv0 |
Maximum flow until hmin |
Characteristic curve position switch type Q7
NG16 ... 63
With spool position monitoring (1 position switch "Q7", position monitoring "closed")
(with version "450" only with pilot oil bore "Z1" and "Z2")
Dimensions in mm
|
1 |
Name plate |
|
1.1 |
Name plate NG16 and 25 |
|
2 |
Position switch (optional) or blind plug |
|
3 |
Mating connector (separate order) |
|
4 |
Space required to remove the mating connector |
|
5 |
Sealing by the factory |
|
6 |
Transport lock for control spool (marking K). Don't remove! Loosening or disassembly and assembly only admissible in case of service/repair! |
|
7 |
Standard end/control cover type LFA... (separate order, depends on the basic hydraulic function) |
|
8 |
Valve mounting screws (separate order, see table) |
|
NG |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 1) |
H1 |
H2 |
ØD1 |
ØD2 |
ØD3 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 16 | 80 | 67 | 15 | 7 | 34.5 | 45.5 |
5 10 |
40 | 11.5 | M6 | G 1/8 | 8.5 | |
| 25 | 85 | 67 | 9.5 | 10 | 37 | 48 |
5 10 |
40 | 11.5 | M6 | G 1/8 | 13.5 | |
| 32 | 100 | 65 | 2 | 7 | 45 | 55 |
5 10 |
50 | 13.5 | M8 x 1 | G 1/8 | 19 | |
| 40 | 125 | 58 | - | - | 56 | 69 |
5 11 |
80 | 29.5 | G 1/8 | G1/4 | 22 | |
| 50 | 140 | 58 | - | - | 63.5 | 63.5 |
5 11 |
100 | 42.5 | G 1/8 | G1/4 | 24 | |
| 63 | 180 | 45 | - | - | 82.5 | 82.5 |
5 11 |
110 | 45.5 | G1/4 | G3/8 | 26 | + 1 |
| 1) | Version "450" |
NG16 … 32
With spool position monitoring (2 position switches “Q7”, position monitoring “closed”)
(not with version "450")
Dimensions in mm
|
1.1 |
Name plate NG16 and 25 |
|
1.2 |
Name plate NG32 … 63 |
|
2 |
Position switch (optional) or blind plug |
|
3 |
Mating connector (separate order) |
|
4 |
Space required to remove the mating connector |
|
5 |
Sealing by the factory |
|
6 |
Transport lock for control spool (marking K). Don't remove! Loosening or disassembly and assembly only admissible in case of service/repair! |
|
7 |
Standard end/control cover type LFA... (separate order, depends on the basic hydraulic function) |
|
8 |
Valve mounting screws (separate order, see table) |
|
NG |
L1 |
L2 |
L3 |
L5 |
L6 |
H1 |
H2 |
ØD1 |
ØD2 |
ØD3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 16 | 80 | 67 | 15 | 34.5 | 45.5 | 40 | 11.5 | M6 | G 1/8 | 8.5 |
| 25 | 85 | 67 | 9.5 | 37 | 48 | 40 | 11.5 | M6 | G 1/8 | 13.5 |
| 32 | 100 | 65 | 2 | 45 | 55 | 50 | 13.5 | M8 x 1 | G 1/8 | 19 |
NG40 … 63
With spool position monitoring (2 position switch "Q7", position monitoring "closed" and "open")
(not with version "450")
Dimensions in mm
|
1 |
Name plate |
|
2 |
Position switch (optional) or blind plug |
|
2.1 |
Position switch "open" ("Q7T") |
|
3 |
Mating connector (separate order) |
|
4 |
Space required to remove the mating connector |
|
5 |
Sealing by the factory |
|
6 |
Transport lock for control spool (marking K). Don't remove! Loosening or disassembly and assembly only admissible in case of service/repair! |
|
7 |
Standard end/control cover type LFA... (separate order, depends on the basic hydraulic function) |
|
8 |
Valve mounting screws (separate order, see table) |
|
NG |
L1 |
L2 |
L5 |
L6 |
H1 |
H2 1) 2) |
ØD1 |
ØD2 |
ØD3 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 40 | 125 | 58 | 56 | 69 | 80 |
29.5 23 |
G 1/8 | G1/4 | 22 | |
| 50 | 140 | 58 | 63.5 | 63.5 | 100 |
42.5 35 |
G 1/8 | G1/4 | 24 | |
| 63 | 180 | 45 | 82.5 | 82 | 110 |
45.5 36 |
G1/4 | G3/8 | 26 | + 1 |
| 1) | Position monitoring "closed" |
| 2) | Position monitoring "open" |
NG80 … 125
With spool position monitoring (1 position switch "Q7", position monitoring "closed")
(version "450" only up to NG100 and pilot oil bore "Z1" and "Z2")
Dimensions in mm
|
1 |
Name plate |
|
2 |
Position switch (optional) or blind plug |
|
3 |
Mating connector (separate order) |
|
4 |
Space required to remove the mating connector |
|
5 |
Sealing by the factory |
|
6 |
Transport lock for control spool (marking K). Don't remove! Loosening or disassembly and assembly only admissible in case of service/repair! |
|
7 |
Standard end/control cover type LFA... (separate order, depends on the basic hydraulic function) |
|
8 |
Valve mounting screws (separate order, see table) |
|
NG |
ØD1 |
ØD2 |
ØD3 1) |
ØD4 |
ØD5 |
L1 |
L2 |
H1 |
H2 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| 80 | G1/2 | G1/2 |
G1 G3/4 |
26 | + 1 | 250 |
37 - |
5 1) 13 1) |
120 | 48 |
| 100 | G1/2 | G1/2 |
G1 G3/4 |
33 | + 0.5 | 300 |
26 - |
5 1) 13 1) |
140 | 55.2 |
| 125 | G3/4 | G1/2 |
G3/4 - |
40 | 380 |
- - |
5 - |
160 | 65.2 | |
| 1) | Version "450" |
NG80 … 125
With spool position monitoring (2 position switch "Q7", position monitoring "closed" and "open")
(not with version "450")
Dimensions in mm
|
1 |
Name plate |
|
2 |
Position switch (optional) or blind plug |
|
2.1 |
Position switch "open" ("Q7T") |
|
3 |
Mating connector (separate order) |
|
4 |
Space required to remove the mating connector |
|
5 |
Sealing by the factory |
|
6 |
Transport lock for control spool (marking K). Don't remove! Loosening or disassembly and assembly only admissible in case of service/repair! |
|
7 |
Standard end/control cover type LFA... (separate order, depends on the basic hydraulic function) |
|
8 |
Valve mounting screws (separate order, see table) |
|
9 |
Connection possibility for a 3rd position switch "closed"(optional, only NG125) |
|
NG |
ØD1 |
ØD2 |
ØD3 |
ØD4 |
ØD5 |
L1 |
H1 |
H2 1) 2) |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
||||
| 80 | G1/2 | G1/2 | G1 | 26 | + 1 | 250 |
37 - |
120 |
48 37.3 |
| 100 | G1/2 | G1/2 | G1 | 33 | + 0.5 | 300 |
26 - |
140 |
55.2 44.7 |
| 125 | G3/4 | G1/2 | G3/4 | 40 | 380 |
- - |
160 |
65.2 54.5 |
|
| 1) | Position monitoring "closed" |
| 2) | Position monitoring "open" |
|
Valve mounting screws (separate order) |
|||||||
|
NG |
Control cover type LFA |
Hexagon socket head cap screws ISO 4762-10.9-flZn |
|||||
|
420 bar |
450 bar |
Quantity |
Dimensions |
Material number (preferred) |
Tightening torque MA2) in Nm ±10 % |
||
|
420 bar |
450 bar |
||||||
|
16 |
1) |
D, H |
4 |
M8 x 80 |
R913015803 |
30 |
|
|
WE., GW. |
KWMA |
M8 x 85 |
R913004145 |
||||
|
– |
WEM., GWMA20 |
M8 x 95 |
R913015806 |
||||
|
WEM. |
– |
M8 x 110 |
R913015792 |
||||
|
HWM. |
HWM. |
M8 x 140 |
R913018191 |
||||
|
25 |
1) |
D, H, WEM., KWMA |
4 |
M12 x 90 |
R913015617 |
100 |
90 |
|
– |
GWMA20 |
M12 x 130 |
R913015591 |
||||
|
HWM. |
HWM. |
M12 x 140 |
R913015593 |
||||
|
32 |
1) |
D, WEM, KWMA |
4 |
M16 x 110 |
R913015642 |
240 |
220 |
|
H3, H4 |
– |
M16 x 120 |
R913014711 |
||||
|
H1, H2 |
H1, H2 |
M16 x 130 |
R913014713 |
||||
|
– |
GWMA20 |
M16 x 140 |
R913015591 |
||||
|
HWM. |
HWM. |
M16 x 160 |
R913015647 |
||||
|
40 |
1) |
D, WEM, KWMA |
4 |
M20 x 150 |
R913015676 |
480 |
430 |
|
– |
GWMA20 |
M20 x 180 |
R913014714 |
||||
|
H., HWM. |
H., HWM. |
M20 x 190 |
R913015680 |
||||
|
50 |
1) |
D, WEM, KWMA, GWMA20 |
4 |
M20 x 180 |
R913014714 |
480 |
430 |
|
H., HWM. |
H., HWM. |
M20 x 220 |
R913014716 |
||||
|
63 |
1) |
D, WEM, KWMA, GWMA20 |
4 |
M30 x 210 |
R913015754 |
1600 |
1500 |
|
H., HWM. |
H., HWM. |
M30 x 260 |
R913015758 |
||||
|
80 |
1) |
D, WEM, GWMA20 |
8 |
M24 x 220 |
R913015719 |
800 |
750 |
|
H2, H4 |
H., KWMA |
M24 x 240 |
R913015721 |
||||
|
100 |
D, WE. |
D, GWMA20, KWMA |
8 |
M30 x 260 |
R913015758 |
1600 |
1500 |
|
1) |
H. |
M30 x 280 |
R913015760 |
||||
|
125 |
H., WEM, WE, D |
– |
8 |
M36 x 320 |
R913050473 |
2300 |
– |
| 1) | More available series control covers |
| 2) | Calculated with total friction coefficient μ = 0.09 ... 0.14, adjust incase of modified surfaces |
Notice!
The length of the valve mounting screws of the active logics (intermediate cover) must be selected according to the related control cover type LFA....
Screw type, screw length and tightening torque are to be adjusted to the conditions depending on the application.
For reasons of stability, exclusively the following valve mounting screws may be used:
Installation bore and connection dimensions according to ISO 7368
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
1 |
Depth of fit |
|
2 |
Port B may be positioned around the central axis of port A. However, it must be observed that the mounting bores and the pilot oil bores are not damaged. |
NG16 ... 63
Dimensions in mm
|
1 |
Bore for locating pin |
NG80 and 100
Dimensions in mm
|
1 |
Bore for locating pin |
NG125
Dimensions in mm
|
1 |
Bore for locating pin |
Notes:
All information on the mounting bore D5 is based on the use of hexagon socket head cap screws according to ISO 4762. Installation see assembly instructions 21040-MON.|
NG |
ØD1H7 |
ØD2 |
ØD3/ØD3* 1) |
ØD4H7 |
ØD5 |
ØD6 |
ØD7H13 |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
H7 |
H8 |
H9 |
L1 |
L2 |
L3 |
L4 |
L5 |
Ro 2) |
Ru 2) |
||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 16 | 32 | 16 |
16 25 |
25 | M8 | 4 | 4 | 42.5 | 56 | + 0.1 | 43 | ± 0.2 | 20 | 11 | 2 | 20 | 2 | 0.5 |
80 - |
46 - |
23 | 25 | 10.5 | 2 | 1 | ||
| 25 | 45 | 25 |
25 32 |
34 | M12 | 6 | 6 | 57 | 72 | + 0.1 | 58 | ± 0.2 | 25 | 12 | 2.5 | 30 | 2.5 | 1 |
85 - |
58 - |
29 | 33 | 16 | 2 | 1 | ||
| 32 | 60 | 32 |
32 40 |
45 | M16 | 8 | 6 | 68.5 | 85 | + 0.1 | 70 | ± 0.2 | 35 | 13 | 2.5 | 30 | 2.5 | 1.5 |
102 - |
70 - |
35 | 41 | 17 | 2 | 1 | ||
| 40 | 75 | 40 |
40 50 |
55 | M20 | 10 | 6 | 84.5 | 105 | + 0.1 | 87 | ± 0.3 | 45 | 15 | 3 | 30 | 3 | 2.5 |
125 - |
85 - |
42.5 | 50 | 23 | 4 | 1 | ||
| 50 | 90 | 50 |
50 63 |
68 | M20 | 10 | 8 | 97.5 | 122 | + 0.1 | 100 | ± 0.3 | 45 | 17 | 3 | 35 | 4 | 2.5 |
140 - |
100 - |
50 | 58 | 30 | 4 | 1 | ||
| 63 | 120 | 63 |
63 80 |
90 | M30 | 12 | 8 | 127 | 155 | + 0.1 | 130 | ± 0.3 | 65 | 20 | 4 | 40 | 4 | 3 |
180 - |
125 - |
62.5 | 75 | 38 | 4 | 1 | ||
| 80 | 145 | 80 |
80 100 |
110 | M24 | 16 | 10 | 170.5 | 205 | + 0.1 | 175 | ± 0.4 | 50 | 25 | 5 | 40 | 5 | 4.5 |
250 - |
200 - |
- | - | - | 4 | 1 | ||
| 100 | 180 | 100 |
100 125 |
135 | M30 | 20 | 10 | 205.5 | 245 | + 0.1 | 210 | ± 0.4 | 63 | 29 | 5 | 50 | 5 | 4.5 |
300 - |
245 - |
- | - | - | 4 | 1 | ||
| 125 | 225 | 150 |
125 160 |
200 | - | - | - | 255 | 300 | + 0.15 | 257 | ± 0.5 | - | 31 | 7 | ± 0.5 | 50 | 5.5 | ± 0.2 | 2 |
- - |
- - |
- | - | - | 4 | 1 |
| 1) | Due to the use of a bore with ØD3*, port B protrudes over the upper limit of the area intended in ISO 7368. This is, however, possible due to the sealing concept and reduces the pressure loss during flow through the valve. Thus, we recommend a bore with ØD3*. |
| 2) | Maximum dimension |
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
For sensors and valves with connector “K24”, “K35” and “K72” Mating connectors M12, 4-pole, line cross-section 0.75 mm2Data sheet
Spare parts & repair
Related Products
R900357578
$63.50 USD
R900958447
$3,224.00 USD
R901423647
$2,146.00 USD
R900910269
$299.00 USD
R978910384
$1,428.00 USD
