LFA40WEA-7X/A12P12/12

Manufacturer: Bosch Rexroth

Material #: R901292585

Model : LFA40WEA-7X/A12P12/12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LFA40WEA-7X/A12P12/12 (R901292585) is a high-performance way cartridge valve designed for seamless integration into compact block systems. This valve is engineered to facilitate various hydraulic functions, including pressure, directional, and throttle control, by working in conjunction with appropriate pilot control valves. Its versatility allows it to be tailored to the specific flow requirements of different actuators, offering cost-effective solutions for multi-function applications. The model features a standardized power section that fits into a control block and is sealed with a cover which also serves as the conduit for pilot control valves. The LFA40WEA-7X/A12P12/12 consists of a control cover that houses the necessary control bores and may include additional functionalities such as stroke limitation, hydraulically controlled directional seat valves, or shuttle valves depending on the desired overall function. For further customization, electrically operated directional spool or seat valves can be attached to the control cover. This particular way cartridge valve operates based on pressure-dependent functionality, establishing three essential pressurized areas (A1, A2, A3) crucial for its operation. The unique design allows for different area ratios (A1:A2), which can be either 1:1 or 2:1 depending on the version of the valve. These area ratios are significant in determining the flow characteristics and behavior of the valve under various pressure conditions. The construction of the Bosch Rexroth LFA40WEA-7X/A12P12/12 also includes an installation kit comprising components such as a bushing, ring (up to NG), valve poppet (with or without damping nose), and closing spring. These parts work together to ensure reliable operation and longevity of the valve. Overall, this model is characterized by its ability to allow flow from A to B or vice versa while maintaining leak-free blocking when necessary. The way cartridge valves' functionality and efficiency make them suitable for a wide range of hydraulic applications requiring precise flow control under varying pressures and flows.

$608.00 USD

More are expected on December 2, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 2, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

2 area ratios 4 different springs 6 different cracking pressures

2-way cartridge valves are elements that have been designed for a compact block design. The power section with connections A and B is installed into the control block in a receiving hole standardized according to ISO 7368 and closed with a cover. In most cases, the cover is also the connection from the control side of the power section to the pilot control valves.

By control with respective pilot control valves, the power section can be applied for pressure, directional and throttle functions or a combination of these functions. Particularly efficient solutions are realized by adjustment of the size to various flows of the individual ways of an actuator. The application of power sections of elements for multiple functions is very cost-effective.

2-way cartridge valves generally consist of control cover (1) and installation kit (2). The control cover contains the control bores and optionally a stroke limitation function, a hydraulically controlled directional seat valve or a shuttle valve according to the required overall function. Additionally, electrically operated directional spool or seat valves can be installed at a control cover. The installation kit consists of a bushing (3), ring (4) (only up to NG32), valve poppet (5), optionally with damping nose (6) or without damping nose (7) as well as closing spring (8).

The function of 2-way cartridge valves is pressure-dependent. This way, three crucial pressurized areas A1, A2, A3 are realized for the function. The area at valve seat A1 is observed as 100 %. Depending on the version, the annulus area A2 realized by grading is 7 % or 50 % of area A1. The area ratio A1 : A2 is respectively either 14.3 : 1 or 2 : 1. The area A3 is identical to the sum of areas A1 + A2. Due to the different area ratios A1 : A2 and the resulting different annulus areas (A2), the area A3 is one time 107 % and another time 150 % of the area A1 at the seat, which is observed as 100 %.

In general, the following applies:

The areas A1 and A2 are effective in opening direction. The area A3 and the spring are effective in closing direction. The direction of action of the resulting force from the opening and closing forces determines the spool position of the 2-way cartridge valve.

The 2-way cartridge valves can be passed from A to B or from B to A. Pressurization of area A3 by pilot oil discharge from channel B or external pilot oil supply, channel A is blocked without leakage.

01	02	03		04		05	06	07
LFA		WEA	–		/

Type
01	Control cover LFA	LFA
Size
02	NG 16	16
	NG 25	25
	NG 32	32
	NG 40	40
	NG 50	50
	NG 63	63
	NG 80	80
	NG 100	100
	NG 125	125
	NG 160	160
Version
03	Control cover version "WEA": For set-up of a directional valve	WEA
Component series
04	Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions) 1)	7X
	Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 2)	6X
	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) 3)	2X
Nozzle fitting
05	Orifice in channel A 4)	A..
06	Orifice in channel P 4)	P..
07	Orifice in channel T 4)	T..

	1) Component series 7X for sizes 16...63
	2) Component series 6X for sizes 80 and 100
	3) Component series 2X for sizes 125 and 160
	4) This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation.
	Example: A12 = Orifice with Ø1.2 mm in channel A. Additional orifice Ø see diagrams/characteristic curves.

Orifice symbol	Symbol in ordering code
A**	A**	This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. Example: A12 = Orifice with Ø1.2 mm in channel A.
Ø1,2		This orifice is designed as bore. No specifications are made in the type designation. (Orifice Ø in mm)
Z12		This orifice is designed as screw-type orifice. This is a standard orifice. No specifications are made in the type designation. (Orifice Ø in 1/10 mm)

Notices:

For ordering code of orifices, see "Accessories" Additional functions with special numbers see "Information".

general

Size			16	25	32	40	50	63	80	100	125	160
Weight		kg	1.2	2.3	4	7.4	10.5	21	27	42	80	150
Ambient temperature range	NBR seals	°C	-30 … +60
Ambient temperature range	FKM seals	°C	-20 … +60
MTTFD values according to EN ISO 13849 1)		Years	150

1)	For further details, see data sheet 08012

hydraulic

Size			16	25	32	40	50	63	80	100	125	160
Maximum operating pressure	Port X 1)	bar	315 350 420
	Port Z2	bar	- - -									315 1) 350 1) 420 1)
	Port Y		depending on the maximum tank pressure of the attached directional valve
Maximum flow 2)		l/min	25000
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3)			Class 20/18/15 according to ISO 4406 (c)

1)	dependent on the attached directional valve
2)	NG-dependent; see characteristic curves
3)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable 1)	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base) 1)	FKM
	Containing water 1)	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). Flame-resistant - containing water: Life cycle as compared to operation with mineral oil HL, HLP 30 … 100%. Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

1)	Not recommended for corrosion-protected version "J3" (contains zinc)

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable 1)	Insoluble in water	HETG	FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base) 1)	FKM
	Containing water 1)	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). Flame-resistant – containing water: Life cycle as compared to operation with mineral oil HL, HLP 30 … 100% Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

1)	Not recommended for corrosion-protected version "J3" (contains zinc)

For applications outside these parameters, please consult us!

Orifices

Orifice Ø in mm	Order numbers	Material numbers
Orifice Ø in mm	Order numbers	M6 conical	M8 x 1 conical	G 1/8 conical	G 1/4 conical	G 3/8 conical	G 1/2 conical	G 1 conical
–	00	–	–	–	–	–	–	–
0,5	05	R913040356	R913017600	R913030187	R913040456	–	–	–
0,6	06	R913040358	R913017605	R913017606	R913020197	–	–	–
0,7	07	R913040360	R913017609	R913046092	–	–	–	–
0,8	08	R913029447	R913017614	R913017616	R913017615	R913040481	R913040499	–
1,0	10	R913019186	R913017621	R913024679	R913017622	R913040484	R913040500	–
1,2	12	R913040362	R913017627	R913017629	R913017628	R913040486	R913040501	–
1,5	15	R913028337	R913017637	R913017639	R913017638	R913040488	R913028317	–
1,8	18	R913030186	R913017644	R913017646	R913017645	R913040489	R913045913	–
2,0	20	R913029870	R913017651	R913040450	R913017652	R913028417	R913028336	–
2,5	25	R913032543	R913035796	R913017656	R913019582	R913040493	R913040502	–
3,0	30	R913040368	R913017661	R913017663	R913017662	R913018266	R913040503	R913040467
3,5	35	–	R913017667	R913040452	R913040463	R913028318	R913019856	R913040469
4,0	40	–	R913017670	R913027078	R913040464	R913018265	R913029168	R913040470
4,5	45	–	R913046571	R913017671	R913040465	–	R913040506	–
5,0	50	–	–	R913017673	R913040468	R913023871	R913019857	R913040471
5,5	55	–	–	R913027077	–	R913040495	R913053659	–
6,0	60	–	–	–	–	R913023870	R913028418	R913020247
7,0	70	–	–	–	R913040461	R913017675	R913040509	–
7,5	75	–	–	–	–	R913023430	–	R913018328
8,0	80	–	–	–	–	R913046570	R913040510	R913020246
closed	99	R913019128	R913019129	R913019137	R913019136	R913019138	–	R913019140

Other orifices upon request.

Plug screws
Thread	Tightening torque MA in Nm ±10 %
G 1/8	12
G 1/4	30
G 3/8	55
G 1/2	80
G 3/4	135
G 1	225
G 1 1/4	360

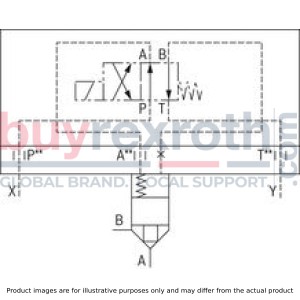

LFA . WEA… (NG16 … 32)

LFA . WEA… (NG40 ... 125)

LFA . WEA… (NG160)

Control cover "WEA" for set-up of a directional valve: NG16 ... 50

Dimensions in mm

1	Name plate at NG16, 25, 32
2	Name plate at NG40 and 50
3	Port X and Y optionally as threaded ports at NG40 and 50
4	Directional spool valve type 4WE 6 D… (pilot control valve), separate order
5	Directional seat valve type M-3SEW 6 … (pilot control valve), separate order
6	Porting pattern according to ISO 4401-03-02-0-05 (mounting thread for version "/12" see data sheet 08936)

NG	D1	H1	H2	H3	L1	L2	L3	L4	L5	L6	L7
NG		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
16	-	40	- -	15	65	80	-	-	17	47.5	4
25	-	40	- -	24	85	85	-	-	27	64	4
32	-	50	- -	28	100	100	-	-	34.5	71.5	4
40	G1/2	60	30 -	32	125	125	72	53	47	84	6
50	G1/2	68	32 -	34	140	140	80	60	54.5	91.5	6

Control cover "WEA" for set-up of a directional valve: NG63

Dimensions in mm

1	Name plate
2	Port X and Y optionally as threaded ports
3	Directional spool valve type 4WE 10 D… (pilot control valve), separate order
4	Directional seat valve type M-3SEW 10 … (pilot control valve), separate order
5	Porting pattern according to ISO 4401-05-04-0-05 (mounting thread for version "/12" see data sheet 08936)

Control cover "WEA" for set-up of a directional valve: NG80 ... 100

Dimensions in mm

1	Name plate
2	Port X and Y optionally as threaded ports
3	Plug screw at type WEB
4	Plug screw at type WEA
5	Directional spool valve type 4WE 10 D… (pilot control valve), separate order
6	Directional seat valve type M-3SEW 10 … (pilot control valve), separate order
7	Porting pattern according to ISO 4401-05-04-0-05 (mounting thread for version "/12" see data sheet 08936)

NG	D1	H1	H2	H3	H4	L3	L4
NG	mm	mm	mm	mm	mm	mm	mm
80	250	80	30	45	45	10	16
100	300	100	24	52.5	55	13	18

Control cover "WEA" for set-up of a directional valve: NG125 ... 160

Dimensions in mm

1	Name plate
2	Port X and Y optionally as threaded ports
3	Plug screw at type WEB
4	Plug screw at type WEA
5	Directional spool valve type 4WE 10 D… (NG125) or type WEH 25 … (NG160) (pilot control valve), separate order
6	Directional seat valve type M-3SEW 10 … (pilot control valve), separate order
7	Porting pattern according to NG125: ISO 4401-05-04-0-05 NG160: ISO 4401-08-08-0-05 (mounting thread for version "/12" see data sheet 08936)

NG	D1	H1	H2	H3	H4	L3	L4	L5
NG	mm	mm	mm	mm	mm	mm	mm	mm
125	380	105	51	56	51	16	10	23
160	480	150	80	71	80	15	15	46

LFA control cover mounting screws
Hexagon socket head cap screws ISO 4762 - 10.9-flZn/nc/480h/C 1)
Size	Quantity	Tightening torque MA in Nm ±10 %
16	4	30
25	4	100
32	4	240
40	4	480
50	4	480
63	4	1600
80	8	800
100	8	1600
125	8	3100
160	12	5000

	1) Hexagon socket head cap screws UNC, see data sheet 08936

Mounting screws included in the scope of delivery.

Notice:

The tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10 %). The specified tightening torques were calculated with total friction coefficient μ = 0.09 … 0.14; adjust in case of modified surfaces. Supplied mounting screws are only suitable for direct assembly on a block. If an intermediate cover is used, mounting screws have to be designed accordingly longer (see dimensions).

Size 16 ... 63

Dimensions in mm

Size 80 ... 100

Dimensions in mm

Size 125

Dimensions in mm

Size 160

Dimensions in mm

Installation bore and connection dimensions according to ISO 7368

Size 16 ... 63

Dimensions in mm

1	Bore for locating pin
2	80 mm only at control cover for directional valve set-up NG16 (axis X–Y bore)

Size 80 ... 100

Dimensions in mm

1	Bore for locating pin

Size 125

Dimensions in mm

1	Bore for locating pin

Size 160

Dimensions in mm


Required surface quality of the valve contact surface

1	Bore for locating pin

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Connection dimensions according to ISO 7368

NG		16	25	32	40	50	63	80	100	125	160
ØD5 1)		M8	M12	M16	M20	M20	M30	M24	M30	-	-
ØD6	mm	4	6	8	10	10	12	16	20	-	-
ØD7H13	mm	4	6	6	6	8	8	10	10	-	-
H4	mm	20	25	35	45	45	65	50	63	-	-
L1	mm	65 80	85 -	102 -	125 -	140 -	180 -	250 -	300 -	- -	- -
L2	mm	46 -	58 -	70 -	85 -	100 -	125 -	200 -	245 -	- -	- -
L3	mm	23	29	35	42.5	50	62.5	-	-	-	-
L4	mm	25	33	41	50	58	75	-	-	-	-
L5	mm	10.5	16	17	23	30	38	-	-	-	-

1)	Mounting thread for version "/12" see data sheet 08936

1	Bore for locating pin
2	80 mm only at control cover for directional valve set-up NG16 (axis X–Y bore)

Notices:

The specified tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10%). The specified tightening torques were calculated with total friction coefficient μtotal = 0.09 ... 0.14; adjust in case of modified surfaces. Supplied mounting screws are only suitable for direct assembly on a block. If an intermediate cover is used, mounting screws have to be designed accordingly longer.

Mounting screws (included in scope of delivery)

Hexagon socket head cap screws ISO 4762 - 10.9-flZn/nc/480h/C 1)
Size	Quantity	Tightening torque MA in Nm ±10 %
16	4	30
25	4	100
32	4	240
40	4	480
50	4	480
63	4	1600
80	8	800
100	8	1600
125	8	3100
160	12	5000

1)	Hexagon socket head cap screws UNC, see data sheet 08936

Additional functions with special numbers: Control cover (upon request)

Symbol	Type	Size	Description / special characteristic
	LFA . WEA16-7X/…	25, 30	Additional external ports X and Y (G1/4)
	LFA . WEA54-7X/...	32, 50, 63	Cover for logic zero position open
	LFA . WEA54-6X/…	25 ... 50	Cover for logic zero position open

Additional functions with special numbers (upon request)

Orifice symbol

Orifice symbol	Ordering code
A**	A**	This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. Example: A12 = Orifice with Ø1.2 mm in channel A.
Ø1,2		This orifice is designed as bore. No specifications are made in the type designation. (Orifice Ø in mm)
Z12		This orifice is designed as screw-type orifice. This is a standard orifice. No specifications are made in the type designation. (Orifice Ø in 1/10 mm)

LFA40WEA-7X/A12P12/12

Manufacturer: Bosch Rexroth

Material #: R901292585

Model : LFA40WEA-7X/A12P12/12

More are expected on December 2, 2024

This product is eligible for factory repair.

general

hydraulic

Orifices

LFA . WEA… (NG16 … 32)

LFA . WEA… (NG40 ... 125)

LFA . WEA… (NG160)

Control cover "WEA" for set-up of a directional valve: NG16 ... 50

Control cover "WEA" for set-up of a directional valve: NG63

Control cover "WEA" for set-up of a directional valve: NG80 ... 100

Control cover "WEA" for set-up of a directional valve: NG125 ... 160

Size 16 ... 63

Size 80 ... 100

Size 125

Size 160

Installation bore and connection dimensions according to ISO 7368

Size 16 ... 63

Size 80 ... 100

Size 125

Size 160

Connection dimensions according to ISO 7368

Mounting screws (included in scope of delivery)

Additional functions with special numbers: Control cover (upon request)

Additional functions with special numbers (upon request)

Orifice symbol

Orifice selection

Related Products

Information

Account
