4WH6J5X/XC

Manufacturer: Bosch Rexroth

Material #: R901281059

Model : 4WH6J5X/XC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WH6J5X/XC (R901281059) is a high-performance directional spool valve designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. This particular model is fluidically actuated and features a housing, hydraulic actuation cylinder, control spool, and one or two return springs. Its ports are radially positioned for ease of connection. This valve operates without spring return and includes a detent mechanism as indicated by the version ..OF.. in its model code. The detent allows each spool position to be fixed, providing stability in the valve's setting. In contrast, the version ..O.. signifies that there are no return springs or detent present, resulting in no defined spool position when unoperated. The 4WH6J5X/XC also incorporates a throttle insert (version B..), which is essential when operational conditions may cause flows that exceed the valve's performance limit during switching processes. This insert helps to manage such flows effectively. Designed for versatility, this valve can be used as either a 4-way or 3-way configuration depending on application needs. It conforms to ISO porting patterns and offers options with or without locating holes for installation flexibility. The hydraulic operation method ensures reliable performance with a maximum operating pressure of 350 bar and maximum flow rate of l/min suitable for various applications. In terms of safety, this Bosch Rexroth valve is suitable for use in potentially explosive atmospheres as it complies with Explosion Protection Directive EU for categories IM, IIG, IID. Furthermore, it provides type c EN protection for its solenoids ensuring safe operation in hazardous conditions. Whether utilized in industrial machinery or mobile applications requiring precise hydraulic flow control within explosive environments, the Bosch Rexroth 4WH6J5X/XC (R901281059) directional spool valve stands out due to its robust design and safety features.

$1,878.00 USD

More are expected on April 28, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as April 28, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

4/3-, 4/2- or 3/2-way version For intended use in potentially explosive atmosphere Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole) Operating method: hydraulic

Valves of type WH 6...XC are fluidically actuated directional spool valves. They control the start, stop and direction of a flow.

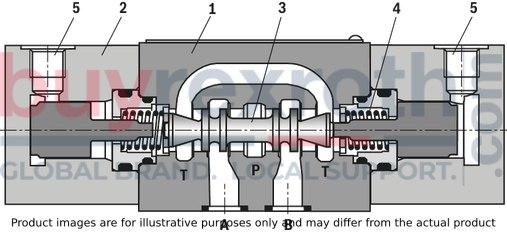

The directional valves basically consist of housing (1), an actuation element (2) (hydraulic actuation cylinder), control spool (3) and one or two return springs (4). The ports for the control are positioned radially (5).

When de-energized, the control spool (3) is held in the central position or in the initial position by the return springs (4) (except impulse spool).

The control spool (3) is moved to the desired spool position by means of the actuation elements.

Type 4WH 6 E5X/...XC/....

Without spring return, with detent, version ..OF/..

Directional valves with hydraulic operation are also available as a 2-spool position valve with detent (7). If actuation elements with detent are used, each spool position can be fixed.

Without spring return, version ..O/..

If actuation elements without return springs and without detent are used, there is no defined spool position in the non-operated condition.

Throttle insert (version "B..")

The use of a throttle insert is required when due to prevailing operating conditions, flows can occur during the switching processes, which exceed the performance limit of the valve.

01	02	03	04	05	06	07		08	09	10		11	12	13
	W	H	no code	6		5X	/		no code	XC	/

01	3 main ports	3
01	4 main ports	4
02	Directional valve	W
Type of actuation
03	hydraulic	H
04	Ports radial	no code
05	Size 6	6
06	Symbols e.g. C, E, EA, EB, etc; possible version, see chapter "Symbols/Circuit diagrams"
07	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
Control spool return
08	With spring return	no code
	Without spring return	O
	Without spring return with detent	OF
09	Without manual override	no code
Explosion protection
10	Valves in explosion-protected design; for details, see "Information on explosion protection", in chapter "Technical data"	XC
11	Without throttle insert	no code
	Throttle Ø 0.8 mm	B081)
	Throttle Ø 1.0 mm	B101)
	Throttle Ø 1.2 mm	B121)
Seal material
12	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
13	Without locating hole	no code
	With locating hole	/602)
	With locating hole and locking pin ISO 8752-3x8-St	/62

1)	Use if volume flow > performance limit of the valve, effective in channel P.
2)	Locking pin ISO 8752-3x8-St, material no. R900005694 (separate order)

Version	Switching positions
Version	2	3
no code	✔	✔
O	✔	‒
OF	✔	‒

	✔ = available

general

Size			6
Weight (approx.)	Valve with one actuation cylinder	kg	2
Weight (approx.)	Valve with two actuation cylinders	kg	2.2
Installation position 1)			any
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seals	°C	-20 … +80
Storage temperature range		°C	+5 … +40
Maximum storage time		yrs	1
Surface protection			Galvanized

1)	With version ../O.. (A, C and D) : horizontal

hydraulic

Size			6
Maximum operating pressure	Port P	bar	315
	Port A	bar	315
	Port B	bar	315
	Port T 1)	bar	160
Maximum flow		l/min	60
Flow cross-section (spool position 0)	Symbol Q	mm2	approx. 6 % of nominal cross-section
Flow cross-section (spool position 0)	Symbol W	mm2	approx. 3 % of nominal cross-section
Minimum pilot pressure 2)		bar	6
Maximum pilot pressure		bar	200
Pilot volume		cm³	1.23
Hydraulic fluid			see table "Hydraulic fluid"
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid 3)			Class 20/18/15 according to ISO 4406 (c)
Maximum switching frequency		Hz	2

1)	With symbols A or B, port T must be used as leakage oil connection if the operating pressure exceeds the admissible tank pressure. 2 bar minimum preload pressure required.
2)	6 ... 10 bar > tank pressure, performance limits dependent on the minimum pilot pressure, see chapter "Diagrams/characteristic curves", section "Performance limits"
3)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU, HFDR	FKM	ISO 12922	90222
Flame-resistant	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar Pressure pre-loading at the tank port >20% of the pressure differential, otherwise increased cavitation Life cycle as compared to operation with mineral oil HL, HLP 50 … 100 %

Information on explosion protection

Area of application according to directive 2014/34/EU		IM2; II2G; II2D; II3G; II3D
Type of protection valve		c (EN 13463-5)
Maximum surface temperature 1) 2)	°C	100
Temperature class 1)		T4

1)	The specified values refer to the maximum hydraulic fluid and ambient temperature. Due to a maximum pressure drop across the valve, the surface temperature exceeds the hydraulic fluid temperature by 20 K, i. e. using the valve in T6 is possible if the hydraulic fluid temperature and the ambient temperature do not exceed 60 °C.
2)	Surface temperature > 50 °C, provide contact protection.

(measured with HLP46, ϑOil = 40 °C ± 5 °C)

Δp-qV characteristic curves

Further characteristic curves:
7	Symbol “R” in switching position “b” (B → A)
8	Symbol “G” and “T” in central position (P → T)
9	Symbol “H” in central position (P → T)

Symbols	Direction of flow
Symbols	P–A	P–B	A–T	B–T
A	3	3	–	–
B	3	3	–	–
C	1	1	3	1
D	5	5	3	3
E	3	3	1	1
F	1	3	1	1
G	6	6	9	9
H	2	4	2	2
J	1	1	2	1
L	3	3	4	9
M	2	4	3	3
P	3	1	1	1
Q	1	1	2	1
R	5	5	4	–
T	10	10	9	9
U	3	3	9	4
V	1	2	1	1
W	1	1	2	2
Y	5	5	3	3

Minimum pilot pressure dependent on the tank pressure

Notice:

With higher tank pressures, the minimum pilot pressure must be raised according to this diagram.

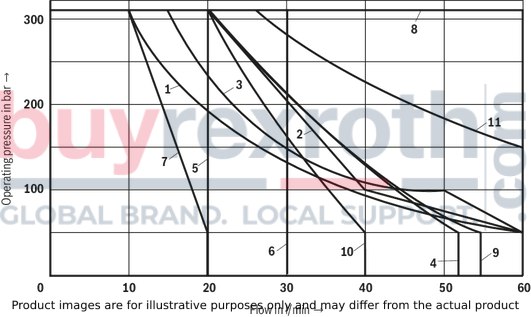

Performance limits

(measured with HLP46, ϑOil = 40 ±5 °C)

The switching function of the valves is independent from the filtration due to the adhesive effect. To achieve the specified admissible flow values, a full flow filtration with 25 μm is recommended. The flow forces acting within the valves also influence the flow performance.

With 4-directional valves, the specified flow data are therefore valid for normal operation with 2 directions of flow (e. g. from P to A and simultaneous return flow from B to T).

If there is only one direction of flow, the admissible flow may be considerably less in critical cases (e.g. when using a 4-directional valve as 3-directional valve as port A or B is blocked).

Pilot pressure 6 bar > tank pressure

Spring return	Characteristic curve	Symbols
“no code” (with spring return)	1	A, B
	2	C, D, Y
	3	E, J, L, U, M, Q, V, W, E1–
	4	F, P
	5	T
	6	G, H
	7	R
../O..	8	A, C, D
../OF..	8	A, C, D

Pilot pressure 10 bar > tank pressure

Spring return	Characteristic curve	Symbols
“no code” (with spring return)	1	A, B
	8	C, D, Y, E, G, H, J, L, U, M, Q, V, W, E1–
	9	F, P
	10	R
	11	T
../O..	8	A, C, D
../OF..	8	A, C, D

1)	Example: – Symbol E with spool position "a" → ordering code ..EA.. – Symbol E with spool position “b” → ordering code ..EB..
2)	Symbol E1-: P → A/B pre-opening

Notes:

Representation according to DIN ISO 1219-1.
Hydraulic interim positions are shown by dashes. Caution in conjunction with differential cylinders due to pressure intensification.

Types of actuation

Symbol	Actuating side	Control spool return	Type of actuation
A, C, D	‒	‒
	‒	../O..
	‒	../OF..
B, Y	‒	‒
E, E1, F, G, H, J, L, M, P, Q, R, T, U, V, W	"a" 1) = .A	‒
	"b" 1) = .B	‒
	‒	‒

1)	See symbols

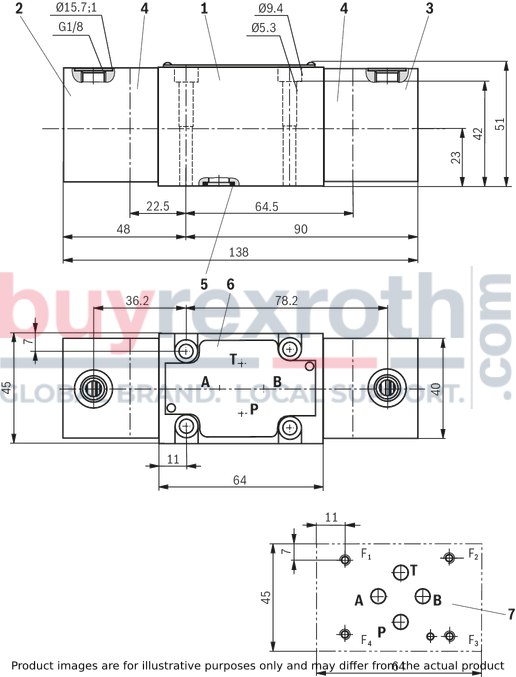

Dimensions in mm


Required surface quality of the valve contact surface

1	Valve with 2 spool positions and 2 actuation cylinders
1	Valve with 3 spool positions and 2 actuation cylinders
2	Actuation cylinder “a”
3	Actuation cylinder “b”
4	Cover for valve with 1 actuation cylinder (2 spool positions)
5	Same seal rings for ports A, B, P, T
6	Name plate
7	Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole)

Valve mounting screws (separate order)

For reasons of stability, exclusively the following valve mounting screws are to be used:

4 hexagon socket head cap screws

ISO 4762 - M5 x 50 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 … 0.14 according to VDA 235-101)

Material no. R913000064
