Z1S10B30-2-4X/F
Manufacturer: Bosch Rexroth
Material #: R901274735
Model : Z1S10B30-2-4X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

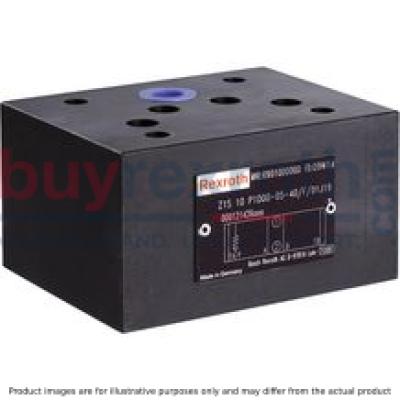

The Bosch Rexroth Z1S10B30-2-4X/F (R901274735) is a high-quality, direct-operated check valve designed for efficient hydraulic flow control. This sandwich plate valve is engineered to provide leak-free blocking in one direction while permitting free flow in the opposite direction, making it ideal for a variety of hydraulic applications. The valve features a plastic poppet with a limited stroke, contained by a plastic socket that also serves as a crucial sealing element. A supporting spring ensures the closing movement of the poppet and maintains its closed position when there's no fluid flow, ensuring optimal leaktightness even at low pressures.
The Z1S10B30-2-4X/F is notable for its compatibility with vertical stacking systems and conforms to ISO porting patterns, offering versatility in installation. It boasts various one and two-channel blocking functions and is recognized for its exceptional leaktightness due to the use of high-performance plastic for the poppet. The design includes corrosion protection and allows for easy adaptation to special hydraulic fluids by exchanging external seal rings.
Furthermore, this model ensures cost-effectiveness with readily available check valve installation sets for wear part replacement. Optional features include measuring ports and a throttle check valve which can be added according to specific requirements. With a maximum operating pressure of up to 315 bar and capable of handling maximum flow rates as per user requirements, this check valve is suitable for demanding hydraulic systems seeking reliable performance.
Please note that when installing this valve, no additional seal ring should be used at the plate side where the plastic socket is mounted; however, seal rings are standard at the component side. The design accounts for necessary preload via protrusion of the plastic socket, acknowledging that static pressure variations may occur due to changes in hydraulic fluid volume or temperature but are not indicative of seat face leakage.
$536.00 USD
More are expected on September 6, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as September 6, 2024 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).
Notice:
For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.
Type Z1S 10 P.-1.TB.-2-4X/…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A.-1"
(check valve in channel A)
Version "B.-2"
(Check valve in channel B)
Version "A.-2B"
(Check valve in channel A and B)
Version "TA.-2-TB9"
(Check valve in channel TA, TB closed)
Version "TA.-2D10"
(Check valve in channel A with orifice Ø1.0 mm)
Version "P.-1TA-2TB9"
(Check valve in channel TA and P, TB closed)
Version "TA.-2TB"
(Check valve in channel TA and TB)
Version "P.-1-.F/XY"
(Check valve in channel P, additionally channels X and Y)
Version "P.-1-4X/F/.MPB"
(check valve in channel P, measuring port P Out G1/4)
Version "TB.-2-TA9"
(Check valve in channel TB, TA closed)
Special versions
Version "P.-1…-068"
(Check valve in channel P, measuring port P (G1/2)
Version "TA.-2-TB9…-120"
(Check valve in channel TA, with tank bracket)
Dimensions in mm
| 1) | on request (depending on order option) |
|
|
Required surface quality of the valve contact surface |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side) |
|
3 |
Plastic socket (position and number dependent on order option) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 |
|
6 |
Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 % |
|
7 |
Dimension of version "120" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
