Zero-pressure start-up and circulation of the pump Intended for direct mounting onto the SAE pressure port of the pump Low circulation pressure due to short distance Low compression volume for soft switching to depressurized circulation Quick pressure build-up 4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale 5 pressure ratings, optional Low noise level due to direct flange mounting at the pump

General

Pump safety blocks type DBAE are pilot-operated pressure relief valves which are integrated into a block and intended to be mounted directly onto SAE pressure ports of pumps.

They are used for limiting and solenoid-actuated unloading (type DBAE.) the operating pressure.

Pump safety block type DBAE(E) for displacement pumps (with proportional pressure relief valve)

In principle, the function corresponds to type DBA....

Unloading at the main control spool, however, is achieved by control of the mounted proportional pressure relief valve type DBET(E)-6X/.Y… (17) (data sheet 29162). The cover plate (4) is not required.

The pressure adjustment at the proportional pressure relief valve type DBET(E) only works if it is below the setting of the pressure limitation screw-in cartridge valve type DB 20 K.

Pump safety block type DBAE(E) for variable displacement pumps type A10V.. (with proportional pressure relief valve)

In principle, the function corresponds to type DBA....

By means of the proportional pressure relief valve type DBET(E)-6X/.Y… (17), a pressure change is achieved at the control port X. The pressure change acts on the controller of the pump. The cover plate (4) is not required.

The pressure adjustment at the proportional pressure relief valve type DBET(E) only works if it is below the setting of the pressure limitation screw-in cartridge valve type DB 20 K.

01	02	03	04	05	06	07	08		09	10	11	12	13	14	15	16	17	18	19
DBAEE		B				2X		/				G24		K31

Type
01	Pump safety block with mounted proportional pressure relief valve and integrated control electronics, type DBETE-6X/.Y.K31 1)	DBAEE
Size
02	Size 16	15
	Size 25	25
	Size 32	30
Valve mounting
03	Without directional valve	no code
	Normally closed	A
	Normally open; generally with type DBAE(E)	B
Type of connection / SAE flange 2)
04	Standard flange (250 … 350 bar)	F
04	High-pressure flange (350 bar)	H
Adjustment type for pressure adjustment 3)
05	Rotary knob	1
	Sleeve with hexagon and protective cap	2
	Lockable rotary knob with scale	3 8)
	Rotary knob with scale	7
06	Without pressure switch	–
06	With mounted pressure switch type HED 8 OH… (connector according to DIN EN 175301-803, without mating connector), (data sheet 50061)	D4)
Component series
07	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)	2X
Pressure rating 6)
08	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
	Set pressure up to 350 bar	350
09	Without additional pressure relief valve	no code
10	Standard version	no code
11	Without directional valve	no code
12	Direct voltage 24 V	G24
13	With concealed manual override (standard)	N9 9)
	With manual override	N 9)
	Without manual override	no code
Electrical individual connection 1)
14	Without mating connector; connector DIN EN 175201-804	K31 4)
Interface electronics
15	Command value 0 … 10 V	A1
15	Command value 4 … 20 mA	F1
Nozzle fitting
16	Fixed pumps
	Lateral channel closed, transverse channel open, pilot oil bore open; (standard for displacement pumps; pure DB-/DBW function)	no code
	Variable pumps
	Item 17.1: Lateral channel closed by means of plug, transverse channel open; item 17.2: Pilot oil bore closed by means of plug (e.g. for axial piston variable displacement pump type A4VSO140 with DRG controller)	A00
	Item 17.1: Nozzle Ø0.8 mm in lateral channel, transverse channel open; item 17.2: Pilot oil bore closed by means of plug (standard for control pumps with DFR1 or DFLR controller)	A08 5)
	Item 17.1: Nozzle Ø1.0 mm in lateral channel, transverse channel open; item 17.2: Pilot oil bore closed by means of plug (for nozzle fitting of the block, refer to the circuit examples)	A10 5)
Seal material 7)
17	NBR seals	no code
17	FKM seals	V
Type-examination procedure
18	Without type-examination procedure	no code
18	Type-examination tested safety valve according to PED 2014/68/EU	E
19	Standard solenoid coil	no code
19	Solenoid coil is an approved component with UR-marking according to UL 906 (only version "6E")	= UR

	1) Externally discharge the pilot oil from the proportional pressure relief valve type DBETE
	2) Observe the pressure ratings and connection dimensions!
	3) Adjustment type for pressure switch type HED8 in brackets!
	4) Mating connectors, separate order
	5) If used on variable displacement pumps with DFLR controllers, the nozzle at port X of the pump control must be removed!
	6) The same pressure rating at pressure limitation screw-in cartridge valves type DB 20 K, pressure relief valve (sandwich plate valve) type Z(2)DB 6 and pressure switches type HED 8.
	7) Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
	8) H-key with material no. R900008158 is included in the scope of delivery.
	9) Notice: Accidental activation of the manual override may lead to uncontrolled machine movements.

Notice! Preferred types and standard units are contained in the EPS (standard price list).

general

Size				16	25		32
Mass	Pump safety block		kg	7		6.9	7	7.6
	Pressure switches	HED 8	kg	0.8
Installation position				any
Ambient temperature range	NBR seals		°C	-20 … +50		-
	FKM seals		°C	-		-15 … +50

hydraulic

Size			16	25		32
Maximum operating pressure	Port P	bar	350
Maximum counter pressure	Port Y		depressurized to the tank
Minimum set pressure			flow-dependent, see characteristic curves
Maximum set pressure		bar	50 100 200 315 350
Maximum flow		l/min	300	400
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-20 … +80		-
	FKM seals	°C	-		-15 … +80
Viscosity range		mm²/s	20 … 380
	preferably	mm²/s	30 … 46
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
Flame-resistant	Water-free	HFDU, HFDR	FKM	ISO 12922	90222
Flame-resistant	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 )	NBR	ISO 12922	90223

Important information on hydraulic fluids:

For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 40K higher than the maximum surface temperature.

Flame-resistant – containing water:

Maximum pressure differential per control edge 50bar Pressure pre-loading at the tank port >20 % of the pressure differential; otherwise, increased cavitation Life cycle as compared to operation with mineral oil HL, HLP 50 … 100 %

Bio-degradable and flame-resistant:

If these hydraulic fluids are used, small amounts of dissolved zinc may get into the hydraulic system.

Deviating technical data: Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

hydraulic

Maximum flow		See ordering code, safety instructions and characteristic curves "Type-examination tested safety valve"
Hydraulic fluid		Mineral oil (HL, HLP) according to DIN 51524-1 and DIN 51524-2
Hydraulic fluid temperature range	°C	-10 … +60
Viscosity range	mm²/s	12 … 230

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Inlet pressure dependent on the flow 2)

1)	The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

Notice!

The characteristic curves were measured with internal pilot oil return.

Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port T.

Minimum set pressure and circulation pressure dependent on the flow 1)
Standard version

1)	The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

Minimum set pressure and circulation pressure dependent on the flow 1)
Version “U”

1)	The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

Safety instructions:Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

Maximum admissible flow q Vmax dependent on the counter pressure pT in the discharge line with internal pilot oil return

Type DBA 15 …-2X/…E

Characteristic curves for intermediate values can be generated by interpolation. Further explanations see below.

pA	Response pressure in bar
pT	Maximum admissible counter pressure in the discharge line in bar (port T) (sum of all possible counter pressures; also see AD2000 data sheet A2)
pT max	10 % x pA (with qV = 0) according to PED 2014/68/EU
qV max	Maximum admissible flow in l/min

Explanation of the diagrams (Example: type DBA 15...E):
known:	Flow of the system/accumulator that has to be secured qVmax = 100 l/min
	Set response pressure of the safety valve pA = 315 bar
unknown:	pTadmissible
Solution:	see arrows in diagram above
	pT admissible (100 l/min; 315 bar) = 15.75 bar

Type DBA 25 …-2X/…E and type DBA 30 …-2X/…E

pA	Response pressure in bar
pT	Maximum admissible counter pressure in the discharge line in bar (port T) (sum of all possible counter pressures; also see AD2000 data sheet A2)
pT max	10 % x pA (with qV = 0) according to PED 2014/68/EU
qV max	Maximum admissible flow in l/min

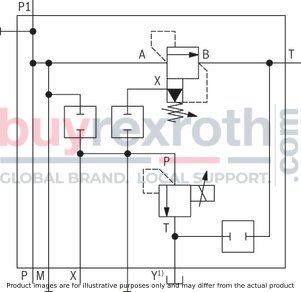

General circuit example set-up

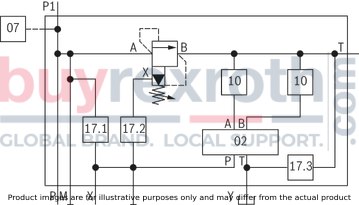

Arrangement of the nozzles/plugs items 17.1, 17.2 and 17.3

Circuit examples: for displacement pumps (selection)

Type DBAE(E)…2X/…

1)	Notice! Port Y of the proportional pressure relief valve type DBET mounted on the pump safety block type DBA must be connected to the tank in a depressurized way (possibly by means of the leakage line of the hydraulic system)!

Circuit examples: for variable displacement pump (selection)

Preferably for axial piston variable displacement pumps type A10VSO with DR, DFR1 or DFLR controller 2)

Type DBAE(E)…2X/…A08

1)	Notice! Port Y of the proportional pressure relief valve type DBET mounted on the pump safety block type DBA must be connected to the tank in a depressurized way (possibly by means of the leakage line of the hydraulic system)!
2)	Notice! If used on variable displacement pumps with DFLR controllers, the nozzle at port X of the pump control must be removed!

Preferably for axial piston variable displacement pumps type A10VSO with DRG controller

Type DBAE(E)…2X/…A00

1)	Notice! Port Y of the proportional pressure relief valve type DBET mounted on the pump safety block type DBA must be connected to the tank in a depressurized way (possibly by means of the leakage line of the hydraulic system)!

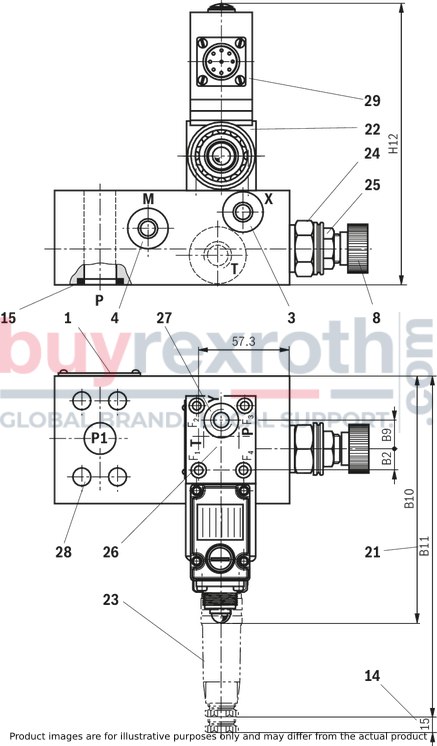

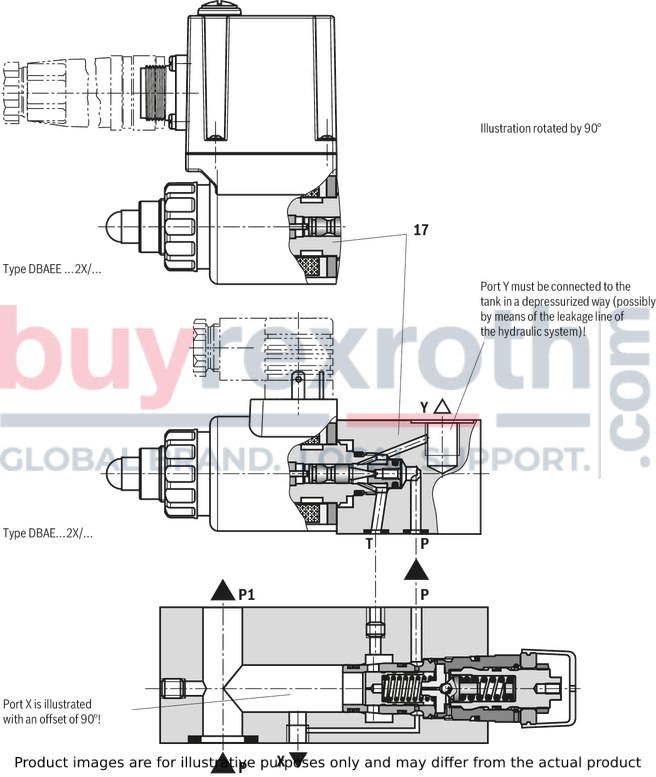

Dimensions in mm


Required surface quality of the valve contact surface

1	Name plate
3	Port X for variable displacement pump type A10VSO (otherwise closed); G1/4
4	Port M for pressure gauge; G1/4
8	Adjustment type "1"
14	Space required to remove the mating connector
15	Seal ring
21	Dimension for valve with integrated electronics
22	Proportional pressure relief valve type DBET(E)-6X.Y… (data sheet 29162)
23	Mating connector for type DBAEE according to DIN EN 175201‑804 (separate order, material no. R90021267)
24	Hexagon SW30, tightening torque MA = 50 Nm (For tightening, a manual torque wrench with a tolerance ≤ 10 % must be used.)
25	Lock nut SW22, tightening torque MA = 10±5 Nm
26	Porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, separate order)
27	Port Y (G1/4) must be connected to the tank in a depressurized way (possibly by means of the leakage line L of the hydraulic system)!
28	Valve mounting bores
29	Integrated electronics (OBE)

Standard flanges type DBAE(E)…F

Size	B2	B9	B10	B11	H12
Size	mm	mm	mm	mm	mm
16	12	18.8	158	225	175
25	12	18.8	158	225	175
32	10	20.8	158	225	175

High-pressure flanges type DBAE(E)…H

Size	B2	B9	B10	B11	H12
Size	mm	mm	mm	mm	mm
16	12	18.8	158	225	175
25	12	18.8	158	225	175
32	14.5	16.3	169	235	179

Standard flanges type DBA…F… according to DIN ISO 6162-1
Size	Line connections			4 valve mounting screws ISO 4762 - 10.9 1)		Tightening torqueMA in Nm 2)
Size	P and P1	T	X, M		Part number	Tightening torqueMA in Nm 2)
16	SAE 3/4″	G3/4	G1/4	M10 x 95	R913015585	52
25	SAE 1″	G1	G1/4	M10 x 95	R913015585	52
32	SAE 1 1/4″	G1 1/4	G1/4	M10 x 95	R913015585	52

Admissible pressures (flange connections according to DIN ISO 6121-1)
	bar
SAE 3/4″	350
SAE 1″	315
SAE 1 1/4″	250

High-pressure flanges type DBA…H… according to DIN ISO 6162-2
Size	Line connections			4 valve mounting screws ISO 4762 - 10.9 1)		Tightening torqueMA in Nm 2)
Size	P and P1	T	X		Part number	Tightening torqueMA in Nm 2)
16	SAE 3/4″	G3/4	G1/4	M10 x 95	R913015585	52
25	SAE 1″	G1	G1/4	M12 x 105	R913000659	66
32	SAE 1 1/4″	G1 1/4	G1/4	M14 x 105	R913000660	113

Admissible pressures (flange connections according to DIN ISO 6121-2)
	bar
SAE 3/4″	350
SAE 1″	350
SAE 1 1/4″	350

	1)Valve mounting screws (separate order)
	4 hexagon socket head cap screws ISO 4762 - 10.9-flZn-240h-L
	(with friction coefficient μtotal = 0.09 ... 0.14)

2) Notice!

The tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10 %).

Notice!

For reasons of stability, other valve mounting screws must not be used!

Depending on the operating pressure, flange height and thread depth of the pump plate, other screw lengths may be necessary!

At types DBAE/DBAEE, the lowest adjustable pressure (circulation pressure) is set at the pressure relief valve in case of power failure or cable break. The unloading function (DBAE/DBAEE) must not be used for safety functions!

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit

3P Z5L1

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

Mating connectors for valves with connector “K4”, with rectifier

3P RZ5

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard

4P Z14

Mating connectors for mechanical pressure switches with connector “K14”, without circuitry, standard

4P Z14

For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”

Data sheet

Spare parts & repair

Mating connectors for mechanical pressure switches with connector “K14”, with indicator lights at connections 2 and 3

4P Z15L

Mating connectors for mechanical pressure switches with connector “K14”, with indicator lights at connections 2 and 3

4P Z15L

For mechanical pressure switches with connector “K14”, according to EN 175301-803 and ISO 4400, 3-pole + PE, “large cubic connector”

Data sheet

Spare parts & repair

Ordering code: Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

Size	Type designation	Component marking	Maximum admissible flow qVmax in l/min with pilot oil return	Set response overpressurep in bar
16	1 2 3 4 5 6 * 7 DBAEE 15 ▢▢▢▢2X/▢▢6▢▢E	TÜV.SV.▢‒1001.14,4.F.G.p	60 100 150 200 250	30 … 60 61 … 110 111 … 210 211 … 315 316 … 350
25	1 2 3 4 5 6 * 7 DBAEE 25 ▢▢▢▢2X/▢▢6▢▢E	TÜV.SV.▢‒1001.14,4.F.G.p	70 100 150 200 300	30 … 60 61 … 110 111 … 210 211 … 315 316 … 350
32	1 2 3 4 5 6 * 7 DBAEE 30 ▢▢▢▢2X/▢▢6▢▢E	TÜV.SV.▢‒1001.14,4.F.G.p	70 100 150 200 300	30 … 60 61 … 110 111 … 210 211 … 315 316 … 350

1	Directional valve, normally closed	A
1	Directional valve, normally open	B
2	Standard flange (250 bar)	F
2	High-pressure flange (350 bar)	H
3	Hand wheel (pressure adjustment sealed, unloading or setting of a lower response pressure possible!)	1
3	With sealed protective cap (no adjustment/unloading possible)	2
4	With mounted pressure switch type HED 8 OH… (without mating connector)	D
4	Without pressure switch	‒
5	Pressure in the designation is to be entered by the customer, pressure adjustment ≥ 30 ... 350 bar and possible in 5 bar steps.	z. B. 150
2nd/3rd pressure limiting function (see circuit examples)
6	Without additional pressure relief valve	no code
	With mounted pressure relief valve type ZDB 6 VB…-4X/..SO2 (data sheet 25751)	Z
	With mounted pressure relief valve type Z2DB 6 VC…-4X/..SO2 (data sheet 25751)	ZZ
	Versions DBAW…Z(Z)E and DBAE(E)…E are only available with ordering code "A00", "A08" or "A10"
*	Ordering code of the electric data	z. B. EG24N9K4
7	NBR seals	no code
7	FKM seals	V

	Value is entered at the factory!

Safety instructions: Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

Before ordering a type-examination tested safety valve, it must be observed that for the desired response pressure p, the maximum admissible flow qVmax must be larger than the maximum possible flow of the system to be secured. In this respect, the applicable regulations must be observed! According to PED 2014/68/EU, the increase in the system pressure due to the flow must not exceed 10 % of the set response pressure (see component marking). The maximum admissible flow qVmax stated in the component marking (= numerical value instead of the character "G" in the component marking, see ordering code, type-examination tested safety valves) must not be exceeded. Discharge lines of safety valves must end in a risk-free manner. The accumulation of fluids in the discharge lines must not be possible. If a lead seal at the safety valve is removed, the approval according to the PED! The requirements of the Pressure Equipment Directives 2014/68/EU and of data sheet AD2000 A2 must be generally observed! Options DBAE/DBAEE or 2nd/3rd pressure limiting function ( 6 ) are only possible for pressure relief valves for variable displacement pumps (also see ordering code). The unloading function (DBAE../DBAEE..) must not be used for safety functions! Possible unloading via the directional valve must not be applied for safety-relevant functions! If unloading is required for safety-relevant functions, an additional safety valve must be installed.

It is imperative to observe the application notes!

In the plant, the response pressure specified in the component marking is set at a flow of 11 l/min. The maximum admissible flow stated in the component marking applies for applications without counter pressure in the discharge line (port T).

Notice!

The system pressure increases by the counter pressure in the discharge line (port T) with increasing flow (observe AD2000 - data sheet A2 - item 6.3!).

To ensure that this increase in system pressure caused by the flow does not exceed the value of 10% of the set response pressure, the admissible flow has to be reduced dependent on the counter pressure in the discharge line (port T) (see diagrams (Safety instructions, Type-examination tested safety valves).

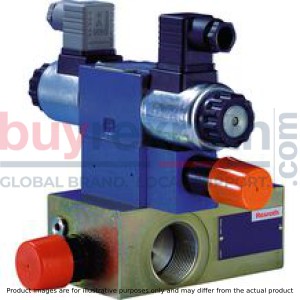

DBAEE25BF3-2X/315G24K31A1A08

Manufacturer: Bosch Rexroth

Material #: R901253471

Model : DBAEE25BF3-2X/315G24K31A1A08

More are expected on November 18, 2024

This product is eligible for factory repair.

general

hydraulic

Deviating technical data: Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

hydraulic

(measured with HLP46, ϑOil = 40 ±5 °C)

Inlet pressure dependent on the flow 2)

Minimum set pressure and circulation pressure dependent on the flow 1) Standard version

Minimum set pressure and circulation pressure dependent on the flow 1) Version “U”

Safety instructions:Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

Maximum admissible flow q Vmax dependent on the counter pressure pT in the discharge line with internal pilot oil return

Type DBA 15 …-2X/…E

Type DBA 25 …-2X/…E and type DBA 30 …-2X/…E

General circuit example set-up

Arrangement of the nozzles/plugs items 17.1, 17.2 and 17.3

Circuit examples: for displacement pumps (selection)

Type DBAE(E)…2X/…

Circuit examples: for variable displacement pump (selection)

Preferably for axial piston variable displacement pumps type A10VSO with DR, DFR1 or DFLR controller 2)

Type DBAE(E)…2X/…A08

Preferably for axial piston variable displacement pumps type A10VSO with DRG controller

Type DBAE(E)…2X/…A00

Standard flanges type DBAE(E)…F

High-pressure flanges type DBAE(E)…H

Ordering code: Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

Safety instructions: Type-examination tested safety valves type DBA…E, component series 2X according to Pressure Equipment Directive 2014/68/EU

Related Products

Information

Account

Minimum set pressure and circulation pressure dependent on the flow 1)
Standard version

Minimum set pressure and circulation pressure dependent on the flow 1)
Version “U”
