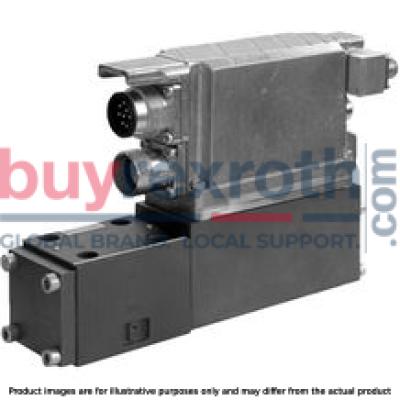

Direct operated high-response valves with control spool and sleeve in servo quality Operated on one side, 4/4 fail-safe position in switched-off condition Integrated digital axis control functionality (IAC-R) for:
- Position control with underlying velocity control
- DSC functionality Analog sensor interface for current and voltage Digital sensor interfaces for:
- 1 x length measurement system 1 Vpp or
- 1 x length measurement system SSI or
- 1 x length measurement system EnDat 2.2 Clock-synchronized command value presetting according to PROFIdrive profile V4.0
- Telegram 5 or 105 PROFIBUS DP/V1, DP/V2 Quick start-up via PC and commissioning software

Set-up

The IAC-R valve basically consists of:

direct operated high-response valve (1) with control spool and sleeve in servo quality integrated digital axis controller (2) with analog (X4/X7) or digital (X7) sensor interface PROFIBUS interface (X3) with functionality according to DP/V1 and clock synchronization according to DP/V2

Functional description

The IAC-R valve is a digital high-response valve with integrated axis controller and the following functionalities:

Position control DSC functionality analog (X4/X7) or digital (X7) sensor interface clock-synchronized command value presetting according to PROFIdrive profile V4.0 Telegram 5 or 105 The controller parameters are set via the PROFIdrive parameter protocol Separate supply voltage for bus/controller and power part (output stage) for safety reasons

The digital integrated control electronics enables the following error detection:

Cable break sensor technology Undervoltage Temperature of the integrated electronics Communication error Watchdog Synchronous monitoring

The following additional functions are available:

Error output 24 V or control of an isolator valve Actuating variable adaptation Dead band compensation Zero point correction Valve inflection compensation Friction compensation direction-dependent amplification PIDT1 controller State controller Automatic/semi-automatic drive measurement for easy controller optimization

WinHPT PC program

To implement the project planning task and to parameterize the IAC-R valves, the user may use the WinHPT commissioning software (see accessories):

Parameterization Diagnosis Comfortable data management on a PC PC operating systems: Windows 2000 or Windows XP

High-response valve with integrated axis controller and analog (X4/X7) or digital (X7) interface

01	02	03	04	05	06	07	08		09		10		11	12	13	14	15
4WRP	N	H			B			‒	2X	/	M	/	24	F			*

01	High-response valve, direct operated	4WRP
02	With integrated digital axis controller and NC functionality	N
03	Control spool/sleeve	H
04	Size 6	6
04	Size 10	10

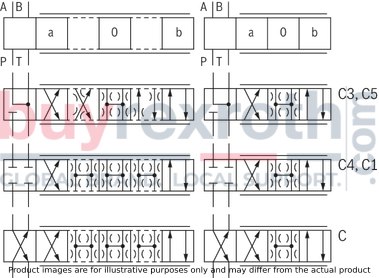

05	Symbols; for the possible version, see "Symbols/Circuit diagrams"	C, C1, C3, C4, C5
06	Installation side of the inductive position transducer	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
07	Size 6
	2 l/min	02 1)
	4 l/min	04
	12 l/min	12 1)
	15 l/min	15 2)
	24 l/min	24 1)
	25 l/min	25 2)
	40 l/min	40 3)
	Size 10
	50 l/min	50
	100 l/min	100
Flow characteristic
08	Linear	L
08	Inflected characteristic curve (inflection 60 % for NG6 with rated flows "15" and "25", otherwise inflection 40 %)	P 4)
09	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Seal material
10	NBR seals Suitable for mineral oils (HL, HLP) according to DIN 51524	M
11	Supply voltage 24 V	24
Fieldbus interface
12	PROFIBUS DP/V2 PROFIdrive Profil	F
12	Profibus DP V0/V1	P
Electrical interface
13	±10 VDC	A6
13	4 ... 20 mA	F6
Sensor interfaces
14	X4, M12-5, ±10V; X7, M12-5, ±10V	A
	X4, M12-5, ±10V; X7, M23-12, SSI 4)	B
	X4, M12-5, ±10V; X7, M23-12, 1Vpp 5)	C
	X4, M12-5, 4...20 mA; X7, M12-5, 4...20 mA	G
	X4, M12-5, ±10 V; X7, M12-8, EnDat 2.2	T
15	Further details in the plain text	*
1)	Use only in connection with flow characteristics "L"
2)	Use only in connection with flow characteristics "P"
3)	qv 2:1 only with rated flow = 40 l/min
4)	Inflection 60 % for NG6 with rated flows "15" and "25", otherwise inflection 40 %

For applications outside these parameters, please consult us!

general

Type		4WRPNH.../24/F
Size		6	10
Component series		2X
Design		Directional spool valve, direct operated, with steel sleeve
Type of actuation		Proportional solenoid with position control, OBE
Type of connection		Plate connection, porting pattern according to ISO 4401
Installation position		Any
Weight	kg	2.7	7.5
Ambient temperature range	°C	-20 … +50

hydraulic

Type			4WRPNH.../24/F
Size			6	10
Maximum operating pressure		bar	315
Maximum operating pressure	Port P	bar	315
	Port A	bar	315
	Port B	bar	315
	Port T	bar	250
Maximum flow		l/min	100
Hydraulic fluid temperature range		°C	-20 … +60
Viscosity range	Maximum admissible	mm²/s	10 … 800
	Recommended	mm²/s	20 … 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 18/16/13 according to ISO 4406 (c)
Hysteresis		%	≤ 0.2
Manufacturing tolerance		%	< 10
Actuating time	Signal step 0 … 100%	ms	10	25
Temperature drift		%	< 1

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

hydraulic

Nominal flow 1)		l/min	50	100	50	100	2	4	12	15	24, 25	40
Limitation of use	Symbols C, C3, C5	bar	315	160	315	160	315					160
Limitation of use	Symbols C1, C4	bar	250	100	250	100	315			280	250	100
Zero flow	Linear characteristic curve “L”	l/min	< 1200	< 1500	< 1200	< 1500	< 150	< 180	< 300	-	< 500	< 900
Zero flow	Inflected characteristic curve "P"	l/min	< 600		< 500	< 600	-			< 180	< 300	< 450

1)	With Δp = 35 bar/control edge

Hydraulic fluid	Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons	HL, HLP, HLPD, HVLP, HVLPD	NBR / FKM	DIN 51524
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

electrical

Type			4WRPNH.../24/F
Size			6	10
Power supply	Nominal voltage	VDC	24
	Lower limit value	VDC	21
	Upper limit value	VDC	36
Duty cycle		%	100
Maximum power consumption		W	40	60
Protection class according to DIN EN 60529			IP65 (with mating connector mounted and locked)
AD/DA resolution	Analog inputs	bits	12
	Analog outputs	bits	10

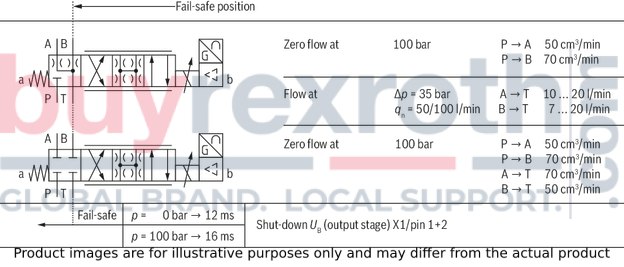

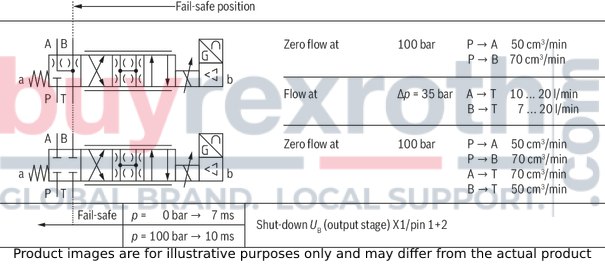

Fail-safe position

Size 10

Symbols

With control symbol C1 and C5, the following applies:
P → A: qvmax	B → T: qv/2
P → B: qv/2	A → T: qvmax

NG6

Size 10

Connector pin assignment X1, 11-pole + PE according to EN 175201-804
Pin	Core marking 1)	Assignment of interface A6/F6
1	1	24 VDC (supply for output stage and power circuit signal)
2	2	0 V ≙ load zero, (for output stage)
3	white	reserved
4	yellow	reserved
5	green	reserved
6	purple	reserved
7	pink	reserved
8	red	reserved
9	brown	24 VDC (control voltage for signal part and bus)
10	black	0 V reference potential for pin 9 (supply of signal part and bus)
11	blue	Switching output 24 V (error signal or power circuit signal) max. 1.8 A
PE	green-yellow	Protective earthing conductor (connected directly to metal housing)
1)	Core marking of the connection lines for mating connector with cable set
Schirm nur auf der Versorgungsseite auf PE legen!

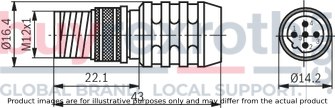

Connector pin assignment for Profibus DP X3 (coding B), M12, 5-pole, socket/pins
Pin	Connector assignment	Socket assignment
1	n.c.	VP
2	RxD/TxD-N (A line)	RxD/TxD-N (A line)
3	D_GND	D_GND
4	RxD/TxD-P (B line)	RxD/TxD-P (B line)
5 1)	Shield	Shield
1)	We recommend connecting the shield on both sides via the metal housing of the plug-in connectors. Using pin 5 will affect the shielding effect!
The device socket and connector are equivalent as PROFIBUS connections. The galvanically isolated voltage +5 V (pin1-VP) at the socket enables passive termination of the Profibus

Analog sensor interfaces, port X4 and X7 (coding A), M12, 5-pole, socket
Pin	Assignment of voltage interface	Assignment of current interface
1	Supply 24 VDC	Supply 24 VDC
2	Signal 3 (X4) / 4 (X7), (-10 ... +10 V)	Signal 3 (X4) / 4 (X7), (4 ... 20 mA)
3	Zero 0 V	Zero 0 V
4	Signal 1 (X4) / 4 (X7), (-10 ... +10 V)	Signal 1 (X4) / 4 (X7), (4 ... 20 mA)
5	Shield	Shield
Attention: The analog sensor interfaces at ports X4 and X7 are not coded. Risk of confusion! The user must ensure correct wiring!

Digital sensor interface 1 Vpp or SSI measurement system X7, M23, 12-pole, socket
Pin	Assignment 1 Vpp	Assignment SSI
1	B	0 V
2	Sense +5 V 1)	Data
3	R	Clock
4	R	n.c.
5	A	n.c.
6	A	n.c.
7	n.c.	n.c.
8	B	n.c.
9	n.c.	24 V
10	0 V 1)	Data
11	Sense 0 V 1)	Clock
12	+5 V 1)	n.c.
1)	Recommendation:For encoder supply, connect voltages +5 V (pin 12) and +5 V sense (pin 2) as well as 0 V (pin 10) and 0 V sense (pin 11)
Notice:The sense signal is not evaluated

Digital sensor interface SSI, EnDat 2.2 measurement system "X7", M12, 8-pole, socket
Pin	Assignment EnDat 2.2
1	0 V 1)
2	+5 V 1)
3	Data +
4	Data -
5	0 V 1)
6	Clock -
7	Clock +
8	supply +5 V 1)
1)	Recommendation:For encoder supply, connect voltages +5 V (pin 2 and 8) as well as 0 V (pin 1 and 5)
We recommend connecting the shield on both sides via the metal housing of the plug-in connectors. Using pin 5 will affect the shielding effect!

NG6

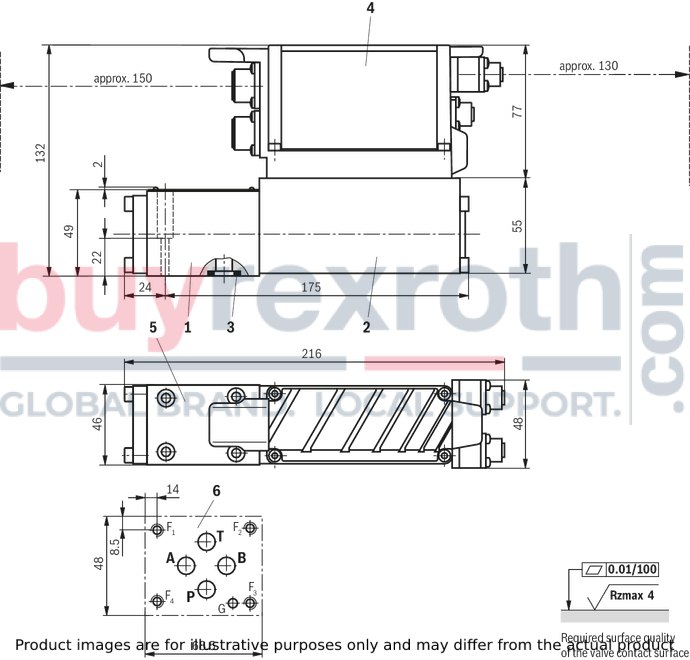

Dimensions in mm

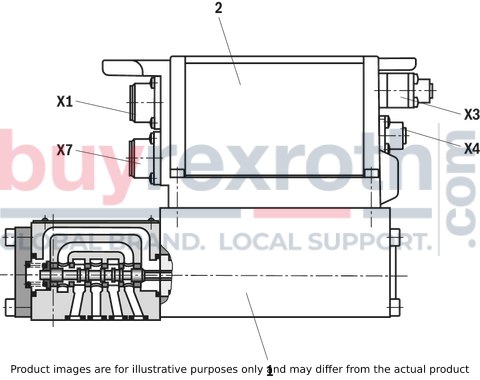

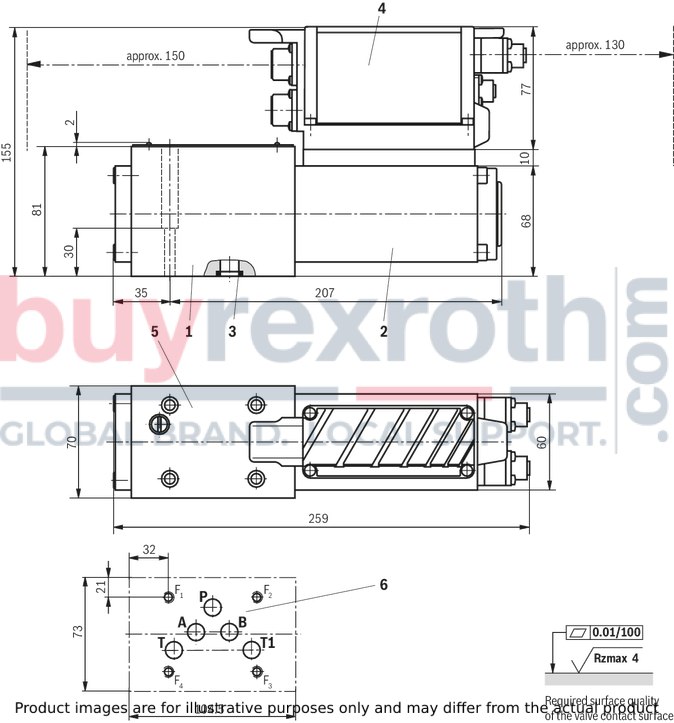

1	Valve housing
2	Control solenoid with position transducer
3	Identical seal rings for ports A, B, P, and T
4	Integrated digital control electronics
5	Name plate
6	Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05

Recommended valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M5 x 30 - 10.9-N67F 821 70 (galvanized according to Bosch standard N67F 821 70)

Tightening torque MA = 6+2Nm, material no. 2910151166

Size 10

Dimensions in mm

1	Valve housing
2	Control solenoid with position transducer
3	Identical seal rings for ports A, B, P and T (T1)
4	Integrated digital control electronics
5	Name plate
6	Machined valve contact surface; Porting pattern according to ISO 4401-05-04-0-05 Deviating from the standard: Port T1 with Ø11.2 mm

Recommended valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9-N67F 821 70 (galvanized according to Bosch standard N67F 821 70)

Tightening torque MA = 11+3 Nm, material no. 2910151209

Project planning and maintenance instructions

Connect the valve to the supply voltage only when this is required for the functional sequence of the machine. Do not use electrical signals provided via control electronics (e. g. "No error" signal) for switching safety-relevant machine functions (see also EN ISO 13849 "Safety of machinery – safety-related parts of control systems"). If electro-magnetic interference is to be expected, take appropriate measures ensuring the function (depending on the application, e. g. shielding, filtration). The devices have been tested in the plant and are supplied with default settings. Only complete devices can be repaired. Repaired devices are returned with default settings. User-specific settings will not be applied. The machine end-user will have to re-transfer the corresponding user parameters.

Spare parts & repair

4WRPNH10C3B100L-2X/M/24FA6B

Manufacturer: Bosch Rexroth

Material #: R901237536

Model : 4WRPNH10C3B100L-2X/M/24FA6B

More are expected on September 30, 2024

This product is eligible for factory repair.

Set-up

Functional description

The following additional functions are available:

WinHPT PC program

High-response valve with integrated axis controller and analog (X4/X7) or digital (X7) interface

general

hydraulic

hydraulic

electrical

(measured with HLP46, ϑÖl = 40 ±5 °C)

Pressure amplification

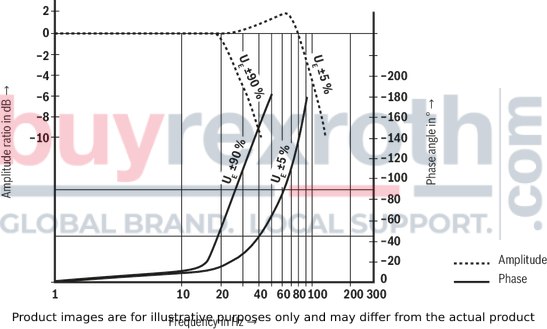

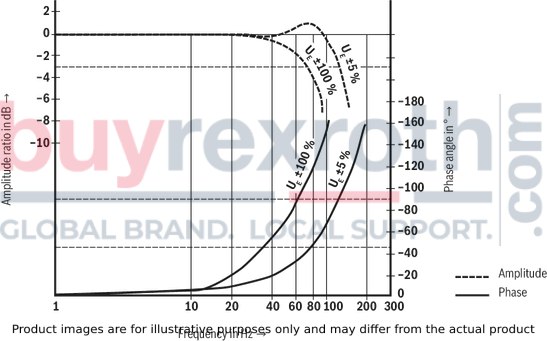

Frequency response

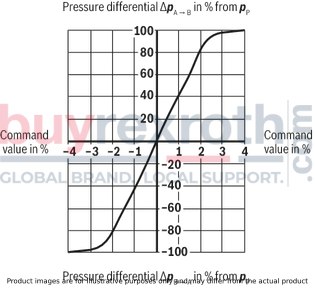

Linear characteristic curve “L”

Inflected characteristic curve "P", inflection at 60 %

Inflected characteristic curve "P", inflection at 40 %

Fail-safe position

Pressure amplification

Frequency response
