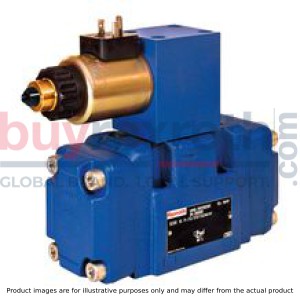

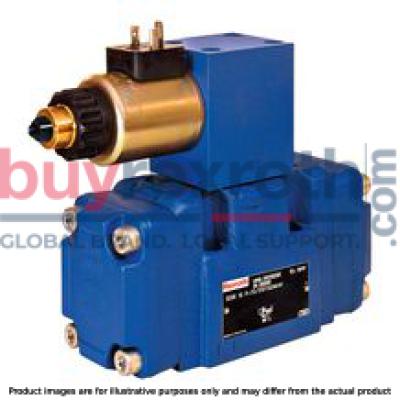

PRESSURE REDUCING VALVE 3DREM16P-7X/100YG24K4V
Manufacturer: Bosch Rexroth
Material #: R901234516
Model : 3DREM16P-7X/100YG24K4V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 3DREM16P-7X/100YG24K4V (R901234516) is a state-of-the-art industrial hydraulic valve designed for precise pressure reduction and control within hydraulic systems. This high-performance valve is engineered to reliably reduce the pressure to a set command value, featuring a spool symbol P A for functionality. It is equipped with an electrical actuation mechanism that requires an external amplifier and operates on a 24 V DC supply voltage.
The valve's robust design includes a subplate mounting configuration conforming to CETOP D standards and an ISO connection diagram for ease of integration into various industrial setups. The electrical connection is facilitated via a Connector pole PE according to DIN EN, ensuring secure and reliable electrical interfacing.
With its maximum operating pressure of 350 bar and a flow capacity of up to 100 liters per minute, the 3DREM16P-7X/100YG24K4V valve can handle demanding applications while maintaining precise control over system pressures. The number of ports and switching positions allows for flexible system design, and the FKM seals ensure compatibility with a wide range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
This Bosch Rexroth valve also offers optional features such as maximum pressure limitation to safeguard against excessive pressures that could arise due to high electric control currents at the proportional solenoid. Users can choose between internal or external pilot oil supply versions depending on their system requirements.
In summary, the Bosch Rexroth 3DREM16P-7X/100YG24K4V offers precise pressure reduction capabilities with customizable features suitable for various industrial applications requiring reliable hydraulic control. Its combination of advanced technology and robust construction makes it an essential component in modern hydraulic systems.
$9,671.00 USD
More are expected on October 9, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 9, 2024 when ordered in
This product is eligible for factory repair.
Size 16, P → A, electrical with external electronics, 24 VDC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 10.020 kg
Pilot-operated valves for pressure reduction (P to A) and limitation (A to T) of a system pressure Proportional solenoid operation Actuation by proportional solenoid with central thread and detachable coil For subplate mounting: Porting pattern according to DIN 24340 form A and ISO 4401 Optional maximum pressure limitation Valve and control electronics from a single source External control electronics Linear pressure/command value characteristic curve
The valves of type 3DRE(M) are electrically pilot-operated 3-way pressure reducing valves with pressure
limitation of the actuator. They are used for reducing a system pressure.
Technical set-up
The valve consists of two main assemblies:
Pilot control valve (1) with proportional solenoid (2) optionally with maximum pressure limitation (15) Main valve (3) with main spool (4)
Function
General function:
Command value-dependent setting of the pressure to be reduced in port A via the pilot control valve (1). With depressurized port P, the springs (5) and (6) hold the main spool (4) in its central position. In this way, a start-up jump at the actuator is prevented. Pilot oil flows from bore (7) via the flow controller (8), via the control chamber (11) to the throttle gap (9), via line (10) to port Y. This connection is to be lead into the tank at zero pressure.
Pressure reduction:
Build-up of the pilot pressure in the control chamber (11) as a function of the command value. Pressure build-up in the spring chamber (13) via nozzle (12) and movement of the main spool (4) to the right. Hydraulic fluid flows from P to A. The actuator pressure in port A is available in the spring chamber (14). Increase in the pressure in port A to the set pressure of the pilot control valve (1) leads to the movement of the main spool (4) to the left. Pressure in port A is almost identical with the set pressure at the pilot control valve (1).
Pressure limitation:
If the pressure in port A exceeds the set pressure of the pilot control valve (1), the main spool (4) is moved further to the left. This opens the connection from A to T and limits the pressure pending in port A to the set command value.
Type 3DREM
For hydraulic protection against an inadmissibly high electric control current at the proportional solenoid, which imperatively results in increased pressures in port A, you can optionally install a spring-loaded pressure relief valve as maximum pressure limitation (15).
The maximum pressure limitation is pre-set based on the relevant pressure rating.
Pilot oil supply
|
3DRE...-.../...XY... |
External pilot oil supply Pilot oil return, external |
In this version, the pilot oil is supplied from a separate control circuit (external).The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external). |
|
3DRE...-.../...Y... |
Internal pilot oil supply Pilot oil return, external |
With this version, the pilot oil is supplied from channel P of the main valve (internally).The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external).In the subplate, port X is to be closed. |
|
NG10 |
NG10; sectional diagram see Dimensions
|
Position 1: Plug screw M6 DIN 906-8.8 SW 3 |
|
NG16 |
NG16; sectional diagram see Dimensions
|
measured with HLP46, ϑOil = 40 ±5 °C, valve body and hydraulic fluid temperature-compensated.
Large temperature differences may lead to differing characteristic curves / values.
Pressure in port P dependent on the command value
| 1) | 1) With valve type DBEM and 3DREM, the manufacturing tolerance at the external amplifier can be changed using the command value attenuator potentiometer "Gw”. The digital amplifier is set using the "Limit” parameter. Here, the control current according to the technical data must not be exceeded. In order to be able to adjust several valves to the same characteristic curve, do not set the pressure higher than the maximum set pressure of the pressure rating with command value 100%. |
Pressure dependent on the command value / comparison G24 and G24-8 / pressure rating 200 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)
Current drop with increasing ambient temperature, 24 V and 100% duty cycle
Pressure rating 50 bar
Size 10
Pressure rating 100 bar
Size 10
Pressure rating 200 bar
Size 10
Pressure rating 315 bar
Size 10
Pressure differential dependent on the flow
Size 10
Pressure in port A dependent on the flow
Size 10
Minimum set pressure dependent on the flow at command value 0
Size 10
Pressure rating 50 bar
Size 16
Pressure rating 100 bar
Size 16
Pressure rating 200 bar
Size 16
Pressure rating 250 bar
Size 16
Pressure differential dependent on the flow
Size 16
Pressure in port A dependent on the flow
Size 16
Minimum set pressure dependent on the flow at command value 0
Size 16
Type 3DRE...Y...
Type 3DREM...Y...
Type 3DRE...XY...
Type 3DREM...XY...
Connection at mating connector
Connection at the connector
|
1 |
Main valve |
|
2 |
Pilot control valve |
|
3 |
Proportional solenoid |
|
4 |
Space required to remove the mating connector |
|
5 |
Maximum pressure limitation (type 3DREM…) |
|
6 |
Name plate |
|
7 |
Identical seal rings for port A, B, P, TA, TB |
|
8 |
Identical seal rings for ports X and Y |
|
9 |
Machined valve contact surface; Porting pattern according to DIN 24340-A10 and ISO 4401-05-05-0-05 |
|
10 |
With “internal” pilot oil supply (version Y), port X in the subplate must be closed. |
|
11 |
Port B must be closed in the subplate |
|
12 |
mating connector according to DIN EN 175301-803 |
|
13 |
Integrated electronics (type 3DREE, 3DREME) with connector |
|
14 |
Mating connector according to DIN EN 175201-804 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M6 x 45 - 10.9-flZn-240h-L
(Friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 12.5 Nm ± 10%
material no. R913000258
or
4 hexagon socket head cap screws ISO 4762 - M6 x 45 - 10.9
(Friction coefficient μtotal = 0.12 to 0.17)
Tightening torque MA = 15.5 Nm ± 10%
material no. R900003263
|
1
|
Main valve |
|
2
|
Pilot control valve |
|
3
|
Proportional solenoid |
|
4
|
Space required to remove the mating connector |
|
5 |
Maximum pressure limitation (type 3DREM…) |
|
6
|
Name plate |
|
7
|
Identical seal rings for ports A, B, P, and T |
|
8
|
Identical seal rings for ports X and Y |
|
9 |
Machined valve contact surface; Porting pattern according to DIN 24340-A16 and ISO 4401-05-07-0-05 |
|
10 |
With “internal” pilot oil supply (version Y), port X in the subplate must be closed. |
|
11 |
Ports B and L must be closed in the subplate |
|
12 |
mating connector according to DIN EN 175301-803 |
|
13 |
Integrated electronics (type 3DREE, 3DREME) with connector |
|
14 |
Mating connector according to DIN EN 175201-804 |
Recommended valve mounting screws (separate order):
2 hexagon socket head cap screws ISO 4762 - M6 x 60 - 10.9-flZn-240h-L
(Friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 12.2 Nm ± 10%
Material no. R913000115
4 hexagon socket head cap screws ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
(Friction coefficient μtotal = 0.09 to 0.14)
Tightening torque MA = 59 Nm ± 10%
Material no. R913000116
or
2 hexagon socket head cap screws ISO 4762 - M6 x 60 - 10.9
(Friction coefficient μtotal = 0.12 to 0.17)
Tightening torque MA = 15.5 Nm ± 10%
Material no. R900003266
4 hexagon socket head cap screws ISO 4762 - M10 x 60 - 10.9
(Friction coefficient μtotal = 0.12 to 0.17)
Tightening torque MA = 75 Nm ± 10%
Material no. R900008630
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
