PRESSURE RED.VALVE INTERMEDIATE PLATE Z3DR6VP2-1X/315V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

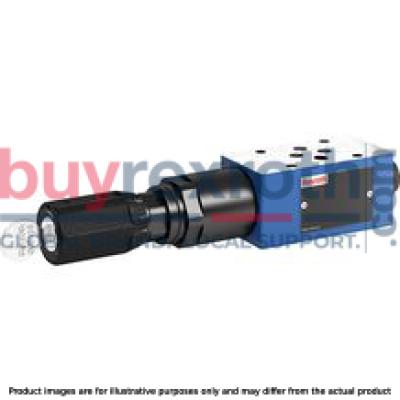

The Bosch Rexroth Z3DR6VP2-1X/315V (R901232899) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a preset value. This spool valve is pilot-operated and features pressure adjustment capabilities within a specified range. It boasts a sleeve with hexagon and protective cap, ensuring durability and safety during operation. The component series X denotes its advanced design, while the spool symbol P P indicates the specific configuration of the valve's ports. With a maximum pressure rating and flow capacity, the Z3DR6VP2-1X/315V is suitable for demanding applications that require precise control over secondary pressure settings. The number of ports and type of actuation with mechanical actuation underscore its versatility in various hydraulic systems. It offers a sandwich plate connection, adhering to both NFPA T3.5.1 R2 D03 Size 3 and CETOP D03 standards, which facilitates ease of installation and maintenance. The valve's weight is optimized for its size, and it utilizes FKM seals compatible with an array of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR types. Its robust construction ensures that it can withstand harsh operating conditions without compromising performance. Bosch Rexroth's Z3DR6VP2-1X/315V stands out for its flat discharge pressure curves which contribute to high stability and minimal hysteresis in system performance. Additionally, the MS version allows for measurement and monitoring of secondary pressure via a measuring port – an essential feature for precise control in critical applications. In case of excess secondary pressure at actuator port P exceeding the set value, the valve opens a line to tank port T to protect against undue pressure rise. This safety feature underscores the thoughtful engineering behind this valve's design. Featuring multiple adjustment options including a spindle with internal hexagon or lockable rotary knob with scale and corrosion protection design; this sandwich plate valve meets ISO standard porting patterns offering flexibility in application across various industries requiring precise hydraulic control.
