SL6PA1-6X/
Manufacturer: Bosch Rexroth
Material #: R901232640
Model : SL6PA1-6X/
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

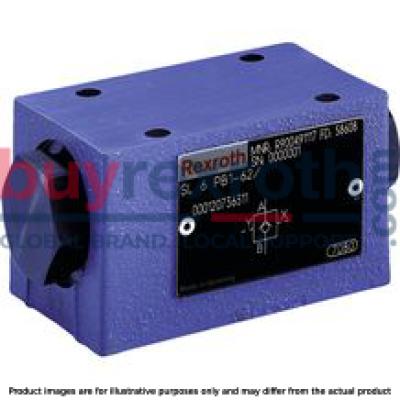

The Bosch Rexroth SL6PA1-6X (R901232640) is a sophisticated isolator valve designed for subplate mounting, ensuring leak-free blocking of actuator ports even during extended periods of inactivity. This valve is crafted to allow flow from direction A to B without external pilot pressure, thanks to its seat poppet and compression spring mechanism that responds to pressure differentials. In reverse flow, the valve achieves a hydraulically tight seal.
The SL6PA1-6X features an optional preopening as a ball seat valve, enhancing its functionality. The presence of a control spool activated by sufficient pilot pressure at port X enables the valve to actively open and permit free flow in both directions. The design takes into account the pressure and area ratios on both sides of the control spool as well as at the seat poppet, offering two main configurations: Type SV with larger spool face A connected to pA, and versions with or without preopening.
Version A includes preopening, which allows for controlled decompression and minimizes switching shocks, thus reducing wear on components and noise generation. Version B lacks preopening and may result in sudden unloading of included pressure volumes leading to potential switching shocks.
The SL6PA1-6X can be converted from type SV to type SL by changing plugs; it's essential that one plug always remains installed. It adheres to ISO standards for porting patterns and offers customization options such as various cracking pressures and corrosion-resistant designs. Additionally, individual check valve installation sets are available for this model. This isolator valve is ideal for applications requiring precise control over hydraulic actuator ports with reliability during both operation and downtime.
$649.00 USD
More are expected on November 22, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as November 22, 2024 when ordered in
This product is eligible for factory repair.
The isolator valve type SV is a releasable check valve for subplate mounting. It is used for the leakage-free blocking of one actuator port, also in case of longer standstill times.
The valve basically consists of a housing (1), a seat poppet (2), a compression spring (3), a control spool (4) as well as of a pre-opening as ball seat valve (7), which is optional.
The seat valve can be flown through from direction A to B without external pilot pressure.
Condition: pA > pB + cracking pressure (compression spring). In the opposite direction, the seat valve closes hydraulically tight.
A sufficiently high pilot pressure at port X moves the control spool (4) in the direction of the seat valve and pushes the seat poppet (2) out of its seat. This allows for a free flow in both directions (active keeping open).
In order to ensure that the seat valve actively opens, the pressure ratios on both sides of the control spool (4) are just as important as the area ratios at the seat poppet (2) or (7).
This results in the following available options for the types
SV (large spool face A2 (6) connected to pA ) oras well as for the versions with pre-opening "A" and without pre-opening "B".
Version "A" (with pre-opening)
This valve is provided with an additional pre-opening. By pressurization at port X, the control spool (4) is moved to the right. As a result, the ball (7) is pushed off the seat first and the seat poppet (2) afterwards.
Notes!
Version "A":
The two-stage set-up with an increased control open ratio means even low pilot pressure can be unloaded securely. Avoidance of switching shocks due to dampened decompression of the pressure volume on the actuator side.Version "B":
In case of valves without pre-opening, the included pressure volume may be unloaded suddenly. Resulting switching shocks may lead to premature wear on installed components, as well as noise formation.
The modification of type SV to type SL is possible by exchange of plugs (9) and (10). One of the both plugs must always be installed!
Type SL 6 PB.‑6X/…
|
Type |
Plug (9) |
Plug (10) |
|
SL |
M3 (closed) |
M6 x 1 (open) |
|
pA* |
Type-dependent (for type SL: pA* = 0) |
|
pSt |
Pilot pressure |
|
pA |
Working pressure in A |
|
pB |
Working pressure in B |
|
pF |
Cracking pressure (spring) |
|
A1 – A4 |
For areas, see sectional drawing and control area ratios |
Δp-qV characteristic curves
Calculation of the pilot pressure pSt dependent on pA and pB
(measured with HLP46, ϑOil = 40 ±5 °C)
Version "A" (with pre-opening)
Balance of forces:
Assumption: pA = 0
Version "B" (without pre-opening)
Balance of forces:
Assumption: pA = 0
Pilot oil return, external
Dimensions in mm
|
L in mm |
||
|
Version |
without pre-opening "B" |
with pre-opening "A" |
|
„1“ , „2“ , „3“ |
11 |
21,5 |
|
„4“ |
14 |
– |
|
1 |
Port Y (M6 x 1; closed for type SV) |
|
2 |
Name plate |
|
3 |
Identical seal rings for ports A, B, P(X), (T)Y |
|
4 |
Plug screw SW24 (pilot spool), tightening torque MA = 80+5 Nm |
|
5 |
Plug screw SW22 (check valve uses), tightening torque MA = 25+5 Nm |
|
6 |
Through hole for valve mounting screws |
|
7 |
Porting pattern according to ISO 4401-03-02-0-05 and ISO 5781-03-04-0-00(with locating hole and locking pin ISO 8752-3x8-St) |
|
8 |
Locking pin ISO 8752-3x8-St |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9
(with friction coefficient μtotal = 0.14);
tightening torque MA = [si]8.9 Nm[/si][/imp]6.6 lb-ft[/imp] ± 10%
(please adjust in case of modified surfaces; use manual torque wrench!)
