4WSE2EM10-5X/10B9T315K31EV
Manufacturer: Bosch Rexroth
Material #: R901219634
Model : 4WSE2EM10-5X/10B9T315K31EV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WSE2EM10-5X/10B9T315K31EV (R901219634) is a high-performance stage directional servo valve designed for precision control of position, force, and velocity in hydraulic systems. This valve is characterized by its electromechanical converter torque motor, hydraulic amplifier with a nozzle flapper plate system, and a control spool within a sleeve. The torque motor is activated by an electrical input signal, which generates a force that translates into the movement of the flapper plate. This movement creates a pressure differential across the control spool, leading to the adjustment of flow between pressure ports and actuator ports.
The control spool's position is finely tuned through mechanical feedback via a bending spring until it balances with the electromagnetic torque from the torque motor. This balance ensures precise flow control proportional to the electrical input signal. The servo valve's performance can be influenced by its pressure drop across the valve.
Designed for subplate mounting and compliant with ISO porting patterns, this Bosch Rexroth valve features dry control motor technology to prevent contamination from hydraulic fluid and can operate as both 3-way or 4-way versions depending on application needs. It incorporates wear-free elements such as a control spool return element and has external or integrated electronics options for controlling its functions.
The integrated control electronics are specifically calibrated for this valve type, offering easy zero-point adjustment through an externally accessible potentiometer. Additionally, certain models like WSEEDX... include electric spool position detection for enhanced dynamic performance through electric feedback, while still maintaining mechanical feedback to ensure functionality in case of power loss.
This servo valve boasts robust specifications with a maximum operating pressure of up to bar and maximum flow rates reaching l/min. It also features design considerations such as flow force compensation, centrically fixed control sleeves for reduced temperature and pressure susceptibility, gap-sealed pressure chambers at the control sleeve to minimize wear on seal rings, and an externally accessible filter for easy maintenance of its first-stage components.
$9,035.00 USD
More are expected on May 16, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as May 16, 2025 when ordered in
This product is eligible for factory repair.
4WS(E)2EM10-5X/...
Valves of type 4WS(E)2EM10-5X are electrically operated, 2-stage directional servo valves. They are mainly used to control position, force and velocity.

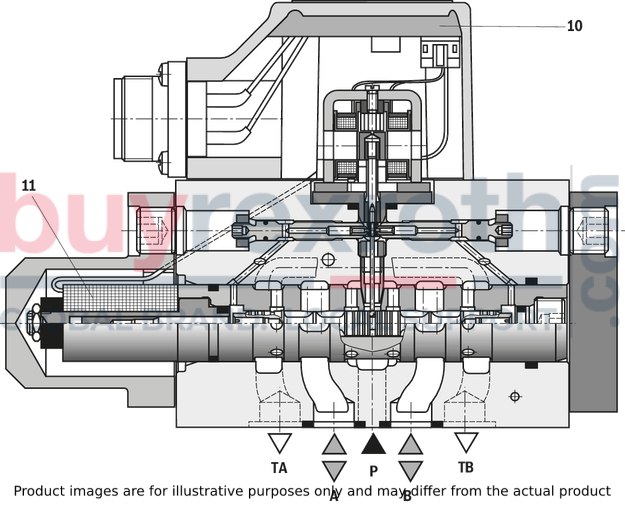

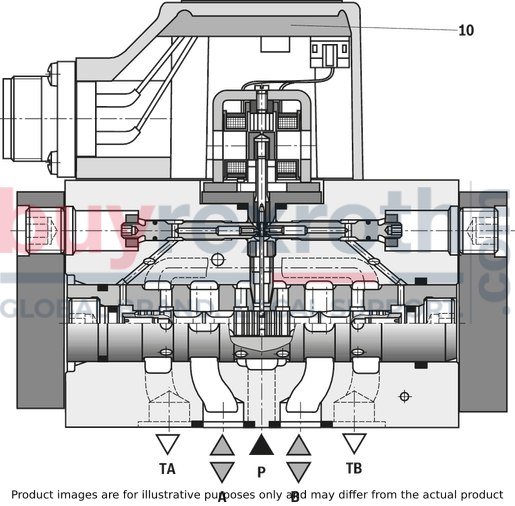

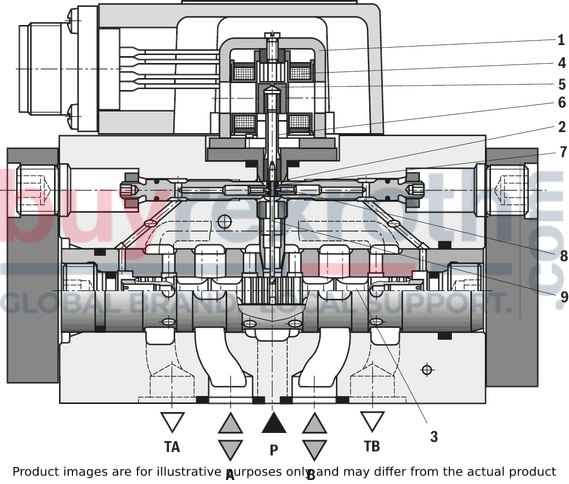

These valves are made of an electro-mechanical converter (torque motor) (1), a hydraulic amplifier (principle: nozzle flapper plate) (2) and a control spool (3) in a sleeve (2nd stage) which is connected with the torque motor via a mechanical feedback.
An electrical input signal at the coils (4) of the torque motor generates a force by means of a permanent magnet which acts on the armature (5), and in connection with a torque tube (6) results in a torque. This causes the flapper plate (7) which is connected to the torque tube (6) via a bolt to move from the central position between the two control nozzles (8), and a pressure differential is created across the front sides of the control spool. This pressure differential results in the control spool changing its position, which results in the pressure port being connected to one actuator port and, at the same time, the other actuator port being connected to the return flow port.
The control spool is connected to the flapper plate or the torque motor by means of a bending spring (mechanical feedback) (9). The position of the control spool is changed until the feedback torque across the bending spring and the electro-magnetic torque of the torque motor are balanced and the pressure differential at the nozzle flapper plate system becomes zero.
The stroke of the control spool and consequently the flow of the servo valve are controlled proportional to the electrical input signal. It must be noted that the flow depends on the valve pressure drop.
External control electronics, type 4WS2EM10-5X/... (separate order)
External control electronics (servo amplifier) serve the actuation of the valve, amplifying an analog input signal (command value) so that with the output signal, the servo valve is actuated in a flow-controlled form.
Integrated control electronics, type 4WSE2EM10-5X/... and 4WSE2ED10-5X/...
For amplification of the analog input signal, special control electronics (10) adjusted to this valve type have been integrated. They are attached to the cover cap of the torque motor. The valve zero point can be adjusted by means of an externally accessible potentiometer.
4WSE2ED10-5X/...
For the mechanical control by the return spring, valves of this type are additionally equipped with electric spool position detection and control. The control spool position is determined by means of an inductive position transducer (11). The position transducer signal is compared to the command value by the integrated control electronics (10). Any possible control deviation is amplified electrically and fed to the torque motor as control signal. With the additional electric feedback, higher dynamic values are achieved than with the purely mechanical variant due to the electric controller amplification in the small signal range. The mechanical feedback which is also available makes sure that in case the electric voltage supply fails, the valve spool is positioned in the zero range.
The valve is only available with integrated control electronics. The valve zero point can be adjusted by means of an externally accessible potentiometer.
Notice:
Changes in the zero point may result in damage to the system and may only be implemented by instructed specialists.

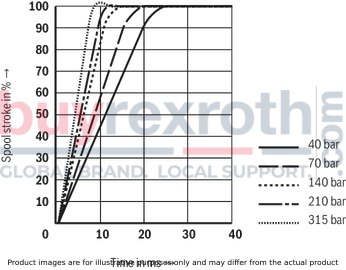

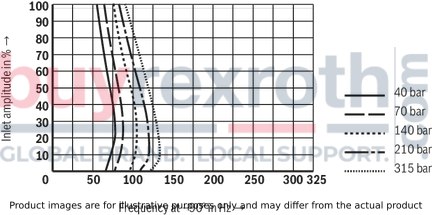

Type 4WS2EM 10...

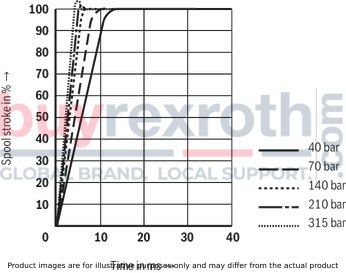

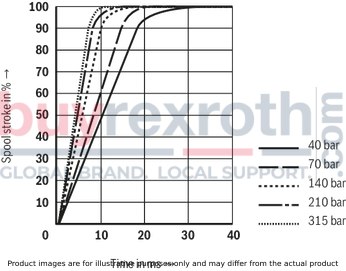

(measured with HLP32, ϑOil =40 ±5 °C)

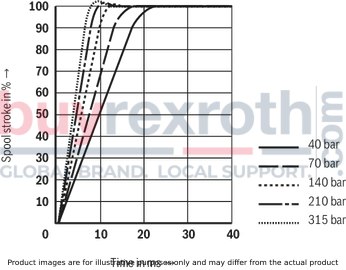

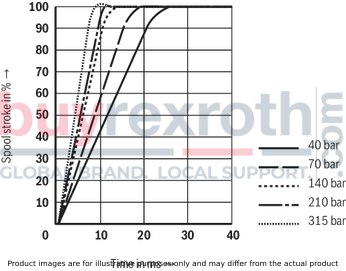

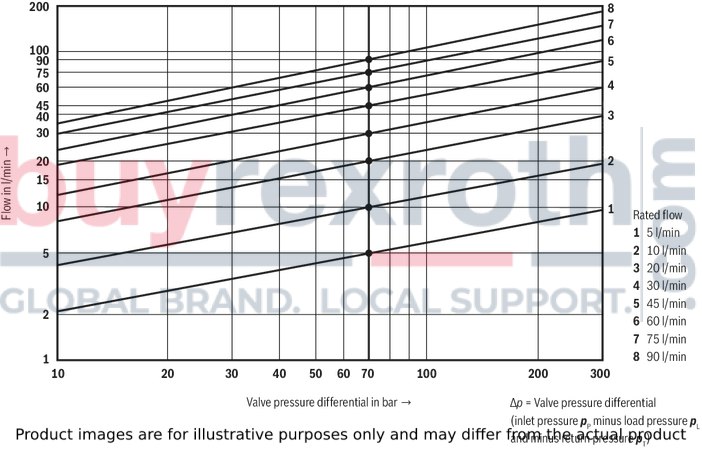

Flow/load function with maximum valve opening (tolerance ±10 %)

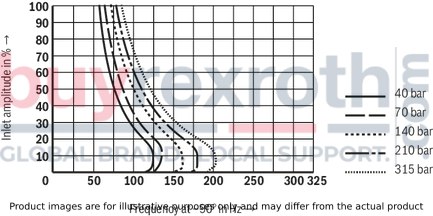

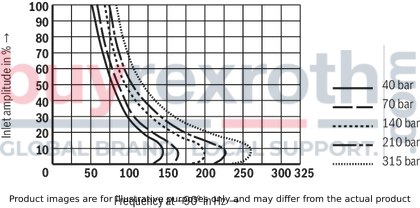

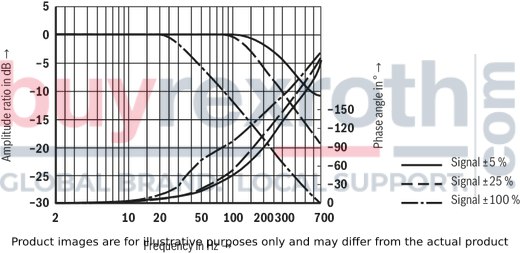

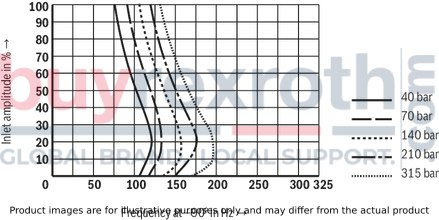

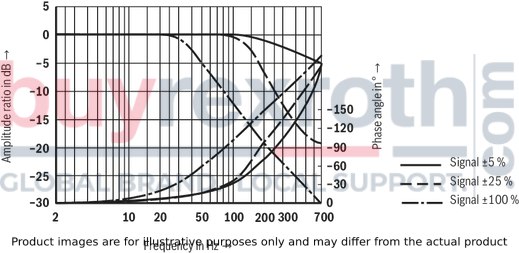

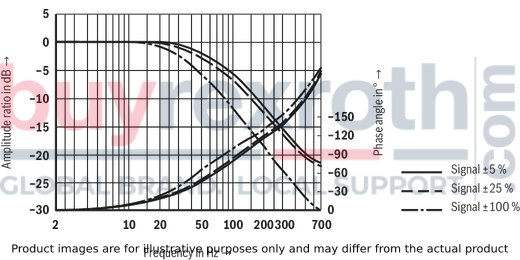

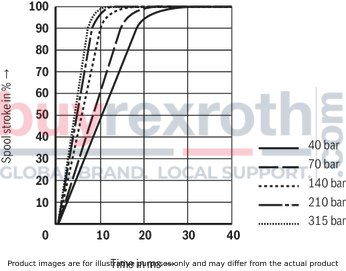

Tolerance field of the flow/signal function with constant valve pressure differential Δp

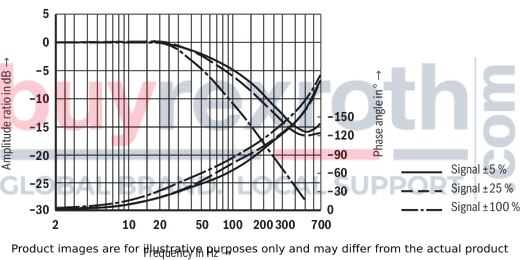

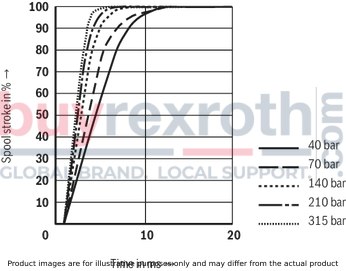

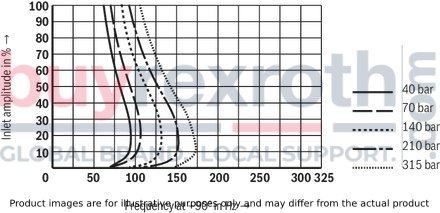

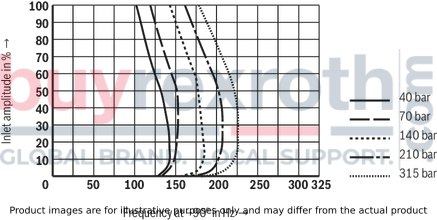

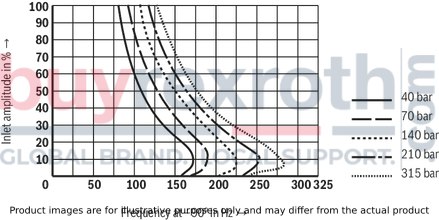

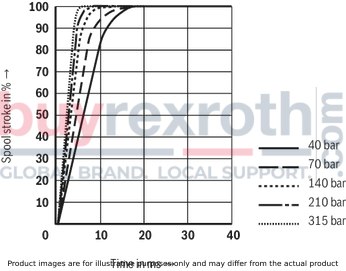

4WS.2EM 10, rated flow 5, 10, 20 l/min

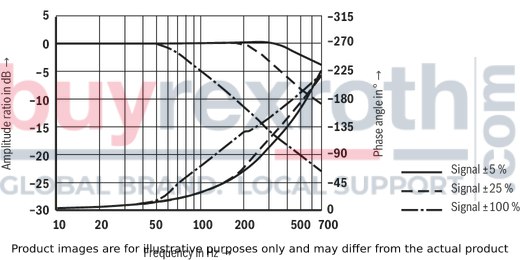

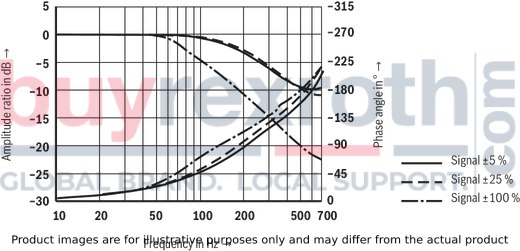

4WSE2ED 10, rated flow 5, 10, 20 l/min
4WS.2EM 10, rated flow 5, 10, 20 l/min
4WSE2ED 10, rated flow 5, 10, 20 l/min
4WS.2EM 10, rated flow 5, 10, 20 l/min
4WSE2ED 10, rated flow 5, 10, 20 l/min

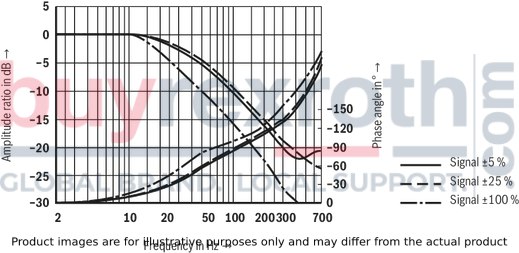

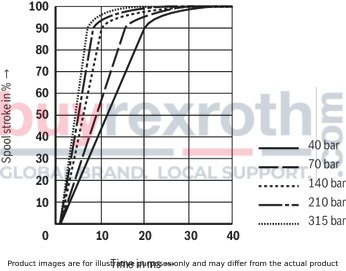

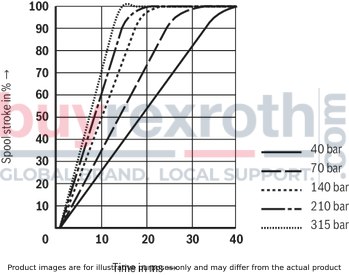

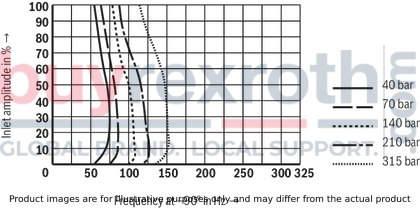

4WS.2EM 10, rated flow 30 l/min
4WSE2ED 10, rated flow 30 l/min
4WS.2EM 10, rated flow 30 l/min
4WSE2ED 10, rated flow 30 l/min
4WS.2EM 10, rated flow 30 l/min
4WSE2ED 10, rated flow 30 l/min

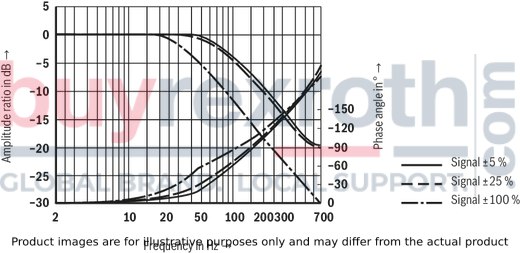

4WS.2EM 10, rated flow 45 l/min
4WSE2ED 10, rated flow 45 l/min
4WS.2EM 10, rated flow 45 l/min
4WSE2ED 10, rated flow 45 l/min
4WS.2EM 10, rated flow 45 l/min
4WSE2ED 10, rated flow 45 l/min
4WS.2EM 10, rated flow 60 l/min
4WSE2ED 10, rated flow 60 l/min
4WS.2EM 10, rated flow 60 l/min
4WSE2ED 10, rated flow 60 l/min
4WS.2EM 10, rated flow 60 l/min
4WSE2ED 10, rated flow 60 l/min
4WS.2EM 10, rated flow 75 l/min
4WSE2ED 10, rated flow 75 l/min
4WS.2EM 10, rated flow 75 l/min
4WSE2ED 10, rated flow 75 l/min
4WS.2EM 10, rated flow 75 l/min
4WSE2ED 10, rated flow 75 l/min
4WS.2EM 10, rated flow 90 l/min
4WSE2ED 10, rated flow 90 l/min
4WS.2EM 10, rated flow 90 l/min
4WSE2ED 10, rated flow 90 l/min
4WS.2EM 10, rated flow 90 l/min
4WSE2ED 10, rated flow 90 l/min

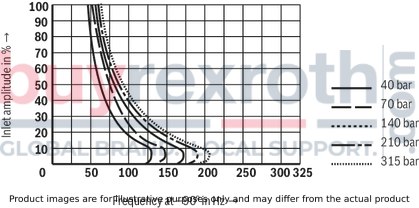

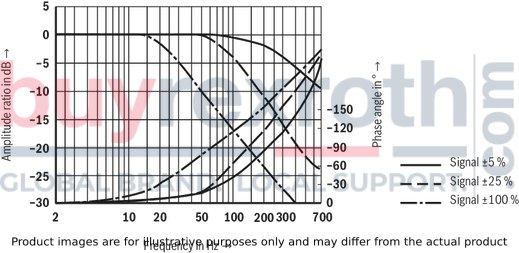

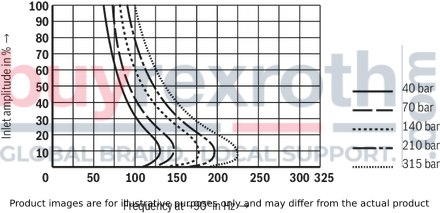

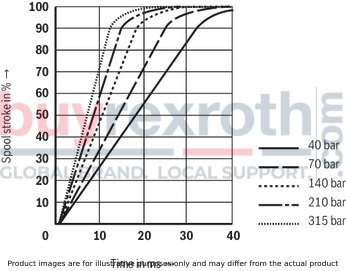

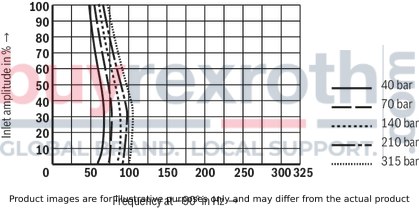

(measured with HLP46, ϑOil = 40 ±5 °C)
4WSE2ED 10…
4WS2EM 10…
The electrical connection can be designed as parallel or serial connection. For reasons of operational safety and the resulting lower coil inductivity, we recommend the parallel connection.
The bridge E-F can be used for electrical recognition of the correct connection of the connector or for cable break detection.
Parallel connection:
Connect contact A with B and C with D in the mating connector.
Serial connection:
Connect contact B with C in the mating connector.
Electrical control from A (+) to D (-) provides for the direction of flow P to A and B to T. Reverse electrical control provides for the direction of flow P to B and A to T.
E → F = bridge
Type 4WS2EM 10...
Type 4WSE2EM 10...
Type 4WSE2ED 10...
|
Pin assignment |
Contact |
Current control "13" |
Voltage control "9" |
|
Power supply |
A |
+ 15 V |
+ 15 V |
|
B |
- 15 V |
- 15 V |
|
|
C |
⊥ |
⊥ |
|
|
Command value |
D |
±10 mA; Re = 100 Ω |
+ 10 V; Re ≥ 50 kΩ |
|
E |
|||
|
Measuring output for control spool |
F 1) 2) |
± 10 mA → maximum load resistance 1 kΩ |
+ 10 V against ⊥; Ri = 4.7 kΩ |
|
1) |
With valves with mechanical feedback, port F is not assigned |
||
|
2) |
With nominal control spool stroke |
||
|
Current consumption at the mating connector port |
A |
max. 150 mA |
max. 150 mA |
|
B |
|||
|
D |
0 ... ±10 mA |
≤ 0,2 mA |
|
|
E |
|||
Supply voltage:
±15 V ±3 %, residual ripple < 1 %
Command value:
Command value at the mating connector port D = positive against mating connector port E results in flow from P to A and B to T. Measuring output F has positive signal against ⊥.
Command value at the mating connector port D = negative against mating connector port E results in flow from P to B and A to T. Measuring output F has negative signal against ⊥.
Measuring output:
The voltage or current signal is proportional to the control spool stroke.
Notice:
Electrical signals provided via control electronics (e.g. actual value) must not be used to switch off safety-relevant machine functions!

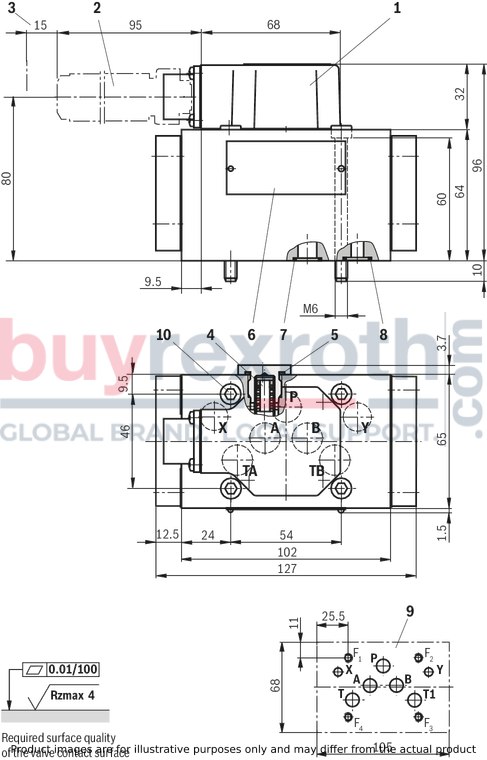

mechanical feedback / external control electronics, type 4WS2EM 10-5X/...
Dimensions in mm
|
1 |
Cap |
|
2 |
Mating connector, separate order |
|
3 |
Space required to remove the mating connector |
|
4 |
Exchangeable filter element with seals |
|
5 |
Profile seal for filter screw M16 x 1.5; part of item 4 |
|
6 |
Name plate |
|
7 |
Identical seal rings for port A, B, P, TA, TB |
|
8 |
Identical seal rings for ports X and Y |
|
9 |
Machined valve contact surface; Porting pattern according to ISO 4401-05-05-0-05 |
|
10 |
Valve mounting screws (included in the scope of delivery): |
|
Subplates must be ordered separately |
|

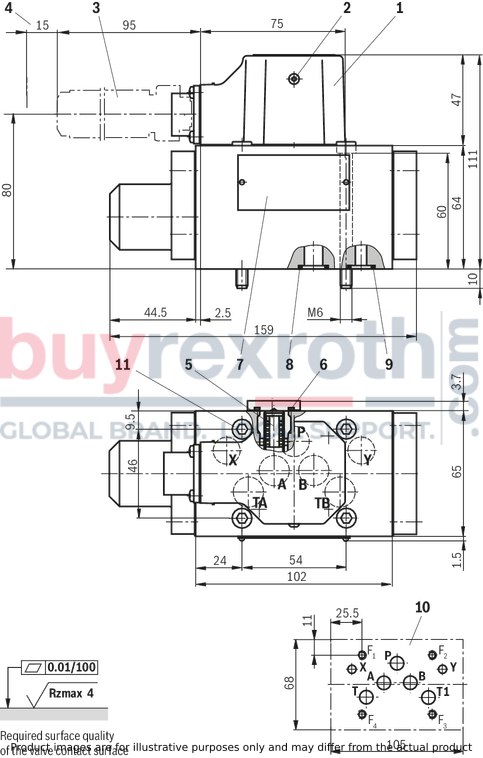

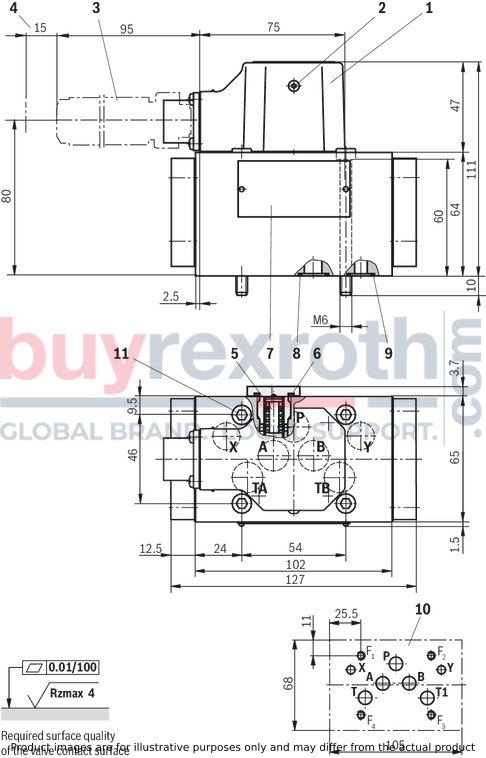

mechanical feedback / integrated control electronics, type 4WSE2EM 10-5X/...
Dimensions in mm
|
1 |
Cap with integrated control electronics |
|
2 |
Electrical zero point setting |
|
3 |
Mating connector, separate order |
|
4 |
Space required to remove the mating connector |
|
5 |
Exchangeable filter element with seals |
|
6 |
Profile seal for filter screw M16 x 1.5; part of item 4 |
|
7 |
Name plate |
|
8 |
Identical seal rings for port A, B, P, TA, TB |
|
9 |
Identical seal rings for ports X and Y |
|
10 |
Machined valve contact surface; Porting pattern according to ISO 4401-05-05-0-05 |
|
11 |
Valve mounting screws (included in the scope of delivery): |
|
Subplates must be ordered separately |
|
electric and mechanical feedback / integrated control electronics, Type 4WSE2ED 10-5X/...
Dimensions in mm
|
1 |
Cap with integrated control electronics |
|
2 |
Electrical zero point setting |
|
3 |
Mating connector, separate order |
|
4 |
Space required to remove the mating connector |
|
5 |
Exchangeable filter element with seals |
|
6 |
Profile seal for filter screw M16 x 1.5; part of item 4 |
|
7 |
Name plate |
|
8 |
Identical seal rings for port A, B, P, TA, TB |
|
9 |
Identical seal rings for ports X and Y |
|
10 |
Machined valve contact surface; Porting pattern according to ISO 4401-05-05-0-05 |
|
11 |
Valve mounting screws (included in the scope of delivery): |
|
Subplates must be ordered separately |
|

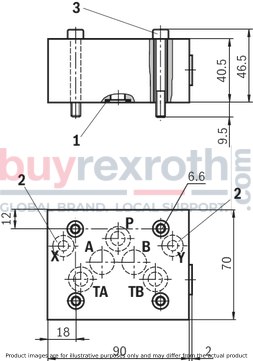

Flushing plate with porting pattern according to ISO4401-05-05-0-05
Dimensions in mm
|
1 |
R-ring 13.0 x 1.6 x 2.0 (ports P, A, B, T, T1) |
|
2 |
R-ring 11.18 x 1.6 x 1.78 (ports X, Y) |
|
3 |
Mounting screws (included in the scope of delivery):4 hexagon socket head cap screws ISO 4762 - M6 x 50 - 10.9-flZn-240h-L |
To ensure proper operation of the servo valves, it is necessary to flush the system before commissioning.
The following values are guidelines for the flushing time per system: t ≥ V : QV x 5
t = flushing time in h
V = tank capacity in l
QV = Pump flow in l/min
When replenishing more than 10% of the tank capacity, the flushing procedure must be repeated.
The use of a directional valve with port according to ISO 4401-05-05-0-05 is suited better than a flushing plate. With this valve, you can also flush the actuator ports.
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
Spare parts & repair
