3WRCE50V000X-2X/SG24K31/C5M-140
Manufacturer: Bosch Rexroth
Material #: R901212336
Model : 3WRCE50V000X-2X/SG24K31/C5M-140
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 3WRCE50V000X-2X/SG24K31/C5M-140 (R901212336) is a high-response directional valve designed for precise control of flow and direction within hydraulic systems. This valve is particularly suitable for applications requiring exacting control such as in presses, die casting machines, and nibbling axes. It features an advanced three-stage setup that includes a stage pilot control valve with a dry torque motor, a low-friction nozzle flapper plate amplifier, and mechanical feedback of the spool position. Additionally, it incorporates a main stage for flow control and an inductive position transducer.
The core function of this valve is to compare command values with actual values, adjusting the torque motor of the pilot control valve proportionally to correct any deviation. The result is precise regulation of the main spool's stroke proportional to the input command value. It's important to note that flow is also dependent on the pressure drop across the valve.
One unique aspect of this Bosch Rexroth valve is its factory-set opening point for the V spool. However, after replacing either the pilot control valve or control electronics, users can adjust this setting using the zero adjustment potentiometer R. In terms of maintenance, only the filter element may need to be exchanged without affecting other settings.
This model boasts integrated electronics OBE and offers reliability in operation with features like compensation for pilot trimming and a mechanism that opens from A to T in case of power failure when pilot pressure is applied. The spring behind the main spool ensures that P to A is closed if no pressure is applied.
The 3WRCE50V000X-2X/SG24K31/C5M-140 operates with a maximum pressure of up to bar and can handle maximum flow rates of l/min. This high-response valve demonstrates Bosch Rexroth's commitment to providing robust solutions for sophisticated hydraulic control tasks.
$31,940.00 USD
More are expected on March 24, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 24, 2025 when ordered in
This product is eligible for factory repair.

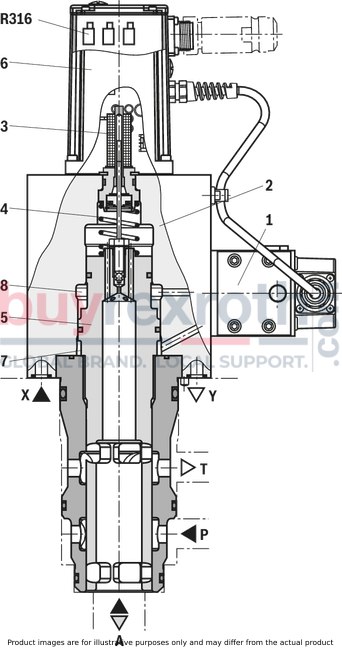

Valves of type 3WRCE are 3-stage high-response valves. They control the quantity and direction of a flow and are mainly used in control loops.
Set-up
They consist of the following assemblies:
2-stage pilot control valve (1) with dry torque motor low-friction nozzle flapper plate amplifier and mechanical feedback of the spool position a main stage (2) for flow control an inductive position transducer (3) the core (4) of which is attached to the spool (5) of the third stage and integrated control electronics (6).
Function
The integrated or external electronics compares command and actual values and the torque motor of the pilot control valve is actuated with a proportional current according to the control deviation.
The pilot control valve takes a proportionally controlled position and controls the flow in and out of the control chambers A (7) and B (8) that actuate the main spool (5) through the closed valve control loop up to 0 control deviation.
This means that the stroke of the main spool is regulated proportionally to the command value. It must be noted that the flow also depends on the valve pressure drop.
Valve particularities
The opening point of 0 % (V spool) is set at the factory. Upon replacement of the pilot control valve or the control electronics, the opening point can be readjusted using the zero adjustment potentiometer R316, accessible via a plug screw.
During the exchange, no settings must be made at the control electronics (= controller or control electronics) and the pilot control valve, except for the zero adjustment at the position transducer.
At the pilot control valve, only the filter element may be exchanged (see “directional servo valves”)
The pilot control valve is trimmed so that the pilot pressure is connected to control chamber B (8) in case of a power failure, i.e. the main stage is opened from A to T or the connection P to A is closed.
The spring behind the main spool moves it into position so that P to A is closed if no pressure is applied (e.g. prior to installation, before the pressures are reapplied after tool change).
The control electronics feature an offset to compensate the trimming of the pilot control valve (pilot trimming).
For applications outside these parameters, please consult us!
general
|
Type |
3WRCE.../S | ||||
|
Size |
32 | 40 | 50 | ||
|
Component series |
2X | ||||
|
Installation position |
any, preferably horizontal | ||||
|
Earth |
kg |
11.5 | 18.9 | 29.2 | |
|
Earth |
With shut-off valve |
kg |
12.7 | 20.1 | 32.9 |
|
Storage temperature range |
°C |
-20 … +80 | |||
|
Ambient temperature range |
°C |
-20 … +60 | |||
hydraulic
|
Type |
3WRCE.../S | |||||
|
Size |
32 | 40 | 50 | |||
|
Maximum operating pressure |
bar |
420 | ||||
|
Maximum operating pressure |
Port P |
bar |
315 | |||
|
Port A |
bar |
315 | ||||
|
Port T |
bar |
315 | ||||
|
Maximum operating pressure |
Pilot control valve |
Port X |
bar |
315 | ||
|
Port Y |
Pressure peaks < 100, static < 10 | |||||
|
Nominal flow 1) |
Version ...V...L (linear) |
l/min |
290 | 460 | 720 | |
|
Zero flow |
Servo pre-stage |
|
|
|
||
|
Maximum flow |
l/min |
900 | 1400 | 2200 | ||
|
Pilot flow |
l/min |
27 | 42 | 65 | ||
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | ||||
|
preferably |
°C |
+40 … +50 | ||||
|
Viscosity range |
mm²/s |
20 … 380 | ||||
|
preferably |
mm²/s |
30 … 45 | ||||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Pilot control valve |
Class 18/16/13 according to ISO 4406 (c) | ||||
|
Main valve |
Class 20/18/15 according to ISO 4406 (c) | |||||
|
Nominal stroke |
mm |
5 | 6 | 7.5 | ||
|
Hysteresis |
% |
≤ 0.2 | ||||
|
Response sensitivity |
% |
≤ 0.1 | ||||
|
Range of inversion |
% |
≤ 0.1 | ||||
|
Closing time 3) |
Pilot control valve |
ms |
≤ 500 | |||
|
Sandwich plate shut-off valve |
ms |
≤ 200 | ||||
| 1) | +10 % with Δp = 5 bar |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 3) | With pilot pressures from 40 to 315 bar |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oils and related hydrocarbons |
HL, HLP, HLPD, HVLP, HVLPD |
NBR / FKM |
DIN 51524 |
|
Flame-resistant - containing water |
HFC (Fuchs, Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
|
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). |
Flame-resistant - containing water: |
||
electrical
|
Type |
3WRCE.../S | ||
|
Voltage type |
Direct voltage | ||
|
Type of signal |
analog | ||
|
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | ||
|
Zero point calibration |
% |
≤ 0.1 | |
|
Zero shift upon change of |
Hydraulic fluid temperature |
%/10 K |
≤ 0.3 |
|
Return flow pressure |
%/bar |
≤ 0.3 | |
|
Pilot pressure |
%/100 bar |
≤ 0.7 | |
Nominal command value range for 3WRCE:
0 ... ±10 V (mA) ≙ 0 ... ±100 %
With a slow command value change from 0 V to ±10 V, the actual value follows the command value within ±0.1 V.
With command value greater than ±10 V, then the actual value can briefly reach values of approx. ±10.5 V.
measured with HLP32, ϑOil = 40±5 °C
Rated flow at 5 bar valve pressure differential
Rated flow at 5 bar valve pressure differential with 10 % overlap

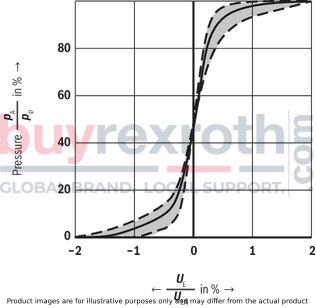

Pressure/signal function with 3WRCE...V... limiting and average characteristic curves
Transition function
Size 32

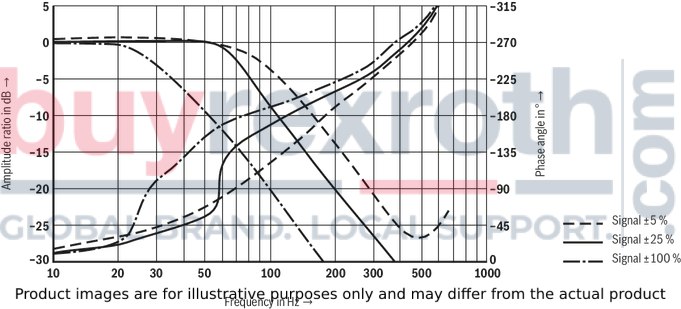

Frequency response
Size 32

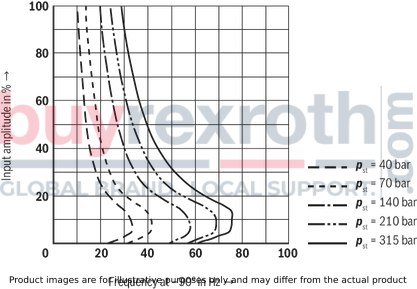

Dependency of the frequency f at -90° of the operating pressure and the inlet amplitude
Size 32
Transition function
NG40
Frequency response
NG40
Dependency of the frequency f at -90° of the operating pressure and the inlet amplitude
NG40
Transition function
NG50
Frequency response
NG50
Dependency of the frequency f at -90° of the operating pressure and the inlet amplitude
NG50
|
Detailed |
simplified |
Type 3WRCE..V...-2X/S...
|
Type 3WRCE..V...-2X/S...
|
Type 3WRCE..V...-2X/S...WK...
|
Type 3WRCE..V...-2X/S...WK...
|
Type 3WRCE..V...-2X/S...WL...
|
Type 3WRCE..V...-2X/S...WL...
|
Type 3WRCE..E...-2X/S...
|
Type 3WRCE..E...-2X/S...
|

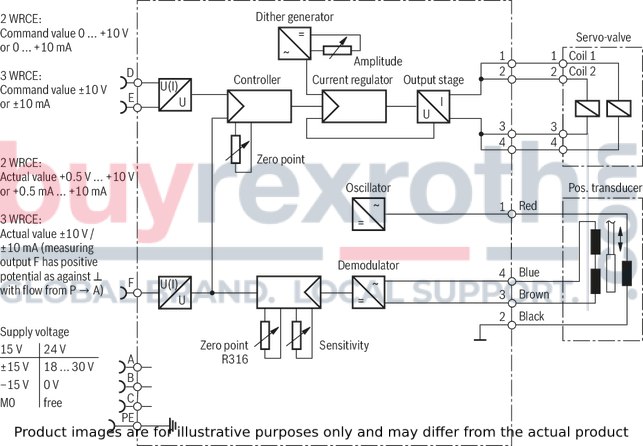

Block diagram / pin assignment
|
Pin assignment |
Contact |
Interface A1 |
Interface C1 |
|
(Voltage supply “G15” in brackets) |
|||
|
Power supply |
A |
+24 VDC (+15 VDC) |
+24 VDC (+15 VDC) |
|
B |
0 VDC (-15 VDC) |
0 VDC (-15 VDC) |
|
|
M0 with ± 15 V "G15" |
C |
n.c. (Reference to contacts A, B) |
n.c. (Reference to contacts A, B) |
|
Differential command value input |
D E |
0 ... ±10 V |
0 ... ±10 mA |
|
Actual value Reference with "G24" is pin B Reference with "G15" is pin C |
F |
0 ... ±10 V |
0 ... ±10 mA |
|
PE |
connected to valve housing |
||
Supply voltage:
+24 VDC ±6 V; full bridge rectification with smoothing capacitor 2200 μF; Imax = 230 mA ±15 VDC ±0.45 V; stabilized and smoothened; Imax= 180 mACommand value current:
0 ... +10 mA and/or ±10 mA → input resistance 100 ΩActual value current:
0.5 mA ... +10 mA and/or ±10 mA → maximum load resistance 1 kΩ Command value and actual value have the same polarity
Notice:
Electrical signals provided via control electronics (e.g. actual value) must not be used to switch off safety-relevant machine functions!
(See also the European standard "Safety requirements for fluid-powered systems and their components - Hydraulics", EN 982.)

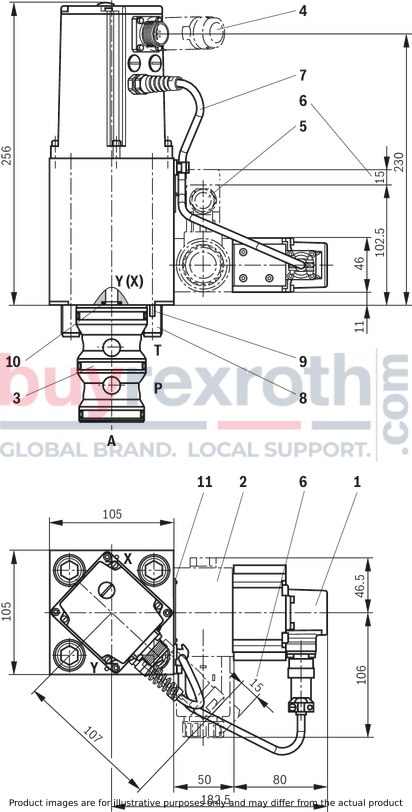

Size 32
Dimensions in mm
|
1 |
Pilot control valve (directional servo valve NG6) |
|
2 |
Sandwich plate shut-off valve (only with versions “WK15” and “WL15”) |
|
3 |
Socket |
|
4 |
Mating connector according to DIN EN 175201-804, separate order |
|
5 |
Mating connector according to DIN EN 175301-803, separate order |
|
6 |
Space required to remove the mating connector |
|
7 |
Cabling |
|
8 |
Valve mounting screws (included in the scope of delivery): |
|
9 |
Locking pin for locating hole |
|
10 |
Identical seal rings for ports X and Y |
|
11 |
Name plate |

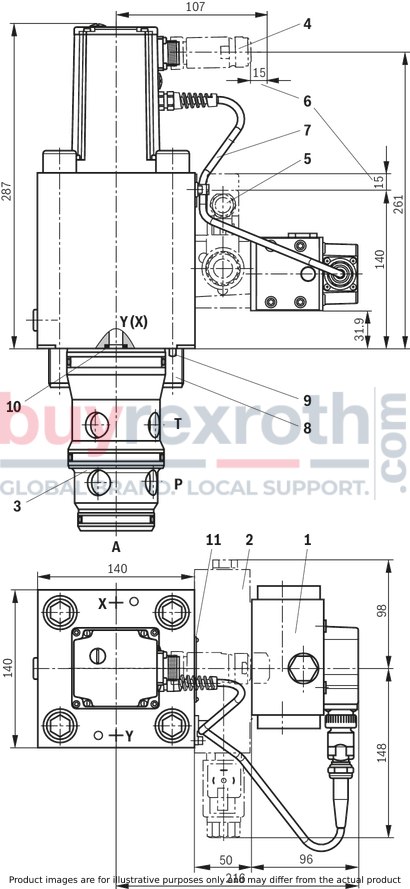

NG40
Dimensions in mm
|
1.1 |
Pilot control valve (directional servo valve NG10) |
|
1.2 |
Pilot control valve (directional servo valve NG6) |
|
2 |
Sandwich plate shut-off valve (only with versions “WK15” and “WL15”) |
|
3 |
Socket |
|
4 |
Mating connector according to DIN EN 175201-804, separate order |
|
5 |
Mating connector according to DIN EN 175301-803, separate order |
|
6 |
Space required to remove the mating connector |
|
7 |
Cabling |
|
8 |
Valve mounting screws (included in the scope of delivery): |
|
9 |
Locking pin for locating hole |
|
10 |
Identical seal rings for ports X and Y |
|
11 |
Name plate |
NG50
Dimensions in mm
|
1.1 |
Pilot control valve (directional servo valve NG10) |
|
2 |
Sandwich plate shut-off valve (only with versions “WK15” and “WL15”) |
|
3 |
Socket |
|
4 |
Mating connector according to DIN EN 175201-804, separate order |
|
5 |
Mating connector according to DIN EN 175301-803, separate order |
|
6 |
Space required to remove the mating connector |
|
7 |
Cabling |
|
8 |
Valve mounting screws (included in the scope of delivery): |
|
9 |
Locking pin for locating hole |
|
10 |
Identical seal rings for ports X and Y |
|
11 |
Name plate |
|

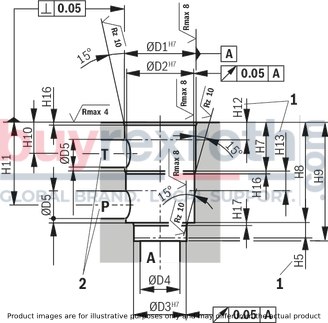

1 |
Depth of fit, minimum dimension |
|
2 |
The ports P, T and B can be positioned around the central axis of port A. Sufficient distance from the mounting and control bores is to be observed |
|
3 |
Bore for locating pin |
|
Tolerances according to ISO 2768-mK |
|
NG |
ØD1H7 |
ØD2H7 |
ØD3H7 |
ØD4 |
ØD5 |
ØD6H7 |
ØD7 |
D8 |
max. ØD9 |
ØD10 |
H1 |
H2 |
H3 |
H4 |
H5 |
H7 |
H8 |
H9 |
H10 |
H11 |
H12 |
H13 |
H16 |
H17 |
H18 |
L1 |
L2 |
L3 |
L4 |
L5 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 32 | 60 | 58 | 55 | 32 | 24 | 45 | 32 | M16 | 8 | 6 | 70 | 85 | 52 | 30 | 13 | 43.5 | 85 | 100 | 30 | 70.5 | 18 | 15 | 2.5 | 2.5 | 35 | 105 | 70 | 35 | 41 | 17 |
| 40 | 75 | 73 | 55 | 40 | 30 | 55 | 40 | M20 | 10 | 6 | 87 | 105 | 64 | 30 | 15 | 54 | 105 | 125 | 36 | 87 | 21 | 18 | 3 | 3 | 45 | 125 | 85 | 42.5 | 50 | 23 |
| 50 | 90 | 87 | 68 | 50 | 35 | 68 | 50 | M20 | 10 | 8 | 100 | 122 | 72 | 35 | 17 | 87 | 143 | 165 | 66 | 122 | 48 | 18 | 4 | 3 | 45 | 140 | 100 | 50 | 58 | 30 |
