3WRCBEE32VF380M-1X/G24K31/A1M

Manufacturer: Bosch Rexroth

Material #: R901174492

Model : 3WRCBEE32VF380M-1X/G24K31/A1M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

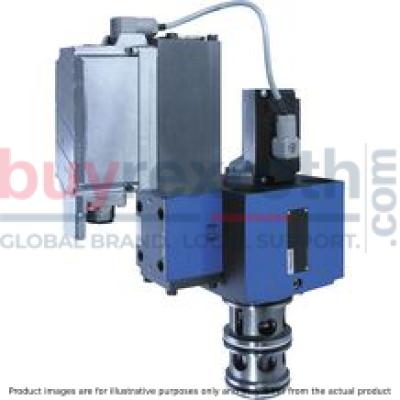

The Bosch Rexroth 3WRCBEE32VF380M-1X/G24K31/A1M (R901174492) is a high-response directional control valve designed for precise fluid management in hydraulic systems. This pilot-operated cartridge valve features integrated electronics that facilitate the stepless control of flow from port P to A and from A to T, ensuring efficient operation and responsive control. The valve boasts a block installation design with a directional symbol, and it includes a control spool with an anti-rotation feature, which maintains stability and accuracy during operation. Crafted with servo-type quality control edges, the 3WRCBEE32VF380M-1X/G24K31/A1M valve is pressure-resistant up to 350 bar, making it suitable for high-pressure applications. It incorporates a main spool and pilot valve both equipped with inductive position transducers for precise positioning. The integrated On-Board Electronics (OBE) provide position-controlled functionality, allowing for exacting management of flow direction and magnitude. This fully adjusted unit offers progressive flow characteristics with a fine control edge for meticulous command over hydraulic flows. In the event of an OBE error coupled with applied pilot pressure, the main spool opens in the direction from A to T while simultaneously blocking the flow from P to A, ensuring fail-safe operation under error conditions. The 3WRCBEE32VF380M-1X/G24K31/A1M has been engineered for maximum operating pressures of up to 350 bar and supports maximum flow rates of up to 380 liters per minute, with nominal flows designated at specific values according to system requirements. This level of performance positions the valve as an ideal component for sophisticated hydraulic systems requiring reliable and precise flow regulation.

$13,785.00 USD

More are expected on May 19, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as May 19, 2025 when ordered in

This product is eligible for factory repair.

Repairs from $3,116.00

Pilot-operated 3/3 directional high-response valves Design: Block installation, 3/3 directional symbol; control edge P→A or A→T Control spool with anti-rotation feature and control edges in servo-type quality Pressure-resistant up to 315 bar Main spool and pilot valve with inductive position transducer Position-controlled with integrated electronics (OBE) Valves control the flow direction and size. Completely adjusted unit Flow characteristics
M = Progressive and fine control edge In case of error of the OBE and applied pilot pressure, the main spool is opened in the direction A to T. P to A is then blocked.

Valves of type 4WRCBEE are pilot-operated 3/3 directional high-response valves in servo quality. The valves are designed as cartridge valve with integrated electronics for the stepless control of a flow from P to A and A to T.

01	02	03	04	05	06	07		08		09	10	11	12	13
3WRCB	EE		V			M	‒	1X	/	G24	K31		M	*

01	3/3 high-response cartridge valve	3WRCB
02	With integrated pilot and integrated electronics (OBE)	EE
03	Size 25	25
	Size 32	32
	Size 50	50
04	Spool with zero overlap	V
Actuating area ratio at the spool
05	1:1	no code
05	1:1,5	F
Rated flow at 5 bar valve pressure drop
06	Size 25
	190 l/min	190
	Size 32
	380 l/min	380
	Size 50
	750 l/min	750
07	Characteristic curve form inflected progressive with linear fine control range	M
08	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10	1X
09	Supply voltage 24 V	G24
Electrical connection
10	Without mating connector, with connector according to DIN EN 175301-804, separate order	K31
Electrical interface
11	Command value ±10 V	A1
11	Command value 4 to 20 mA	F1
Seal material
12	NBR seals	M
13	Further details in the plain text	*

For applications outside these parameters, please consult us!

general

Type		3WRCBEE
Size		25	32	50
Component series		1X
Installation position		Any
Earth	kg	11.8	16.2	23.2
Storage temperature range	°C	-20 … +80
Ambient temperature range	°C	-20 … +50

hydraulic

Type			3WRCBEE
Size			25	32	50
Maximum operating pressure		bar	315
Nominal flow 1)		l/min	190	380	750
Maximum flow		l/min	600	1000	2250
Pilot flow		l/min	12	16	30
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range		mm²/s	15 … 380
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2)	Pilot control valve		Class 18/16/13 according to ISO 4406 (c)
	Main valve		Class 20/18/15 according to ISO 4406 (c)
Hysteresis		%	< 0.1
Response sensitivity		%	< 0.1
Temperature drift		%/10 K	0.16	0.34	0.02

1)	Δp = 5 bar per edge
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

electrical

Type			3WRCBEE
Power supply	Nominal voltage	V	24
	Lower limit value	V	21
	Upper limit value	V	35
Maximum current consumption	of the amplifier	A	1.8
Maximum current consumption	of the amplifier (impulse current)	A	3
Duty cycle		%	100
Protection class according to DIN EN 60529			IP65 (with mating connector mounted and locked)

Spare parts & repair

3WRCBEE32VF380M-1X/G24K31/A1M

Manufacturer: Bosch Rexroth

Material #: R901174492

Model : 3WRCBEE32VF380M-1X/G24K31/A1M

More are expected on May 19, 2025

This product is eligible for factory repair.

general

hydraulic

electrical

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with round connector, 6-pole + PE

7P Z31

Mating connectors for valves with round connector, 6-pole + PE

7P Z31
