LFA125WEA-2X/A30P25T30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

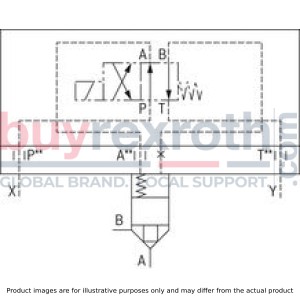

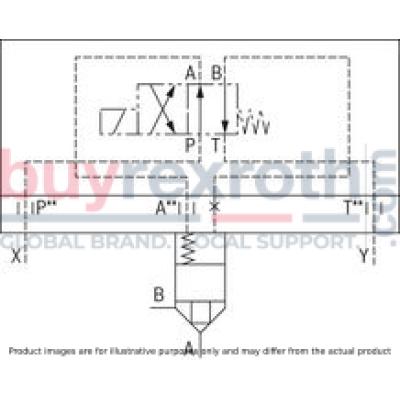

The Bosch Rexroth LFA125WEA-2X/A30P25T30 (R901166158) is a sophisticated way cartridge valve designed for seamless integration into compact block systems. This high-quality component is standardized according to ISO for easy installation into control blocks, and it features a power section with A and B connections that are securely enclosed by a cover, which also serves as the interface for pilot control valves. The LFA125WEA-2X/A30P25T30 valve is versatile, allowing for pressure, directional and throttle functions or combinations thereof. This adaptability makes the valve an efficient solution for various flow requirements across different actuator paths. The product offers cost-effective application possibilities by enabling multiple functionalities within one element. This model includes a control cover that houses control bores, and it may incorporate additional features like stroke limitation, hydraulically controlled directional seat valves, or shuttle valves depending on the specific function required. Furthermore, there is the option of adding electrically operated directional spool or seat valves to the control cover. The installation kit comes with essential components such as a bushing, ring (for sizes up to NG), valve poppet—with options for damping nose configurations—and a closing spring. The functionality of this way cartridge valve is pressure-dependent, establishing three critical pressurized areas (A1, A2, A3) to facilitate its operation. The area ratios between these zones determine the force direction acting upon the spool position of the valve. The design allows fluid transfer from A to B or vice versa with reliable blocking of channel A when area A3 is pressurized either through pilot oil from channel B or an external pilot supply. In summary, Bosch Rexroth’s LFA125WEA-2X/A30P25T30 way cartridge valve stands out for its flexibility in function and ease of integration within hydraulic systems. Its precise engineering ensures effective performance in controlling fluid flow across various applications without leakage.
