POPPET DIRECTIONAL VALVE KSDER1NB/HN11V

Manufacturer: Bosch Rexroth

Material #: R901151293

Model : KSDER1NB/HN11V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

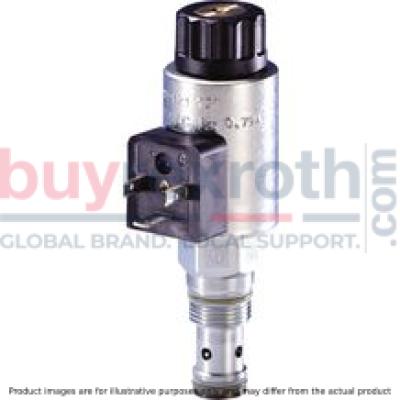

The Bosch Rexroth KSDER1NB/HN11V (R901151293) is a high-performance directional poppet valve, designed for screw-in cartridge systems with solenoid actuation. This direct-operated valve is built to manage a maximum operating pressure of up to 350 bar (5076 psi), ensuring reliable performance in demanding hydraulic applications. With a maximum flow rate of 80 l/min (21 gpm), it fits seamlessly into the Sun TA cavity and is tailored for use in systems requiring precise control over fluid direction and flow. The KSDER1NB/HN11V features a normally closed poppet type design, ensuring that the flow is blocked in a leak-free manner when the solenoid is not energized. This valve benefits from solenoid actuation for on-off control, providing quick and reliable switching capabilities, which are essential for efficient hydraulic system operations. The manual override option included with this model offers additional operational flexibility, allowing users to actuate the valve manually if necessary. This product falls under the KSDE product family type, which is known for its directional poppet valves that are direct operated with solenoid actuation. It utilizes FKM sealing material to ensure compatibility with various hydraulic fluids such as HL, HLP, HETG, HEPG, and HEES. With its robust design and high-quality construction, the Bosch Rexroth KSDER1NB/HN11V valve ensures consistent performance and reliability. Its compact size and integrated coil (which needs to be ordered separately) make it an ideal component for various hydraulic systems where space may be limited but high efficiency is required. The wet-pin DC solenoids enhance durability, while the ability to rotate the solenoid coil allows for flexible installation options.

$800.48 USD

More are expected on February 27, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 27, 2025 when ordered in

POPPET DIRECTIONAL VALVE KSDER1NB/HN11V

2/2 directional poppet valve, direct operated with solenoid actuation

Unpacked Weight: 0.292 kg

Mounting cavity R/T-13A Direct operated directional seat valve with solenoid actuation, tight on both sides Blocked port tight in a leak-free form Reliable switching even after longer periods of standstill Wet-pin DC solenoids Solenoid coil can be rotated

General

The 2/2 directional seat valves are direct operated, pressure-compensated screw-in cartridge valves. They basically consist of a screw-in section (4) with valve seat (1), solenoid (5) as well as closing element (3) and compression spring (2).

Function

The initial position of the valve (normally open "P" or normally closed "N") is determined by the position of the closing element (3) and the arrangement of the compression spring (2). Due to the structural design, the 2/2 directional seat valves are always pressure-compensated in relation to the actuating forces. The main ports ➀ and ➁ can be loaded with an operating pressure of 350 bar/500 bar (see Technical data).

Attention!

The flow is only admissible in the direction of arrow (see symbols)! With version “U” (operating pressure 500 bar) as well as with version “R...-17”, the main port ➀ is to be connected to the pump connection P! The valves of version “R...-17” are flow-optimized and thus achieve a lower pressure differential.

At symbol "P", the closing element (3) is pressed onto the seat by the solenoid (5), with symbol "N" by the compression spring (2). The flow is blocked in a leak-free manner.

The manual override allows the switching of the valve without solenoid energization. It is available in concealed version "N9" (6) or in screwable version "N11" (7) (see ordering codes).

Version "C4"

Screw-in cartridge valve
Maximum operating pressure 350 bar (5000 psi)
Maximum flow 20 l/min (5 gpm)
Cavity Sun T-13A

Data Sheet

Download Data Sheet

Max. pressure	350
Coil	GZ37
Product family classification	2/2 directional poppet valve, direct operated with solenoid actuation
Productgroup ID	9,10,11,12,13,14
Product family type	KSDE
Ports number	2
Manual override	Screw type manual override
Type of actuation	Solenoid-actuated on/off
Sealing material	FKM
Cavity	Sun T-13A
Product type	KSDE
Max. flow	20
Type of connection	Screw-in cartridge valve
Normal position	Normally closed
Nominal flow	20
Direct - Pilot	Direct acting
Positions	2
Product family	2 ways
Coil integrated	To be ordered separately
Spool Poppet	Poppet type
Weight	0.292
Hydraulic fluid	HL,HLP,HETG,HEPG,HEES

(valve without coil) 1)

01	02	03	04	05		06	07	08	09	10
KSDE		1		B	/	H		V		*

01	Directional seat valve, direct operated, electrically operated					KSDE
02	Maximum operating pressure 500 bar					U
	Maximum operating pressure 350 bar					R
03	Component size					1
04	2 main ports
		„R“ (350 bar)		„U“ (500 bar) „R...–17“ (350 bar)

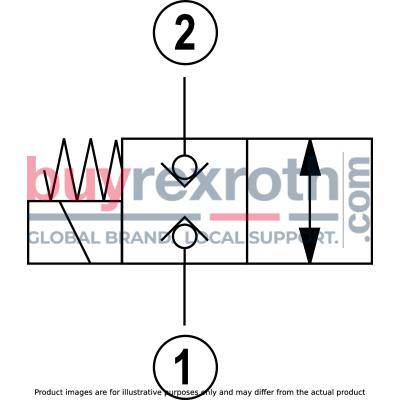

	Symbols					N
						P
05	Component series					B
06	High Performance and mounting cavity R/T-13A (see Mounting cavity)
07	Without manual override					N0
	With concealed manual override					N9
	With screwable manual override					N11
	Version	Symbol N			Symbol P
		N0	N9	N11	N0	N9	N11
	R (350 bar)	X	–	X	X	X2)	–
	U (500 bar)	X	–	–	X	–	–
Seal material
08	FKM seals (other seals upon request)					V
	Observe compatibility of seals with hydraulic fluid used.
09	Standard					no code
	Flow-optimized 3)					–17
10	Further details in the plain text					*

	1) Complete valves with mounted coil available on request
	2) Screwable manual override “N10” (actuation by means of internal hexagon with lock nut), possible as separate order, material no. R901051231; ordering code “N9” !
	3) Version “R” only (free-flowing on one side!)

hydraulic

Size			1
Maximum operating pressure	Version		„U“	„R“
	Version	bar	500 1)	350 2)
	Version “R...-17” 1)	bar	350
Maximum flow	Version		„U“	„R“
Maximum flow	Version	l/min 3)	12	20
Hydraulic fluid			see table
Hydraulic fluid temperature range		°C	-40 … +80
Viscosity range		mm²/s	4 … 500
Maximum admissible degree of contamination of the hydraulic fluid 4)			Class 20/18/15 according to ISO 4406 (c)
Load cycles	Version (R: 350 bar [5100 psi]; U: 500 bar [5100 psi])		„U“	„R“
Load cycles	Version (R: 350 bar [5100 psi]; U: 500 bar [5100 psi])	million	5	10

1)	On all ports if P ≥ A; for design reasons
2)	At all ports
3)	See performance limits
4)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oil		HL, HLP	FKM, NBR	DIN 51524
Bio-degradable	Insoluble in water	HEES (synthetic esters)	FKM	VDMA 24568
	Insoluble in water	HETG (rape seed oil)	FKM, NBR	VDMA 24568
	Soluble in water	HEPG (polyglycols)	FKM	VDMA 24568
Other hydraulic fluids on request

With the electrical connection "K4", the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

electrical

Voltage type			Direct voltage
Power supply 1)		V	12 24
Voltage tolerance against ambient temperature			See characteristic curves
Power consumption		W	22
Duty cycle		%	100
Maximum coil temperature 2)		°C	150
Switching time according to ISO 6403 (solenoid horizontal) 3)	ON (➀ → ➁)	ms	≤ 60	60
	OFF (➁ → ➀)	ms	≤ 60	60
Maximum switching frequency	Version		„U“	„R“
Maximum switching frequency	Version	Hz	3600	9000
Protection class according to DIN EN 60529	Version "K4"		IP65 (with mating connector mounted and locked)
	Version "C4"		IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127)
	Version "K40"		IP69K with mating connector mounted and locked

1)	Other voltages upon request
2)	Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!
3)	≤ 95 with version “R...-17”

general

Size			1
Weight	Valve	kg	0.3
Weight	Coil	kg	0.25
Installation position			any
Ambient temperature range		°C	-40 … +110

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 °C ± 5 °C) and 24 V coil

Δp-qV characteristic curves

Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)

Attention!

The performance limit has been determined with the solenoids at operating temperature and with 10 % undervoltage.

Voltage tolerance against ambient temperature; duty cycle

Version “R” (350 bar)

Symbol “N” normally closed

Version “R” (350 bar)

Symbol “P” normally open

Version “U” (500 bar) and “R…-17” (350 bar)

Symbol “N” normally closed

Version “U” (500 bar) and “R…-17” (350 bar)

Symbol “P” normally open

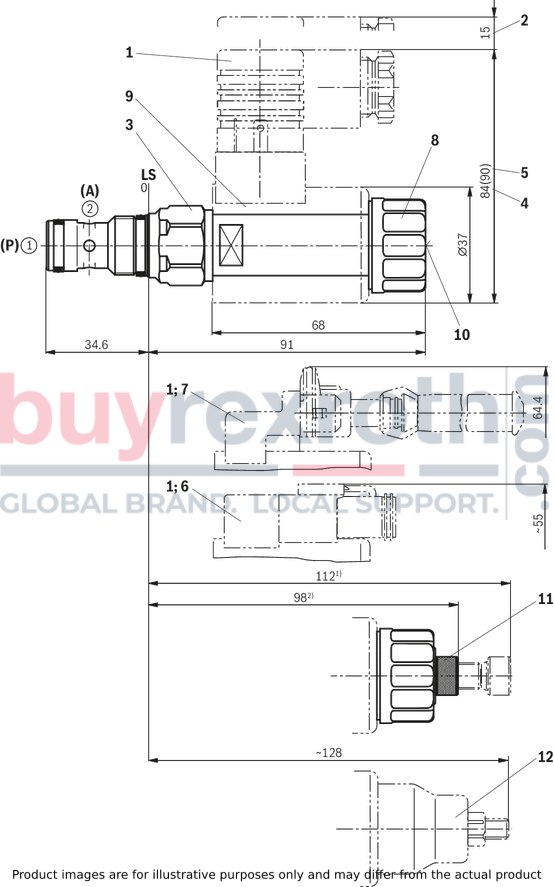

Dimensions in mm

1	Mating connector (separate order)
2	Space required to remove the mating connector
3	SW24, tightening torque MA = 60+5 Nm
4	Dimension for mating connector “K4”, without circuitry
5	Dimension () for mating connector “K4”, with circuitry
6	Version "K40"
7	Version "C4"
8	Nut, tightening torque MA = 5+1 Nm
9	Coil (separate order)
10	Concealed manual override "N9", optional
11	Screwable manual override "N11", optional
12	Screwable manual override “N10” (separate order)
➀	Main port 1, pump P 3)
➁	Main port 2, actuator A 3)
LS	Location shoulder
