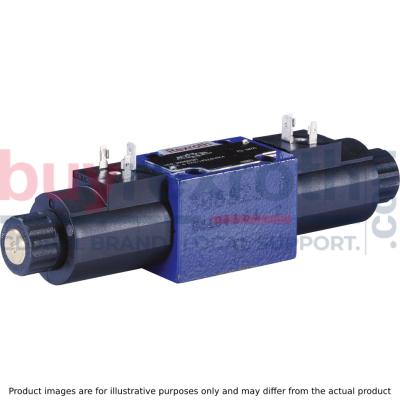

DIRECTIONAL SPOOL VALVE 4WE6G7X/HG24N9K4
Manufacturer: Bosch Rexroth
Material #: R901130747
Model : 4WE6G7X/HG24N9K4
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WE6G7X/HG24N9K4 (R901130747) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction in hydraulic systems. This direct-actuated spool valve features a spool symbol G and is capable of handling a maximum pressure with an electrical connection described as a connector pole PE according to EN standards. It belongs to the product group ID and is equipped with solenoid actuation, ensuring precise control over the number of ports it manages.
The 4WE6G7X/HG24N9K4 valve offers subplate mounting with connection diagrams conforming to NFPA T3.5.1 R2 D03 and ISO standards, making it versatile for various applications. The supply voltage required for operation is 24 VDC, and the valve allows for multiple switching positions. Its compact design includes a weight specification that ensures easy integration into existing systems.
This model uses NBR seals and can work with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC types. The directional valves of type WE are essential in controlling the start, stop, and direction of flow within hydraulic circuits. These valves consist of a housing, solenoids, control spool, and return springs. The wet-pin solenoids are particularly noteworthy as they require an oil-filled pressure chamber to function correctly.
Moreover, the 4WE6G7X/HG24N9K4 features manual override capabilities allowing operators to manipulate the control spool without energizing the solenoid—a critical feature for maintenance or emergency situations. The standard version of this valve comes in 3 or 4-way configurations with porting patterns according to DIN standards. Solenoid coils on this model can be rotated for ease of installation and maintenance without opening the pressure-tight chamber.
In summary, the Bosch Rexroth 4WE6G7X/HG24N9K4 (R901130747) offers robust performance for industrial applications requiring precise flow direction control in hydraulic systems. Its design ensures reliability and versatility across various operational conditions and system requirements.
$462.00 USD
More are expected on October 7, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 7, 2024 when ordered in
This product is eligible for factory repair.
Size 6, symbol G, electrical, 24 V DC
Industrial hydraulic valve in the medium performance range. Reliable switch-over of the oil flow direction according to hydraulic symbol.
Unpacked Weight: 1.580 kg
4/3-, 4/2- or 3/2-way version Standard version Porting pattern according to DIN 24340, form A Wet-pin DC solenoids Solenoid coil can be rotated The coil can be changed without having to open the pressure-tight chamber Electrical connection as individual connection Concealed manual override
Directional valves of type WE are solenoid-actuated directional spool valves. They control the start, stop and direction of a flow.
The directional valves basically consist of the housing (1), one or two solenoids (2), the control spool (3), and one or two return springs (4). In the de-energized condition, control spool (3) is held in the central position or in the initial position by the return springs (4). The control spool (3) is actuated by wet-pin solenoids (2).
To ensure proper functioning, make sure that the pressure chamber of the solenoid is filled with oil!
The force of the solenoid (2) acts via the plunger (5) on the control spool (3) and pushes the latter from its rest position to the required end position. In this way, the required direction of flow according to the symbol is released. After de-excitation of the solenoid (2), the return spring (4) pushes the control spool (3) back to its rest position.
The manual override (6) allows control spool (3) to be moved without solenoid energization.
Type 4WE 6 E7X/H…
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
7 |
Symbol "H" in central position P – T |
|
8 |
Symbol "G" in central position P – T |
|
Symbol |
Direction of flow |
|||
|
P-A |
P-B |
A-T |
B-T |
|
|
A, B |
3 |
3 |
– |
– |
|
C |
1 |
1 |
3 |
1 |
|
D, Y |
4 |
4 |
3 |
3 |
|
E |
3 |
3 |
1 |
1 |
|
J |
1 |
1 |
2 |
1 |
|
G |
6 |
6 |
7 |
7 |
|
H |
2 |
5 |
2 |
2 |
Switching power limits (measured with HLP46, ϑOil = 40 ±5 °C)
Notice!
The specified switching power limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible switching power limits may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us!
The switching power limit was established while the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.
|
DC solenoid |
|
|
Characteristic curve |
Symbol |
|
1 |
A, B |
|
2 |
C, Y |
|
3 |
E |
|
4 |
J |
|
5 |
D |
|
6 |
G, H |
|
7 |
D/OF |
| 1) | Only symbol D |
| 2)Example: Symbol E with switching position "a" Ordering code ..EA.. |
Version "K4"
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
1.1 |
Solenoid “a” |
|
1.2 |
Solenoid “b” |
|
2 |
Mating connector without circuitry (separate order) |
|
3 |
Mating connector with circuitry (separate order) |
|
4 |
Name plate |
|
5 |
Space required to remove the mating connector |
|
6 |
Space required to remove the coil |
|
7 |
Mounting nut, MA = 4+1 Nm |
|
8 |
Plug screw for valve with one solenoid |
|
9 |
Identical seal rings for ports A, B, P, and T |
|
10 |
Porting pattern according to DIN 24340 form A |
Version "C4Z"
Dimensions in mm
|
|
|
Required surface quality of the valve contact surface |
|
1.1 |
Solenoid “a” |
|
1.2 |
Solenoid “b” |
|
4 |
Name plate |
|
5 |
Space required to remove the mating connector |
|
6 |
Space required to remove the coil |
|
7 |
Mounting nut, MA = 4+1 Nm |
|
8 |
Plug screw for valve with one solenoid |
|
9 |
Identical seal rings for ports A, B, P, and T |
|
10 |
Porting pattern according to DIN 24340 form A |
|
11 |
Mating connector "Junior Timer", straight (separate order, see data sheet 08006) |
|
12 |
Mating connector "Junior Timer", angled (separate order, see data sheet 08006) |
Subplates according to data sheet 45052 (separate order)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000064
or
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9with friction coefficient μtotal = 0.12 to 0.17 a
tightening torque MA = 8.1 Nm ± 10 % results
(not included in the Rexroth delivery range)
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
