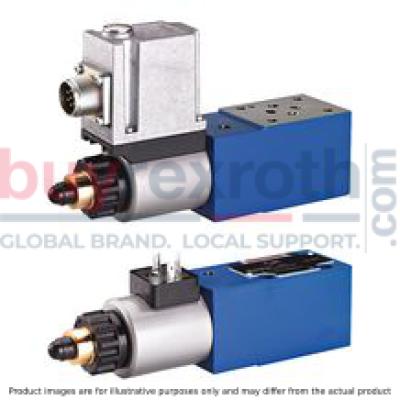

PROPORTIONAL PRESSURE RELIEF VALVE DBEBE6X-1X/315G24K31F1M

Manufacturer: Bosch Rexroth

Material #: R901126712

Model : DBEBE6X-1X/315G24K31F1M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DBEBE6X-1X/315G24K31F1M (R901126712) is a high-performance industrial hydraulic valve designed for reliable pressure relief in response to command value signals. This pilot-operated valve features integrated electronics and a spool symbol P T, ensuring precise control and functionality. With a maximum pressure capability, it is equipped with an electrical connection consisting of a connector pole PE according to EN standards. The valve boasts a number of ports for comprehensive connectivity and utilizes an electrical type of actuation with integrated electronics, which simplifies the installation process. It is designed for subplate mounting following the ISO standard, ensuring compatibility with a wide range of systems. The supply voltage required for operation is 24 VDC, and it has been engineered to operate with one switching position. Weighing in at . kg, this Bosch Rexroth valve comes equipped with NBR seals and supports analog connectivity with a command value range of 4-20 mA. It is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Proportional pressure relief valves like the DBEBE6X-1X/315G24K31F1M are essential for maintaining system pressure within safe limits and are characterized by their responsive performance. They offer adjustable settings via the solenoid armature's position against the compression spring, allowing for minimum hysteresis (< %), quick actuating times, and maximum pressure limitation even if the electronics were to fail. The valve's maximum operating pressure stands at bar while it can handle flow rates up to l/min. This makes it suitable for various demanding applications where precise pressure control is critical.

$5,339.00 USD

More are expected on April 11, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as April 11, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

PROPORTIONAL PRESSURE RELIEF VALVE DBEBE6X-1X/315G24K31F1M

Size 6, P → T, integrated electronics, 24 V DC

Industrial hydraulic valve in a high performance range. Reliable pressure relief to command value signal.

Unpacked Weight: 3.5 kg

Pilot-operated valves with position feedback and integrated electronics for system pressure limitation (pilot oil only internally) Adjustable via the position of the solenoid armature in relation to the compression spring Position-controlled, minimum hysteresis < 1%, short actuating times Maximum pressure limitation, even with defective electronics For subplate mounting: Porting pattern according to ISO 4401

Proportional pressure relief valves of type DBEBE6X are pilot control valves used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. Using these valves, short actuating times with low hysteresis can be achieved.

Pilot-operated
Proportional pressure valve in poppet seat design
Component series 1X
Operating pressure, max. 315 bar
Size 6
Volume flow, max. 40 l/min

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	P → T
Max. pressure	315
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Productgroup ID	9,10,11,12,13,14
Number of ports	2
Type of actuation	Electrical with integrated electronics
Size	6
Electrical connector	Connector 7-pole (6 + PE)
Max. flow	40
Type of connection	Subplate mounting
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D03
Size_CETOP	D03
Connection diagram	ISO 4401-03-02-0-05
Supply voltage	24 VDC
Number of switching positions	2
Weight	3.5
Seals	NBR
Connectivity	Analog, command value 4 … 20 mA
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC

01	02	03	04		05		06	07	08	09	10	11
DBEB	E	6	X	–	1X	/		G24	K31		M	*

01	Proportional pressure relief valve with inductive position transducer at the poppet	DBEB
02	With integrated electronics	E
03	Size	6
04	Porting pattern according to ISO 4401-03-02-0-05	X
05	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
Maximum pressure rating
06	Up to 80 bar	80
	Up to 180 bar	180
	Up to 315 bar	315
Supply voltage of the control electronics
07	Direct voltage 24 V	G24
Electrical connection
08	Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order	K31
Control electronics interface
09	Command value input 0 ... +10 V	A1
09	Command value input 4 to 20 mA / actual value output 4 to 20 mA	F1
10	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
11	Further details in the plain text	*

For applications outside these parameters, please consult us!

general

Type		DBEBE6X
Size		6
Component series		1X
Installation position		any
Earth	kg	3.4
Ambient temperature range	°C	-20 … +50

hydraulic

Size			6
Maximum operating pressure		bar	315
	Port P	bar	315
	Port T	bar	250
Maximum set pressure	Pressure rating 25 bar	bar	315
Maximum flow		l/min	40
Pilot flow		l/min	≈ 0.6
Hydraulic fluid temperature range		°C	-20 … +70
Viscosity range		mm²/s	10 … 800
Viscosity range	preferably	mm²/s	20 … 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 18/16/13 according to ISO 4406 (c)
Hysteresis		%	≤ 1
Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing		%	< ± 5

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

electrical

Type		DBEBE6X
Duty cycle	%	100
Power supply	V	24
Supply voltage range	V	21 … 40
Protection class according to DIN EN 60529		IP65
