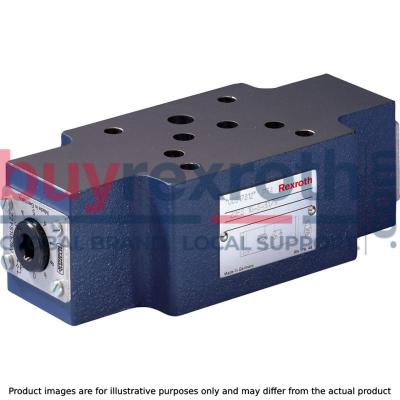

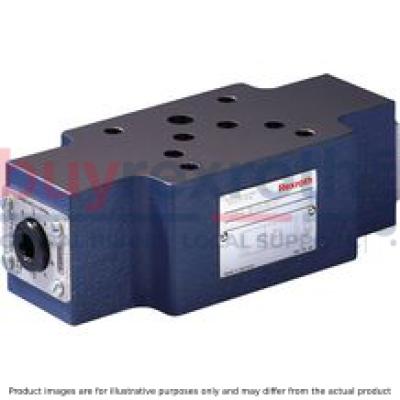

THROTTLE CHECK VALVE Z2FS10-3-3X/VSO30
Manufacturer: Bosch Rexroth
Material #: R901082914
Model : Z2FS10-3-3X/VSO30
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS10-3-3X/VSO30 (R901082914) is a high-performance industrial hydraulic valve designed for reliable throttling of flow to a set value. This mechanically actuated valve features a lockable rotary knob with scale, enabling precise adjustments to the flow rate. The model is equipped with spool symbols A A, B B or A A, B B, indicating its capability to control the flow in specified directions.
This valve falls under the product group ID ZFS and is recognized for its role in both main and pilot flow limitation for one or two actuator ports. It employs two throttle check valves arranged symmetrically to manage flows in one direction while allowing free return flow in the opposite direction. The design ensures that when supply throttling occurs, hydraulic fluid is directed efficiently through the appropriate channels and throttling points.
The Z2FS10-3-3X/VSO30 can be adjusted via a spindle for optimal control of the throttling point, maintaining the throttle spool in position using pressure and spring force. It also functions as a check valve during return flows from actuators, displacing the throttle spool against a spring to permit unobstructed flow.
For applications requiring actuator velocity adjustment through main flow limitation, this valve is installed between the directional valve and subplate. In scenarios involving pilot-operated directional valves for switching time adjustment via pilot flow limitation, it's placed between the pilot control valve and main valve.
This sandwich plate valve adheres to ISO porting patterns and offers various adjustment types including meter-in or meter-out throttling. It boasts corrosion protection and has specifications that include size CETOP D component series X with a maximum operating pressure of bar and maximum flow rate of l/min. Its design includes FKM seals compatible with various hydraulic fluids like HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR ensuring versatility across different hydraulic systems.
$504.00 USD
More are expected on April 10, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 10, 2025 when ordered in
This product is eligible for factory repair.
Size 10; A1 → A2, B1 → B2 or A2 → A1, B2 → B1; mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.
Unpacked Weight: 3.360 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 For the main or pilot flow limitation of 2 actuator ports. 3 adjustment types:• Lockable rotary knob with scale• Spindle with internal hexagon and scale• Rotary knob with scale Meter-in or meter-out throttling Corrosion-protected design
The valve type Z2FS 10 is a throttle check valve in sandwich plate design. It is used for the main or pilot flow limitation of one or two actuator ports.
Two throttle check valves aligned symmetrically to each other limit flows in one direction and allow free return flow in the opposite direction.
In case of supply throttling, the hydraulic fluid is directed through channel A1 via throttling point (1) formed by the control edge (2) and the throttle spool (3.1) to actuator A2. The throttle spool (3.1) can be axially adjusted via the spindle (4) for adjustment of the throttling point (1).
Simultaneously, the hydraulic fluid in channel A1 is directed via the bore (5) to the piston side (6). The active pressure and the spring force retain the throttle spool (3.1) in throttle position.
The hydraulic fluid return flow from actuator B2 displaces the throttle spool (3.2) against the spring (7) and enables the unobstructed flow as check valve. Depending on the installation position, the throttling effect may occur in supply or discharge.
Main flow limitation
For actuator velocity adjustment (main flow limitation), the throttle check valve is installed between the directional valve and the subplate.
Pilot flow limitation
With pilot-operated directional valves, the throttle check valve can be applied for switching time adjustment (pilot flow limitation). In this case, it is installed between the pilot control valve and the main valve.
Supply throttling
(measured with HLP46, ϑoil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve)
Δp-qV characteristic curves (constant throttle position)
Supply throttling "S"
Version „‒…SO30“
Discharge throttling "S2"
Version „‒…SO30“
Supply throttling "S"
Version „A…SO30“
Discharge throttling "S2"
Version „A…SO30“
Supply throttling "S"
Version „B…SO30“
Discharge throttling "S2"
Version „B…SO30“
➀ = component side
➁ = plate side
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. Version "SO30" is shown. The standard version does not have ports X and Y.Dimensions: Version "–"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
8 |
Modification from supply to discharge throttling is realized by rotation of the device around axis "X" – "X" (version "–" only) |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "A"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "B"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30" is shown. The standard version does not have ports X and Y.
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
4 hexagon socket head cap screws 1/4-2 UNC
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Dimensions in mm
Dimensions in mm
