VT-MRPA1-151-1X/V0/0

Manufacturer: Bosch Rexroth

Material #: R901080966

Model : VT-MRPA1-151-1X/V0/0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth VT-MRPA1-151-1X/V0/0 (R901080966) is a sophisticated amplifier module designed for use with proportional valves. This component series X device features a modular design, making it suitable for a variety of applications where precise control of hydraulic systems is required. The unit is engineered to be mounted on top hat rails following EN standards, ensuring easy installation and secure placement. Equipped with an integrated power supply unit and a making current limiter, the VT-MRPA1-151-1X/V0/0 ensures stable operation by supplying all necessary internal voltages while preventing high making current peaks. Command value presetting is achieved through the combination of an external command value signal at the differential input and an adjustable zero point offset potentiometer, allowing for accurate control over pressure increase in the valve. An enable function is included to activate the current output stages, smoothly transitioning the internal command value signal to the ramp generator. This feature prevents abrupt valve opening by adjusting the internal command value according to set ramp times, which are indicated by LED displays on the front plate for operational readiness and enable status. The ramp generator itself is designed to limit control output incline without affecting ramp time, which can be adjusted separately for both up and down actions. Additionally, an amplitude attenuator allows for fine-tuning of maximum values based on hydraulic requirements within a specific range. Safety and reliability are enhanced through features like cable break detection for actual value cables, reverse polarity protection for operating voltage, and short-circuit-proof current output stage that deenergizes in case of internal faults or absence of an enable signal. Overall, this Bosch Rexroth amplifier module provides robust control features such as fault recognition capabilities, demodulator for actual value signal processing from position transducer signals, and a controller optimized specifically for minimizing valve hysteresis. It's compatible with valves FREX and FREX2, offering precision control in demanding hydraulic systems.

$1,261.00 USD

More are expected on September 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 30, 2024 when ordered in

Differential input for voltage Ramp generator with separately adjustable ramp times "up/down" Adjustable zero point and sensitivity Enable input Cable break detection for actual value cable Reverse polarity protection for the operating voltage LED displays for ready for operation and enable

General information

The amplifier modules are snapped onto top hat rails according to EN 60715. The electrical connection is established via screw terminals. The modules are operated at 24 V direct voltage.

Power supply unit [1]

The amplifier modules have a power supply unit with making current limiter. This unit supplies all internally required positive and negative supply voltages. The making current limiter prevents high making current peaks.

Command value presetting

The internal command value signal is

calculated from the total [3] of the external command value signal available at the differential input [2] and the zero point offset (zero point potentiometer "Zw").

A positive command value results in a current increase in the solenoid and thus a pressure increase in the valve.

Enable function [11]

The enable function enables the current output stages and forwards the internal command value signal to the ramp generator. The enable signal is indicated by an LED on the front plate. If enable is connected, the internal command value is changed (with any kind of command value presetting) by the set ramp time. Thus, a controlled valve does not open abruptly.

Ramp generator [4]

The ramp generator limits the incline of the control output. The amplitude attenuator does not extend or shorten the ramp time.

Information on ramp time settings and measurement:

Value at measuring socket "t <” or "t >"	U/V	5	3	2	1	0.5	0.3	0.2	0.1	0.05	0.03	0.02
Current ramp time (±20 %)	t/ms	20	33	50	100	200	333	500	1000	2000	3333	5000

Formula for calculation of the ramp times:

t in ms, U in volt at the measuring socket

Amplitude attenuator [5]

By means of the amplitude attenuator "Gw", the maximum value can be adjusted to the hydraulic requirements in a range between 0 and 100 %.

Amplitude limiter [6]

The internal command value is limited to 0 % and 110 %.

Oscillator [9]

The oscillator creates the control signal for the inductive position transducer.

Demodulator [10]

The demodulator supplies the actual value signal of the control spool position from the position transducer signal.

+100 % ≙ +10 V at measuring socket "x"

Controller for the control spool position [7]

The position controller is intended to minimize the valve hysteresis and is optimized in a valve-specific manner.

Current output stage [8]

The current output stage creates the clocked solenoid current for the proportional valve. The solenoid current is limited to approx. 1.85 A. The output stage output is short-circuit-proof. The output stage is de-energized in case of an internal fault signal or if the enable signal is missing.

Fault recognition [14]

The position transducer cable is monitored for cable break and short-circuits on the primary side as well as for over-currents at the output stage.

[ ] = Assignment to the block diagram

General

Component series		1X
Type of electronics		Analog
Design		Modul

Voltage supply

Operating voltage	nominal	U	V	24
	Lower limit value	UB(t)min	V	18
	Upper limit value	UB(t)max	V	35
Power consumption	max.	PS max	VA	24
Current consumption	max.	I	A	2
Fuse				Thermal overload protection (with restart if the value falls below the temperature threshold)

Analog inputs

Command value	Voltage (differential input)		U	V	0 ... 10
Command value	Voltage (differential input)	Input resistance	R	kΩ	≥ 50

Digital inputs

Enable	On (active) 1)	U	V	8.5 ... UB
Enable	Off (inactive)	U	V	0 ... 6.5

1)	RE > 100 kΩ

Solenoid outputs

Solenoid current	max.	Imax	A A	1.85
Clock frequency (freely clocking)		f	Hz	5 kHz
Solenoid output	other properties			Short-circuit-proof, clocked

Position transducer

Oscillator voltage	U	V	2 (I = 10 mA)
Oscillator frequency	U	V	5.6

Adjustment options

Amplitude attenuator 1)	for command value	%	0 ... 110
Zero point	Druckistwert	%	± 10
Ramp time up/down		s	0.02 … 5

1)	Applies to a zero point setting of 0 %.

Measuring sockets

Command value	"w"	V	0 ... 10
Ramp time	“down"	s	0.02 ... 5
Ramp time	“up"	s	0.02 ... 5
Actual value	"x"	V	0 ... 10

Displays

LED display	green		Ready for operation
LED display	yellow		Enable

Supplementary information

Anschlussart			12 screw terminals
Mounting type			Top hat rail TH 35-7.5 according to EN 60715
Type of protection according to EN 60529			IP 20
Ambient temperature range	ϑ	°C	0 … 50
Storage temperature range	ϑ	°C	-25 … 70
Weight	m	kg	0.14

For applications outside these parameters, please consult us!

Notice:

For information on environment simulation testing for the fields EMC (electro-magnetic compatibility), climate and mechanical load, see data sheet 30221-U.

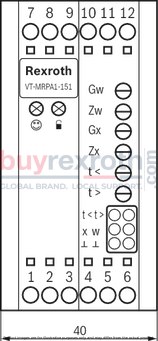

LED displays

	Ready for operation (green)
	Enable (yellow)

Potentiometer

Gw	Amplitude attenuator
Gx	Sensitivity actual value
Zw	Zero point command value
Zx	Zero point actual value
t <	Ramp time "Ramp up"
t >	Ramp time "Ramp down"

Measuring sockets

t <	Ramp time "Ramp up"
t >	Ramp time "Ramp down"
x	Actual value
w	Command value
⊥	Reference potential

Zw	Zero point command value
Zx	Zero point actual value
t <	Ramp time "Ramp up"
t >	Ramp time "Ramp down"
Gw	Amplitude attenuator
Gx	Sensitivity actual value
w	Command value
x	Actual value
	Ready for operation
	Enable
1	Power supply unit
2	Differential amplifier
3	Command value summation
4	Ramp generator
5	Amplitude attenuator
6	Amplitude limiter
7	Valve position controller
8	Power output stage
9	Oscillator
10	Demodulator
11	Enable
12	Proportional valve
13	Position transducer
14	Fault recognition

Mounting cavity R/T-11A; 3 main ports; thread M20 x 1.5 mm

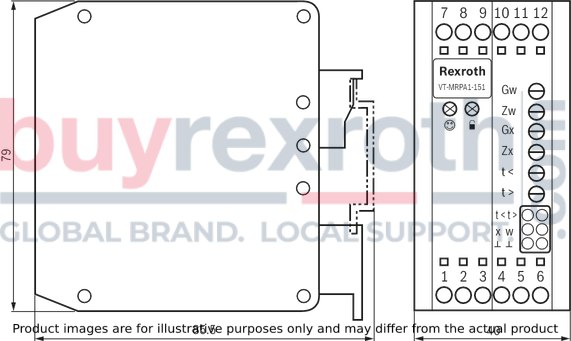

Dimensions in mm

The amplifier module may only be wired when de-energized.

Do not lay lines close to power cables.

Do not use free-wheeling diodes in the solenoid conductors.

The distance to aerial lines, radios, and radar systems has to be at least 1 m.

Always shield command value and position transducer lines; connect shielding to protective earthing (PE) on the module side.

In some cases (e.g. if PE is subject to strong interference) it can be necessary to connect the shield of the position transducer line directly to the LO of the amplifier module; other side open (risk of ground loops).

Recommendation: Also shield the solenoid conductors.

For solenoid conductors up to a length of 50 m, use cable type LiYCY 1.5 mm2.

For greater lengths, please contact us.

Do not connect terminal "earthing symbol" of the position transducer connector to "PE".

For switching command values, relays with gold-plated contacts have to be used (low voltages, low currents).

Only carry out measurements at the module using instruments with Ri > 100 kΩ.

With a strongly fluctuating operating voltage, it may in individual cases be necessary to use an external smoothing capacitor with a capacity of at least 2200 µF.
Recommendation:
Capacitor module VT 11110 (see data sheet 30750); sufficient for up to 3 amplifier modules

Notice:

When exchanging VT 11025, VT 11033 or VT 11034, please observe the different terminal assignment of the position transducer connector. Terminals 6 and 12 are swapped.

Setting information

Requirements: The system-specific circuitry must have been completed.

Zero point command value

Apply enable signal

Set the external command value presetting to zero

Set the internal command value to zero using the "Zw" zero point potentiometer and carry out a check at measuring socket "w"

Zero point actual value

Enable signal "OFF" or pull solenoid plug (valve moves to mechanical end position)

With potentiometer "Zx", set the actual value at measuring socket "x" to zero.

Ramp times

Set ramp time according to formula or table (see functional description "Ramp generator”) and check it at the "t >" and "t <" measuring sockets

Maximum values

Notice:

Before comparing the maximum value, the zero point must have been set correctly.

Externally preset a command value of 100 %

Set maximum control output using the "Gw" potentiometer and carry out a check at measuring socket "w"
