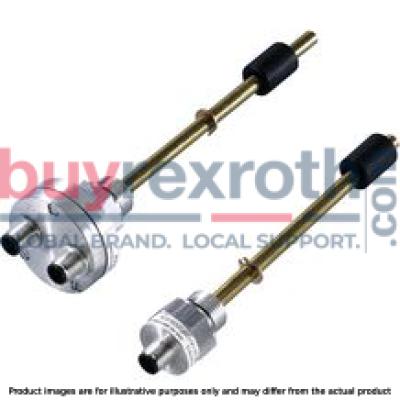

ABZMS-35-1X/165F085S-T70F-K24

Manufacturer: Bosch Rexroth

Material #: R901057920

Model : ABZMS-35-1X/165F085S-T70F-K24
