PRESSURE REDUCING VALVE 3DREPE6A-2X/16EG24K31/F1M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

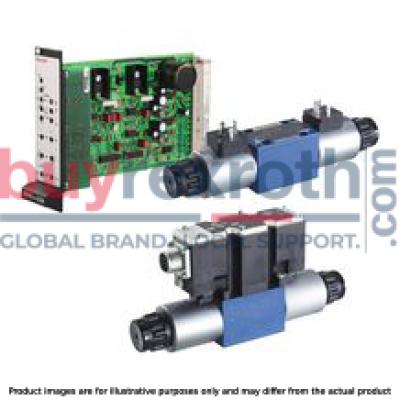

The Bosch Rexroth 3DREPE6A-2X/16EG24K31/F1M (R901045206) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a commanded value signal. This direct-actuated spool valve features a pressure adjustment range up to the maximum pressure limit, with a spool symbol of P A A T. It offers electrical actuation with integrated electronics for precise control and has a supply voltage requirement of 24 VDC. The valve is suitable for subplate mounting and follows the NFPA T3.5.1 R2-2002 D03 and ISO 4401 porting patterns, ensuring compatibility with standard configurations. The 3DREPE6A-2X/16EG24K31/F1M has a maximum flow rate capacity, which is facilitated through its four ports and is equipped with an electrical connector that adheres to the Connector pole PE according to DIN EN standards. This model's robust design includes NBR seals compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The valve's weight is noted to be practical for its application range. Additionally, it features a manual override option which must be used cautiously to prevent uncontrolled machine movements. The Bosch Rexroth 3DREPE6A-2X/16EG24K31/F1M valve operates by converting electric input signals into proportional pressure output signals using proportional solenoids that are controllable and wet-pin DC solenoids with central threads and detachable coils. The valve can be configured with either external control electronics (type DREP) or integrated control electronics (type DREPE), providing flexibility in system integration. In summary, this Bosch Rexroth proportional valve stands out for its direct operation, customizable electronic controls, robust construction for various hydraulic applications, and adherence to industry standards for mounting and electrical connections.
