$10,104.00 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 7, 2024 when ordered in

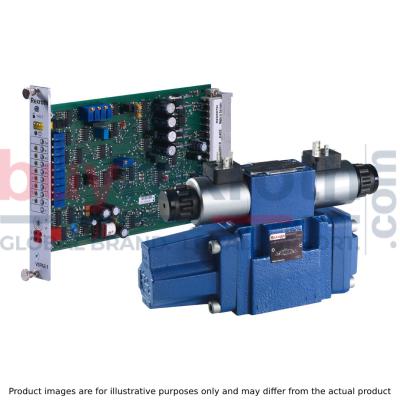

| With concealed manual override: With concealed auxiliary actuation |
| Spool valve |
| Pilot-operated |
| External pilot oil supply, internal pilot oil return |
| With pressure reducing valve |
| Component series 7X |
| Maximum operating pressure 350 bar |
| Size 10 … 32 |
| Maximum flow 1600 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | Symbol W6 |
| Max. pressure | 350 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | Electrical with external electronics |
| Size | 32 |
| Electrical connector | Connector 3-pole (2 + PE) |
| Max. flow | 1600 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D10 |
| Size_CETOP | D10 |
| Nominal flow | 520 |
| Connection diagram | ISO 4401-10-09-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 3 |
| Weight | 43.560 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
