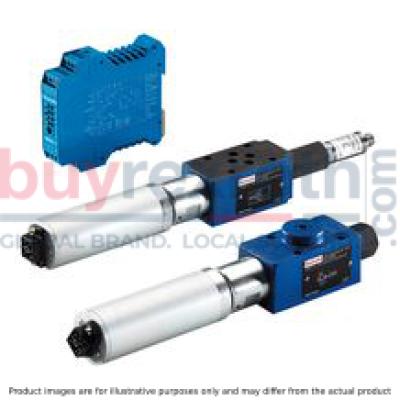

PROP PRESSURE CONTROL VALVE -Z ZDRS6VP-1X/50AMG24K32MG

Manufacturer: Bosch Rexroth

Material #: R901025495

Model : ZDRS6VP-1X/50AMG24K32MG

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDRS6VP-1X/50AMG24K32MG (R901025495) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a predetermined command value signal. This pilot-operated spool valve features a pressure rating of up to 315 bar and is capable of handling maximum flow rates efficiently. It is equipped with a size 6 spool symbol P P and offers electrical actuation with external electronics, including a 24 VDC electrical connector with a 4-pole PE type GOFAVM. The ZDRS6VP-1X/50AMG24K32MG valve is designed for sandwich plate mounting and conforms to the ISO standard connection diagram, as well as the NFPA T3.5.1 R2 D03 Size CETOP D03 porting pattern. The valve's structure comprises a pilot control valve, DC motor with position feedback, and main valve assembly, which can be optionally configured with or without a pressure transducer. This Bosch Rexroth valve functions by setting the reduced pressure in channel A via the DC motor based on the command value. It ensures that the pressure in port A remains consistent with the set pressure at the pilot control valve. Additionally, if there are any instances where the supply voltage fails or an error message is sent by the control electronics, the self-locking DC motor will maintain the pressure adjustment. For applications requiring precise pressure monitoring, this model may include integrated pressure transducers connected to the electronics for recording and monitoring purposes. Alternatively, it can be used with a sandwich plate for external pressure measurement. Overall, this Bosch Rexroth hydraulic valve stands out for its robust construction, precision control capabilities, and versatile application potential in systems requiring controlled pressure reduction with high reliability and safety standards.

$5,190.00 USD

More are expected on March 11, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as March 11, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

PROP PRESSURE CONTROL VALVE -Z ZDRS6VP-1X/50AMG24K32MG

Size 6, P2 → P1, electrical with external electronics, 24 V DC

Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.

Unpacked Weight: 1.82 kg

Pressure reduction in ports A or P1 with pressure limitation For subplate mounting Porting pattern according to ISO 4401-03-02-0-05 As sandwich plate valve Self-locking DC motor → if the supply voltage fails or an error message is sent by the control electronics, the pressure adjustment is maintained Position feedback Integrated pressure monitoring, optional

Valves of type ZDRS are pilot-operated 3-way pressure reducing valves with pressure limitation of the actuator. They are used for reducing a system pressure.

Set-up

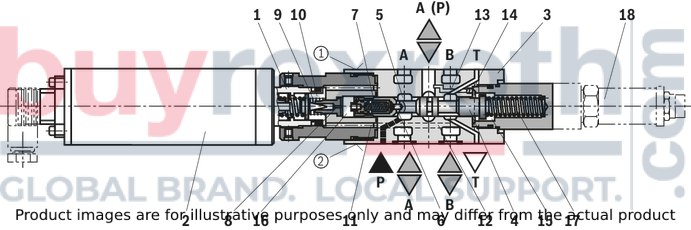

The valves consist of three main assemblies:

Pilot control valve (1) DC motor (2) with position feedback Main valve (3) with main spool (4) Optionally with or without pressure transducer (18)

Function

Command value-dependent setting of the pressure to be reduced in channel A via the DC motor (2). In the depressurized port P, the spring (17) holds the main spool (4) in the initial position → Connection from port A to T open, port P to A blocked Pressure connection from port P to the ring channel (5). Pilot oil flows through the bore (6) via the flow controller (7) into the pilot control chamber (16), via the nozzle (8), the throttle gap (9) into chamber (10) and via bores (11; 12) to port T.

Pressure reduction

Build-up of the pilot pressure in the pilot control chamber (16) as a function of the command value. Movement of the main spool (4) to the right → hydraulic fluid flows from P to A. Actuator pressure present in port A to the spring chamber (15) via channel (13) and nozzle (14). Increase in the pressure in port A to the set command pressure leads to the movement of the main spool (4) to the left in its control position. Pressure in port A is almost identical to the set pressure at the pilot control valve (1).

Pressure limitation not possible if there is dirt.

If the pressure in port A (P1) exceeds the set command pressure, the main spool (4) is moved further to the left. This closes the connection from P to A (P1), opens the connection from P1 to T and limits the pressure present in port A(P1) according to the set command value.

Pressure monitoring

With valves with integrated pressure transducers, the transducer is connected to the electronics and is intended for the recording and monitoring of the pressure set in channel P1. Another alternative is a valve without integrated pressure transducer but with a sandwich plate for pressure measurement. (For example applications, see data sheet 62003)

Notice:

If the voltage supply of the control electronics is switched off or fails, the DC motor stops at its current position which means that, if the hydraulic supply is available, the most recently set pressure is maintained.

Type ZDRS 6 VP-1X/...

Spool valve
Pilot-operated
Pressure rating 50 bar
With position feedback
DC motor actuation
Size 6
Component series 1X
Operating pressure, max. 210 bar
Maximum flow 30 l/min

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

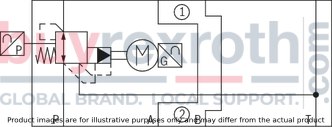

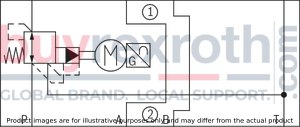

Spool symbol	P2 → P1
Max. pressure	210
Electrical connection description	Connector 6-pole (5 + PE) type GO51FAVM
Productgroup ID	9,10,11,12,13,14
Number of ports	4
Type of actuation	Electrical with external electronics
Size	6
Electrical connector	Connector 6-pole (5 + PE)
Max. flow	30
Type of connection	Sandwich plate
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D03
Size_CETOP	D03
Connection diagram	ISO 4401-03-02-0-05
Supply voltage	24 VDC
Number of switching positions	2
Weight	1.82
Seals	NBR
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC

01	02	03	04		05		06	07	08	09	10	11	12	13
Z	DRS	6	VP	‒	1X	/			M	G24	K32		G	*

01	Sandwich plate	Z
02	Proportional pressure reducing valve with DC motor actuation	DRS
03	Size 6	6
Pressure reduction
04	In channel P (sandwich plate valve)	VP
05	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
Pressure rating
06	50 bar	50
	100 bar	100
	210 bar	210
07	Without pressure transducer at the device	A
07	With pressure transducer at the device (version "100” only)	S
08	Without check valve	M
Supply voltage of the control electronics
09	Direct voltage 24 V	G24
Electrical connection
10	Without mating connector, with connector type GO51FAVM	K32 1)
Seal material
11	NBR seals	M
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
12	With position feedback	G
13	Further details in the plain text	*
1)	Mating connector, separate order

For applications outside these parameters, please consult us!

general

Type		ZDRS
Size		6
Component series		1X
Installation position		any, preferably horizontal
Weight	kg	1.5
Storage temperature range	°C	-20 … +80
Ambient temperature range	°C	-20 … +60

hydraulic

Type			ZDRS
Size			6
Maximum operating pressure		bar	210
Maximum operating pressure	Port P	bar	250
	Port P1	bar	210
	Port P2	bar	250
	Port A	bar	210
	Port B	bar	210
	Port T 1)		separate and depressurized to the tank (flow 30 l/min possible)
Maximum set pressure in ports P1 and A	Pressure rating 50 bar	bar	50
	Pressure rating 100 bar	bar	100
	Pressure rating 210 bar	bar	210
Minimum pressure in channel P or P➁			Set pressure in channel A or channel P1 plus 20 bar
Minimum set pressure with command value 0 V in channel A or P➀			see characteristic curves (maximum of 3 bar)
Pilot flow		l/min	0.65
Maximum flow		l/min	30
Hydraulic fluid			see table
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range		mm²/s	15 … 280
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2)			Class 20/18/15 according to ISO 4406 (c)
Hysteresis 3)		%	< 2
Repetition accuracy 3)		%	< ± 1
Linearity 3)		%	< 2
Response sensitivity 3)		%	< 0.5
Valve manufacturing tolerance of the command value pressure characteristic curve 4)		%	< ± 6
Step response Tu + Tg 5)	0 ... 100 %	ms	< 500
Step response Tu + Tg 5)	100 ... 0%	ms	< 500

1)	Pressures > 10 bar may cause destruction of the motor
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
3)	Of the maximum set pressure
4)	of the maximum set pressure By zero point and range calibration in the electronics type VT-MRMA1-1-1X/V0/0, the manufacturing tolerance of the complete unit (valve + electronics) can be reduced
5)	Tu + Tg measured with standing hydraulic fluid column of < 5 liters

Notice:

The technical data were determined at a viscosity of 46 mm²/s (HLP46; 40 °C).

Hydraulic fluid	Classification	Suitable sealing materials	Standards	Data sheet
Mineral oil	HL, HLP	NBR / FKM	DIN 51524	90220
Bio-degradable - insoluble in water	HEES	FKM	ISO 15380	90221
Bio-degradable - soluble in water	HEPG	FKM	ISO 15380	90221
Flame-resistant - water-free	HFDU	FKM	ISO 12922	90222
Flame-resistant - containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).	Flame-resistant - containing water: Maximum pressure differential 210 bar, otherwise increased erosion cavitation Pressure pre-loading at the tank port > 20% of the pressure differential, otherwise increased erosion cavitation Life cycle as compared to operation with mineral oil HL, HLP 30% to 100% Bio-degradable: When using hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate (700 mg zinc per pole tube).

electrical

Type			ZDRS
Power supply	Nominal voltage	V	18
Rated current		A	0.5
Rated current tolerance		%	± 20
Connection resistance		Ω	9.9
Maximum continuous current		A	0.5
Winding temperature		°C	≈ 20
Winding temperature		K	100
Protection class according to DIN EN 60529			IP65 (with mating connector mounted and locked)

Notice:

The valves may not be used for safety-relevant machine functions since only the electrical area and not the hydraulic area is secured. This means that if the hydraulic pressure in P drops to 0 bar, the actuator pressure (A) or secondary pressure (P➀) is inevitably 0 bar as well.

When establishing the electrical connection, the protective earthing conductor (PE) has to be connected properly.

(measured with HLP46, ϑOil = 40 ±5 °C)

Type ZDRS (P➁ → P➀)

Type ZDRS

Notice:

The indicated pressure differential value corresponds to the minimum pressure available in port P (P➁) minus the maximum pressure to be controlled in port A (P➀).

Pressure in port P➀ or A dependent on the command value

Pressure rating 50 bar

Pressure rating 100 bar

Pressure rating 210 bar

Minimum set pressure in port P➀ or A with command value 0 V

(without counter pressure in channel T or T➀)

Pressure rating 50 bar

P① → T②	P② → P①

Pressure rating 100 bar / 210 bar

P① → T②	P② → P①

Pressure in port P➀ or A dependent on the flow

Pressure rating 50 bar

P① → T②	P② → P①

Pressure rating 100 bar

P① → T②	P② → P①

Pressure rating 210 bar

P① → T②	P② → P①

(① = component side, ② = plate side)

Version "A" (with pressure transducer)

Version “S” (with pressure transducer)

1	Position feedback +
2	Position feedback output
3	Position feedback -
4	Motor +
5	Motor -
	PE = GND

Pressure transducer at the device, version “S" (M12 plug-in connection, 4-pole; view to contact side)

	Voltage	Current (two-wire system)
1	Auxiliary energy + (+UB)	Auxiliary energy + (+UB)
2	n.c.	n.c.
3	Auxiliary energy - (0 V)	Auxiliary energy - (0 V)
4	Output signal	n.c.

Type ZDRS

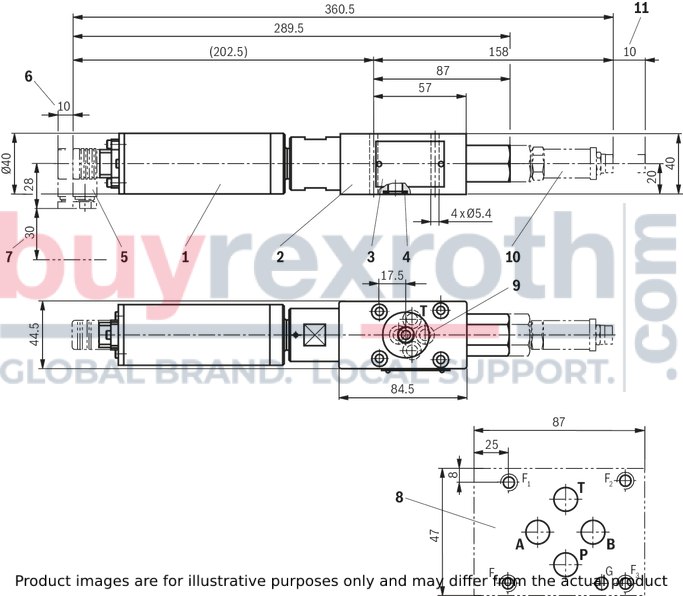

Dimensions in mm


Required surface quality of the valve contact surface

1	DC motor
2	Valve housing
3	Name plate
4	Identical seal rings for ports A, P, T and blind counterbore B
5	Mating connector, separate order
6	Space required to remove the mating connector
7	Space required for connecting cable Note: The mating connector can be fitted offset by 4 x 90°.
8	Porting pattern according to ISO 4401-03-02-0-94 Deviating from the standard: Valve is not equipped with locating pin
9	Blind counterbore (port B)
10	Pressure transducer for type ZDRS...S
11	Space required to remove the mating connector

Recommended valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M5 - 10.9-flZn-240h-L

(Friction coefficient μtotal = 0.09 to 0.14)

Tightening torque MA = 7 Nm ± 10%

4 hexagon socket head cap screws ISO 4762 - M5 - 10.9

(Friction coefficient μtotal = 0.12 to 0.17)

Tightening torque MA = 8.1 Nm ± 10%

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

Subplates (separate order) see data sheet 45052.

Spare parts & repair

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded

4P M12 +

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded

4P M12 +

For sensors and valves with connector “K24”, “K35” and “K72” Cable sets M12, 4-pole, line cross-section 0.34 mm2

Data sheet

Spare parts & repair
