| Screw-in cartridge valve |
| Maximum operating pressure 420 bar (6000 psi) |
| Maximum flow 2 l/min (0,5 gpm) |
| Cavity SUN T-8A |
| Data Sheet | Download Data Sheet |
| Max. pressure | 420 |
| Coil | GP37 |

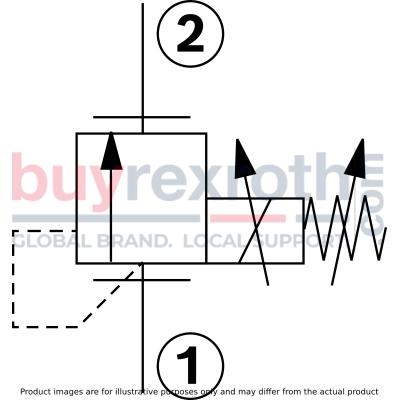

| Product family classification | Proportional pressure relief valve, direct operated, decreasing characteristic curve |
| Productgroup ID | 9,10,11,12,13,14 |
| Product family type | KBPS |
| Ports number | 2 |
| Type of actuation | Electro-proportional |
| Sealing material | FKM |
| Cavity | Sun T-8A |
| Product type | KBPS |
| Electrical connector | AMP Junior Timer |
| Max. flow | 2 |
| Type of connection | Screw-in cartridge valve |
| Normal position | Normally closed |
| Nominal flow | 2 |
| Direct - Pilot | Direct acting |
| Product family | Relief |
| Supply voltage | 24 V DC |
| Coil integrated | Integrated coil |
| Spool Poppet | Poppet type |
| Weight | 0.44 |
| Hydraulic fluid | HL,HLP,HEES,HEPG |
